Allée confinée autoportante universelle

Our solution enables a flexible choice of the number and size of cabinets. Data center operators can therefore easily relocate the cabinets according to their actual needs. In addition, the product can be customized for the required width and length of the aisle.

Fiche technique En savoir plus

Où nous trouver ?

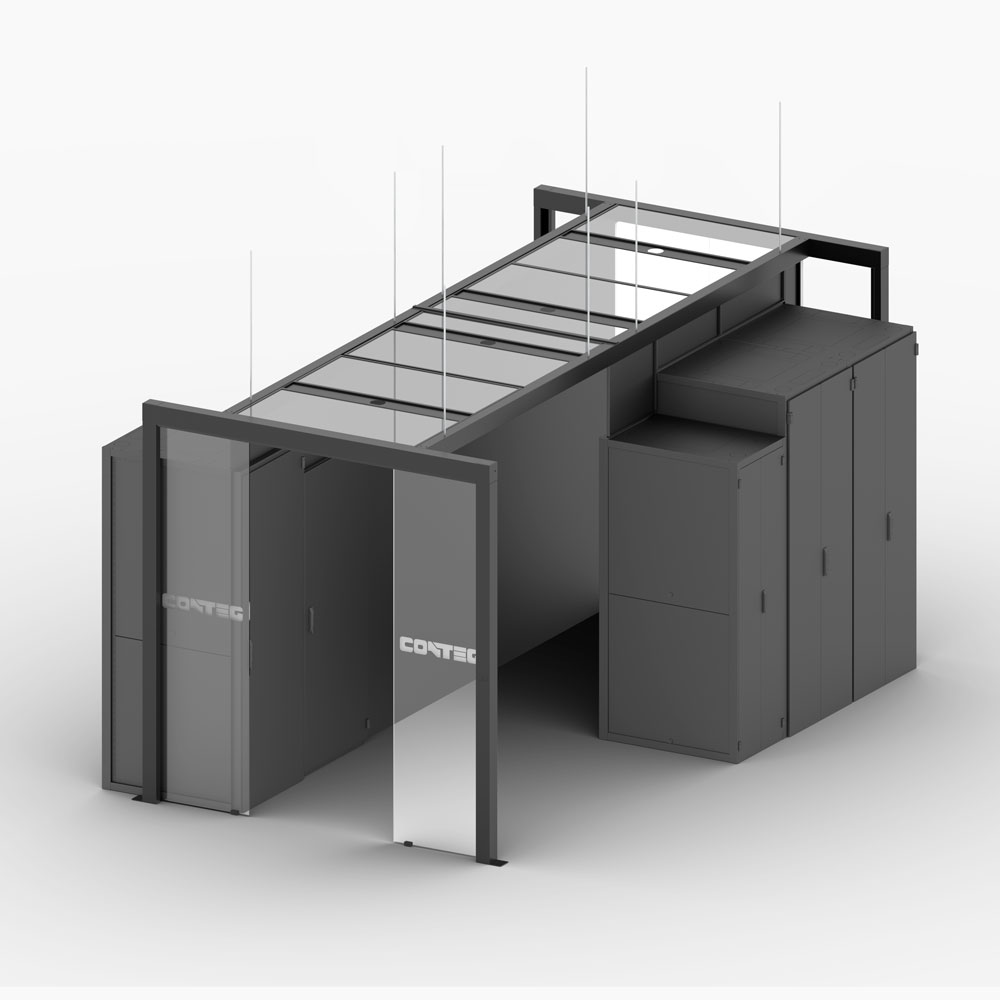

universal-free-standing-contained-aisle-1

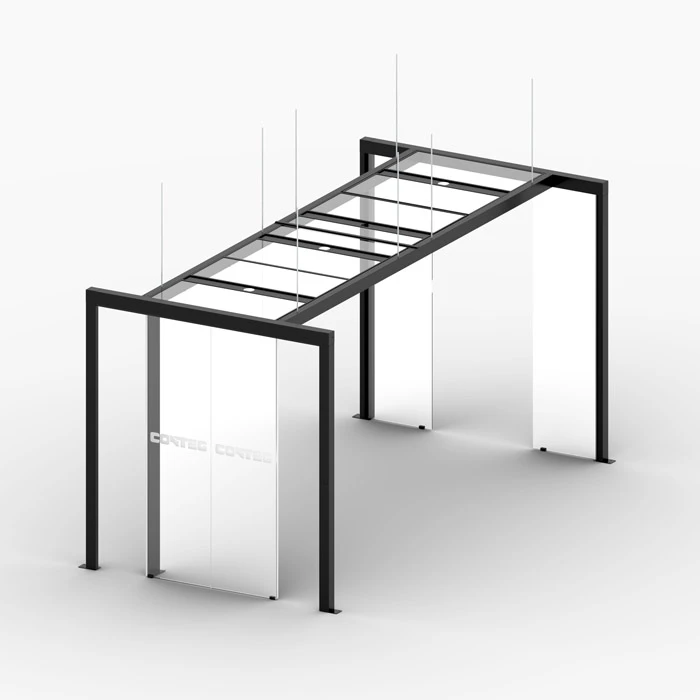

universal-free-standing-contained-aisle-without-frame

Présentation du produit

"CONTEG thinks first and foremost about the needs of its customers. That is why we have developed a unique universal self-supporting aisle.

Our solution enables a flexible choice of the number and size of cabinets. Data center operators can therefore easily relocate the cabinets according to their actual needs. In addition, the product can be customized for the required width and length of the aisle.

The universal aisle has a standard width of 1,200 millimeters, but we can customize it to 1,000 or 1,800 millimeters upon request. The length of the standard roof module is 2,400 millimeters and can be extended."

Information Pour télécharger

Information

Caractéristiques principales

Nom de la ligne de produits	Self-supporting contained aisle
Informations techniques	Universal free-standing contained aisle solution. Clear height 2,500 mm for 52U cabinets with castors. Standard width 1,200 mm, optionally 1,000 or 1,800 mm. The length of the standard roof module is 2,400 mm and can be extended. Fully glazed doors with a logical full opening system. Blanking hanging panels to cover the gap instead of a plinth or the space above the cabinet. Polycarbonate roof panels with a width of 600 mm; optionally a 150 mm wide panel with an opening for a fire protection system (sprinkler). Support by suspension from the ceiling or by auxiliary posts.

Nom de la ligne de produits

Self-supporting contained aisle

Informations techniques

Universal free-standing contained aisle solution.
Clear height 2,500 mm for 52U cabinets with castors.
Standard width 1,200 mm, optionally 1,000 or 1,800 mm.
The length of the standard roof module is 2,400 mm and can be extended.
Fully glazed doors with a logical full opening system.
Blanking hanging panels to cover the gap instead of a plinth or the space above the cabinet.
Polycarbonate roof panels with a width of 600 mm; optionally a 150 mm wide panel with an opening for a fire protection system (sprinkler).
Support by suspension from the ceiling or by auxiliary posts.
