CoolRAC DF
Présentation du produit
The CoolRAC DF indoor cooling unit combines the advantages of CW and XC systems – Free-Cooling (free cooling) for low and medium outdoor temperatures and compressor-based cooling for high outdoor temperatures. This system therefore achieves minimal operating costs without the need for compromises.Principaux avantages
- Free-Cooling for most of the year – the unit has the most efficient heat exchanger in its category.
- The smart control system uses Free-Cooling to pre-cool the air even at high outdoor temperatures to keep power consumption minimal.
- The return on investment of this unit is just a few years, thanks to low operating costs (compared to DX and XC systems).
- With water as the main heat carrier, the waste heat can be recycled, e.g. for heating or other purposes and thereby further reduce the costs.
- The water circuit and the compressor circuit can be connected to two independent water sources for full redundancy.
Information
Caractéristiques principales
| Nom de la ligne de produits |
CoolRAC DF |
|---|---|
| Texte principal 2 |
The DF hybrid unit runs up to 60% of the year in the Free-Cooling mode, 26% of the year in the Hybrid mode and only 14% of the year in the Compressor mode. |
| Idéal pour |
Open aisle Closed cold/hot aisle Data center of any size |
|
2 in 1 – a small and efficient cooling unit that cleverly combines water-based and compressor-based cooling. Electronically controlled expansion valve – maximum cooling efficiency for any conditions Inverter-controlled compressor – minimum energy consumption for all cooling capacities Fans with EC technology enable efficient and smooth air flow control. The smart control system ensures that the required air parameters are maintained with great precision with minimum power consumption, and immediately alerts you to any issues. Operating range from -40 °C to +40 °C (the upper temperature limit depends on the size of the outdoor heat exchanger). Accessories that expand the range down to -55 °C are available upon request. R410A coolant |
|
| Remarque |

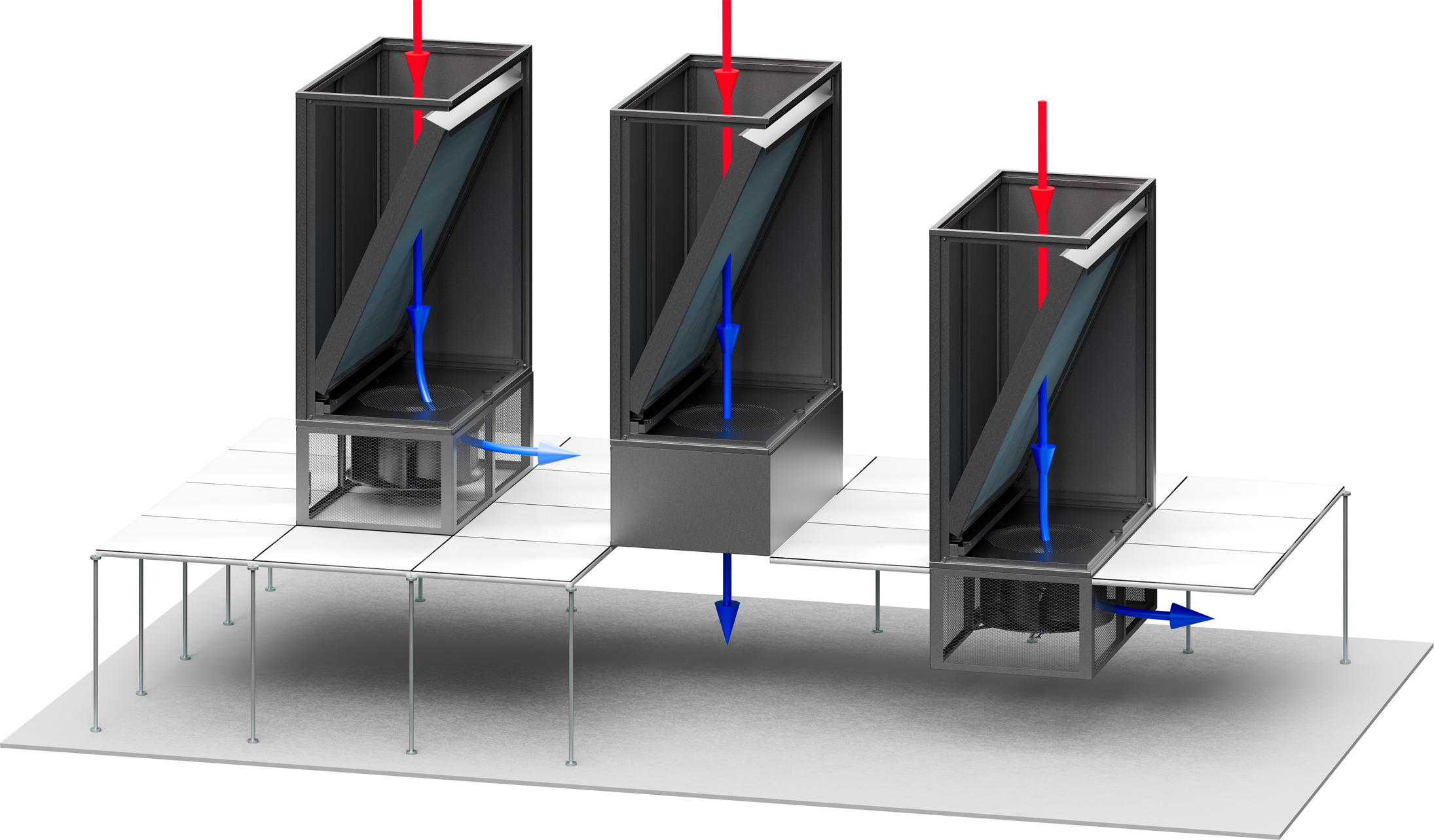

Examples of solutions with various installation options of a fan module with an air outlet: Above the floor In a double floor With the fan module installed under the floor https://www.conteg.cz/data/files/filemanager/276/conteg-coolrac-3x-schema-1476.jpg CoolRAC units can be fitted with one or two powerful radial EC fans to increase redundancy. They can also be equipped with a wide range of additional accessories. |
| Citation |
The CoolRAC series includes a precision cooling units specially designed for easy integration into new as well as renovated data centers. These air conditioning units - with different cooling principles, dimensions, and performance - remain the most popular system for effective targeted cooling from smaller server rooms to large data centers. |
