CoolTop DX

Présentation du produit

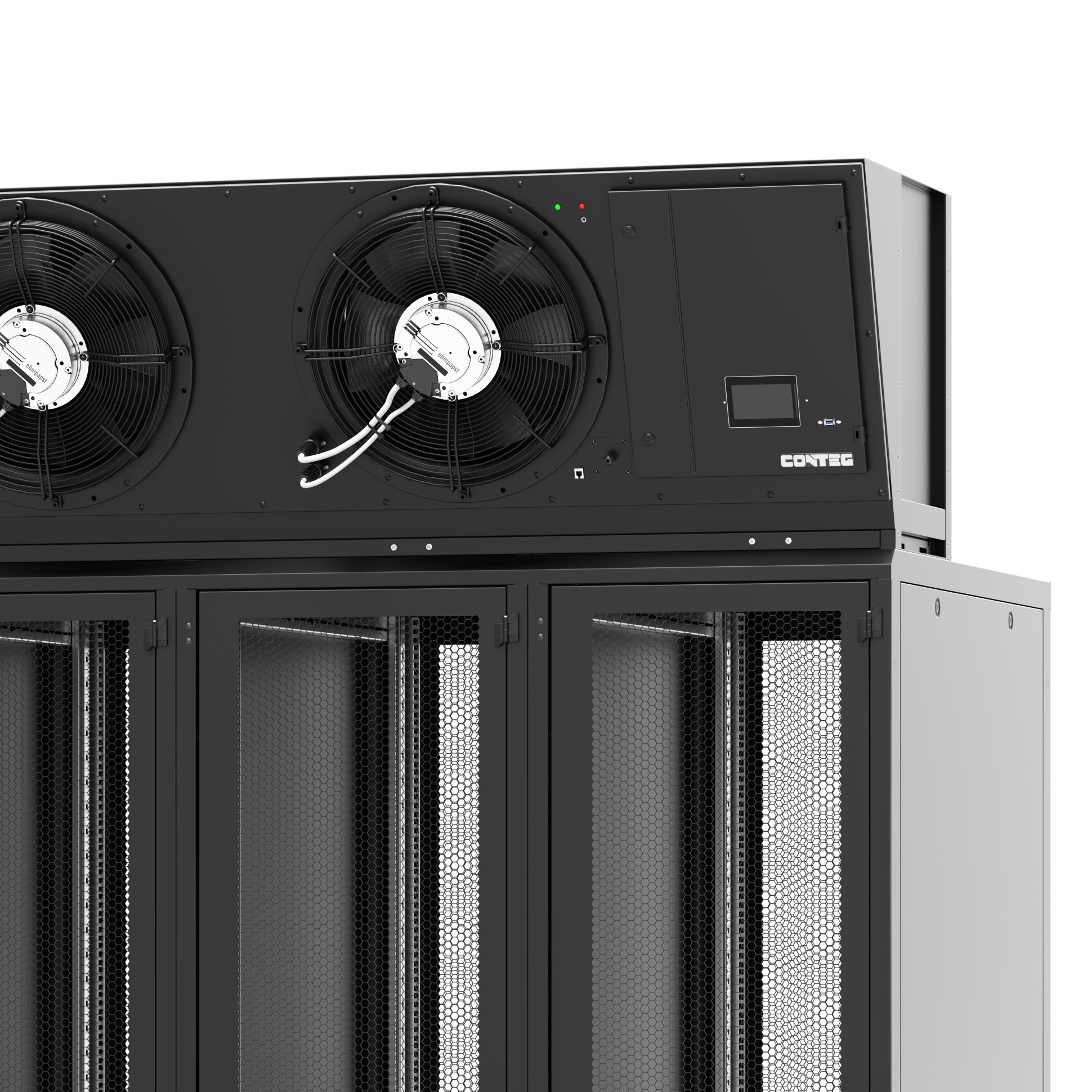

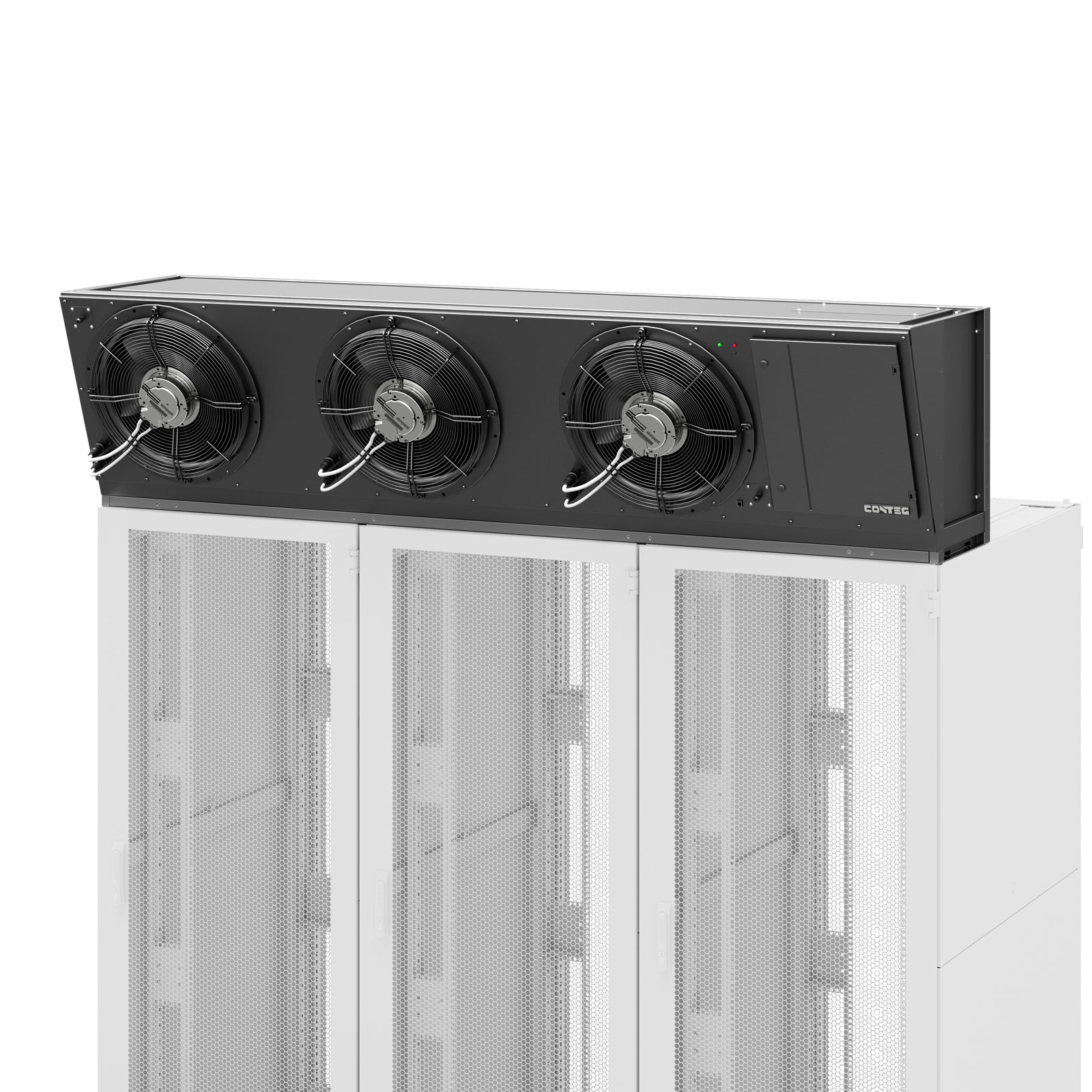

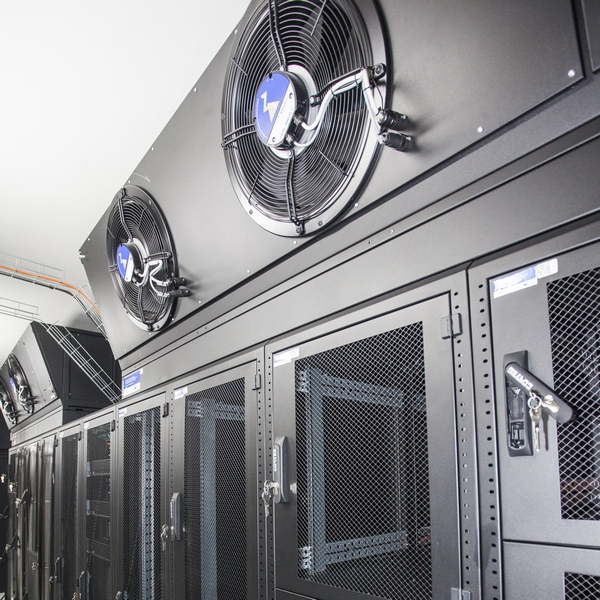

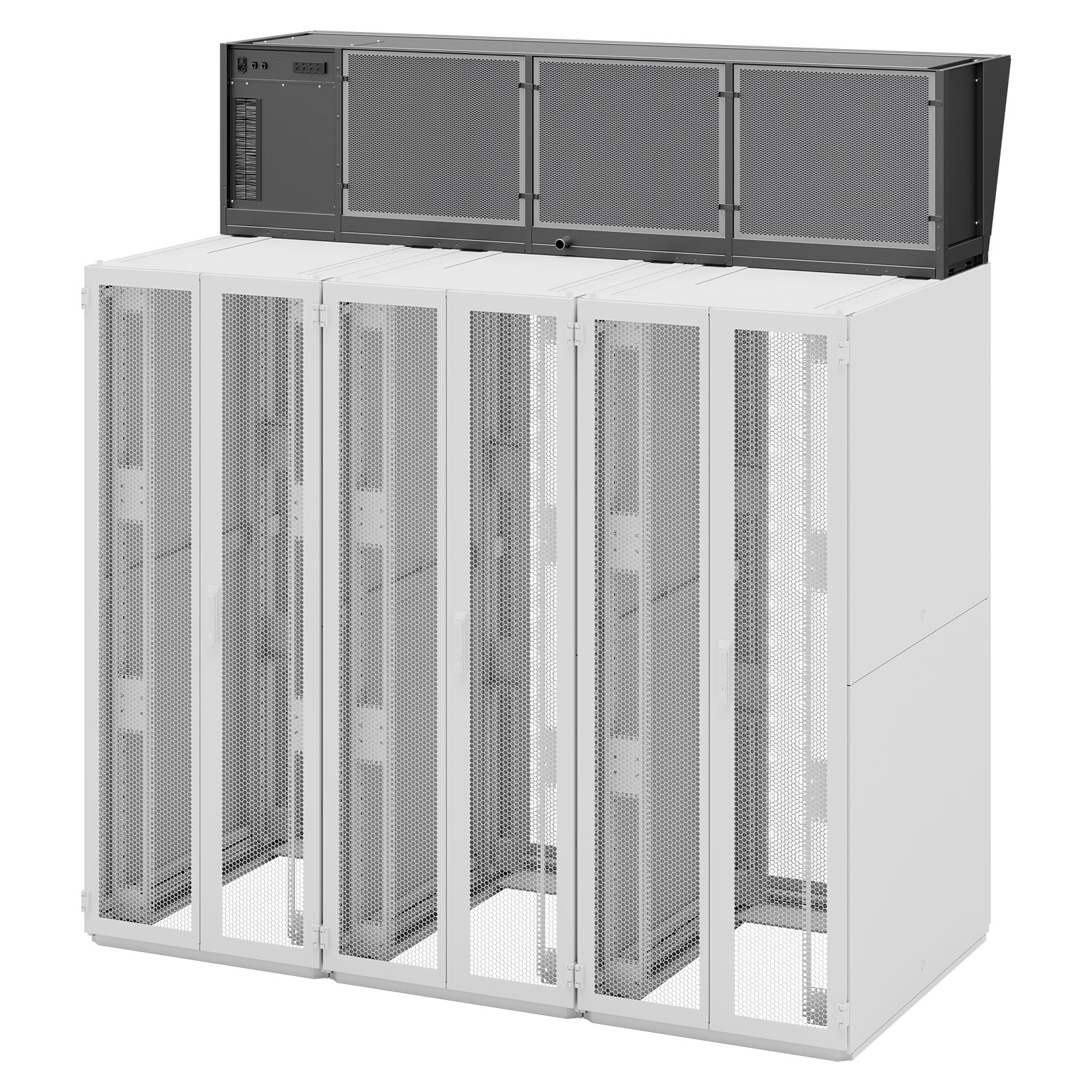

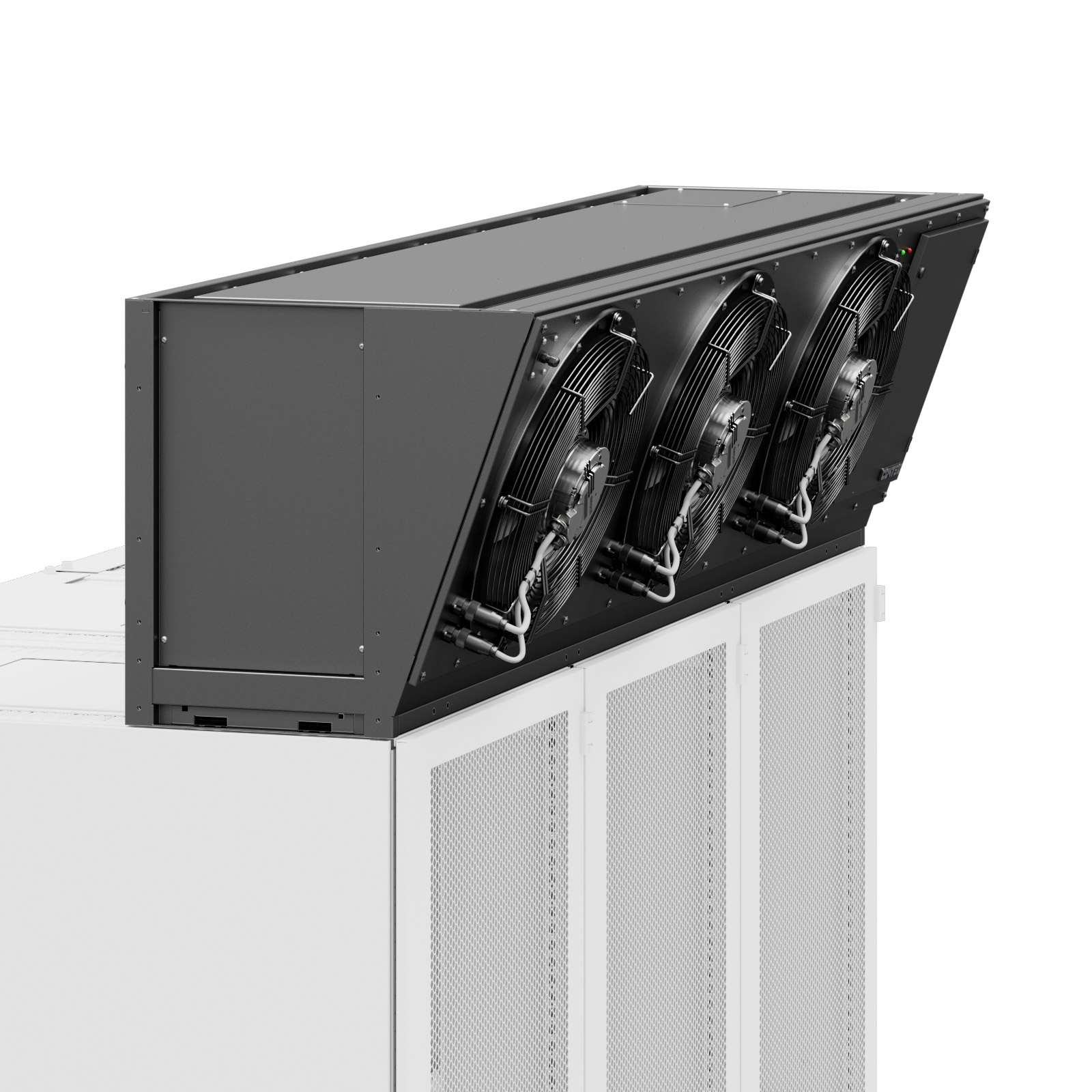

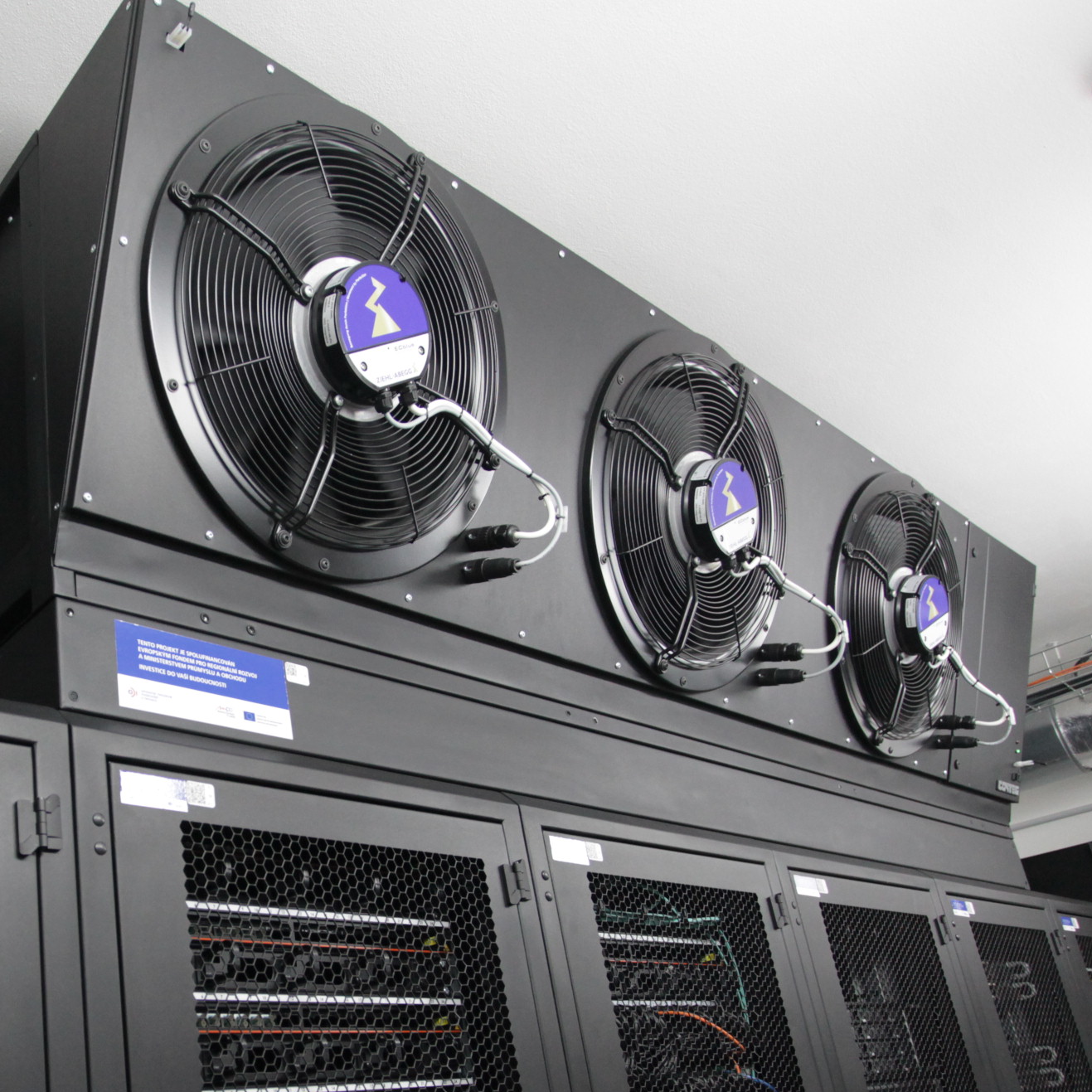

CoolTop DX cooling units are designed for easy installation above IT cabinets, so they are ideal for effective targeted cooling of server rooms and large data centers.

CoolTop DX indoor units are connected to outdoor condensing units by means of a refrigerant pipe. The CoolTop DX unit includes a special exchanger with two separate refrigerant circuits.

In basic mode, one 19 kW or 24 kW outdoor unit can be connected to each CoolTop unit. If higher cooling capacity is required, a second outdoor cooling unit may be connected to increase the cooling capacity to up to 38 kW or 48 kW.

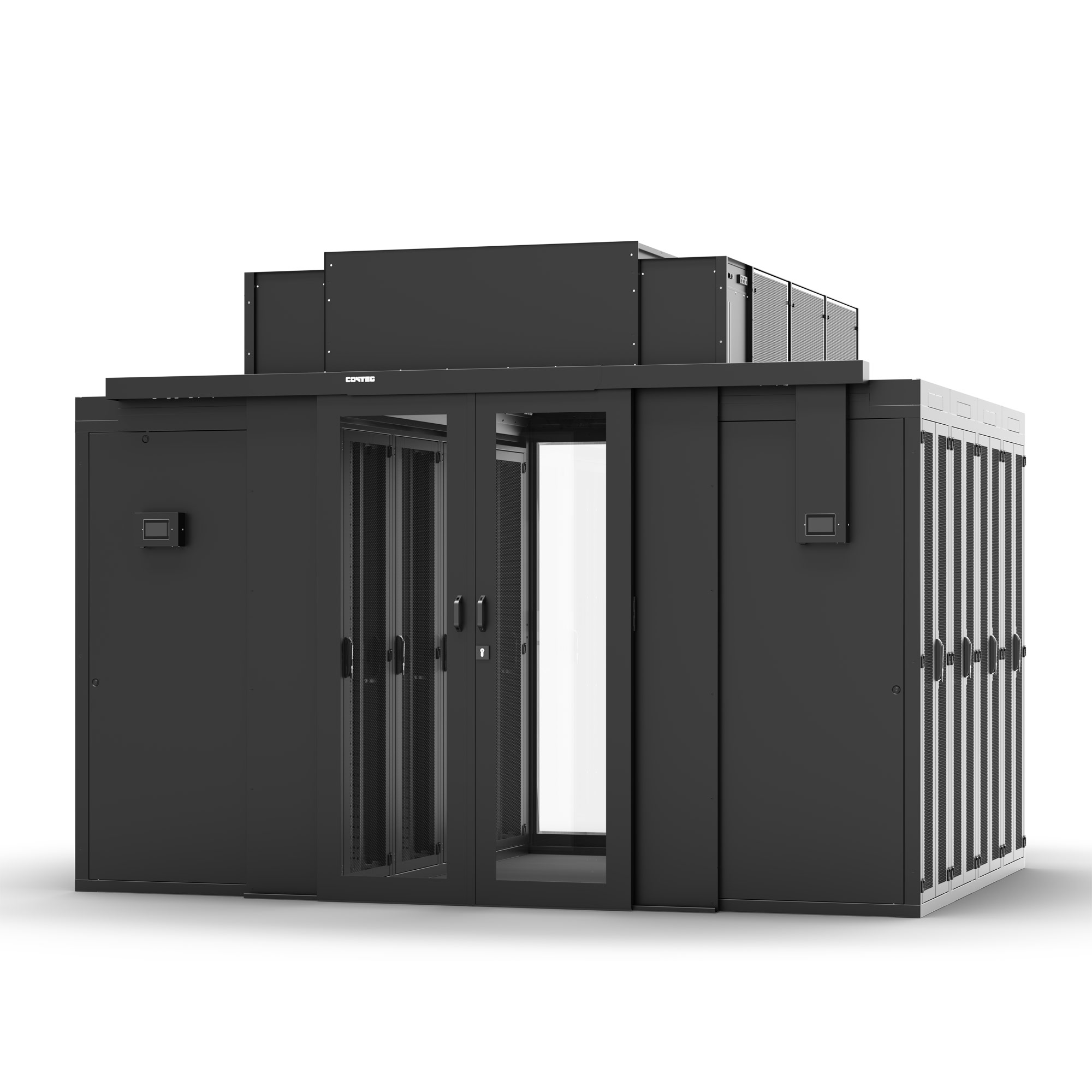

CoolTop is a solution that is not only economical, but also effective, serving to immediately increase the cooling performance without the need for structural modifications. CoolTop cooling units are suitable for closed cold aisle and closed hot aisle and can also be combined with CoolTeg units in the same zone/aisle.

Principaux avantages

• Take no floor space
• No water in the data center
• Delivers cold air directly into the cold aisle in front of the server cabinets
• Vertical air circulation circuit responding to local conditions

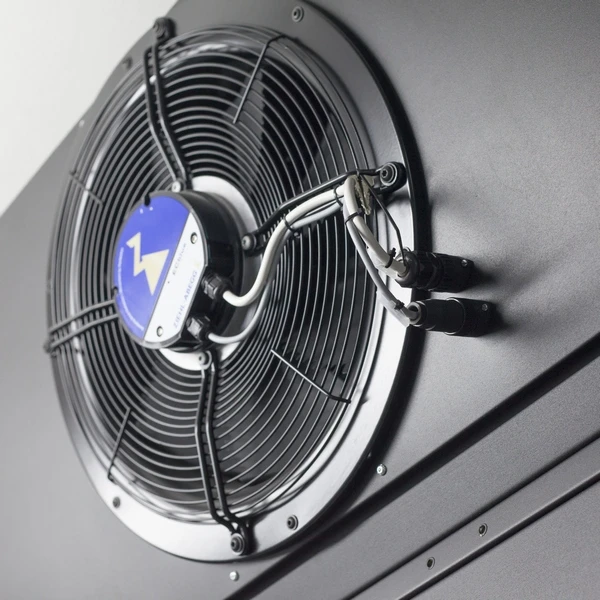

• Extremely low power consumption thanks to a large heat exchanger and axial EC fans

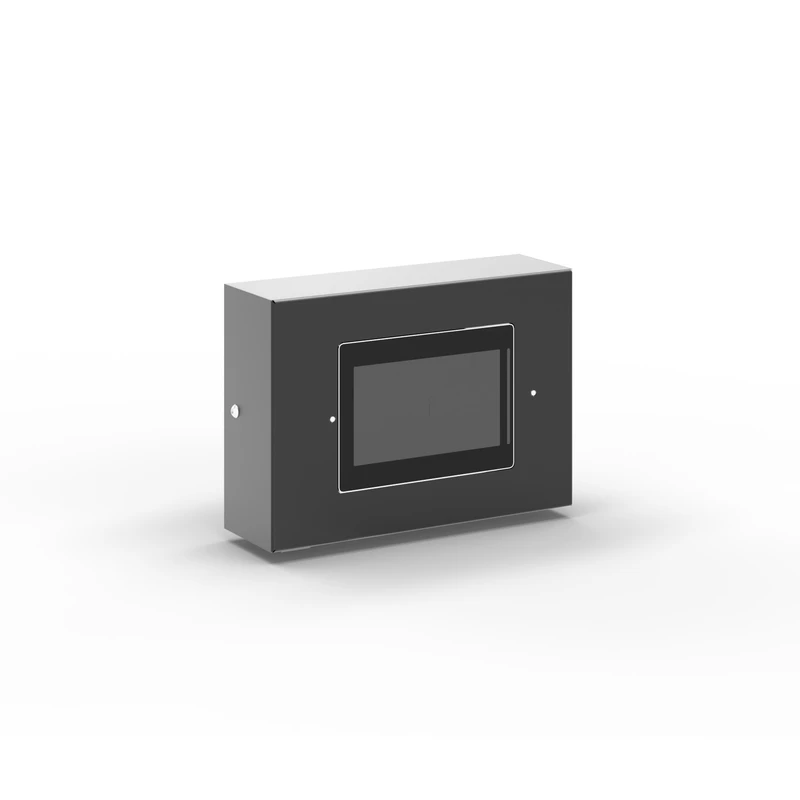

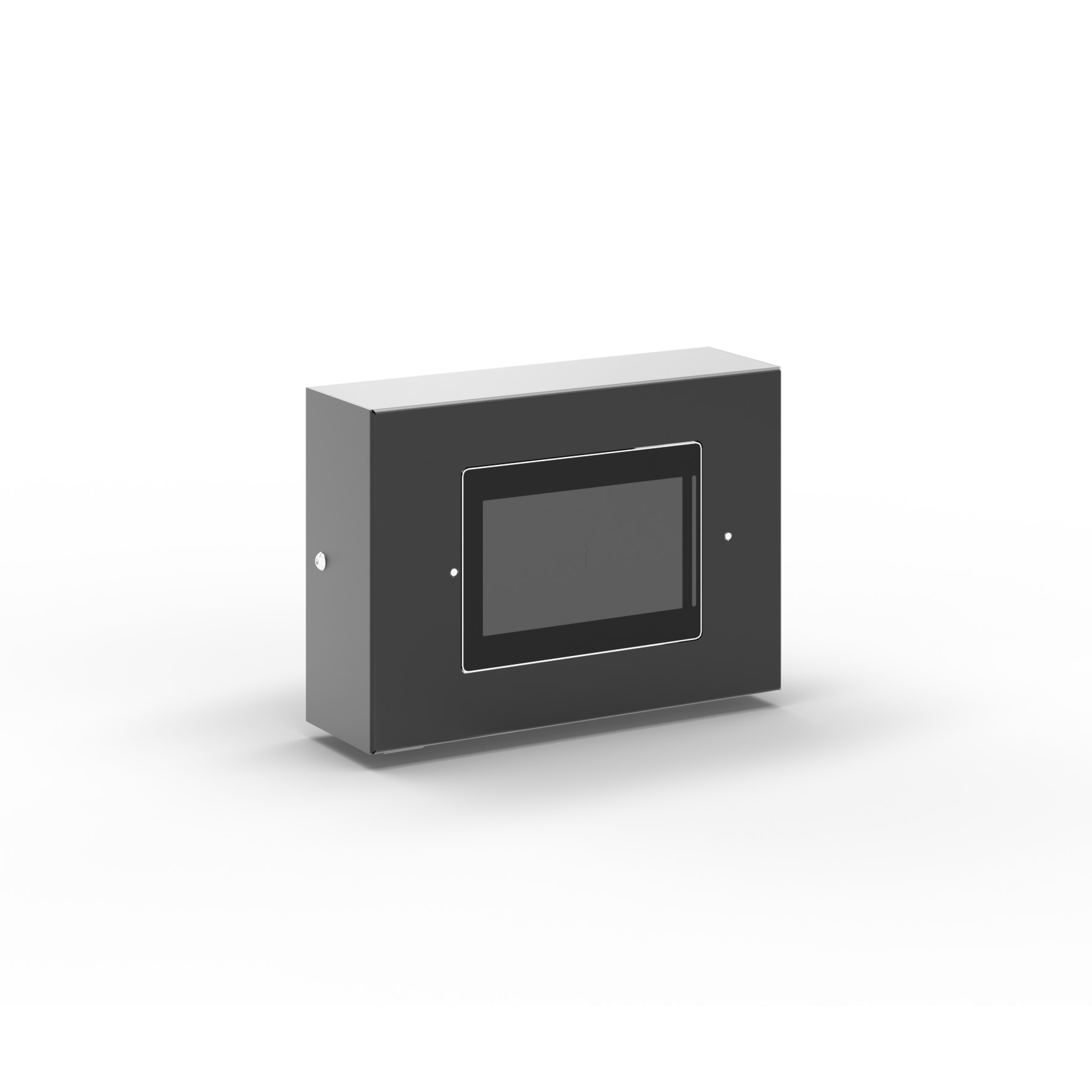

• Modern user-friendly control system
• Flexibility in arrangement of the elements
• A double floor is not needed for air distribution Installs easily in a closed hot or cold aisle
• Perfect compatibility with CONTEG IT cabinets
• Comes with a wide range of accessories
• Double-circuit refrigerant exchanger
• Cooling power regulation from 30% to 100%
• Option to connect to 2 outdoor units
• Wide range of accessories
• Double stainless steel condensate pan located below the heat exchanger
• Controller with ModBus communication (no accessories required)
