Double lecteur multiformat sans contact
Présentation du produit

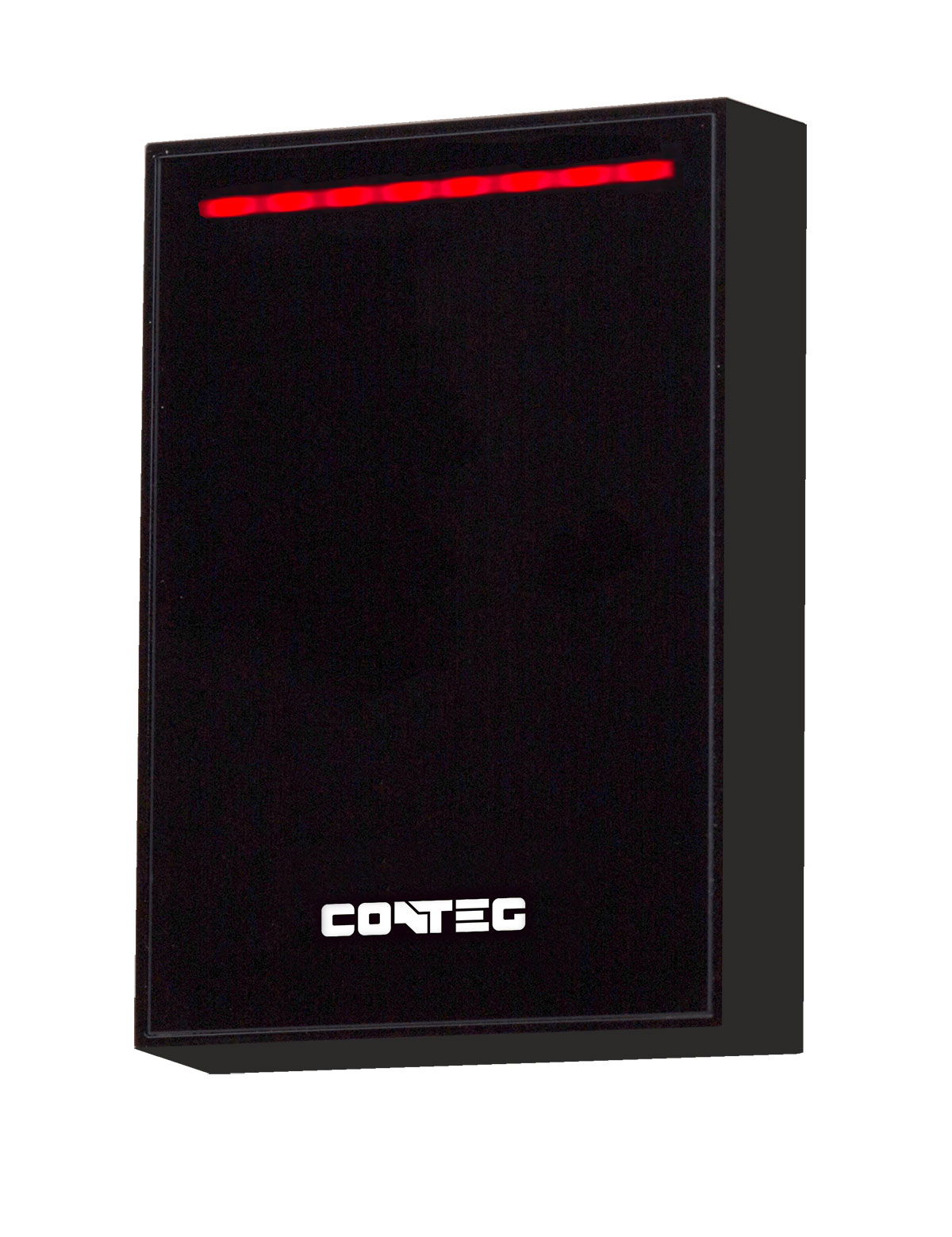

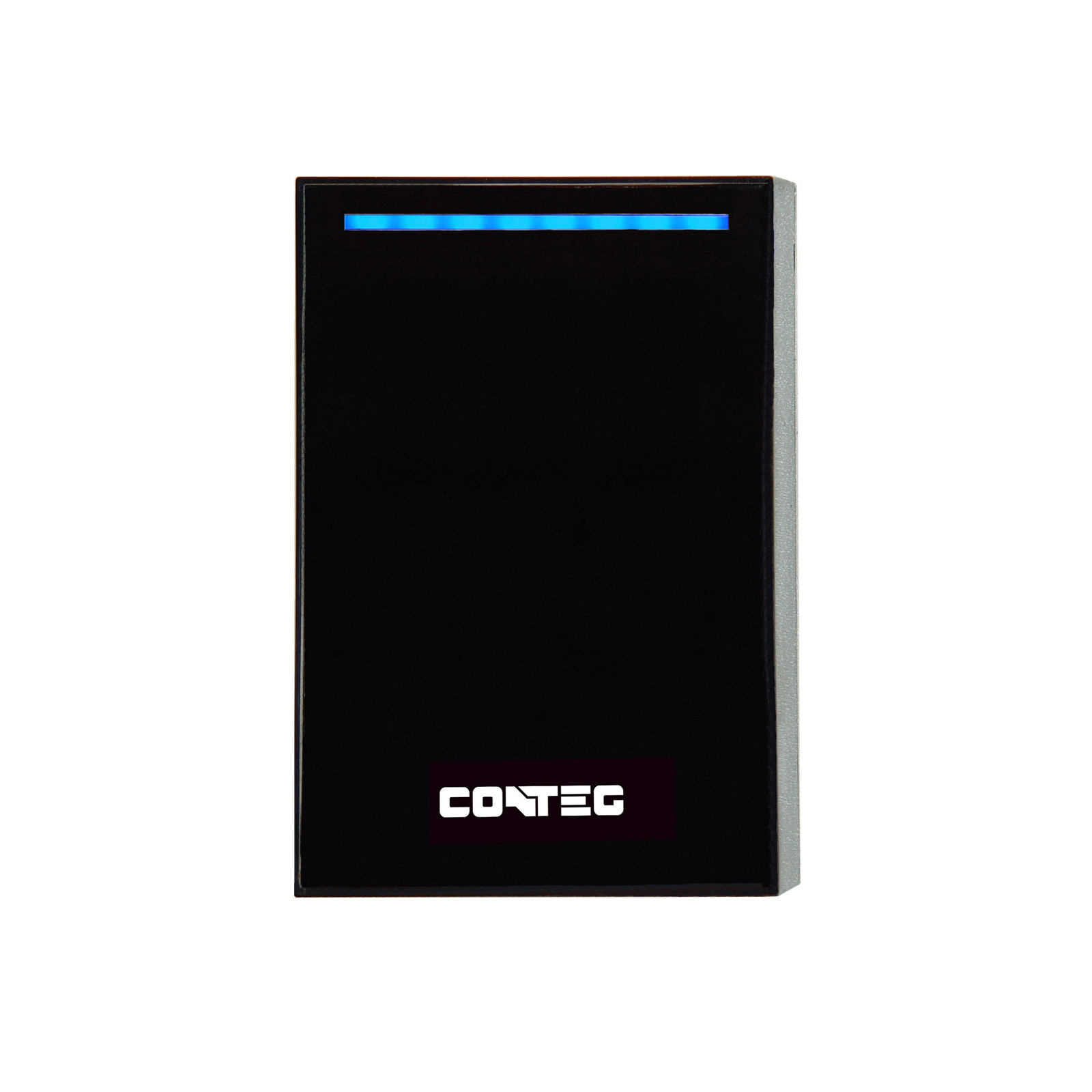

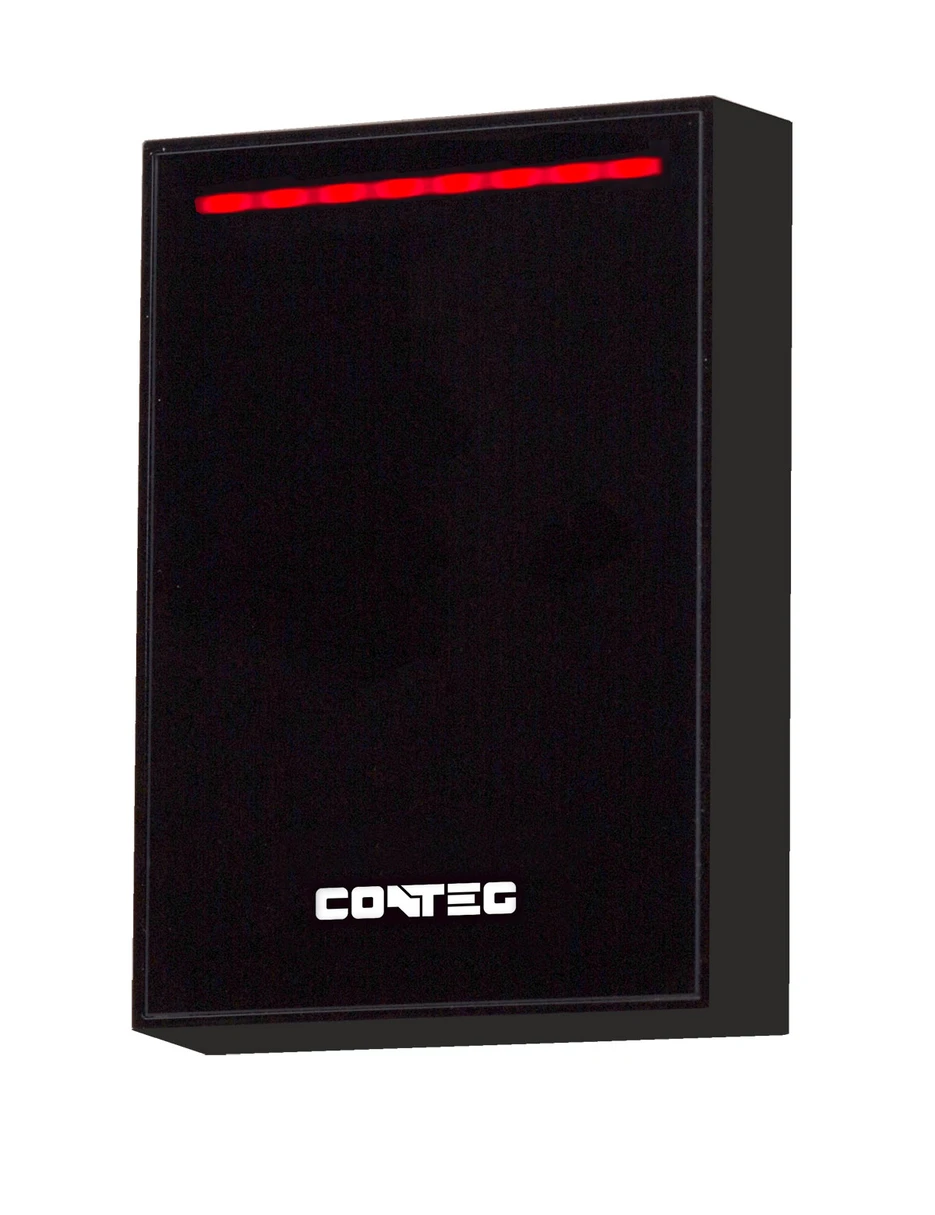

Dual contactless readers support RFID media at both 125 kHz and 13.56 MHz (e.g. MIFARE® or NFC).In addition to standard RFID cards or key tags, the reader is compatible with mobile phones equipped with NFC technology with OS Android® 4.4 Kit Kat (or higher) and the appropriate application. Such mobile phone can be used for identification (in card emulation mode) instead of physical cards/chips.
The standard color of the reader is black, the front part is covered with tempered glass. Designed for installation in an unprotected indoor or outdoor environment (protection IP 55).
Order code: RMS-ACS-U-MCR
Information
Caractéristiques principales
| Nom de la ligne de produits |
Contactless reader |
|---|---|
| Informations techniques |
Can read EM & HID Prox. (125 kHz) and cards/chips of the MIFARE® family (13.56 MHz) Supports card emulation by mobile phone with NFC (OS Android 4.4 or higher; requires app) Reading distance from 4 cm Communicates over the Wiegand protocol The reader is equipped with a buzzer and LED for status indication. Suitable for indoor and outdoor use (IP55, IK07) Low power consumption (in normal state 65 mA, maximum 180 mA) Powered from the control unit (12 V DC) Mounting with 2 screws. Cable: Cable 4.5 m with a green cap on the RJ-45 connector for correct connection Operating temperature: -25 °C - +70 °C Relative humidity: 5% to 95% non-condensing Tempered glass on the front panel (Gorilla g. 2320) Dimensions: 96 x 67 x 13,5 mm (HxLxW) Weight: 0.18 kg |
