Baies serveurs autoportantes

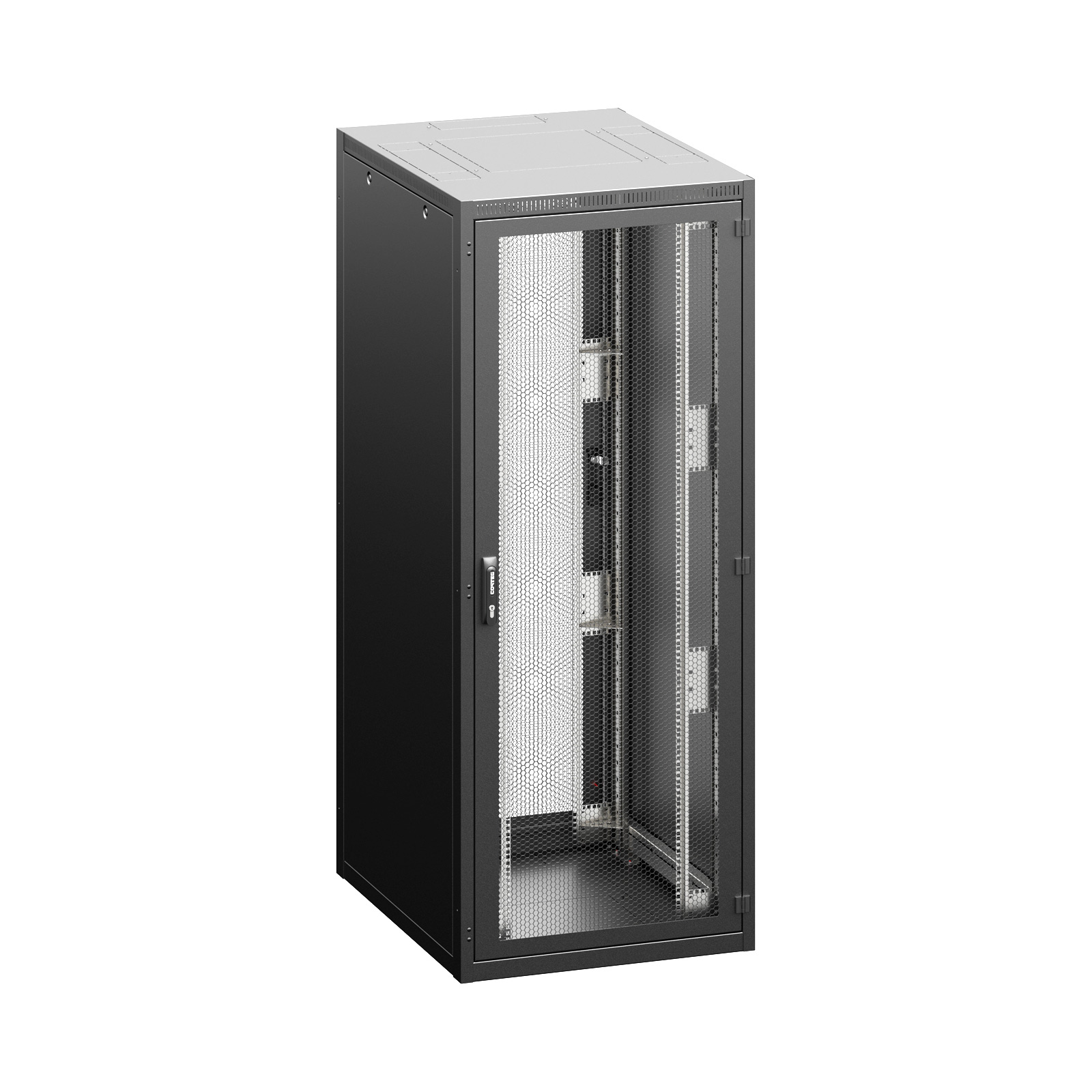

iSEVEN Flex Server

Variante désassemblée

iSEVEN Flex SERVER series enhances general-use cabinets with elements from dedicated RSF server cabinets for greater utility.

Fiche technique En savoir plus

Où nous trouver ?

Use this product in the solution Salles de serveurs More about the solution

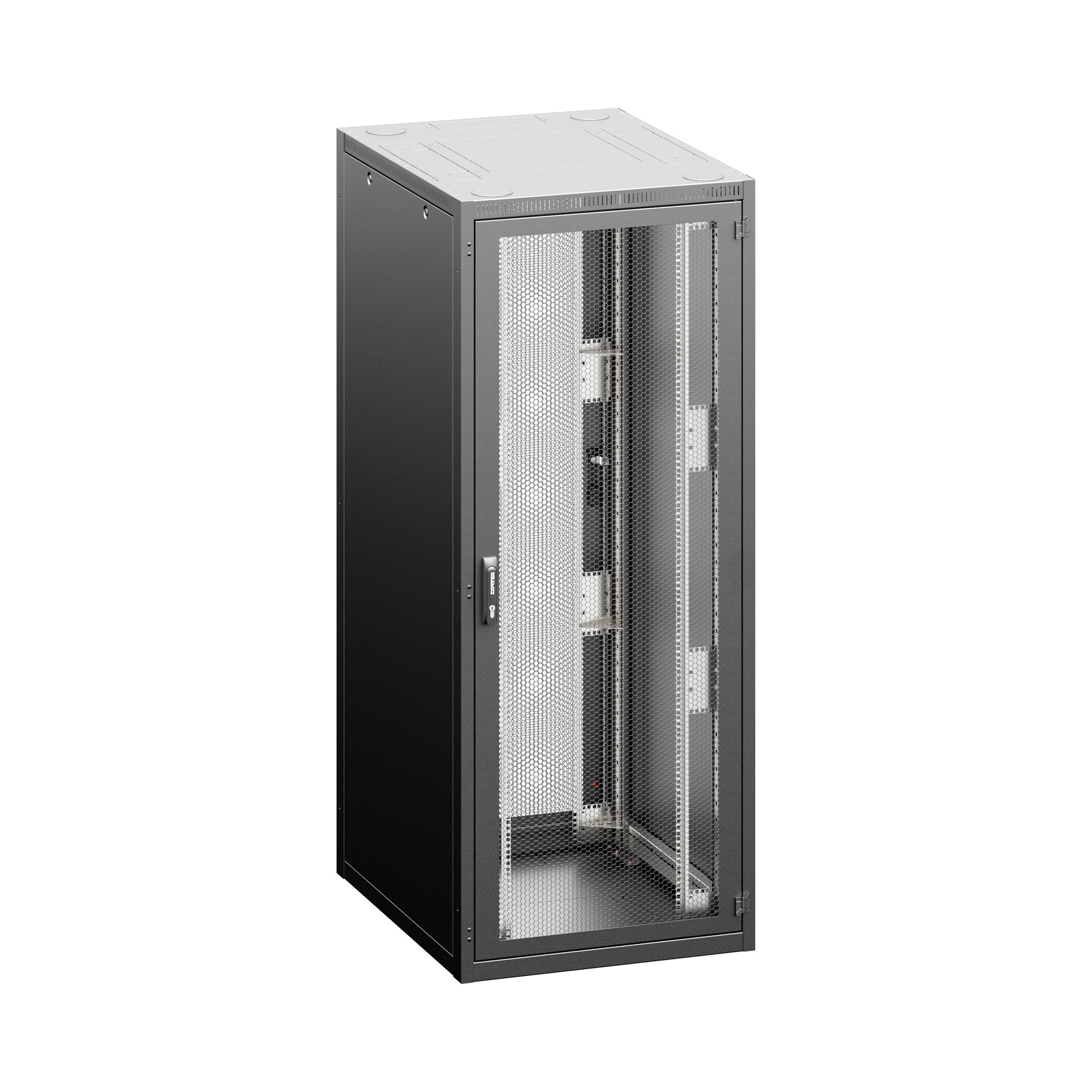

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-main2023-web

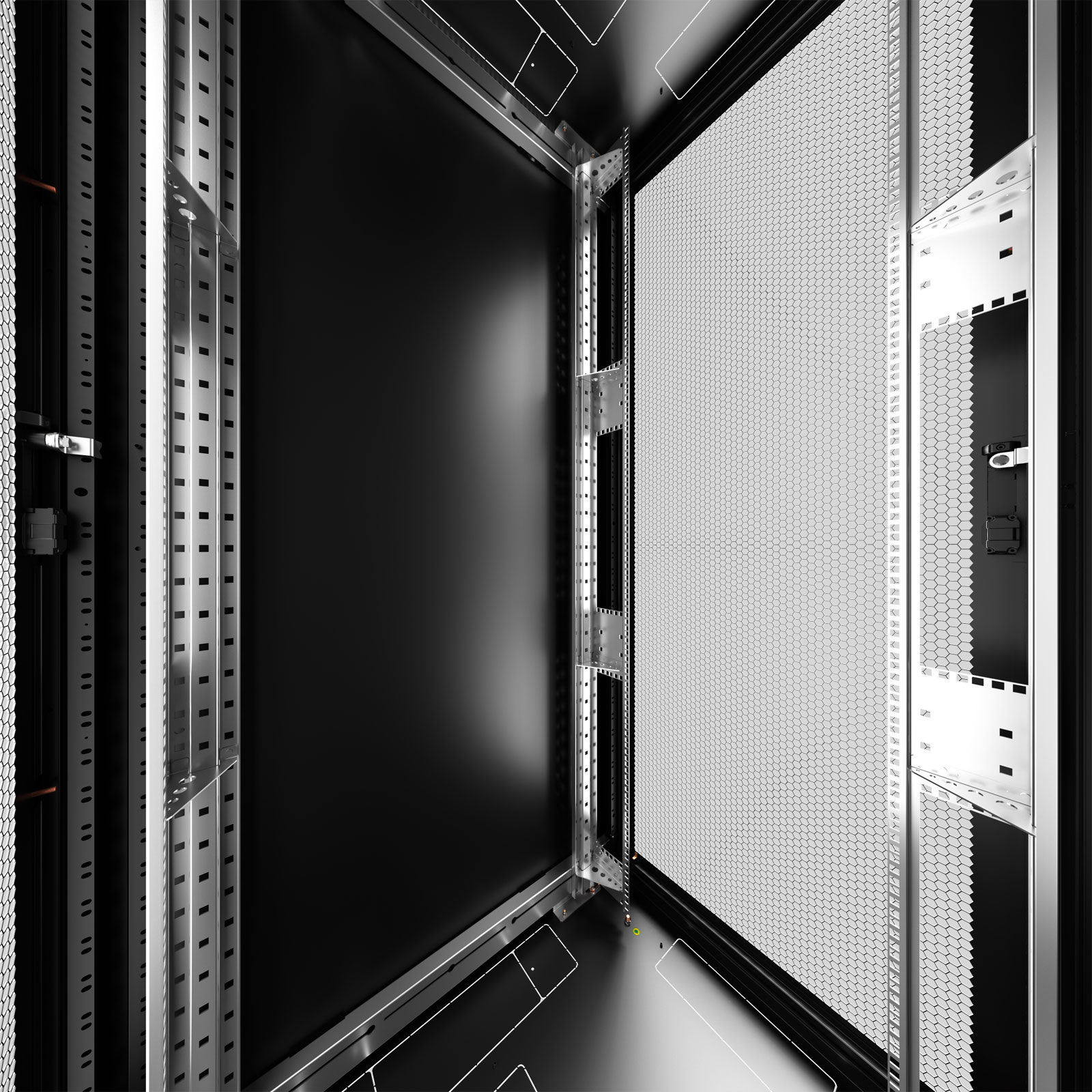

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-inside-extrusions-web

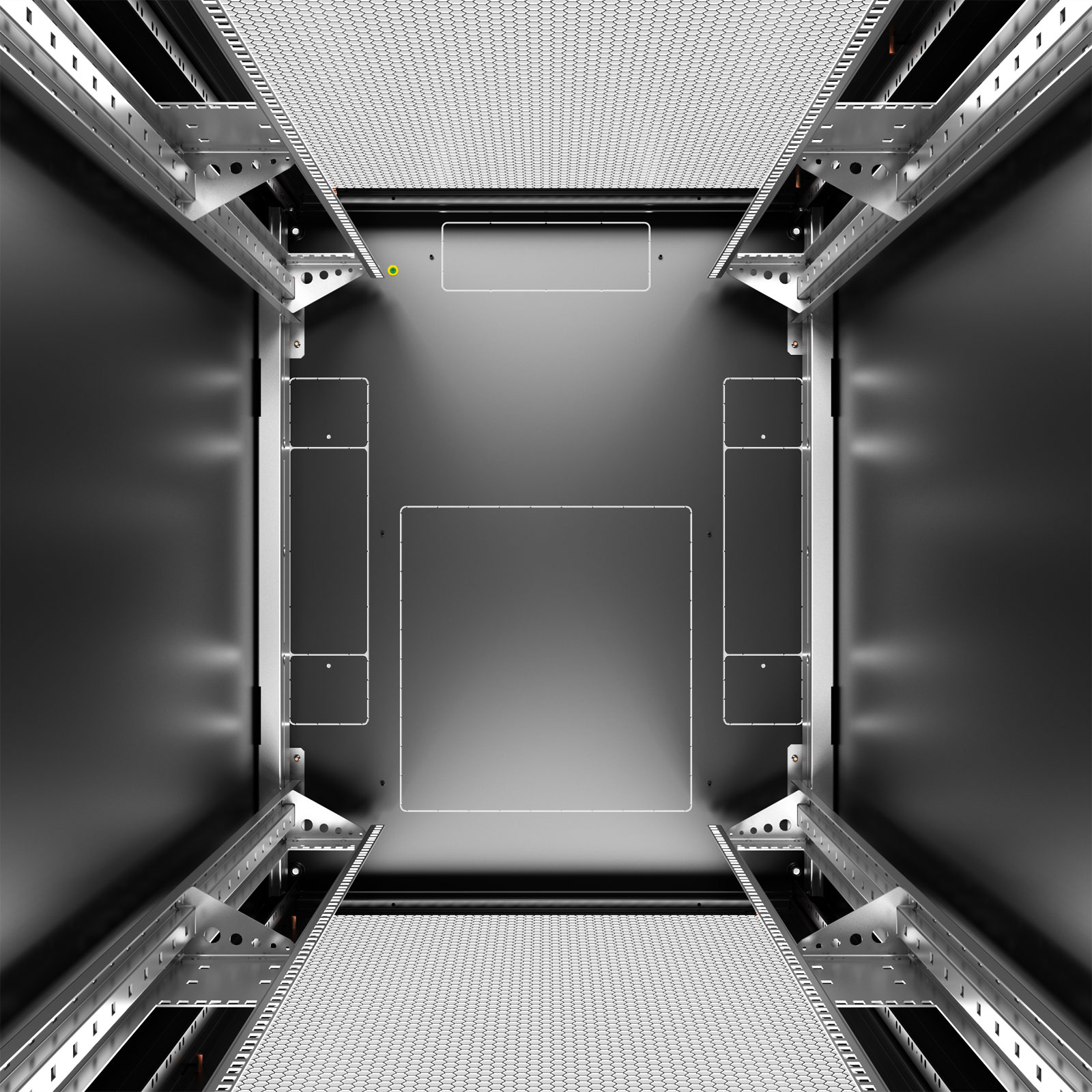

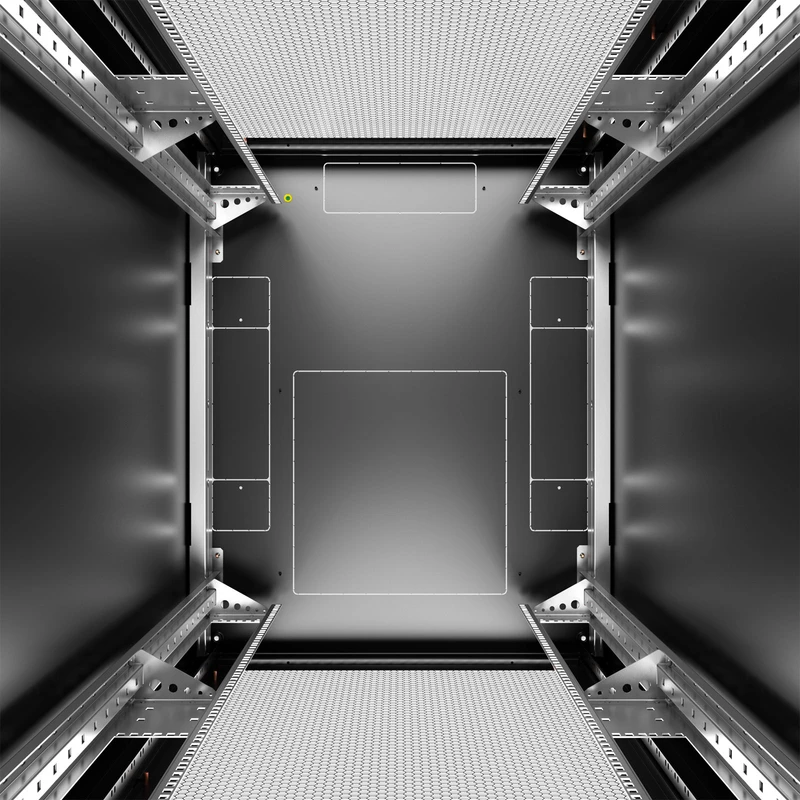

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-inside-bottom-web

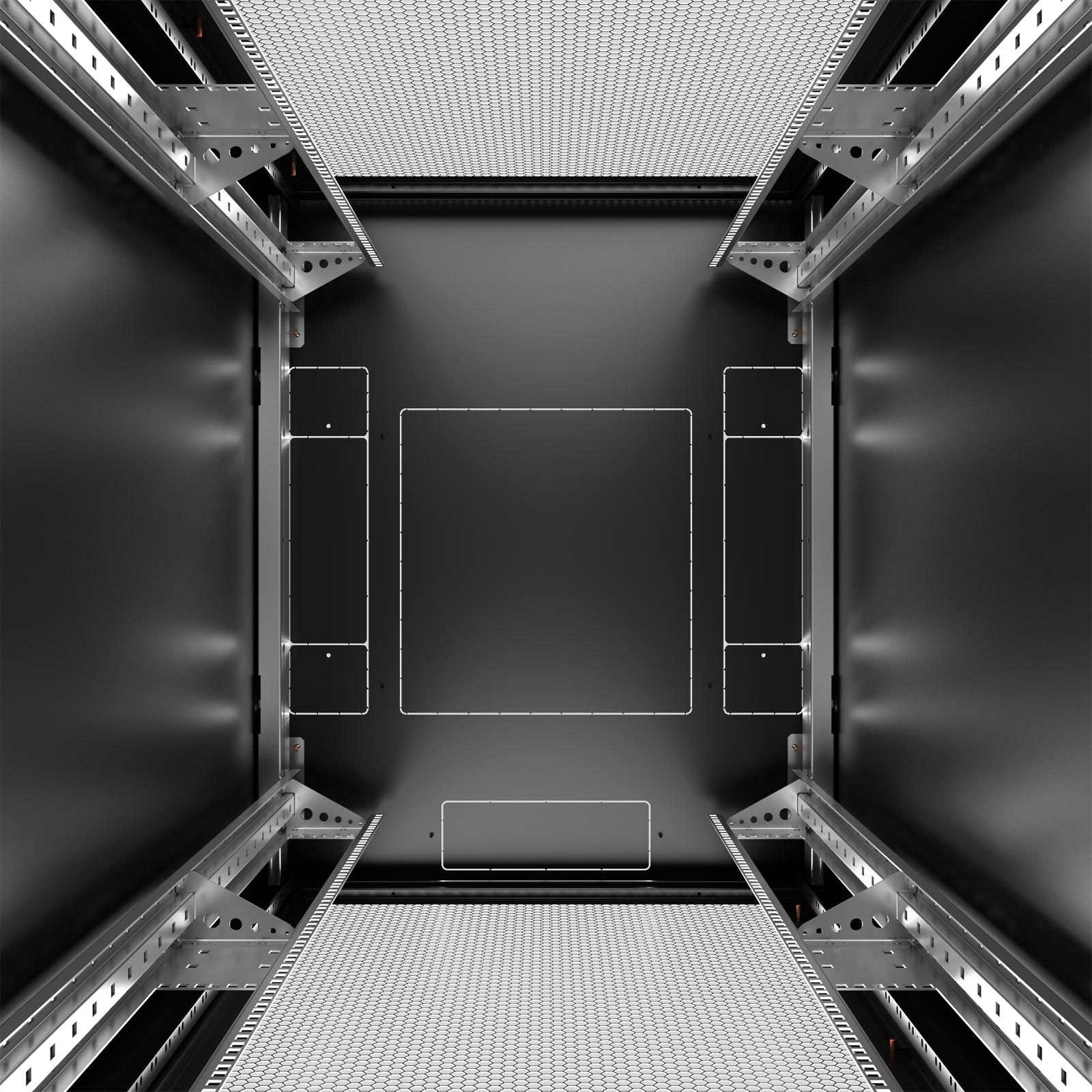

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-inside-top-web

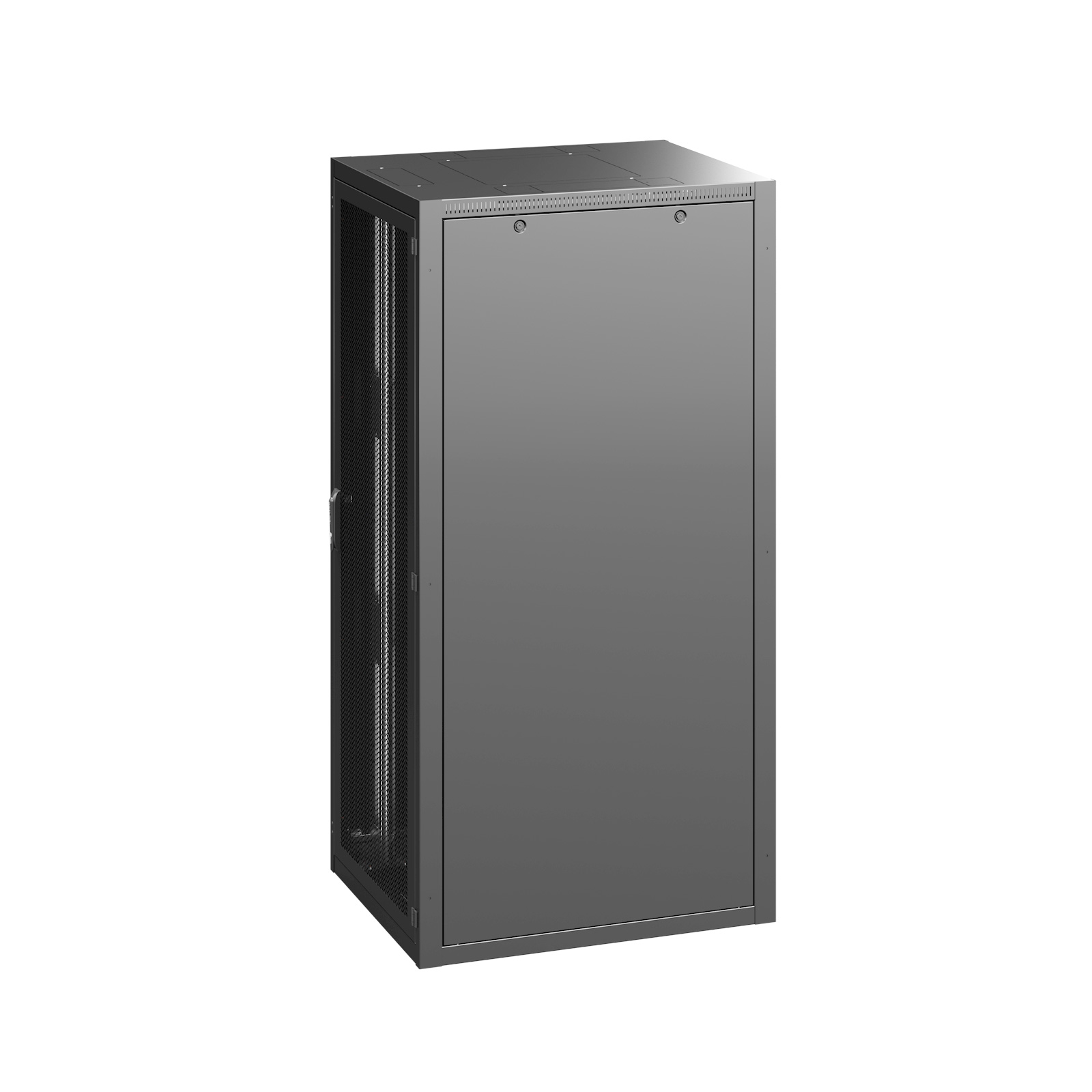

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-back-left-web

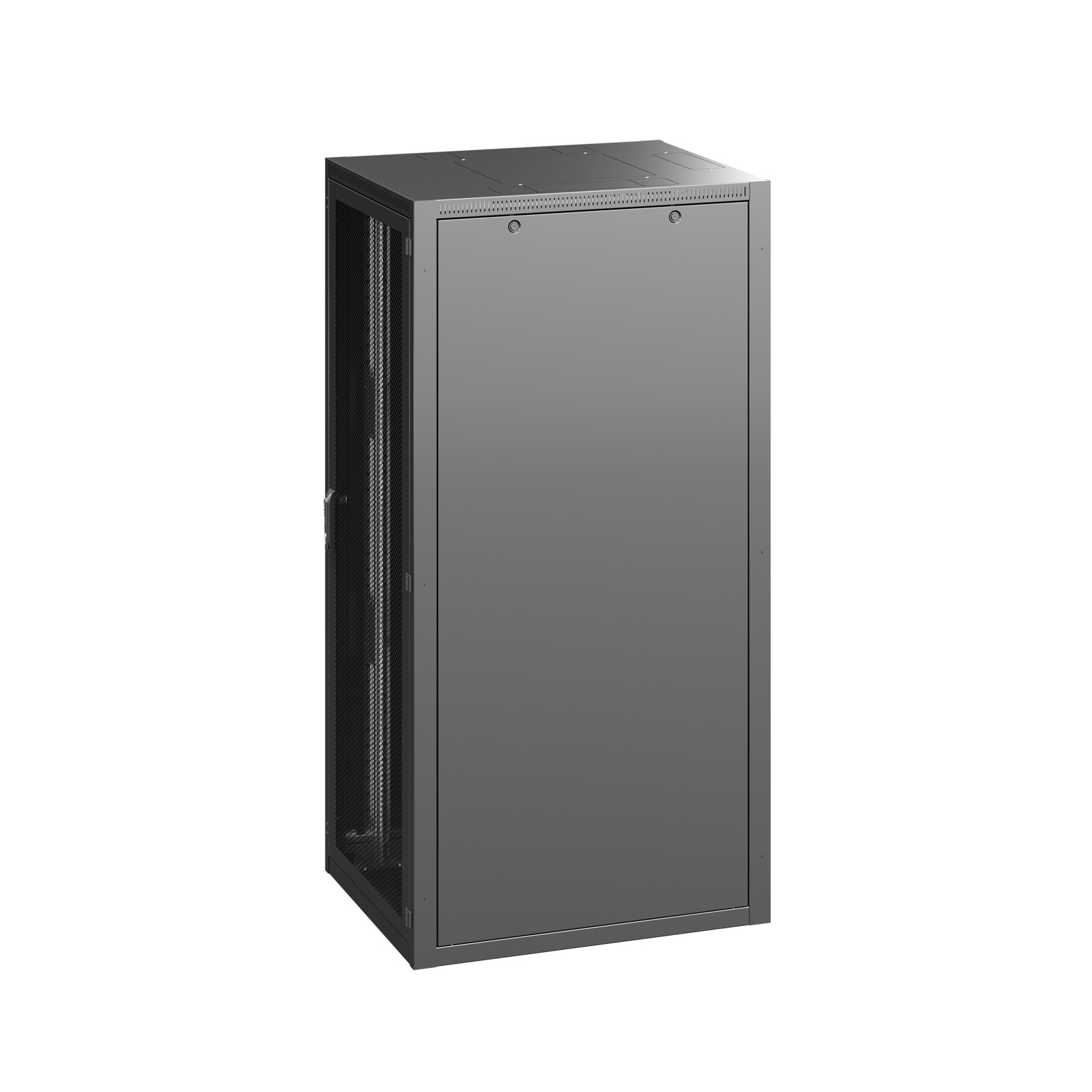

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-front-right-web

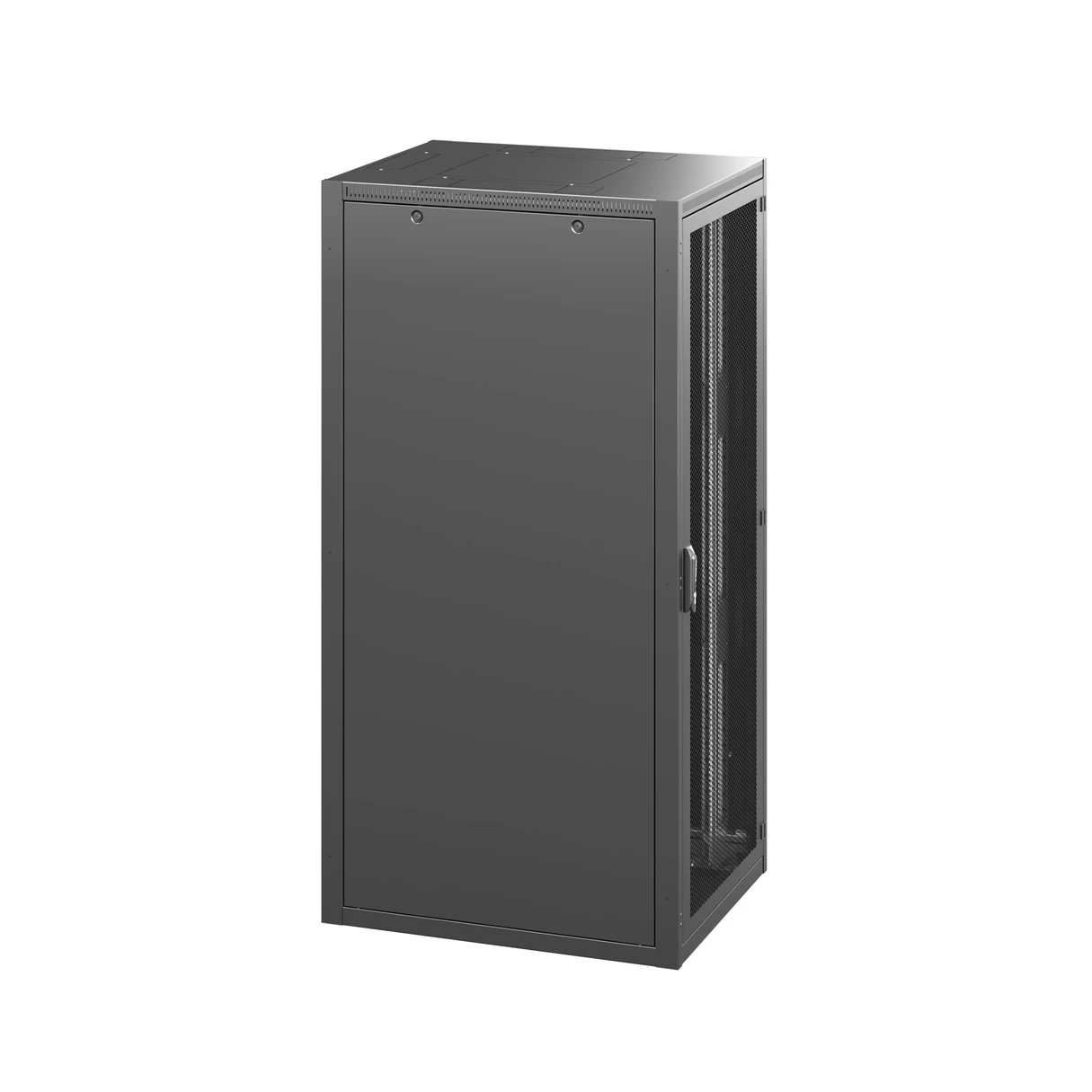

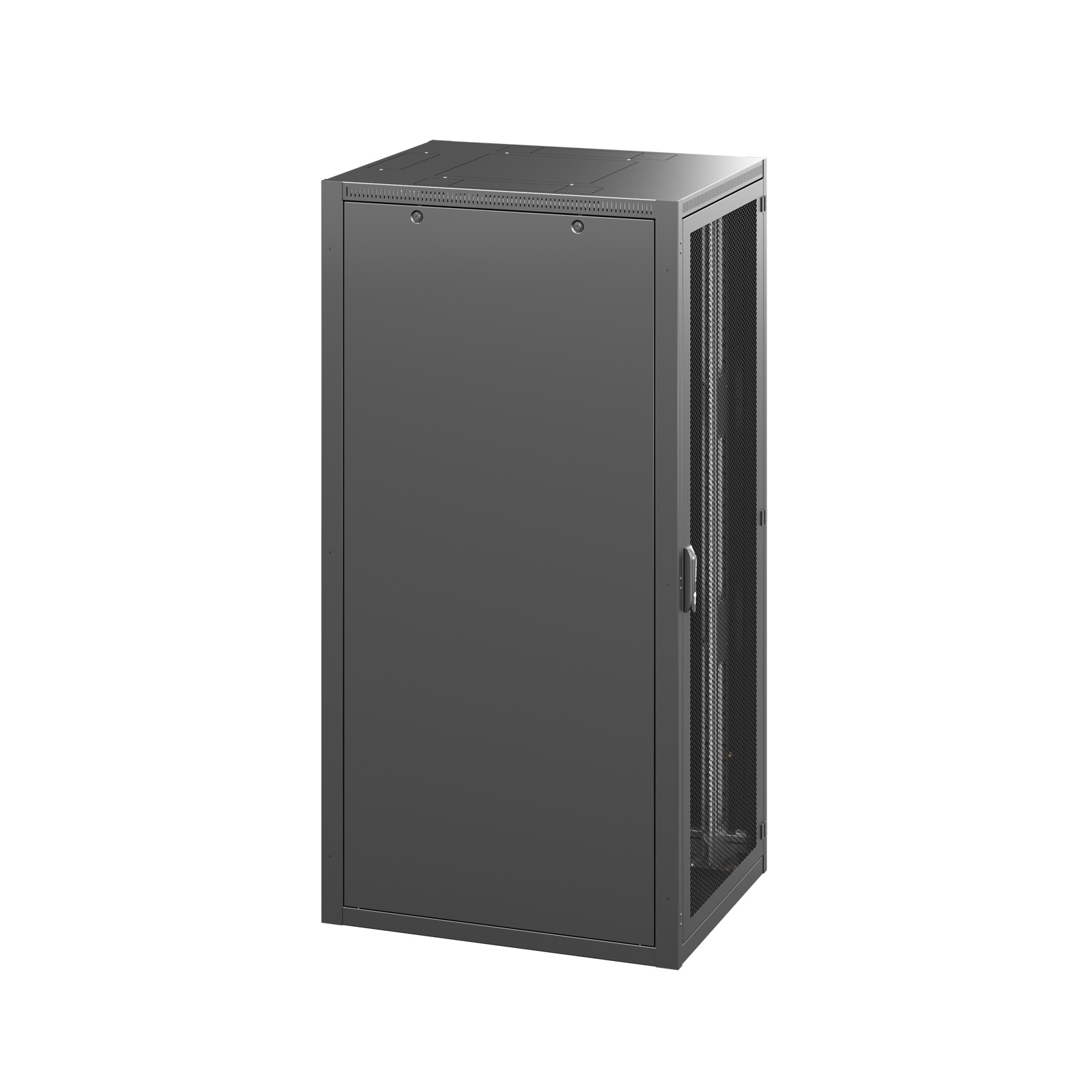

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-left-front-web

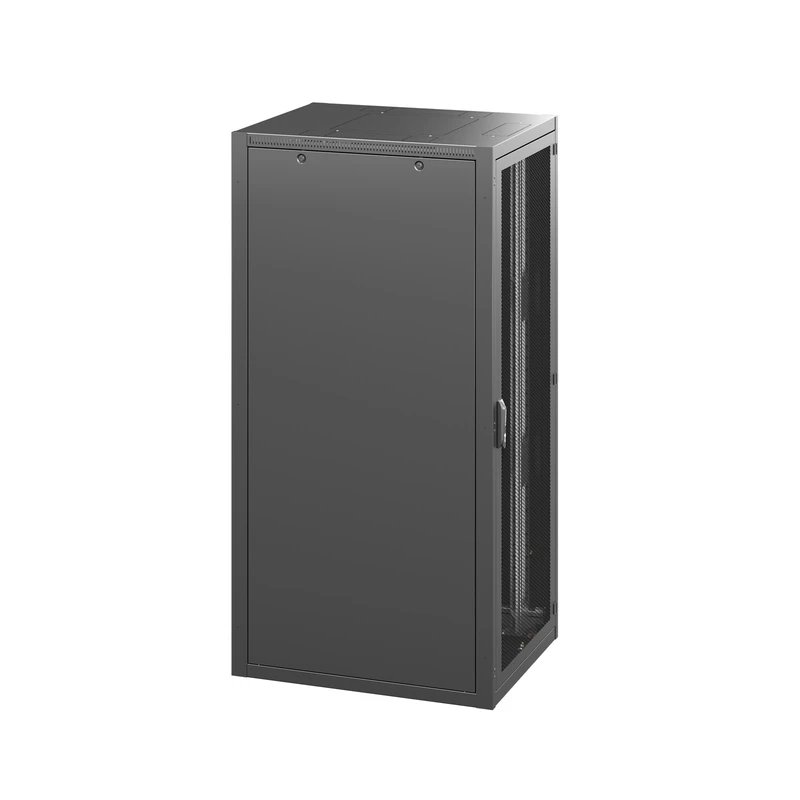

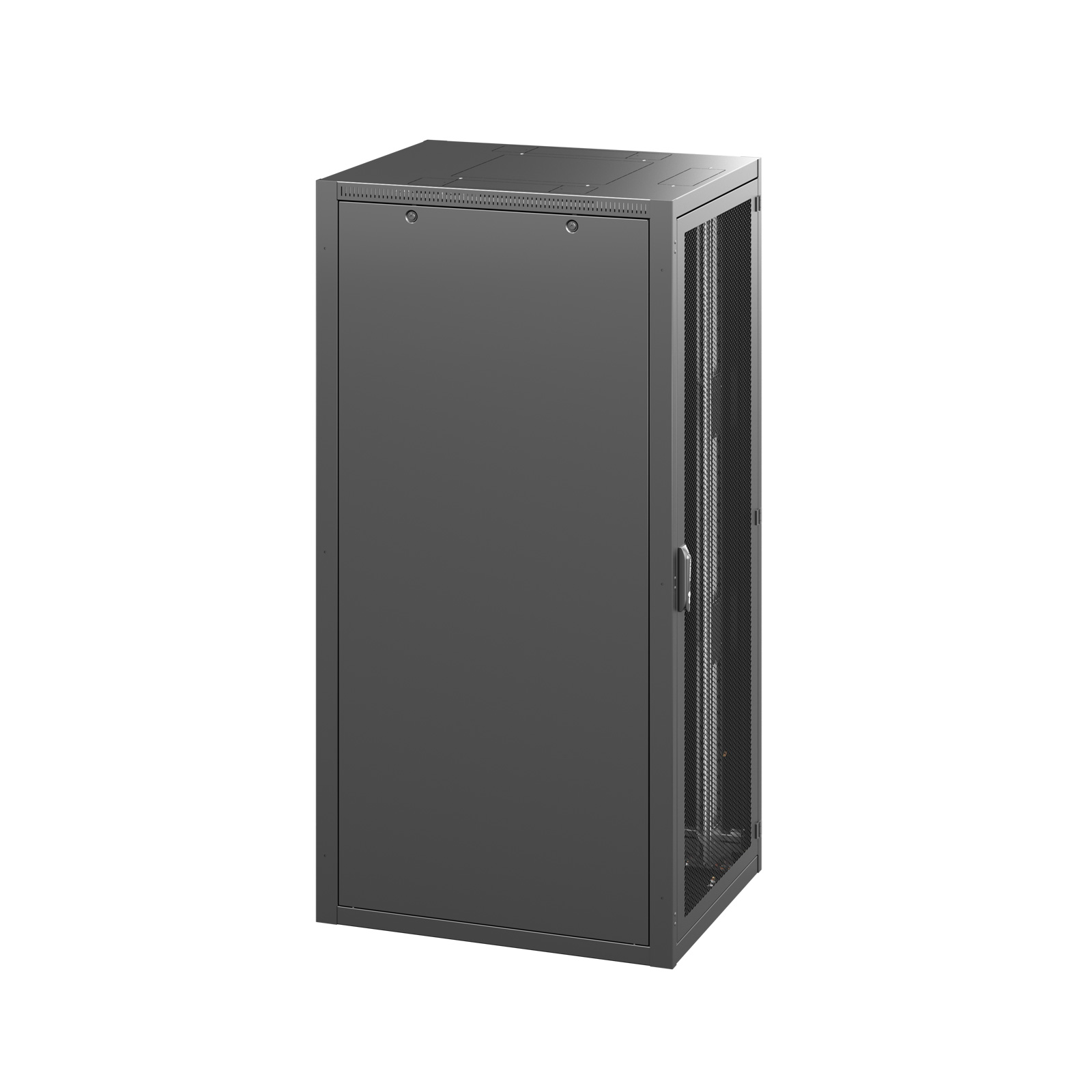

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-right-back-two-web

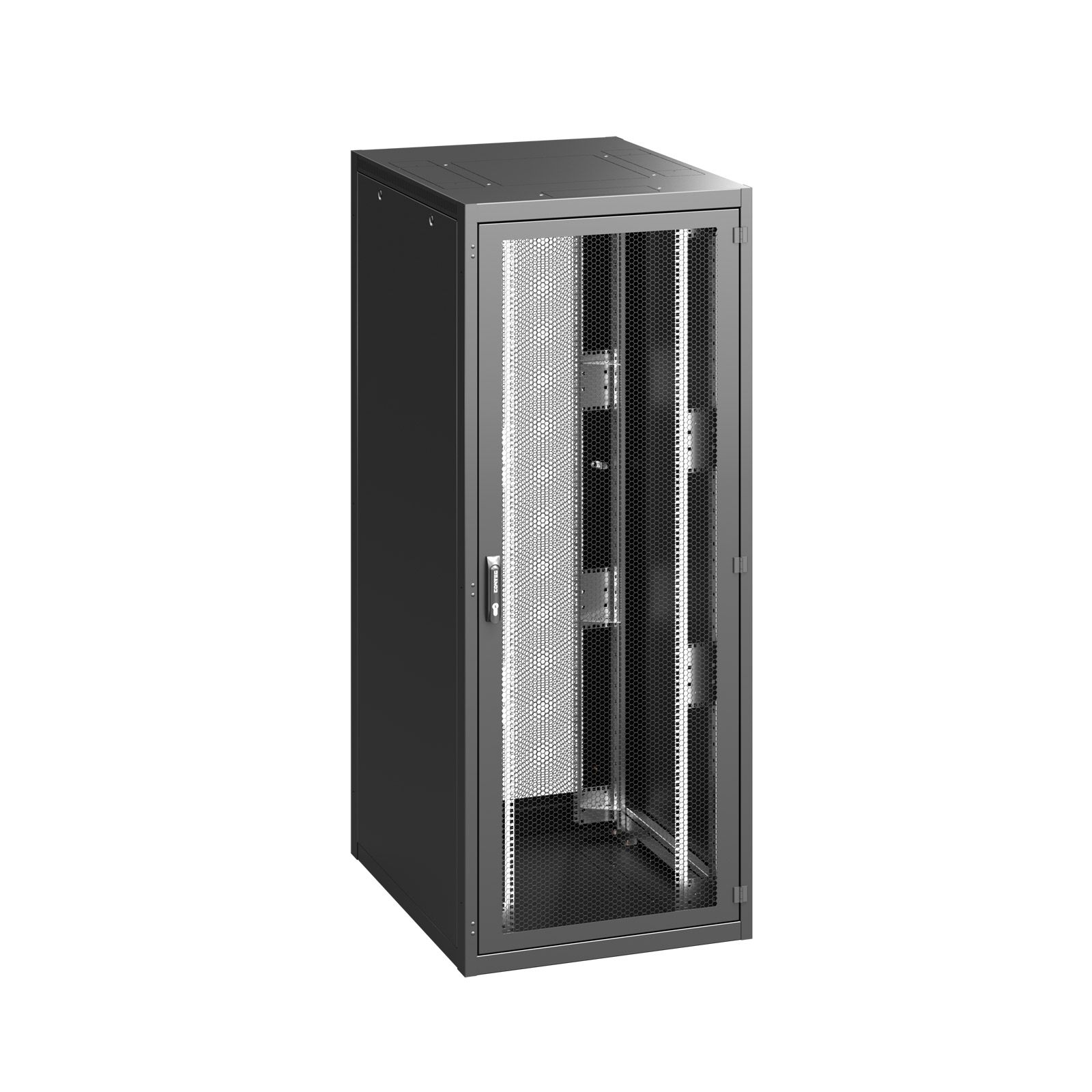

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-right-back-web

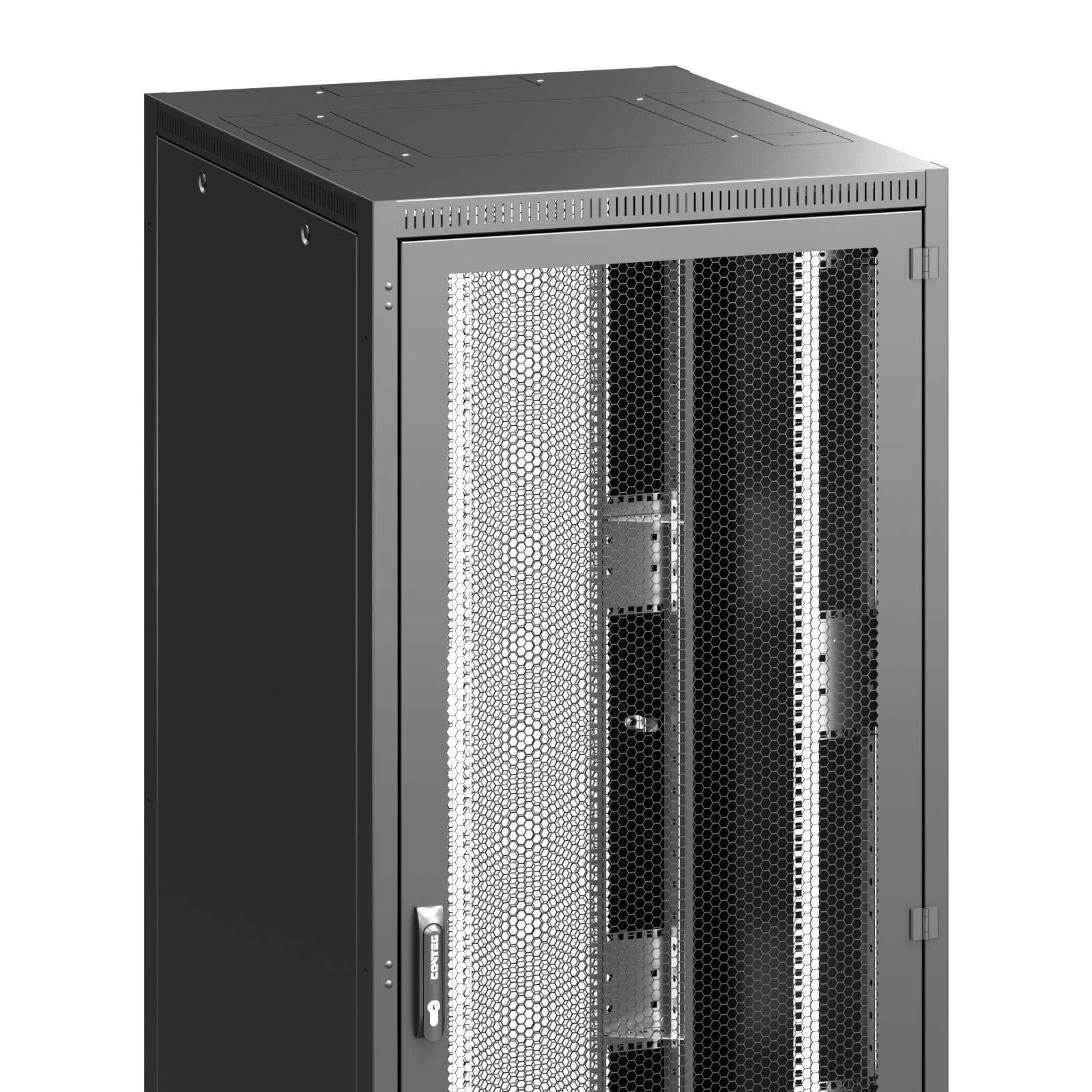

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-handle-hinges-web

Présentation du produit

Based on thorough research, we have prepared for you the most requested cabinet configurations for server rooms and other projects - our iSEVEN Flex SERVER rack cabinets. These selected cabinet configurations satisfy the most challenging requirements and offer an unbeatable price/performance ratio. Ideal for everyday use where a load capacity of up to 1,000 kg is required. For efficient operation of servers, the cabinets are equipped with super-perforated doors with an unrivaled 86% perforation rate.

Principaux avantages

Server cabinet for IT hardware up to 1,000 kg
Unmatched door perforation rate of 86% reduces server fan power consumption
Unassembled version for transport to hardly accessible locations

Information Pour télécharger

Information

Caractéristiques principales

Nom de la ligne de produits	iSEVEN Flex Server
Bestseller	Unassembled version
Hauteur (U)	42
Largeur (mm)	600, 800
Profondeur (mm)	1000
Limite de charge (kg)	1000
Porte avant	Perforated door - 86% perforation rate Tilting lever handle, DIN profile, universal key 333, single point
Porte arriere	Perforated door - 86% perforation rate Tilting lever handle, DIN profile, universal key 333, single point
Panneaux latéraux	Detachable with locks
Pieds et roulettes	Adjustable feet
Montants	Type A rails, undivided (600 or 800 mm wide) rails without horizontal brackets (in the 800 mm format, they provide an additional 24U of installation space); adjustable from the inside, blanking panels not included
Entrées de câbles	Universal size 300 x 100 mm - back side of the top and bottom cover Universal openings can be covered with blanking panels (to be ordered separately) Extended dimensions 500 x 115mm - for 800mm width only - both sides of the top and bottom cover. It consists of 3 parts - 300 x 115 mm and 2x - 100 x 115 mm, each part can be opened separately Extended openings can be covered with blanking panels or a standard cable brush - middle hole. The opening can be protected with a rubber rim (DP-KP-LEM-6) or a brush (DP-KP-KAR-6)
