iSEVEN Server
These selected cabinet configurations satisfy the most challenging requirements and offer an unbeatable price/performance ratio.
Product introduction
The iSEVEN Server rack is ideal for anyone who needs to keep servers in proper conditions. iSEVEN Server combines our general purpose cabinet with the highly valued features of our RF1 dedicated server racks.
Key benefits of the product
- Server cabinet for IT hardware to up to 1,500 kg
- Unmatched door perforation rate of 86% reduces server fan power consumption
- The rails support PDU 0U
Information
Caractéristiques principales
| Nom de la ligne de produits |
iSEVEN Server |
|---|---|
| Bestseller |
For general use |
| Hauteur (U) |
42, 45, 48
|
| Largeur (mm) |
600, 800
|
| Profondeur (mm) |
1000, 1200
|
| Limite de charge (kg) |
1500 |
| Porte avant |
Expanded metal mesh door - 86% perforation rate, lever lock - DIN profile, single point locking, universal key 333 |
| Montants |
A-type rails, solid (600 or 800 mm) without horizontal brackets, at 800 mm width provide an additional 24U of 19" installation space, adjustable from the inside, blanking panels not included |
| Porte arriere |
Expanded metal mesh door - 86% perforation rate, lever lock - DIN profile, single-point locking, universal key 333 |
| Panneaux latéraux |
Two side panels, standard lock, universal key |
Pour télécharger
Catalogue produits : Solutions et baies data et télécoms
Fiche technique : iSEVEN Server

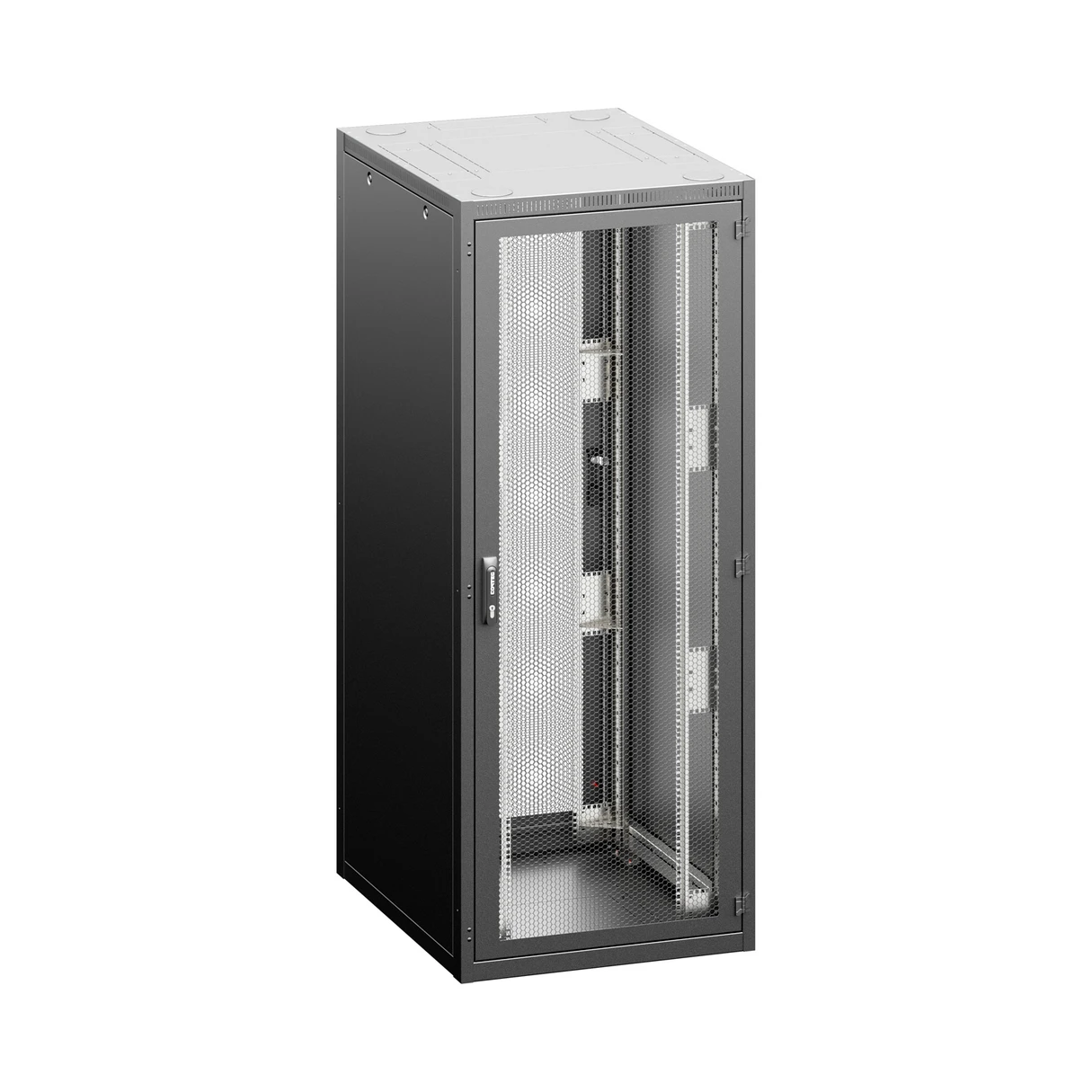

iSEVEN-Server_RI7-42-80_100-S2-H-main

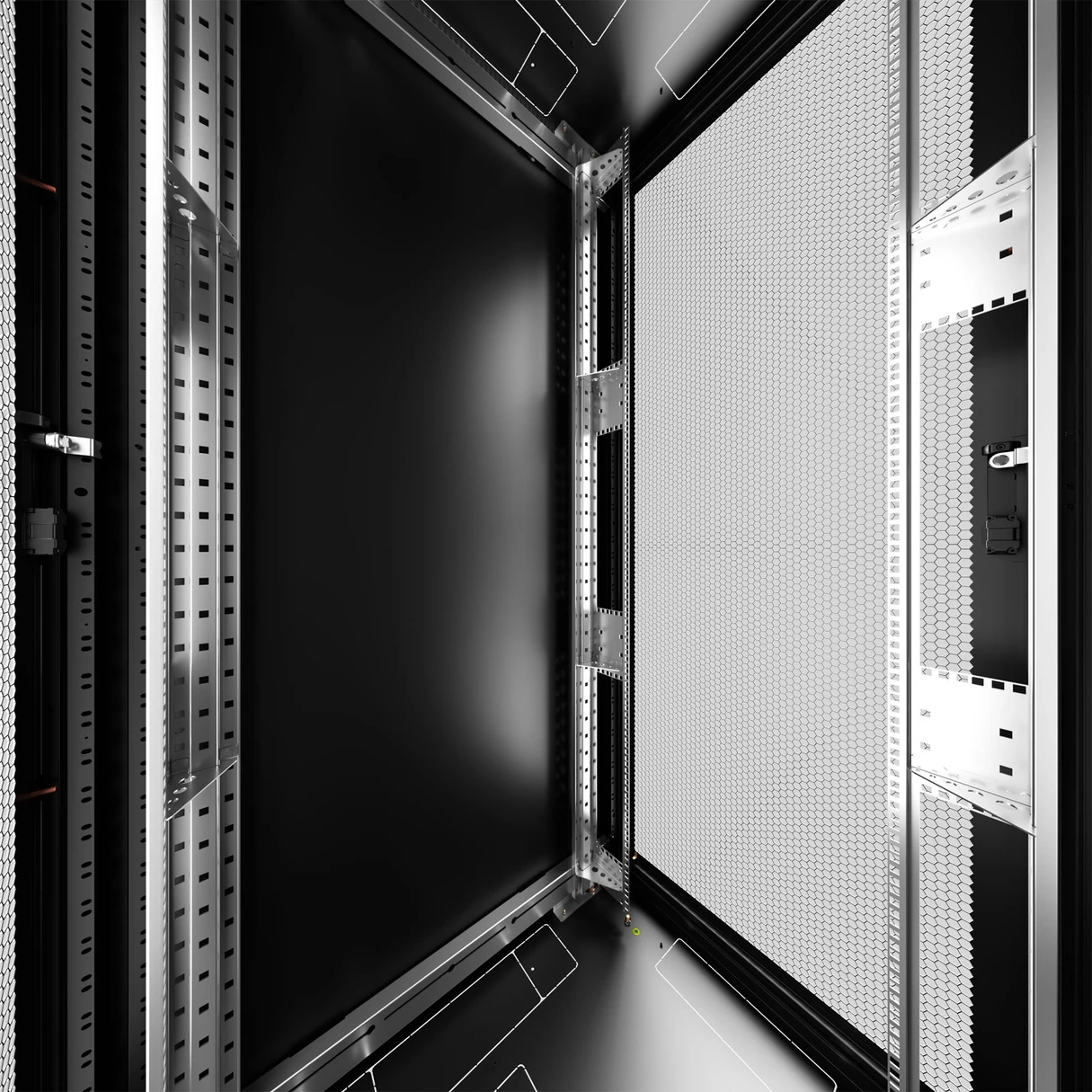

iSEVEN-Server_RI7-42-80_100-S2-inside-extrusions-web
