OPTIMAL Cable Management
Présentation du produit
The OPTIMAL cable management cabinet is designed to support configuration with horizontal links or consolidation point topology according to ISO/IEC 11 801, TIA-942 and TIA-568 B standards. This solution is recommended for telecommunication rooms where active components and connection panels need to be separated.Principaux avantages
- A unique system for high-density cable routing or a consolidation point
- Flexible arrangement of internal components
Information
Caractéristiques principales
| Nom de la ligne de produits |
OPTIMAL cable management |
|---|---|
| Hauteur (U) |
42, 45
|
| Largeur (mm) |
900
|
| Profondeur (mm) |
300, 400
|
| Limite de charge (kg) |
400 |
| Porte avant |
Metal front door, vertically split; multi-point lock with DIN insert |
| Panneaux latéraux |
Side and back panels with lock |
|
Free standing, anchoring to the wall recommended (screw holes ready); optionally, two cabinets can be connected back to back Adjustable placement of 19"" structures – front to back and left, center or left Pair of cable management brackets, placement in combination with 19"" rails The cable management brackets can be equipped with binding accessories: Cable organization reel - HDWM-FSS-50 (4 pcs included), HDWM-FSS-100o Plastic eyelets, VO-xxxo Metal eyelets - VO-Wx-xx/xx The top and bottom covers have cable inlets covered by metal and plastic covers. The total usable depth of the installed equipment is 264 mm If the 19"" rails are in the front position, the following applies: The usable depth to the back is 254 mm (for 300 mm); and 354 mm (for 400 mm deep ROF-CS); depth may vary depending on the type of cable management accessory used The usable front space is limited by the multi-point lock and may be from 10 to 15 mm (depending on the specific installation position) |
|
| Indice IP |
Max. IP30 |
|
Cable management expansion cabinet: Height: 42 or 45 U Length: 300 mm Width: 300 or 400 mm IP rating: max IP30 Load: 200 kg Main cable management cabinet can be expanded Expandable space for patch cord cable management The cable management bracket can be equipped with binding accessories: Cable organization reel - HDWM-FSS-50 (2 pcs included) or HDWM-FSS-100, Plastic eyelets - VO-xxxo, Metal eyelets - VO-Wx-xx/xx The top and bottom covers have cable inlets covered by metal and plastic covers. |
Pour télécharger
Catalogue produits : Solutions et baies data et télécoms
Fiche technique : OPTIMAL Cable Management

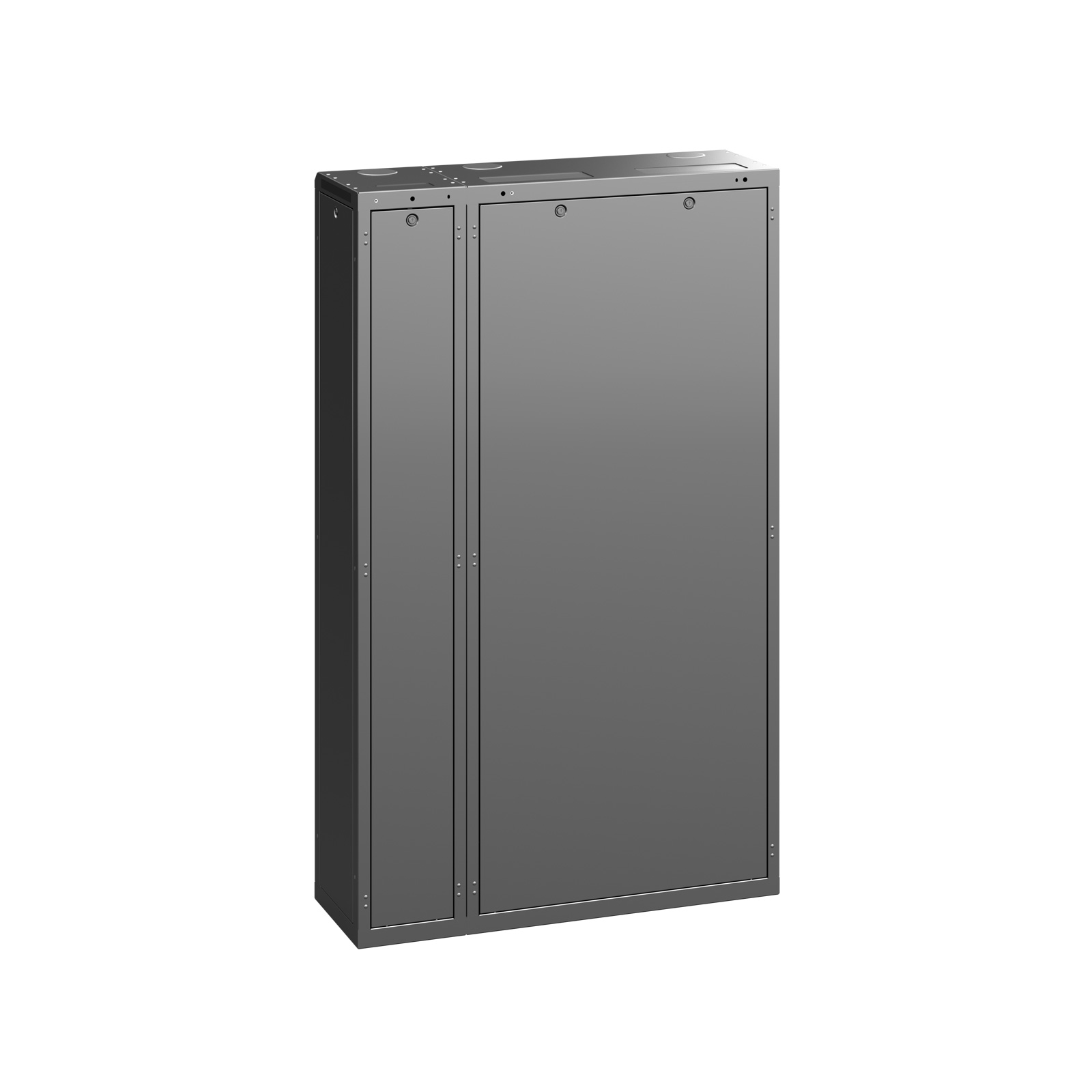

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-right-back-web

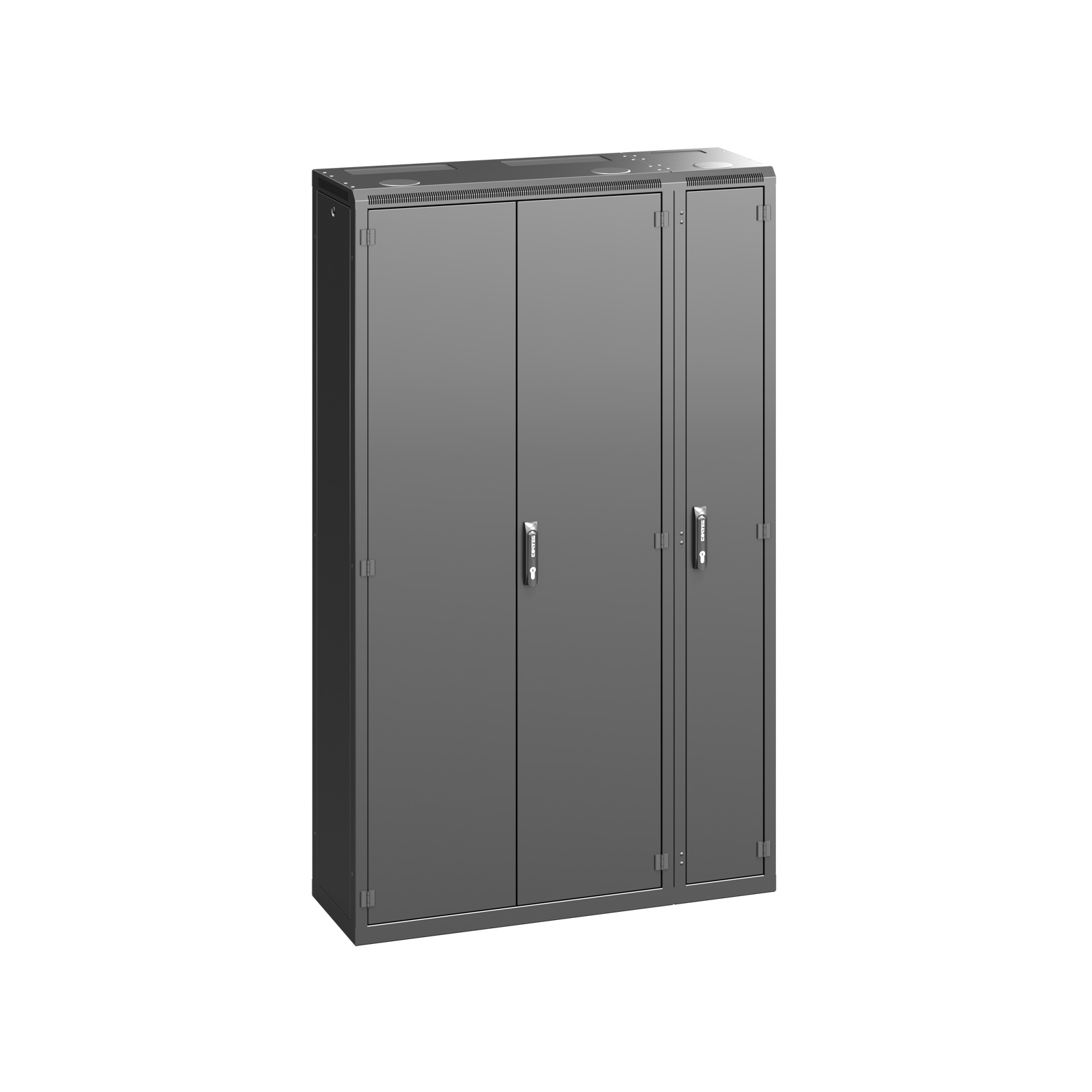

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-main-web

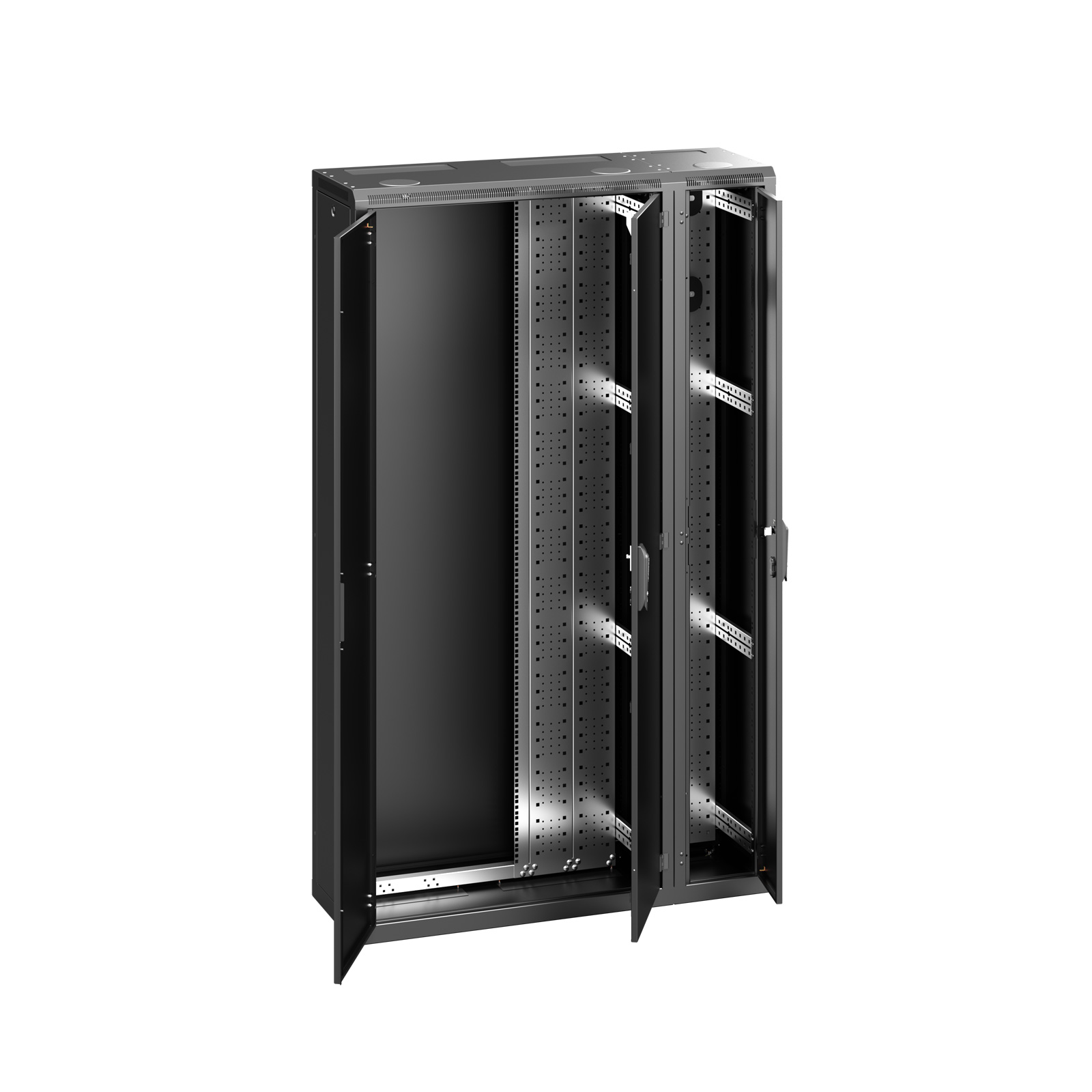

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-main-open-doors-web

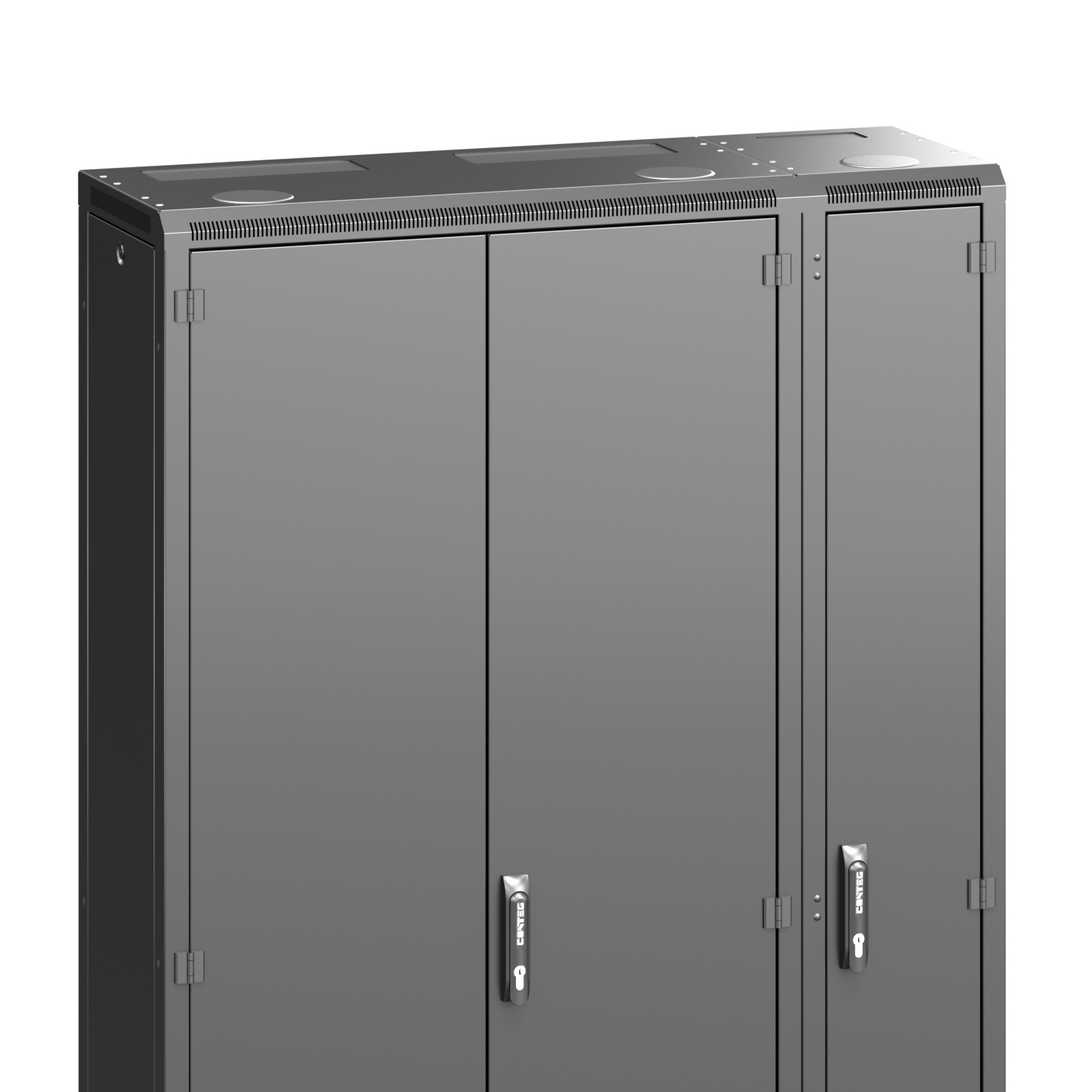

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-handle-hinges-web

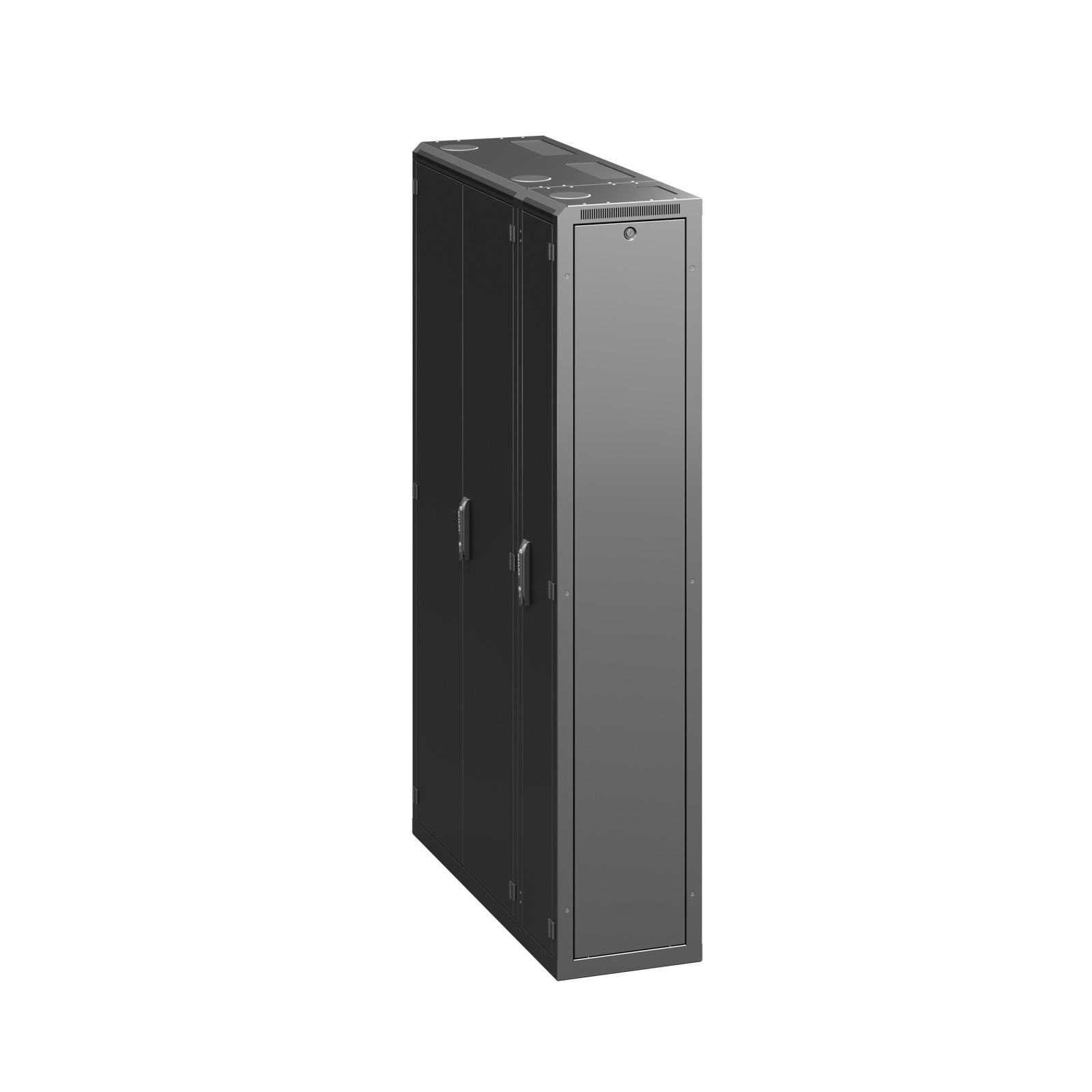

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-front-right-web
