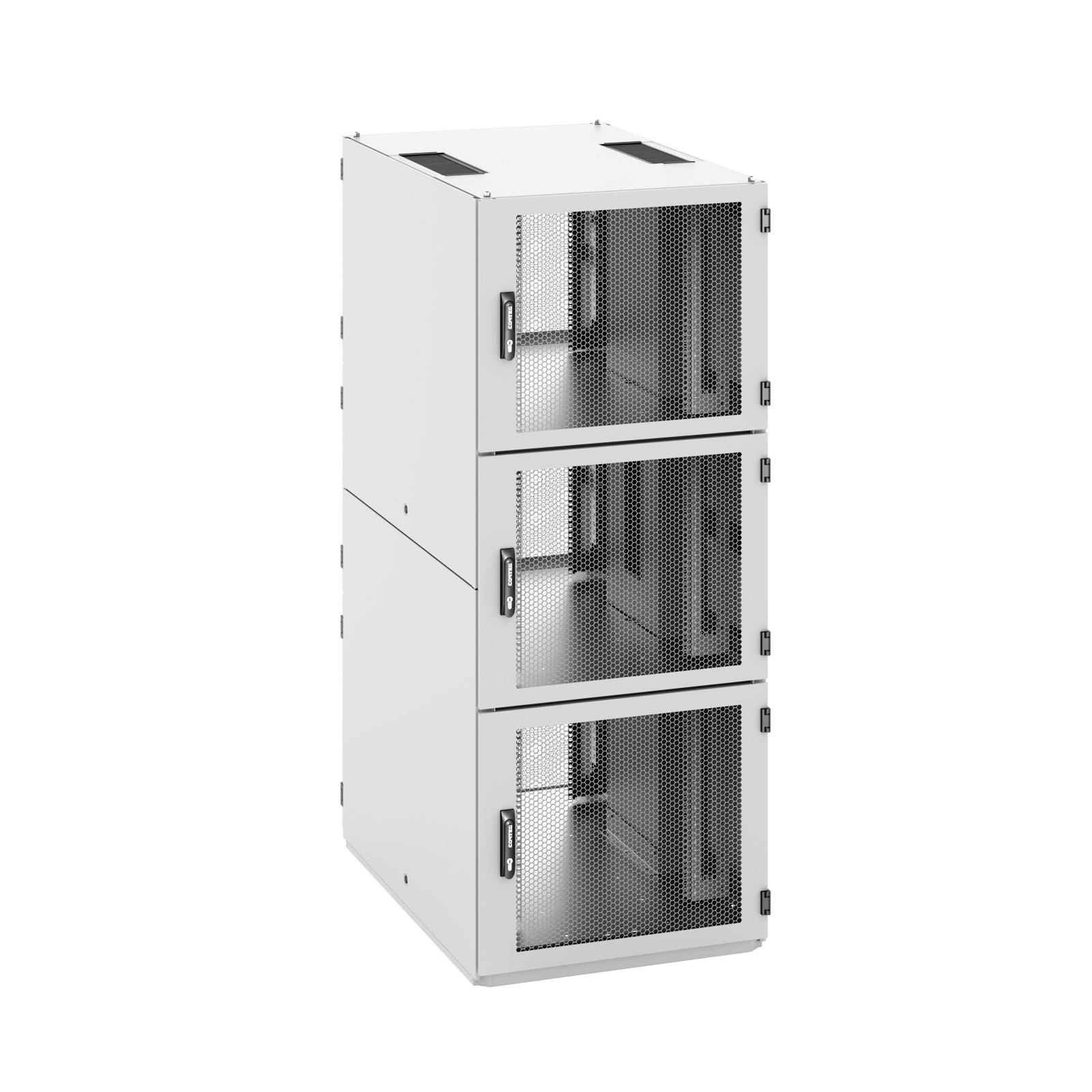

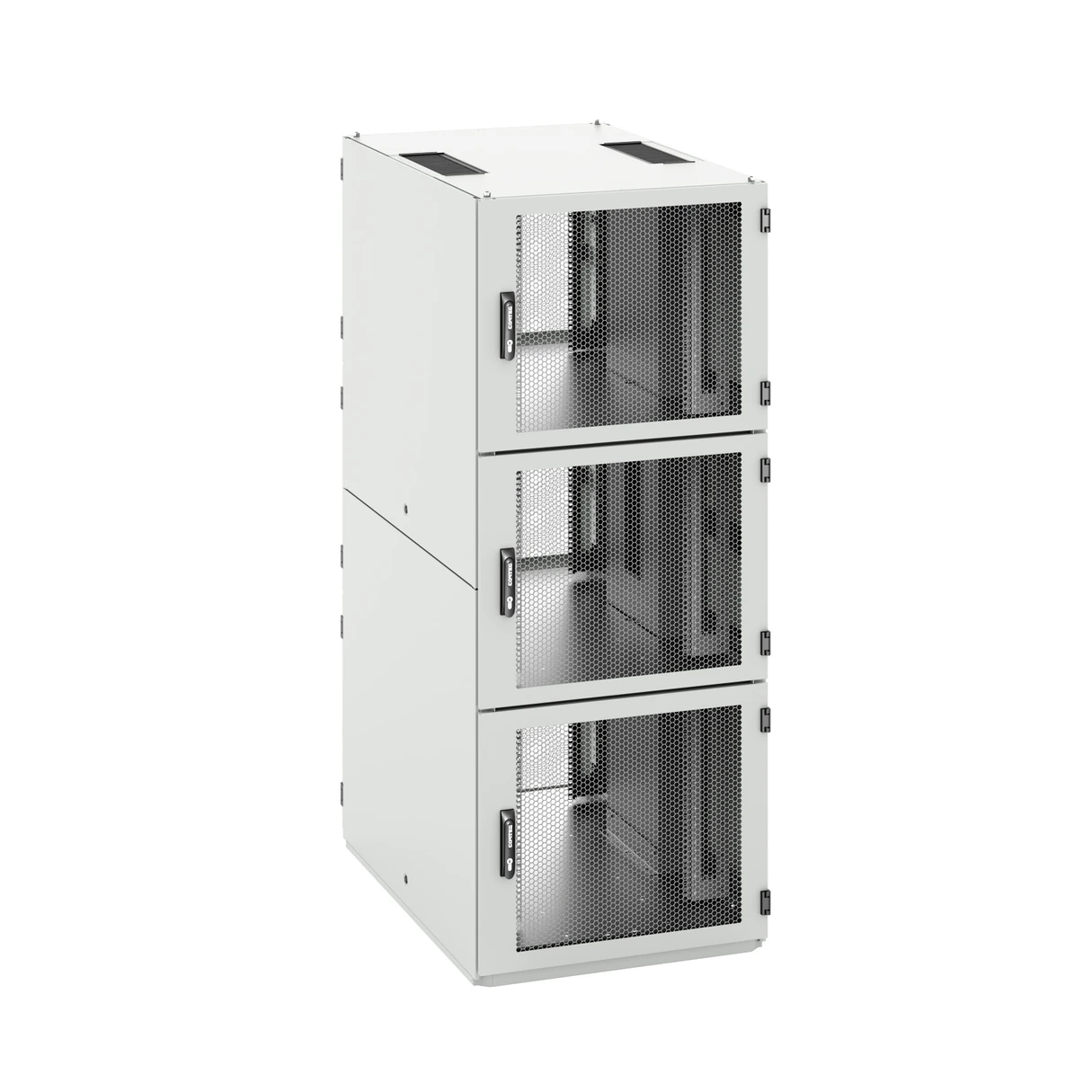

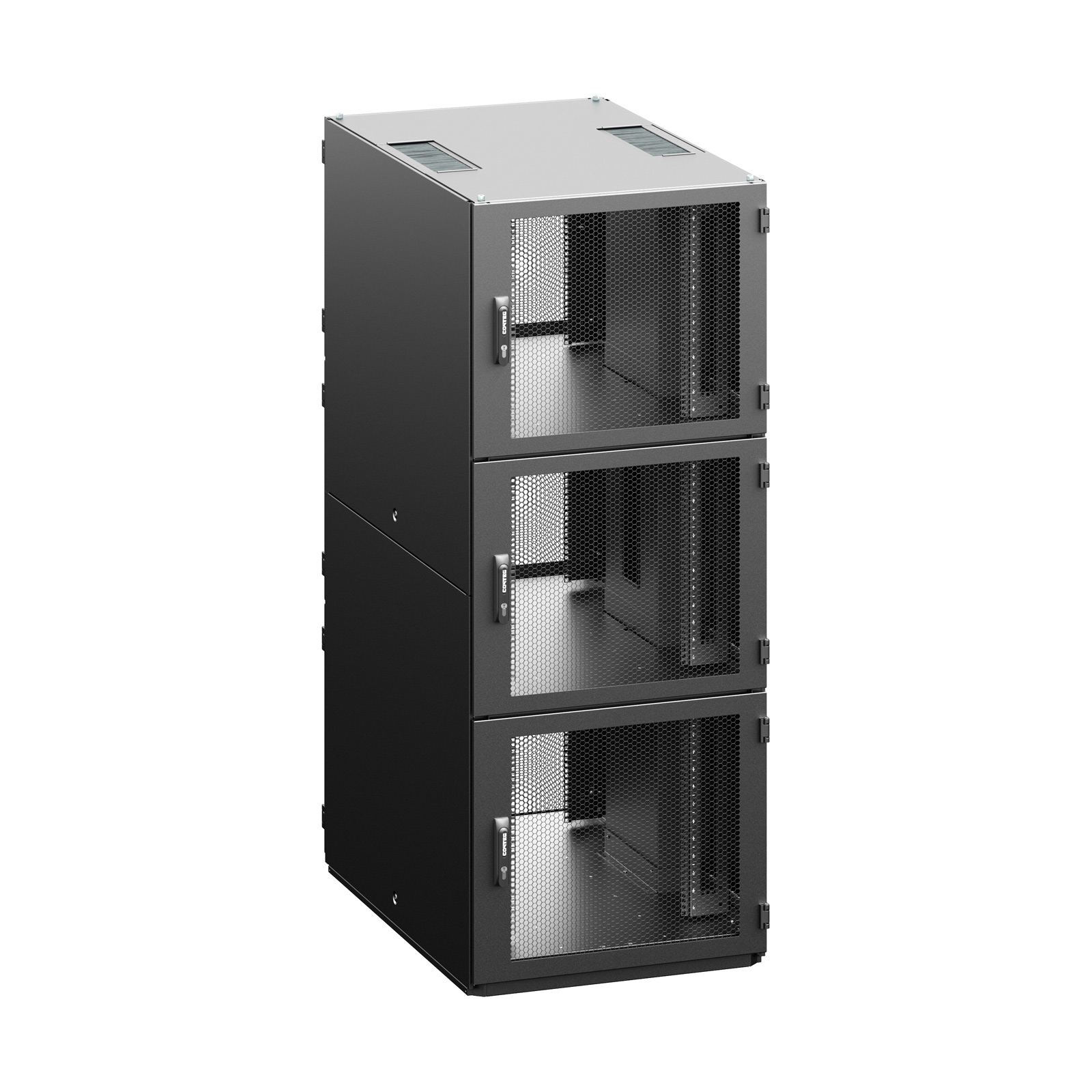

PREMIUM Housing RB1

PREMIUM Housing RB1

New

1.5 mm and 2.0 mm sheet metal

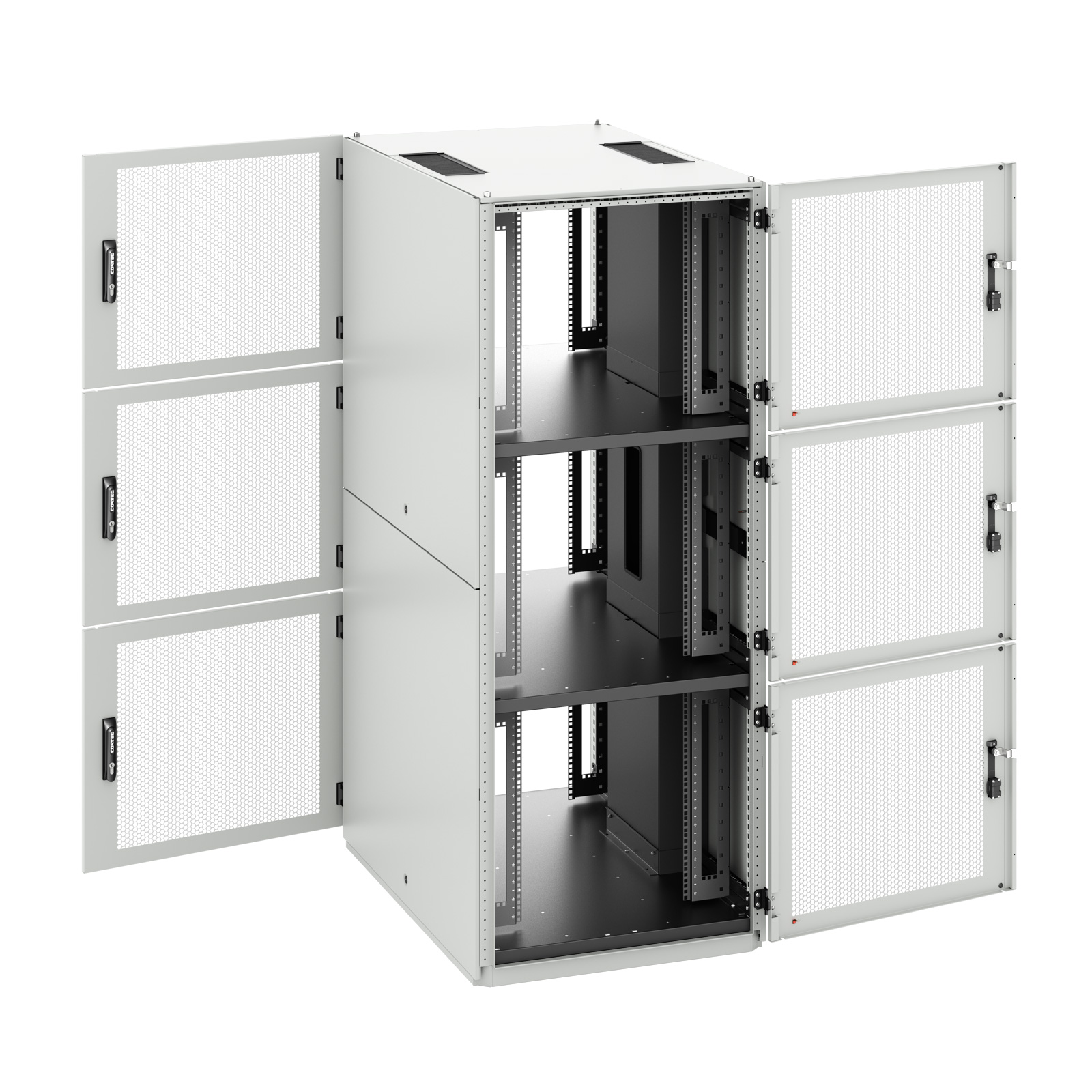

2–4 sections; other combinations upon request

Maximum load capacity of a single frame 2000

Load capacity of one 19"" section 500; 100 per shelf

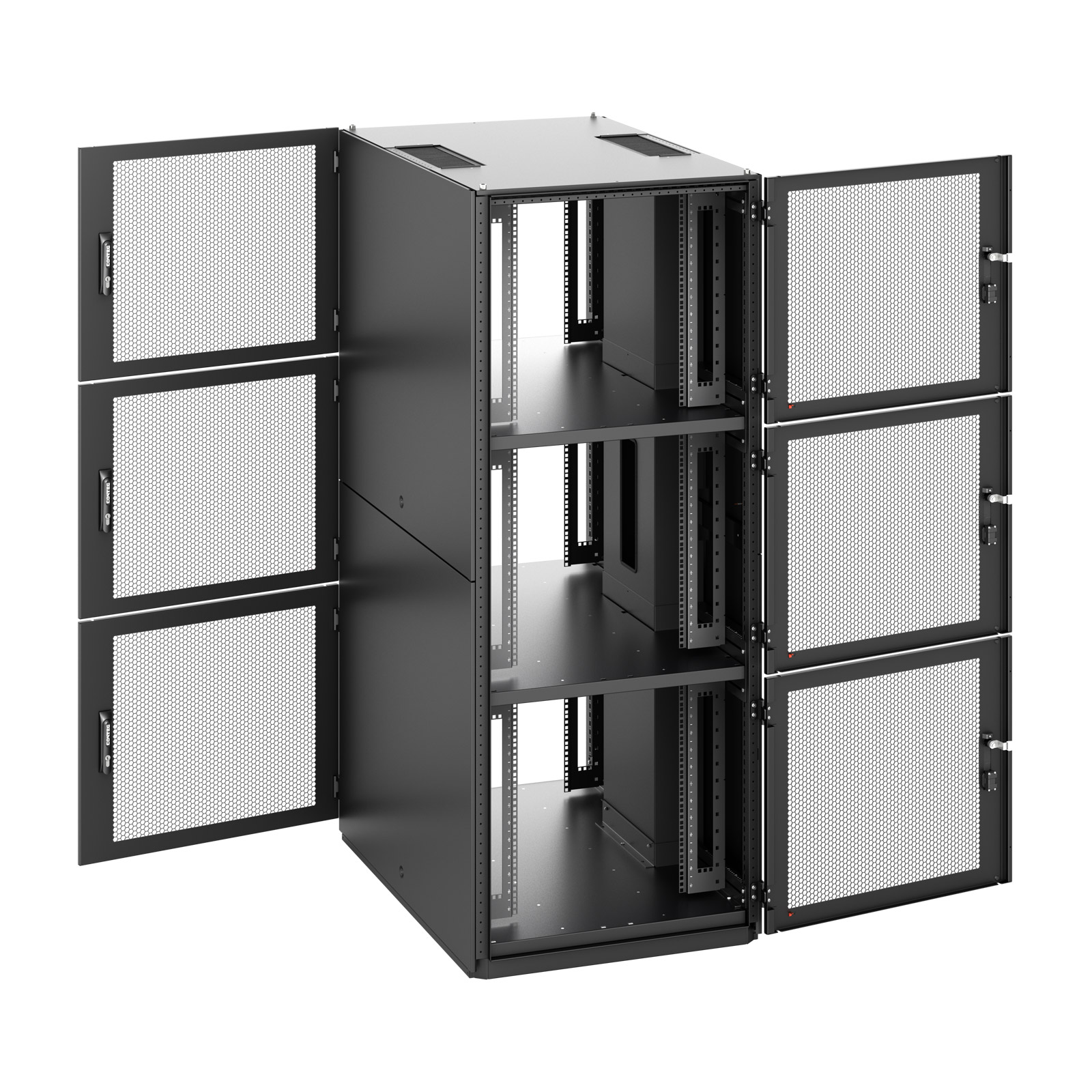

Perforated door - 86% perforation rate;

Rotary lever lock - DIN profile, universal key 333, single point;

Door opening angle 190°;

Hinges easy to switch for right or left opening

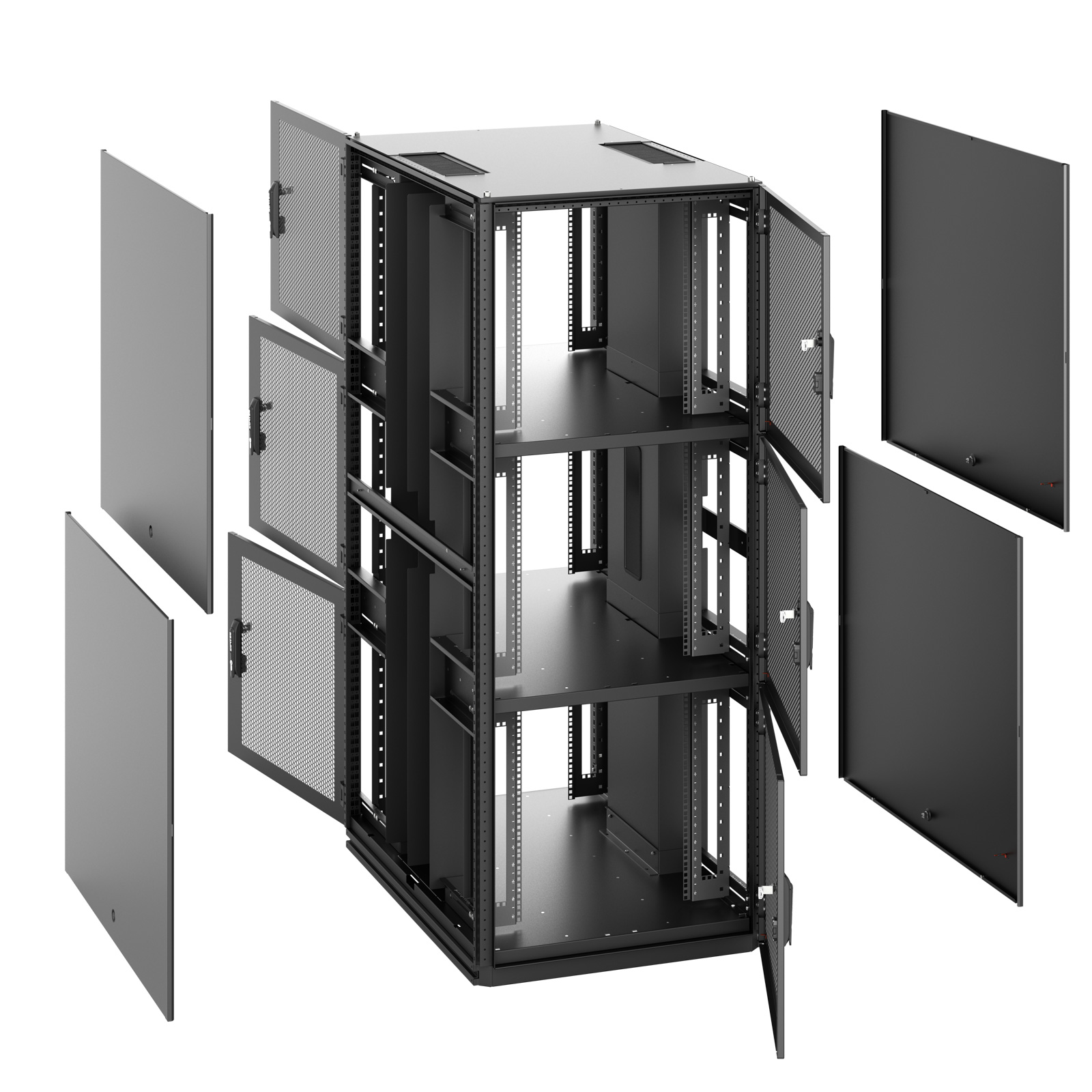

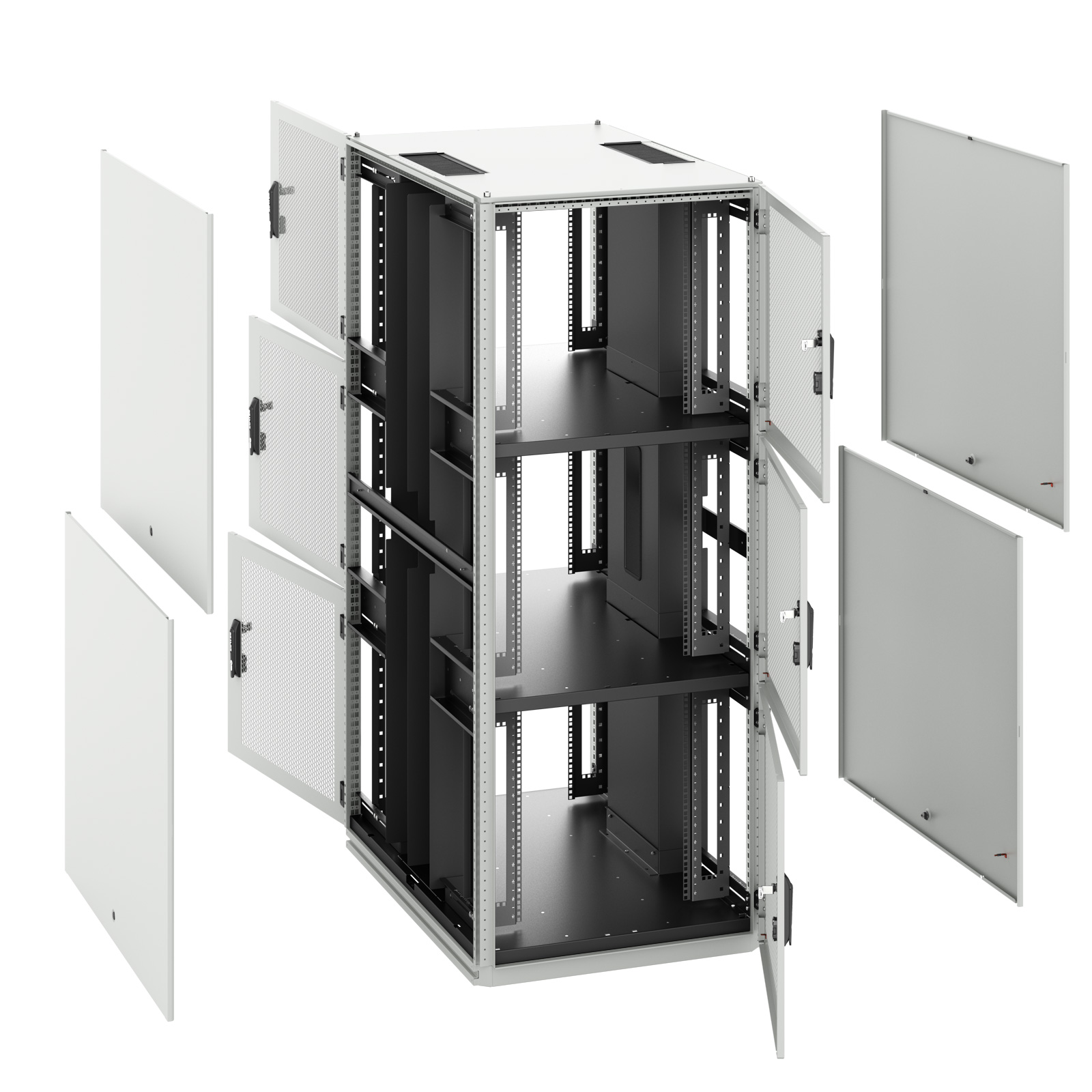

Horizontally split, full side panels;

Detachable, with locks;

Easy suspended installation

Optional securing of side panels - DP-DR-SSP-RF1

Separate cable management for each section

GND/ground kit included

Can be installed alongside DP-DR-RF1 (to be ordered separately)

Air separating frame for all sections (to be ordered separately)

2 pairs for each section, installation possible at any depth:
- L type – for cabinets with a width of 600 mm (2-4 sections)
- P type – for cabinets with a width of 800 mm (2-3 sections)
- C type – for cabinets with a width of 800 mm (for 4 sections)

IP 20

Standard RAL 7035, RAL 9005

Top and bottom
