Unité d'acces de porte RDU
Device for daisy-chaining to the to the expansion ports of the main control and monitoring unit.
Présentation du produit

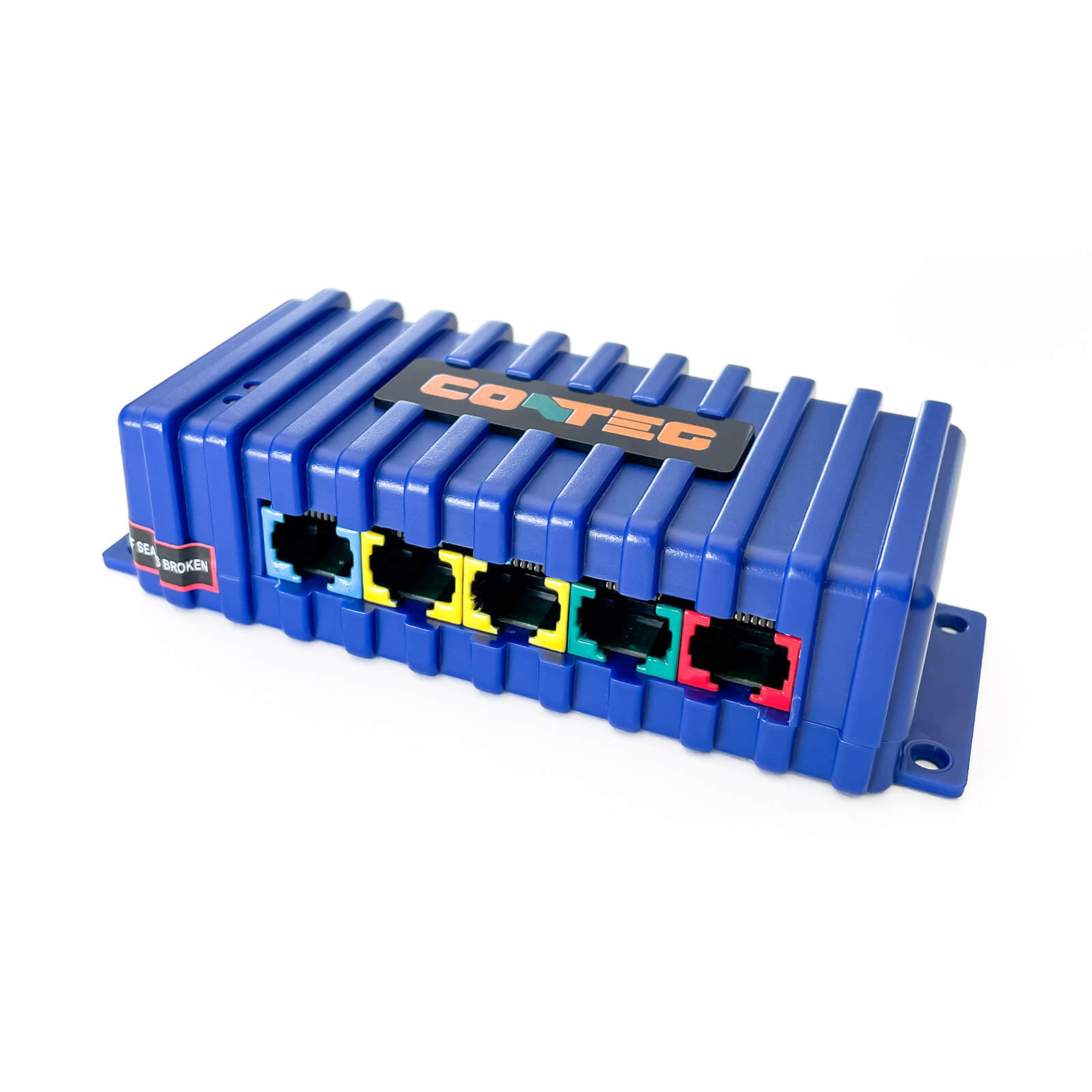

This expander (so-called RDU) is connected in a chain to the expansion ports of the RAMOS Ultra ACS or RAMOS Ultra main control and monitoring unit. It allows full access to cabinets while displaying information about people and time of access.One reader and one electromagnetic lock or two electronic handles can be connected to each RDU door access unit using a hub (RMS-CON-ACS)
25 RDUs in a line can be connected to each expansion port of the main control and monitoring unit. The length of the connecting cable (LAN category 5/6) for communication between the door access units and the main control and monitoring unit must not exceed 300 meters.
Ordering code: RMS-ACS-U-RDU
Information
Pour télécharger
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire
Information
Caractéristiques principales
| Nom de la ligne de produits |
RDU door access unit |
|---|---|
| Informations techniques |

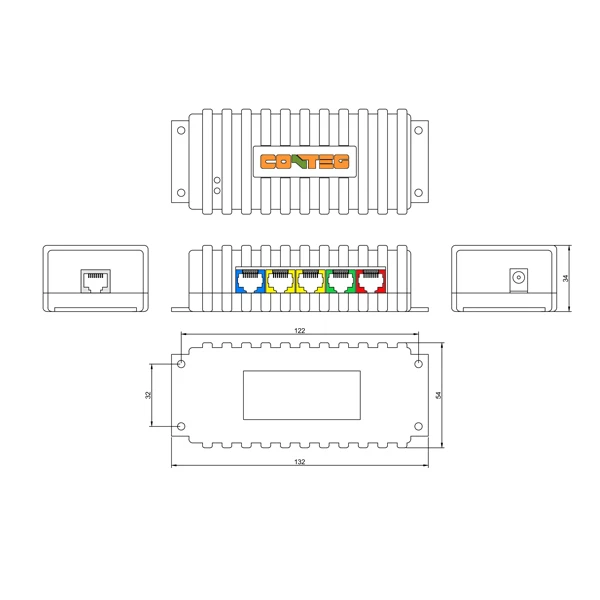

1 (green) reader or keyboard port (communicates over the Wiegand 26 b protocol and powers the reader) 1 (red) port for electronic handle or electromagnetic lock (powers the lock/handle 12 V DC max. 500 mA, detects the state of the lock/handle) 2 (yellow) self-detecting intelligent ports (sensors/detectors) 2 LEDs indicating power and connection status connection with CAT 5/6 patch cables Power: 12 V DC, 3 A Dimensions: 132x54x34 mm Operating temperature: min. -35 °C max. 80°C Operating humidity: min. 20%, max. 80% (non-condensing) MTBF: 400,000 hours Weight: 0.15 kg Included in the package: a power supply with power cable and a 1.5m patch cable |
