Refroidissement et chauffage

Thermostat pour le refroidissement et le chauffage

Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN rail

Added to the order

Thermostat pour le refroidissement et le chauffage
Go to the order
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire
Où nous trouver ?

Présentation du produit

Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN rail

Thermostat for cooling - for fan regulation. The thermostat switches on the ventilation unit when the set temperature is reached.

Thermostat for heating - for regulating heating units. The opening contact switches off the heating element when the set temperature is reached.

A combination of both thermostats is possible, provided that the temperature difference between the set temperatures is at least 5 °C.
Information Pour télécharger
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire

Information

Caractéristiques principales

Nom de la ligne de produits

Thermostat for cooling and heating

Poids (kg)

40 g

Dimensions (L×H×P, en mm)

55x33x43 mm

IP20

± 4K

7°C ± 3 K

15 A (2 A), 120 V AC
10 A (2 A), 250 V AC
DC 30 W at DC 24 V

Bi-metal thermostat

Informations techniques

Operating temperature

Courant maximum (A)

AC 16 A for 10 sec.

2-pole terminal (wire 2.5 mm2)

to a 35 mm DIN rail

Température de fonctionnement

-45 °C to +80 °C

0 °C to 60 °C (41 °F to 104 °F)

The unit is ready for installation

Pour télécharger

Catalogue produits : Armoires extérieures

Catalogue produits : Armoires extérieures

Catalogues et brochures
Taille du fichier : 13.25 MB
Téléchargé : 22. 5. 2025
Versions linguistiques :
Catalogue produits : Armoires industrielles

Catalogue produits : Armoires industrielles

Catalogues et brochures
Taille du fichier : 14.68 MB
Téléchargé : 7. 4. 2025
Versions linguistiques :

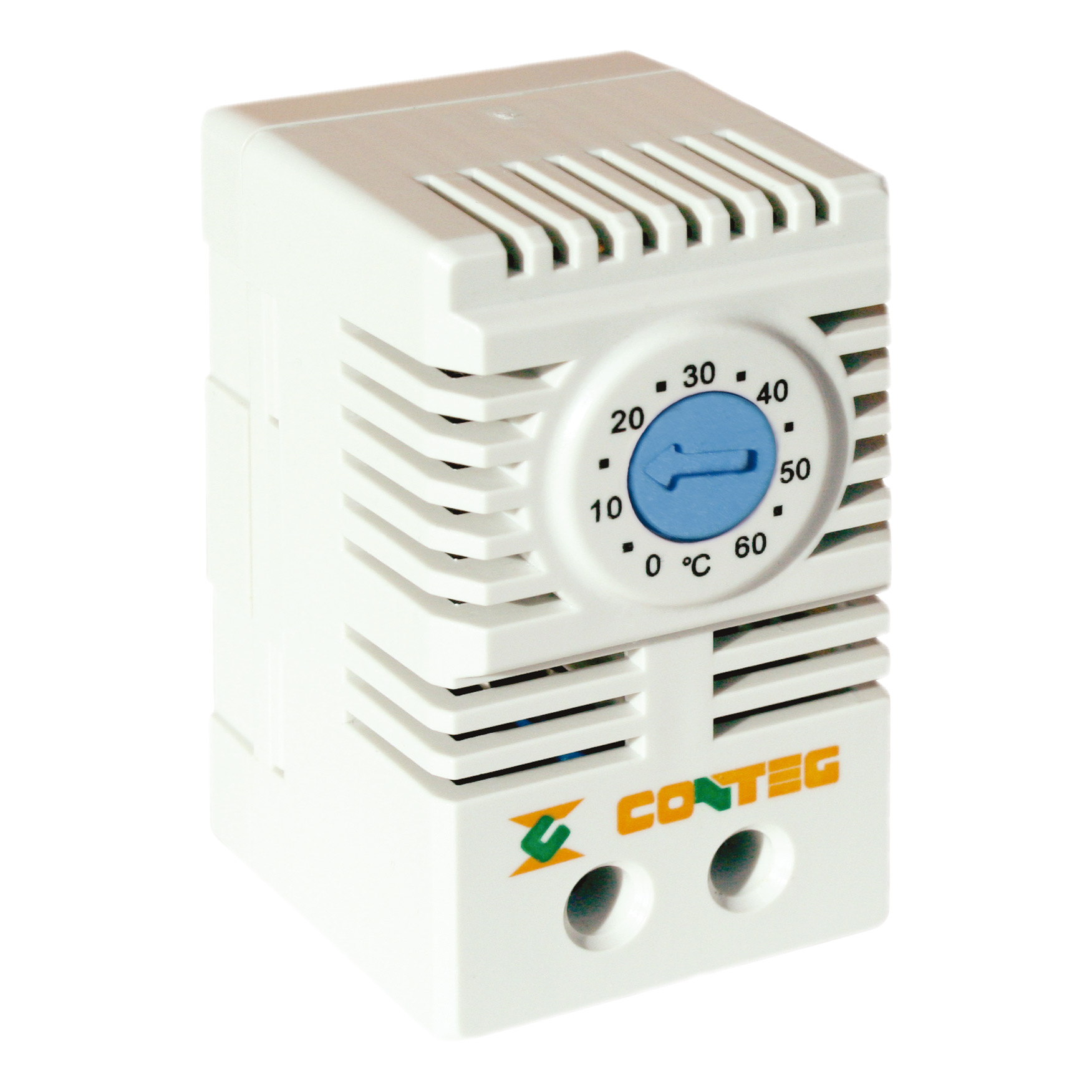

thermostat_blue

thermostat_blue

Images
Taille du fichier : 284.01 kB
Téléchargé : 9. 3. 2025

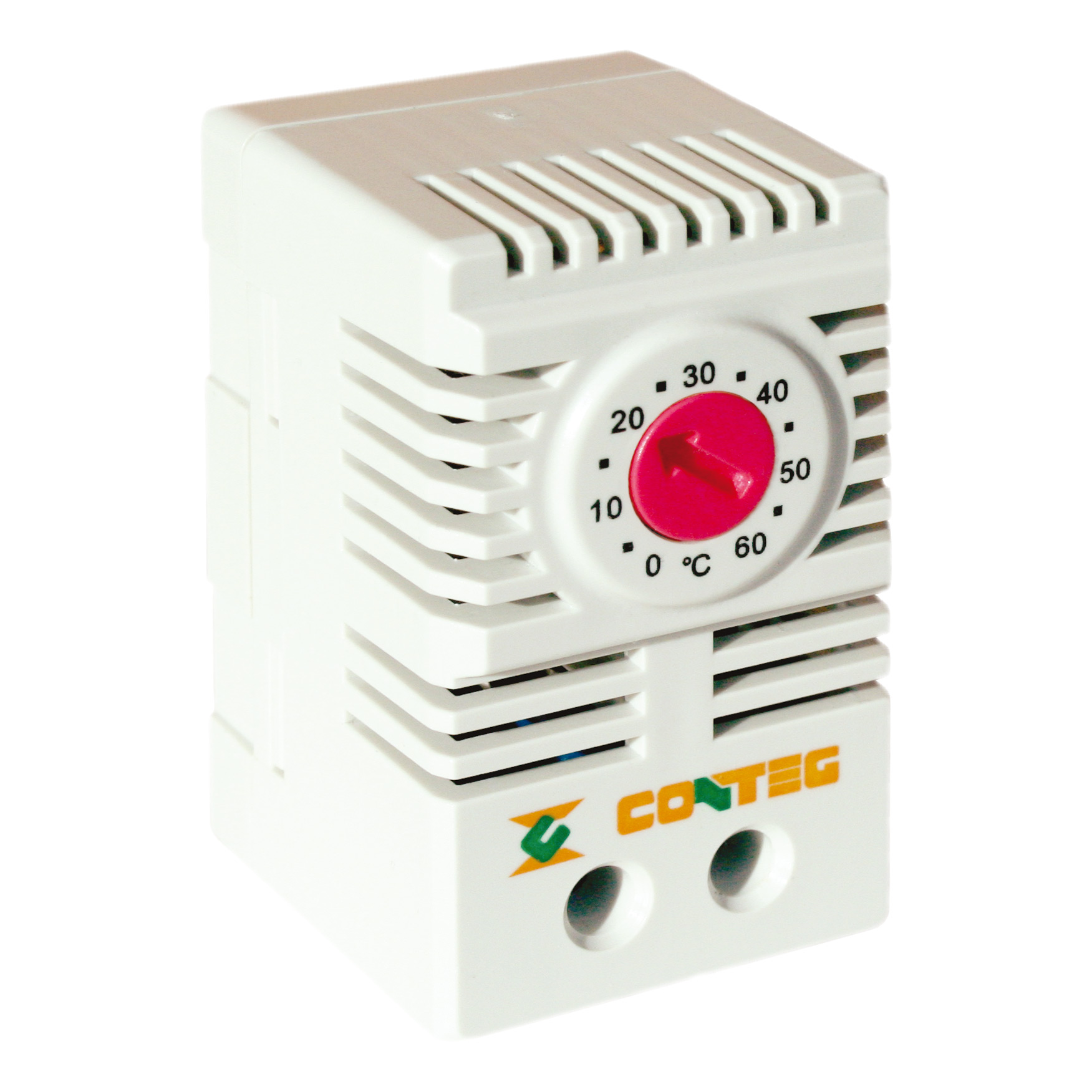

thermostat_red

thermostat_red

Images
Taille du fichier : 286.07 kB
Téléchargé : 9. 3. 2025
