Boîtiers portatifs pour l'électronique

Serie 50

Suitable for a wide range of indoor and outdoor use cases.

Fiche technique En savoir plus

Où nous trouver ?

Présentation du produit

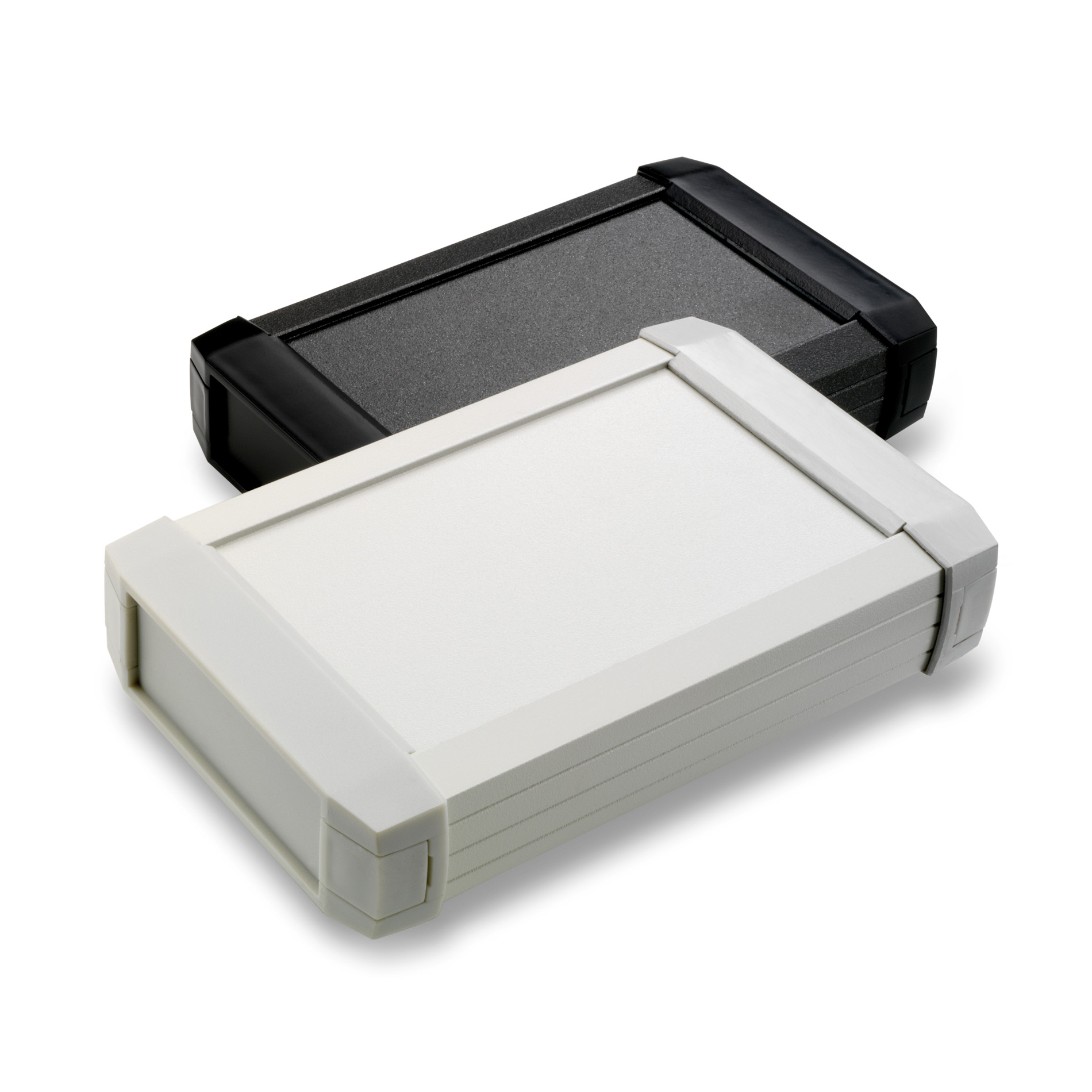

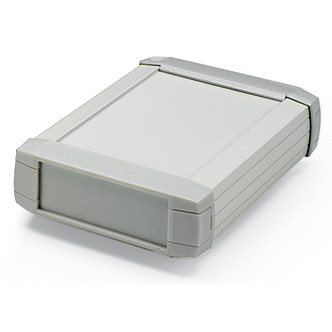

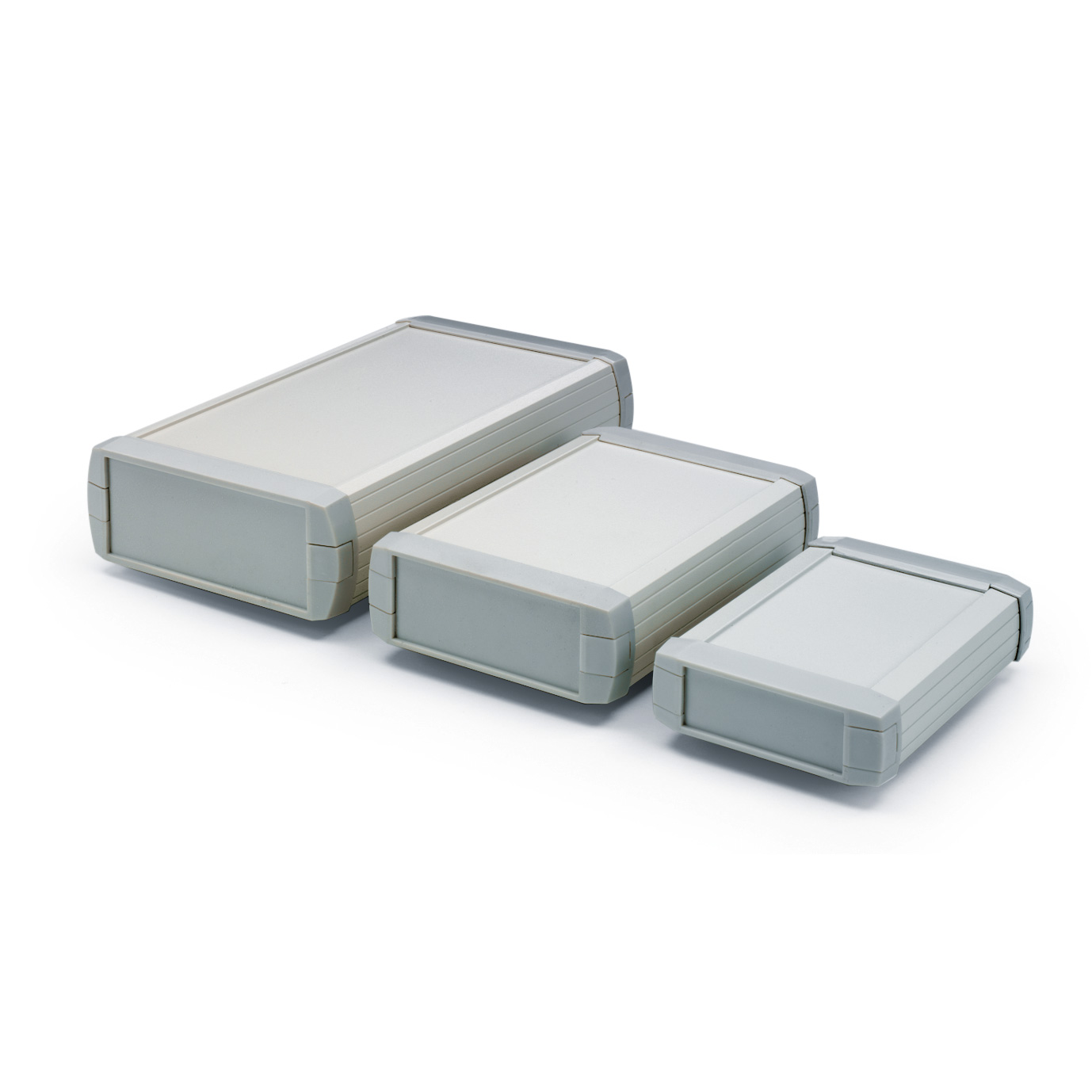

The Serie 50 range of high-quality portable aluminum electronics boxes with IP65 protection is suitable for a wide range of indoor and outdoor use cases. Hand-held, mounted on the wall or a fixed/removable support, use as machinery RF/wire activated control.

Information Pour télécharger

Information

Caractéristiques principales

Nom de la ligne de produits	Serie 50
Informations techniques	DESCRIPTION Profiles with integrated rails for fixing printed circuit boards Lid fixed with an M3 self-tapping screw Recessed space for a keyboard is available on both the top and bottom of the box An ergonomic shape of the sides facilitates perfect portability Battery compartments Wall mounting option in default configuration Resistant to temperatures up to 85 °C (plastic parts) The basic unit includes: 1 profile, 2 end caps, 4 small caps, mounting screws MATERIALS AND SURFACE TREATMENT Housing - 6063 aluminum tube, epoxy coating, color similar to RAL 9002 or graphite gray Lid - injection-molded high-quality ABS, color similar to light gray RAL7044 or black RAL 9004 OPTIONAL EPDM rubber seal for IP65 protection, battery holder, special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 65 V0, other colors upon request

Nom de la ligne de produits

Serie 50

Informations techniques

DESCRIPTION

Profiles with integrated rails for fixing printed circuit boards
Lid fixed with an M3 self-tapping screw
Recessed space for a keyboard is available on both the top and bottom of the box
An ergonomic shape of the sides facilitates perfect portability
Battery compartments
Wall mounting option in default configuration
Resistant to temperatures up to 85 °C (plastic parts)
The basic unit includes: 1 profile, 2 end caps, 4 small caps, mounting screws

MATERIALS AND SURFACE TREATMENT

Housing - 6063 aluminum tube, epoxy coating, color similar to RAL 9002 or graphite gray
Lid - injection-molded high-quality ABS, color similar to light gray RAL7044 or black RAL 9004

OPTIONAL

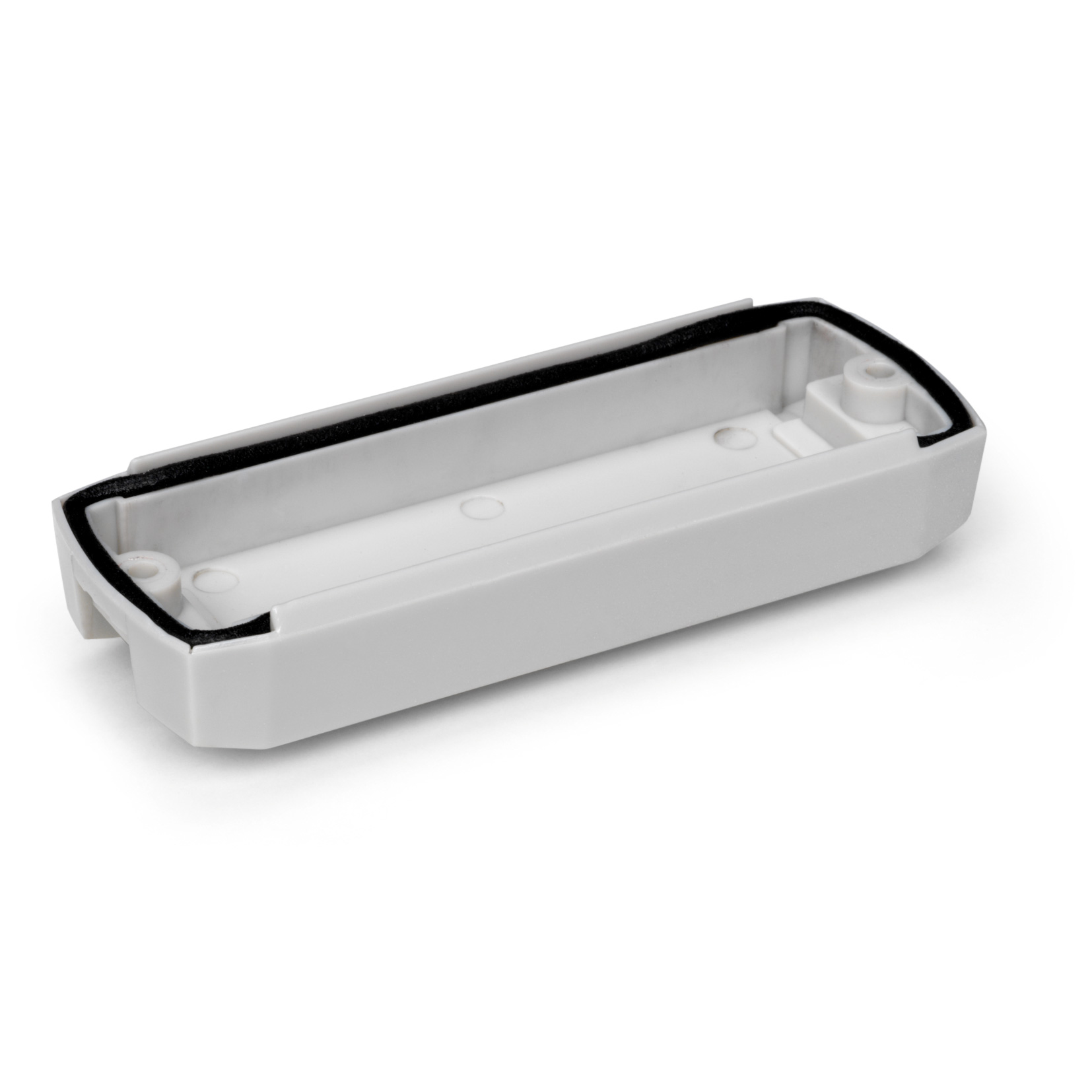

EPDM rubber seal for IP65 protection, battery holder, special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 65 V0, other colors upon request
