Bâtiracks RSG4

Heavy-duty double open frames of the RSG4 series are used wherever the best possible access to components and structured cabling is required, especially in data centers and server rooms.

Added to the order

Bâtiracks RSG4
Go to the order
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire
Où nous trouver ?

Product introduction

RSG4’s heavy-duty four-post open frames provide unrivaled access options. With a load capacity of up to 1,500 kg under even load, they are ideal for keeping heavy servers, disk arrays, etc.

Key benefits of the product

  • 4-post frame for heavy IT hardware (up to 1,500 kg)
  • Unrestricted access to the installed devices
  • Full configurability and depth adjustment on site
  • Compatible with the HDWM binding system
  • Unassembled version for transport to hardly accessible locations
Information Pour télécharger
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire

Information

Caractéristiques principales

Nom de la ligne de produits

Open frames RSG4

Hauteur (U)
42, 47
Largeur (mm)
550
Profondeur (mm)
500-680, 710-890, 920-1100
Limite de charge (kg)

1500 (uniform load)

Couleur

RAL9005

Autres

RSG2 open frames are designed for maximum compatibility with the entire product portfolio of High Density binding systems

Informations techniques

The open frames offer unrivaled access to the installed devices compared to standard 19" cabinets; their limitation is IP00 protection. Therefore, we recommend installing these frames in a safe and dust-free environment

Remarque

Delivered unassembled

Inclus dans l'emballage

2 pairs of 19"" vertical rails (with U markings)

Angles

Inward or outward oriented base including upper parts

Profile adjustable in the desired depth

Indice IP

IP00 (no protection)

Pour télécharger

Catalogue produits : Solutions et baies data et télécoms

Catalogue produits : Solutions et baies data et télécoms

Catalogues et brochures
Taille du fichier : 53.9 MB
Téléchargé : 2. 7. 2025
Télécharger : fr / Afficher: fr
Versions linguistiques :
Notice d'installation : RSG4

Notice d'installation : RSG4

Manuels
Taille du fichier : 465.05 kB
Téléchargé : 31. 5. 2025
Télécharger : fr / Afficher: fr
Versions linguistiques :

Schémas techniques : RSG4

Schémas techniques
Taille du fichier : 4.77 MB
Téléchargé : 1. 6. 2025
Télécharger : fr
Versions linguistiques :
Fiche technique : RSG4

Fiche technique : RSG4

Fiche technique
Taille du fichier : 795.14 kB
Téléchargé : 31. 5. 2025
Télécharger : fr / Afficher: fr
Versions linguistiques :

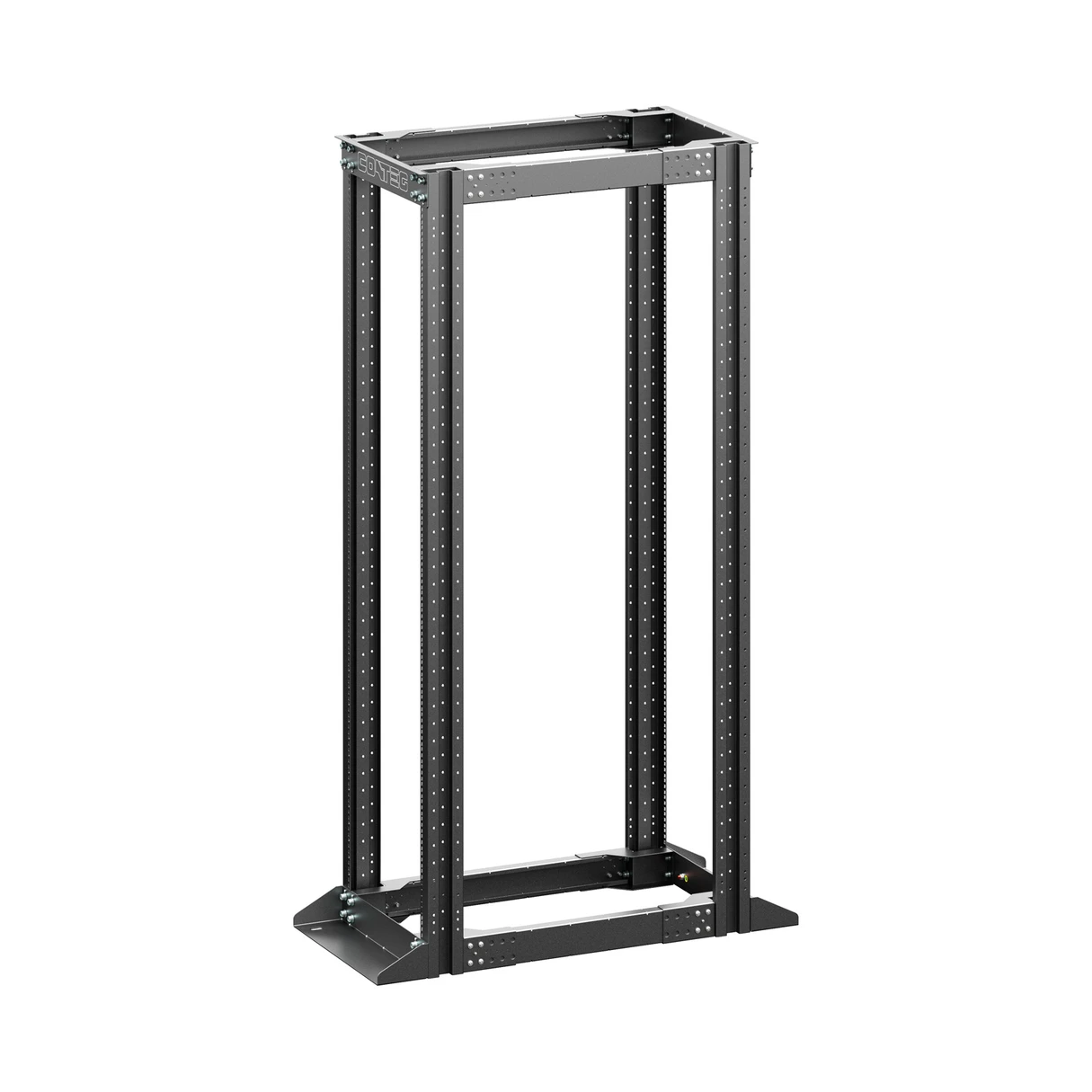

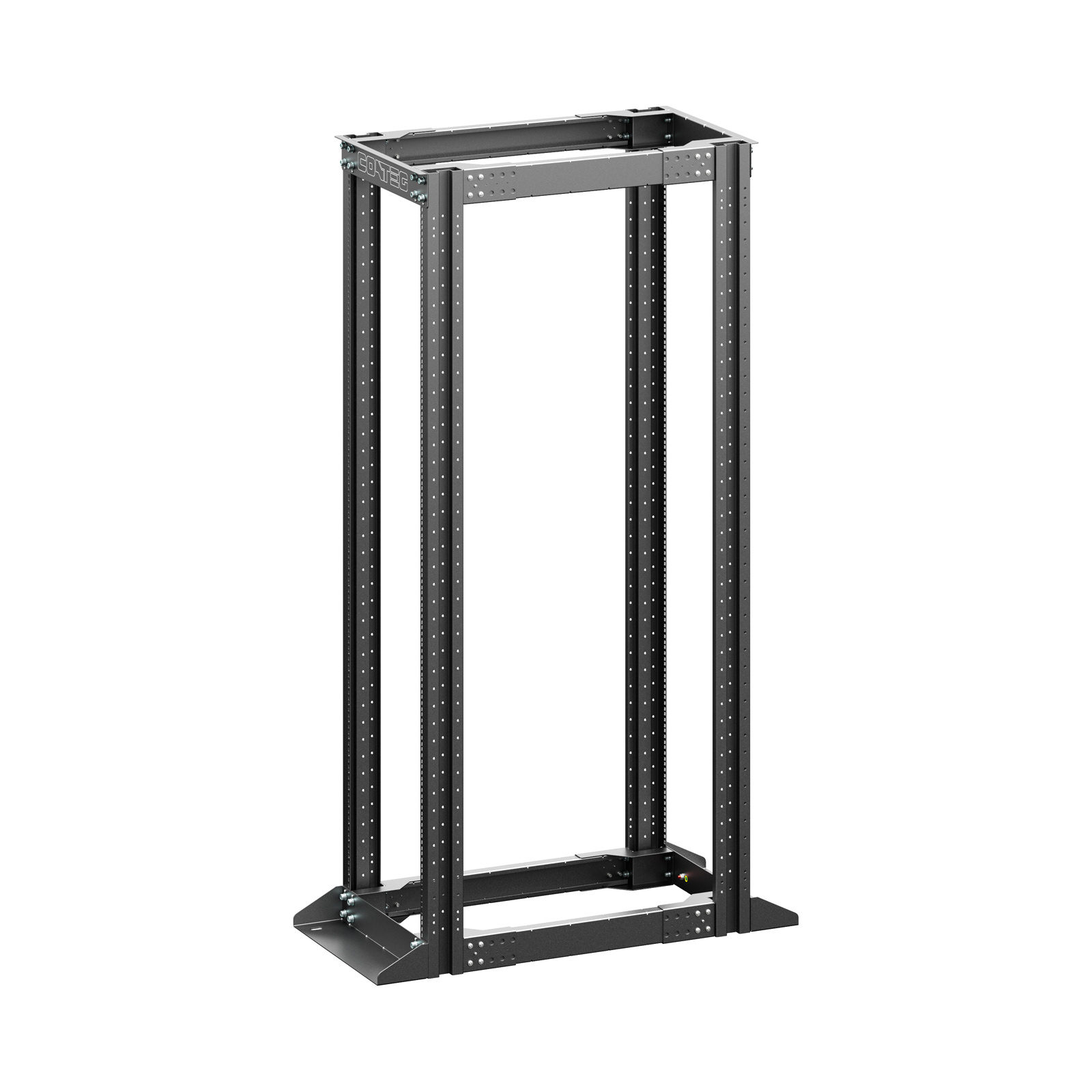

open-frame_RSG4-42-19-92-LF_side

open-frame_RSG4-42-19-92-LF_side

Images
Taille du fichier : 194.67 kB
Téléchargé : 10. 2. 2025

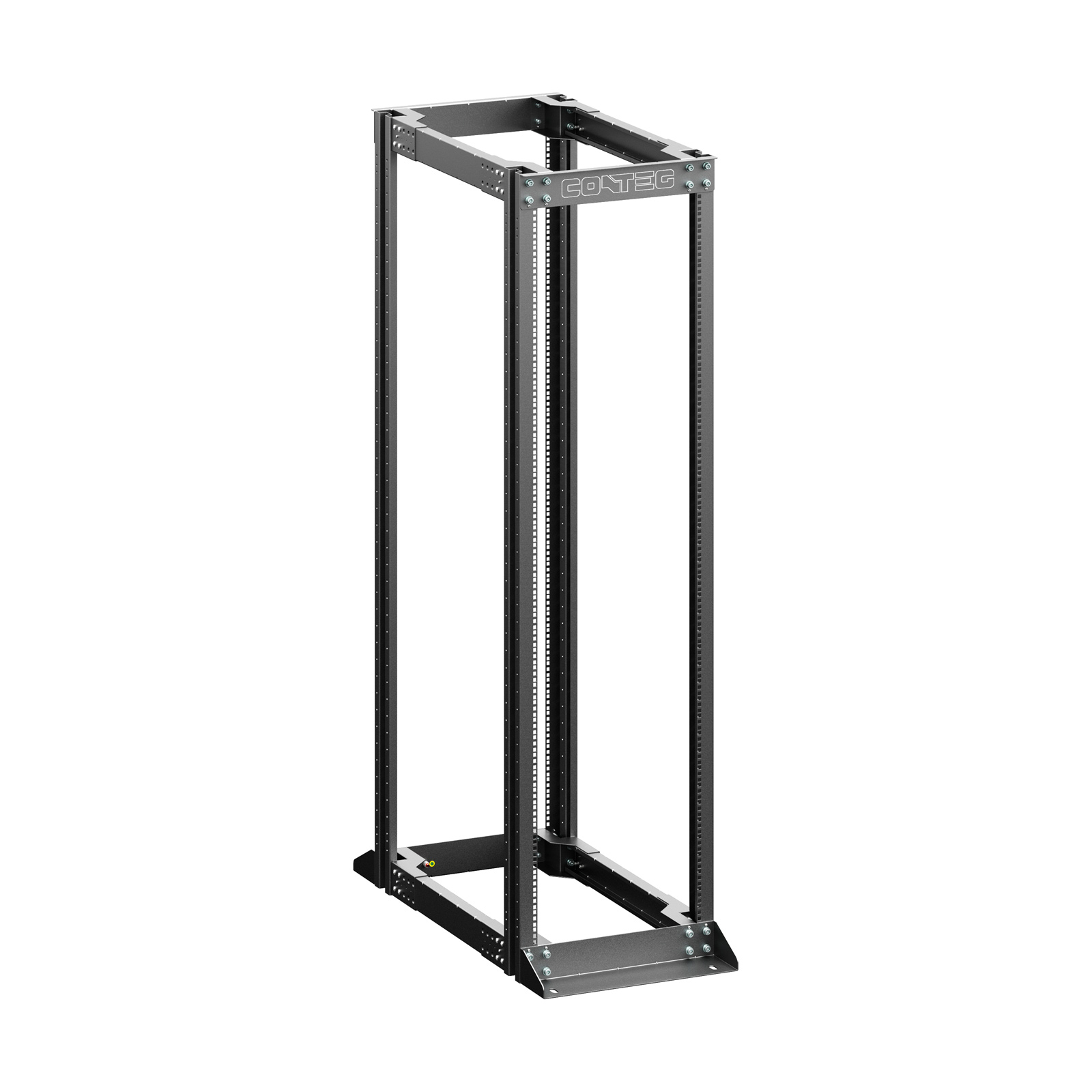

open-frame_RSG4-42-19-92-LF
