Managed power panels enable remote monitoring of energy consumption at the input as well as at individual sockets, including their control.

Fiche technique En savoir plus

Où nous trouver ?

Présentation du produit

Managed power panels ensure not only the supply of electricity and its distribution to IT devices in the cabinet, but also enable remote control of individual sockets (switching on/off) and monitoring of power consumption at individual sockets (PDU versions with POM code).

Managed PDUs measure voltage and frequency, enable reporting of load power factor, active and apparent power and consumed energy from the mains (in kWh).
The device has a built-in backlit display. An external off-panel display is also available, suitable for powering critical IT equipment requiring uninterrupted power.

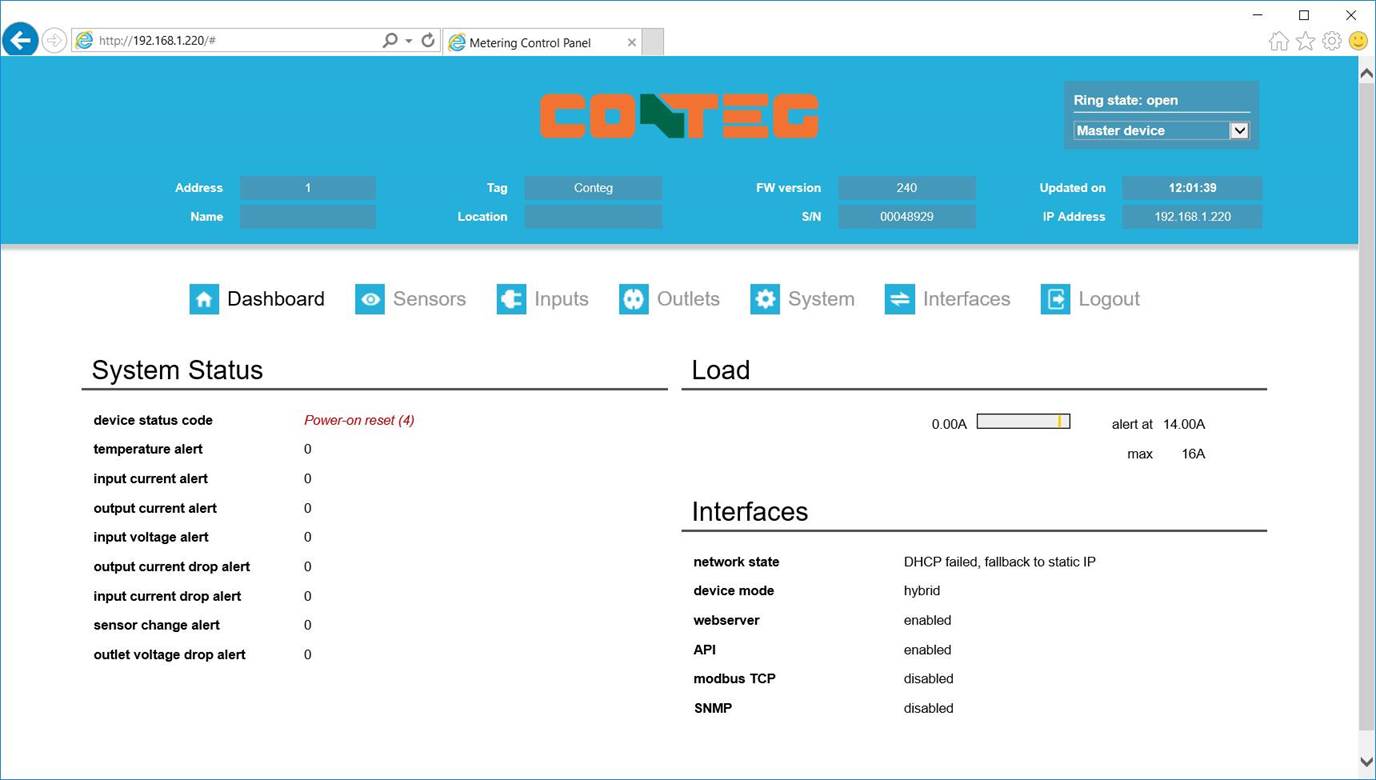

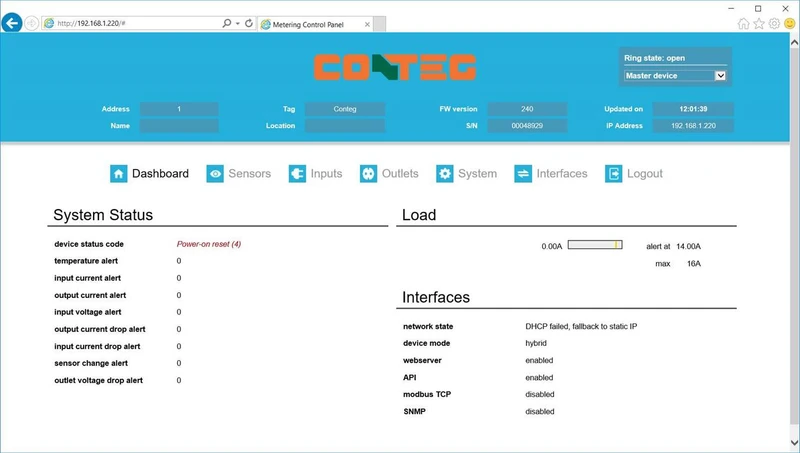

A built-in web server allows you to remotely set up the panel, read information and control individual sockets of a particular PDU in a user-friendly web interface.

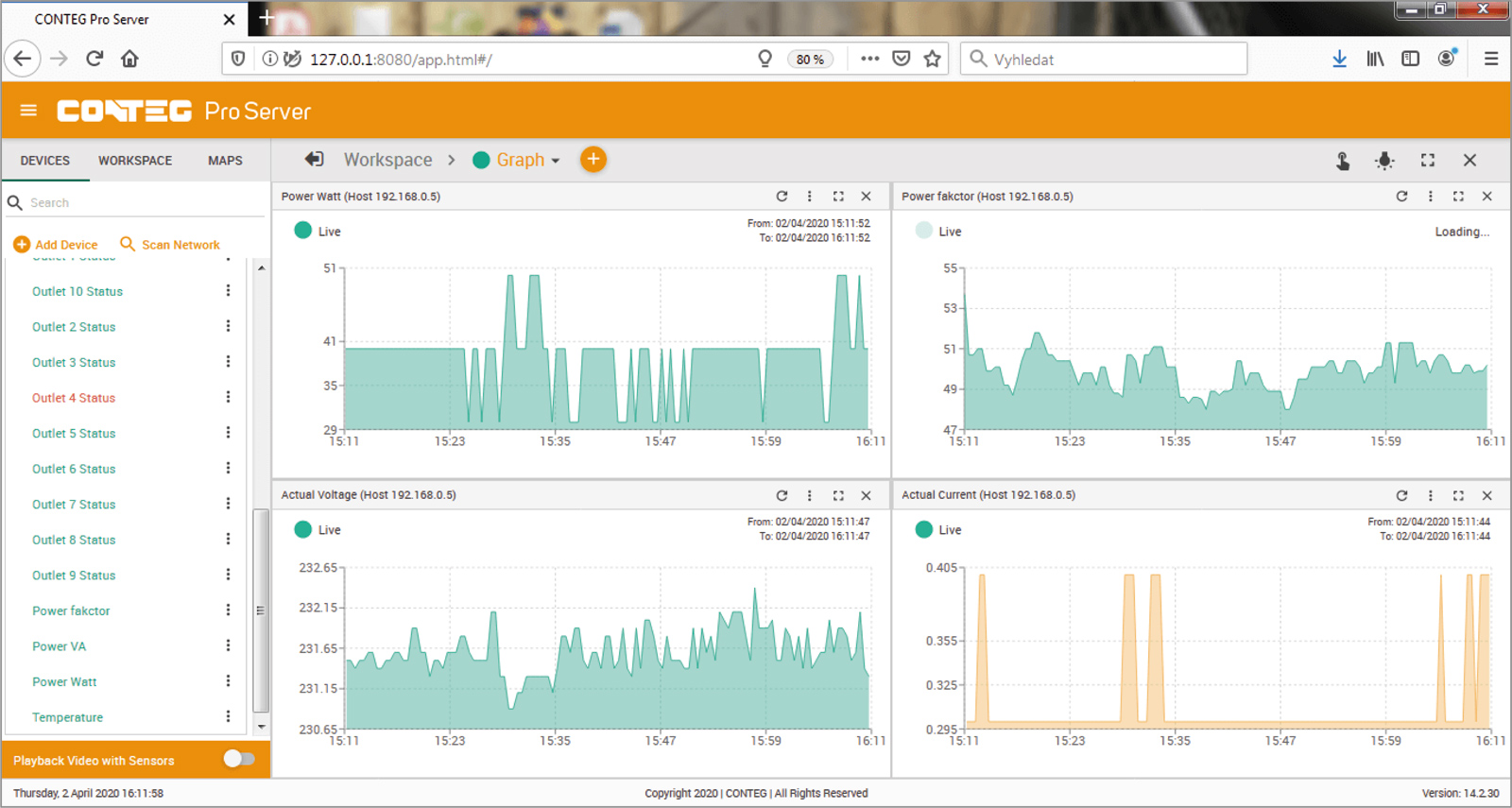

The PDU can be integrated into the CONTEG Pro Server control system for central administration, or into third-party systems (MIB table available).
Hybrid access technology - Ethernet connection and serial communication, both interfaces can be accessed simultaneously and independently.

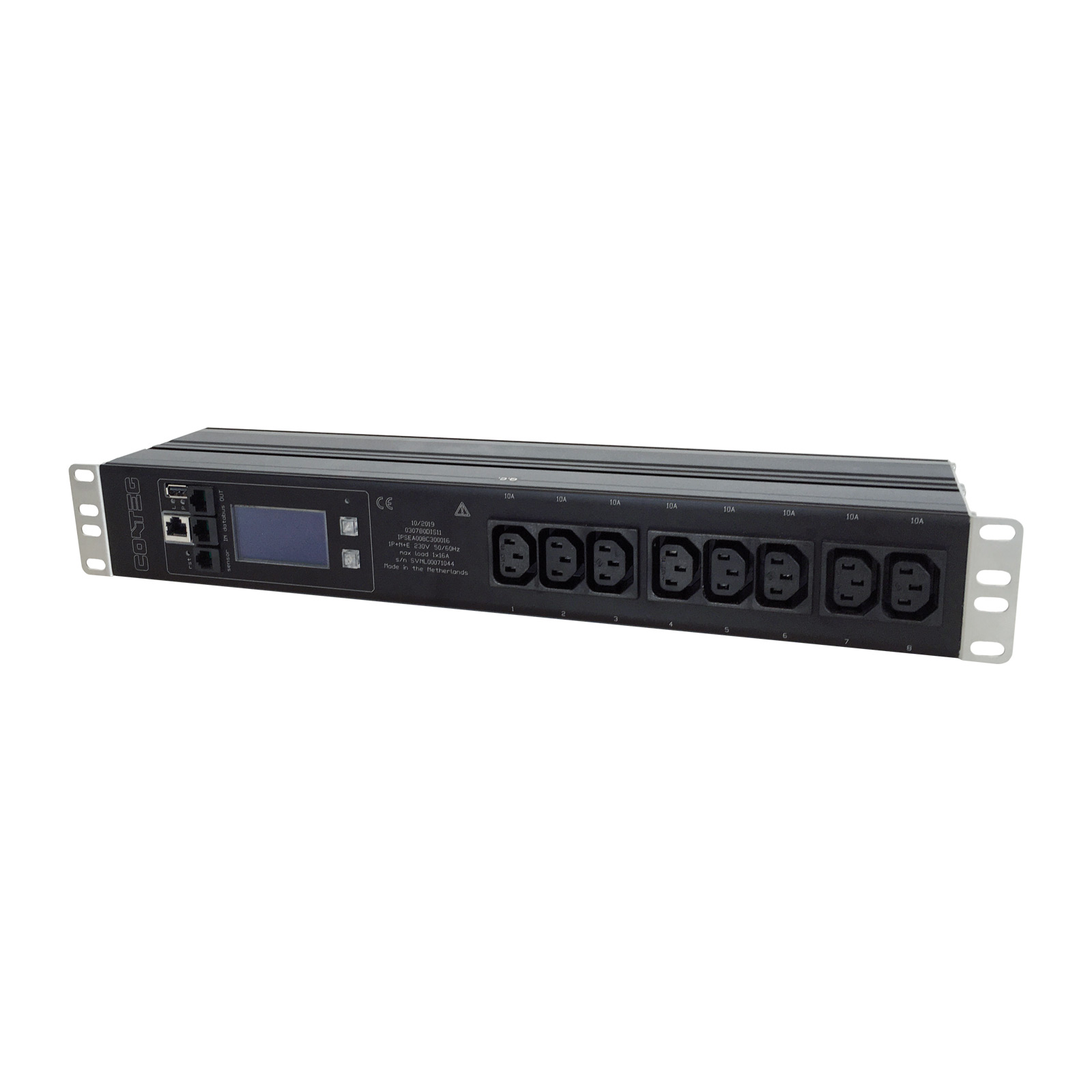

Compatible with 19"" rack cabinets.

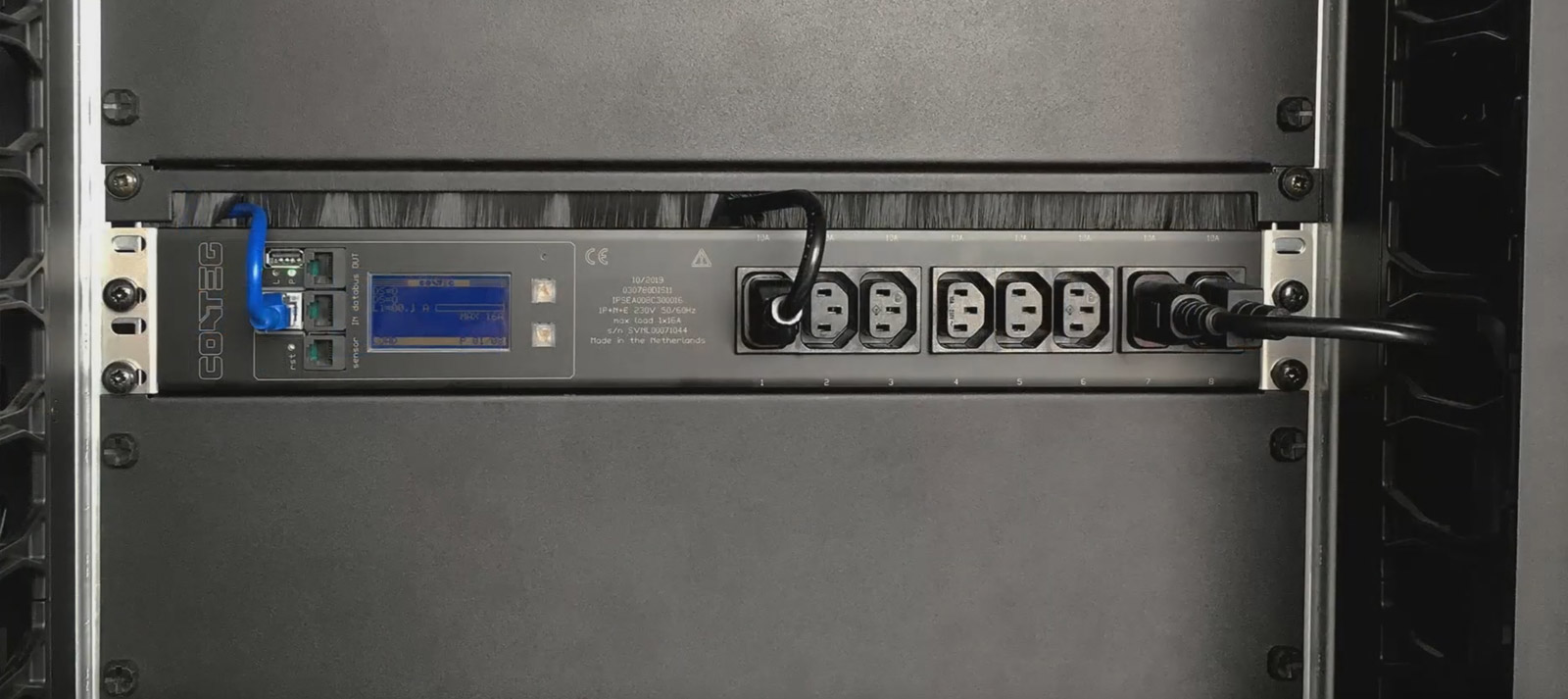

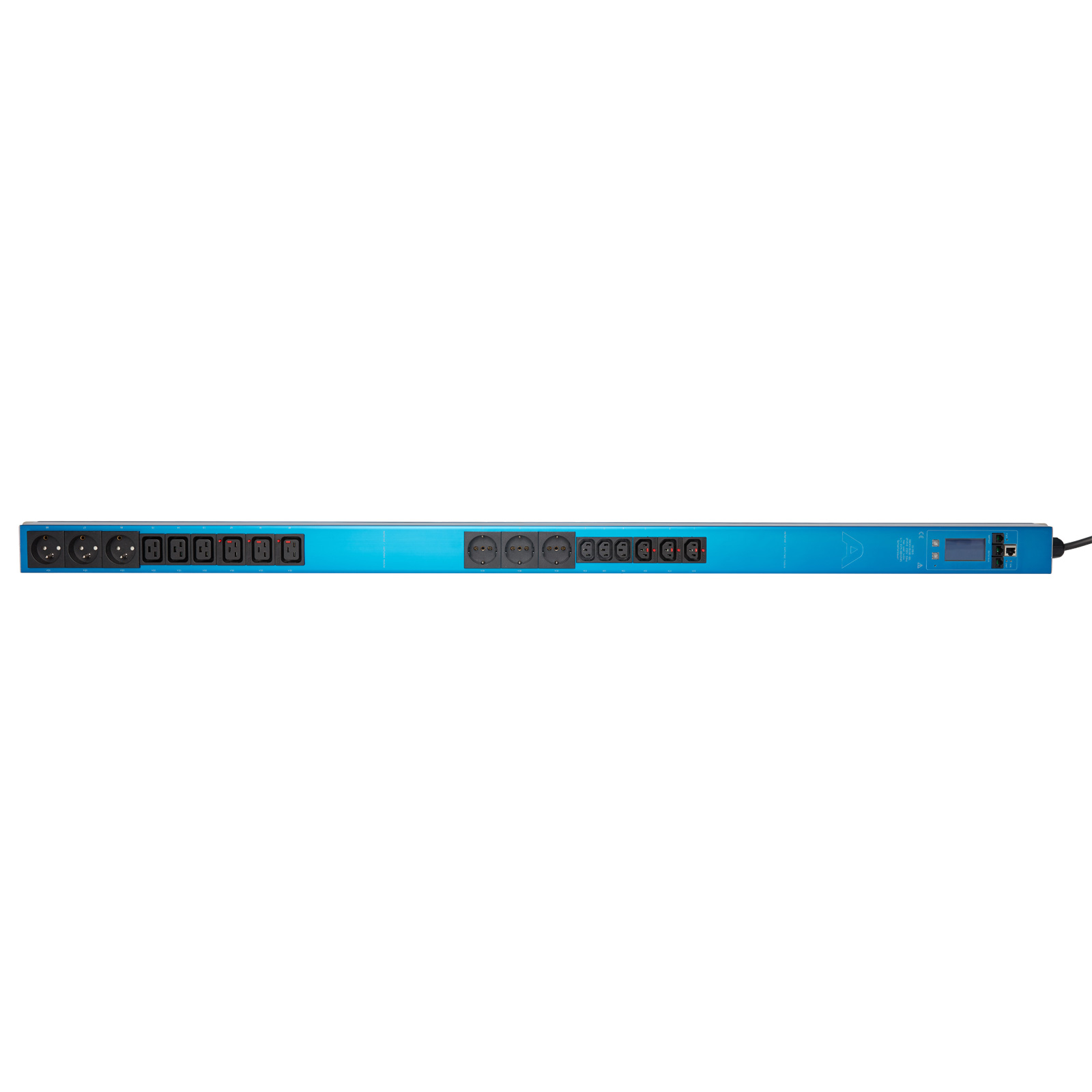

Installation inside the cabinet – versions for horizontal and vertical mounting.

Information Vidéo Pour télécharger

Information

Caractéristiques principales

Hauteur (mm)	65
Nom de la ligne de produits	Managed PDU
Profondeur (mm)	56
Longueur (mm)	Default configuration depending on the type, customizable
Alimentation électrique (V/ph/Hz)	1-phase 230V AC, or 3-phase 230/400V AC; 16A or 32A
Affichage	Backlit LCD

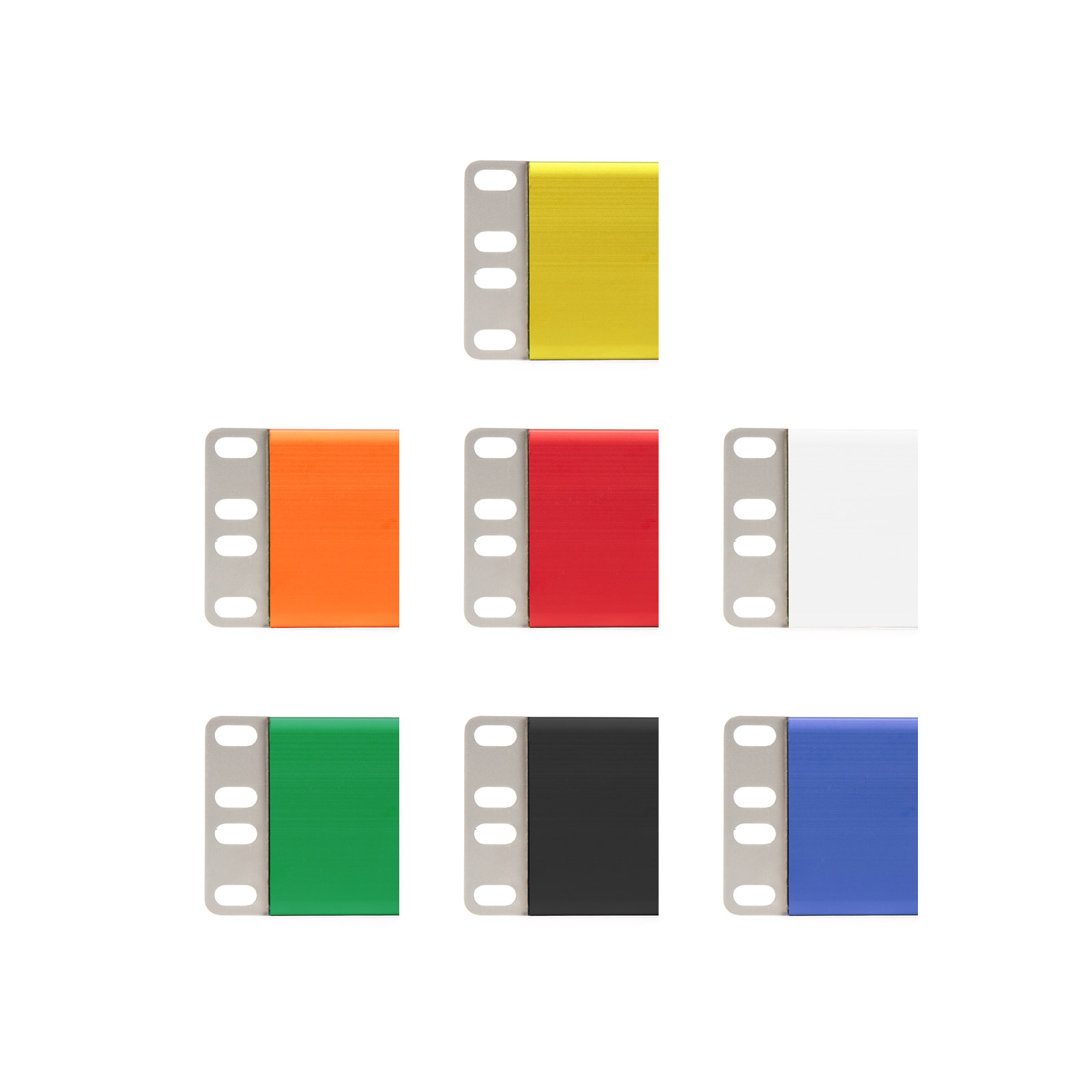

Couleur	Black, red, blue, green, yellow, orange, white
Matériau	1.5mm anodized aluminum with anti-oxidation coating with stainless steel brackets
Température de fonctionnement	0-60 °C
Consommation d'énergie (W)	< 3 W basic - black
Protection contre les surtensions	Optionally as a replaceable module (Hot Swap)

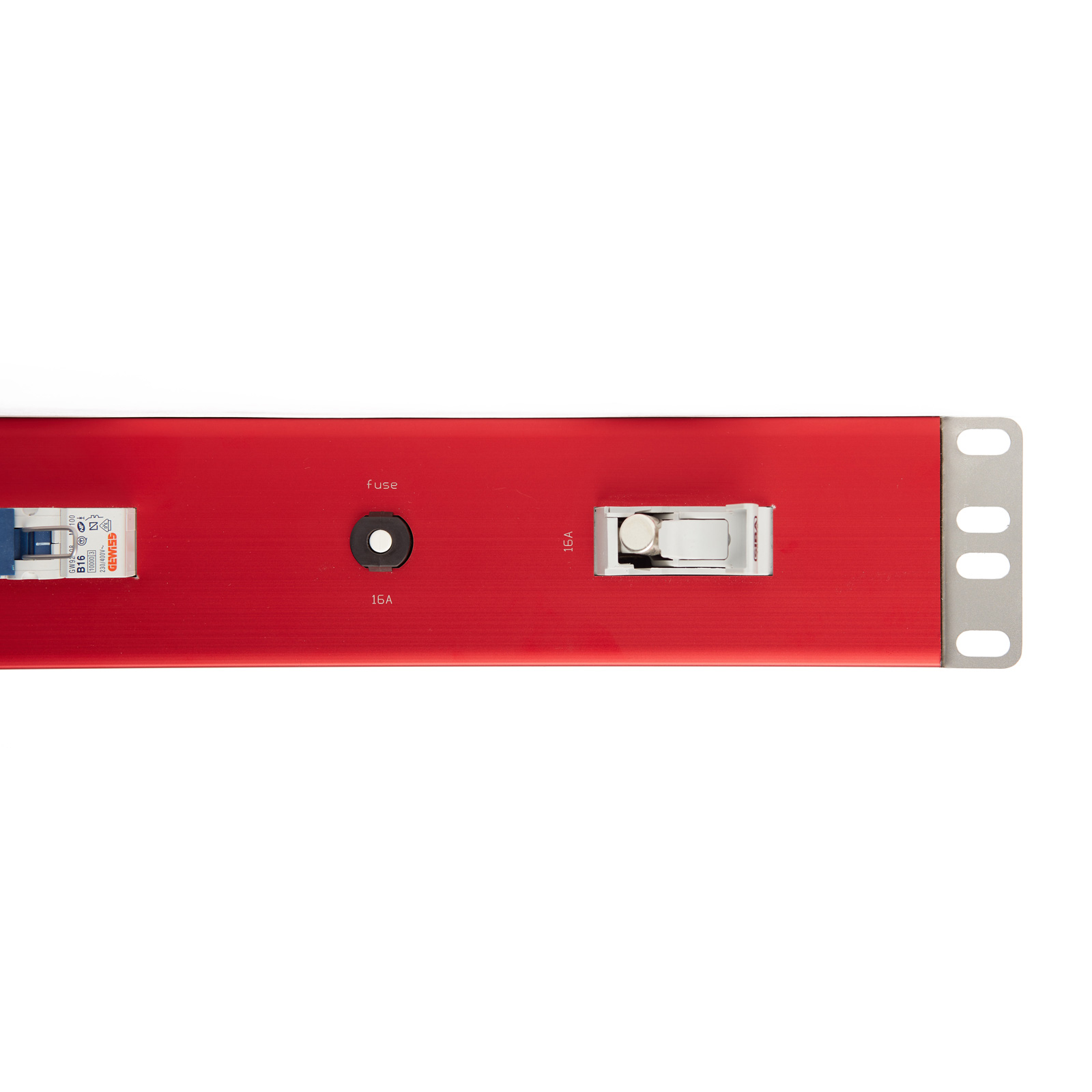

Fusible	Unlimited choice of fuse types, e.g.: Miniature Circuit Breaker (MCB) Thermal fuse Glass fuse holder D2 fuse holder (PASCO cartridge)
Ports pour capteurs	Ready for thermal and humidity sensors
Ethernet	RS-45 connector TCP/IP 10/100 Mb/s, DHCP with backup static IP, SNMP, Modbus, API
Bus de données	2x RJ45 data bus connectors RS-485
Mesure	RMS value of the current Voltage (V) and frequency Power factor Total power consumption Active (W) and Apparent Power (VA) Measurement error <1%

Accessoires

Inline Meter

A 1-phase or 3-phase inline power meter with a backlit display is suitable for measuring parameters at the input of the basic power supply panel.

Détails du produit

Capteur de température et d'humidité (PDU)

The sensor detects the temperature and humidity inside the cabinet. It connects using a 2.5 m cable directly to a monitored or managed PDU.

Détails du produit

Câbles de distribution électrique

Output power cables are used to transmit electrical energy between the power panel and the IT equipment located inside the cabinet.

Détails du produit

Câbles d'alimentation électrique

1-phase 16A monitored and managed power panels are supplied without an input power cable.

Détails du produit

Bagues de verrouillage

The retention sleeve reduces the risk of the power cord being accidentally pulled out.

Détails du produit

Support pour l'installation verticale des PDU

For vertical installations of power panels in cabinets, it is necessary to order the appropriate brackets for the basic, monitored or managed PDU, which is not included in the package.
