Armoires autoportantes

outTEG OMR

Autoportantes

Stand-alone double-shell outdoor cabinet which achieves better thermal comfort for the installed components thanks to the natural air flow between the walls.

Added to the order

outTEG OMR
Go to the order
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire
Où nous trouver ?
Use this product in the solution IT et datacenters More about the solution

Product introduction

The freestanding outTEG OMR outdoor cabinet offers a perfect solution for projects where a highly stable indoor climate is required. With a compact design that prevents dismantling from the outside, the double-shell cabinet will protect the installed components not only from the weather conditions, but also from vandalism.

A stainless steel frame combined with aluminum and magnesium alloys ensure resistance to the elements. The cabinet shell is treated with polyester powder coating with UV protection

Key benefits of the product

  • simple, convenient and functional cabinet design
  • highest protection against corrosion
  • welded stainless steel frame (material thickness 2 mm) with 25 mm system perforation
  • the body of the cabinet consists of removable aluminum parts (door, roof, side panels and the rear panel)
  • polyester powder paint with UV protection
  • PUR non-porous seal – suitable for extreme temperature ranges
  • IP66 dust and water resistantance
  • mechanical resistance IK10
  • protection against vandalism
  • high stability in earthquakes (passed Bellcore testing)
Information Pour télécharger
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire

Information

Caractéristiques principales

Nom de la ligne de produits

outTEG OMR freestanding

Bestseller

Removable side panels, roof...

Couleur

Cabinet casing - RAL 7035 (light grey, outdoor use, with UV protection)
Roof, plinth - RAL 7046 (dark grey, outdoor use, with UV protection)

Remarque

For outTEG OMR outdoor cabinets, we offer cooling and heating solutions which will ensure a favorable internal temperature for the installed equipment. We will recommend the optimal type of fan or air conditioning unit for you, modify the cabinet for their installation, and we can also pre-install these devices into the outdoor cabinet.

Matériau

Back panel, doors, roof - 2 mm aluminum AlMg3
Frame, plinth - 2 mm stainless steel sheet

fully assembled double-shell outdoor cabinet

ventilation - natural air flow thanks to perforations in the lower and upper edges of cabinet shell parts

rear panel

removable roof with natural air flow

front door with multi-point locking system, lock 333, door stop, door opening can be easily switched from right to left

100 mm plinth

vertical mounting rails with 25 mm system perforation

bottom cable tray, full

Indice IP

IP66 according to the EN 60529 standard (the degree of protection may decrease after mounting certain accessories)

Pour télécharger

Catalogue produits : Armoires extérieures

Catalogue produits : Armoires extérieures

Catalogues et brochures
Taille du fichier : 13.25 MB
Téléchargé : 22. 5. 2025
Télécharger : fr / Afficher: fr
Versions linguistiques :
Brochure : Armoires extérieures

Brochure : Armoires extérieures

Catalogues et brochures
Taille du fichier : 3.01 MB
Téléchargé : 20. 5. 2025
Télécharger : fr / Afficher: fr
Versions linguistiques :
Fiche technique : outTEG OMR

Fiche technique : outTEG OMR

Fiche technique
Taille du fichier : 4.57 MB
Téléchargé : 11. 6. 2025
Télécharger : fr / Afficher: fr
Versions linguistiques :

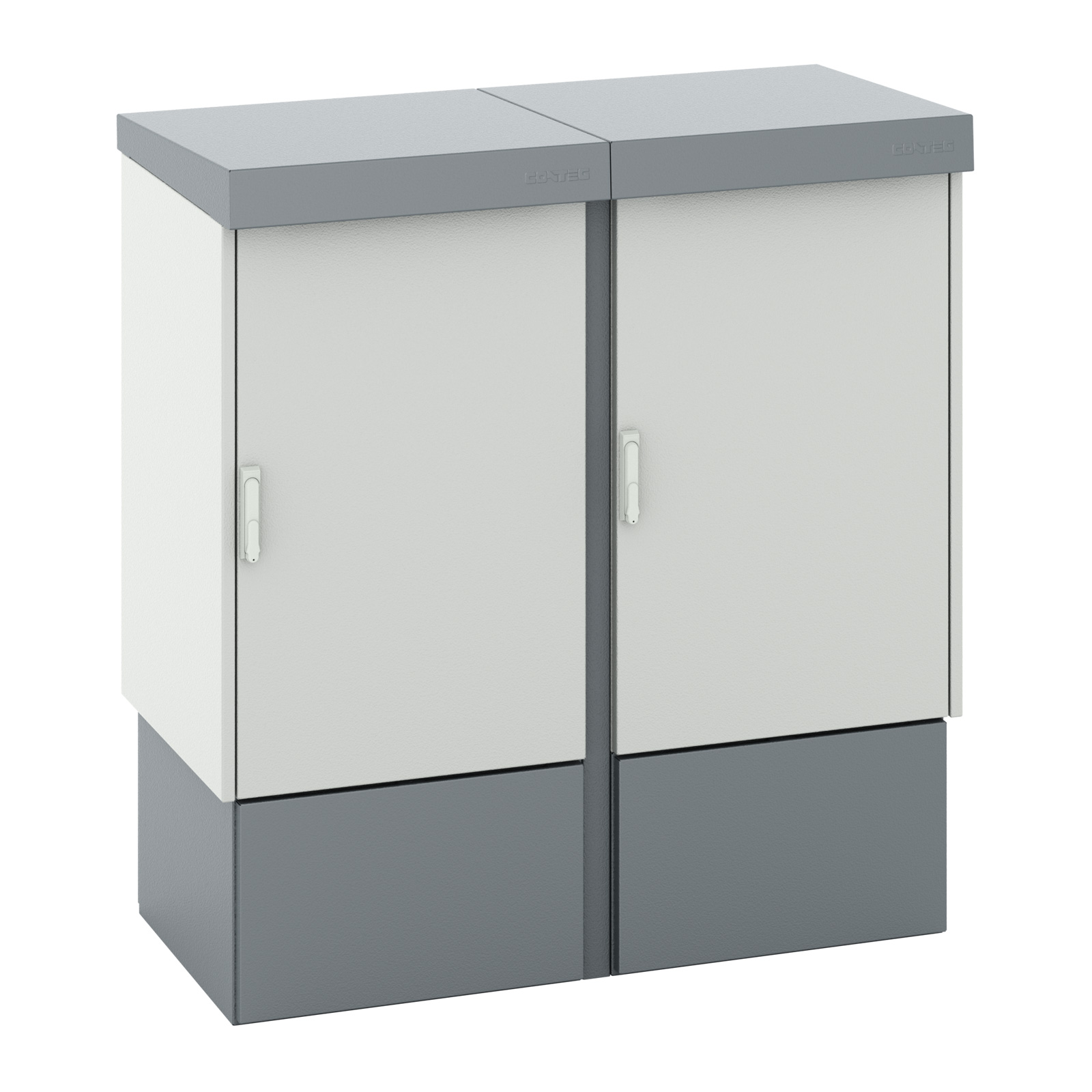

two-outTEG-OMR-DN-106506-R-connected-in-a-row-with-a-plinth-400mm

two-outTEG-OMR-DN-106506-R-connected-in-a-row-with-a-plinth-400mm

Images
Taille du fichier : 273.67 kB
Téléchargé : 27. 3. 2025

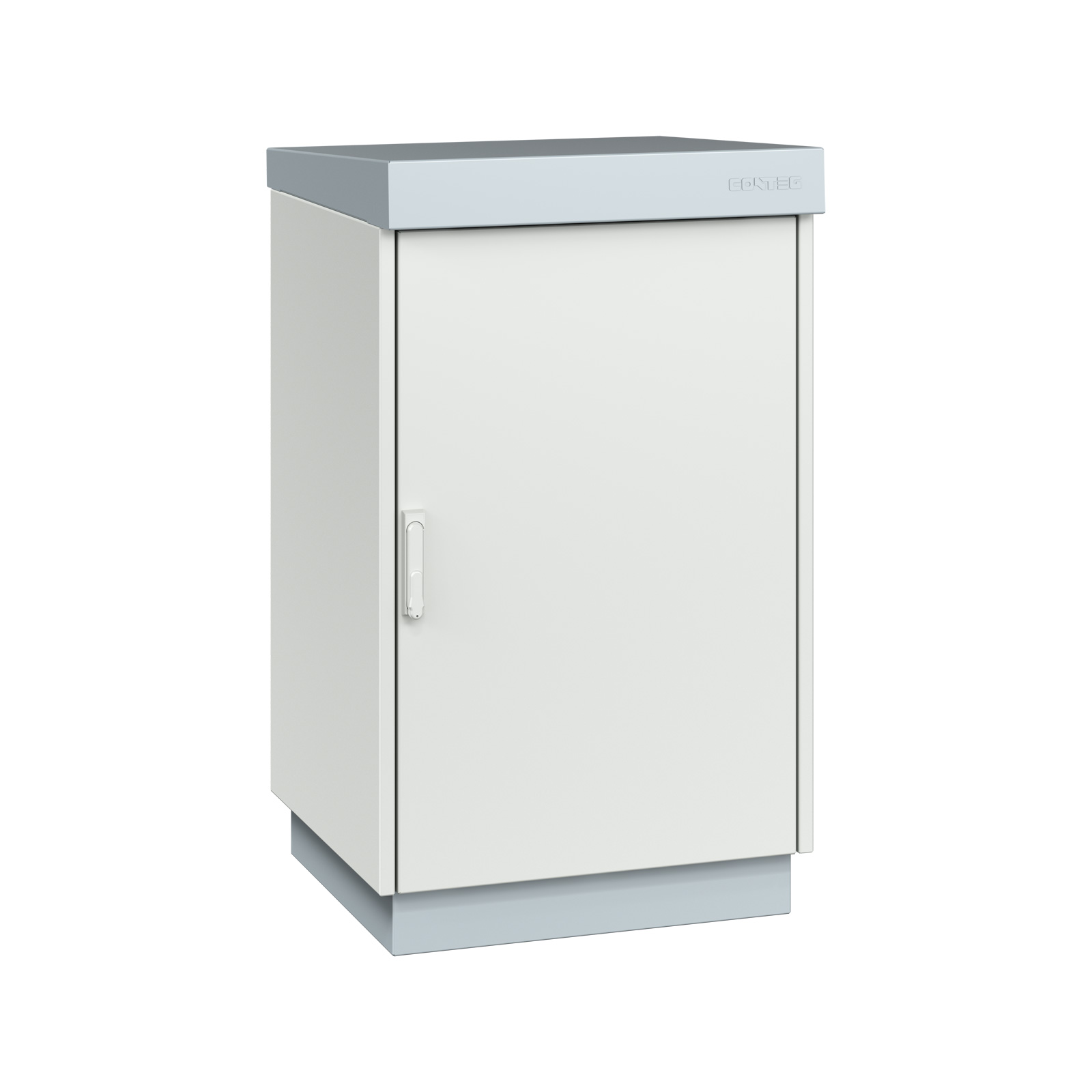

OMR-DW-106506-R

OMR-DW-106506-R

Images
Taille du fichier : 79.59 kB
Téléchargé : 8. 3. 2025

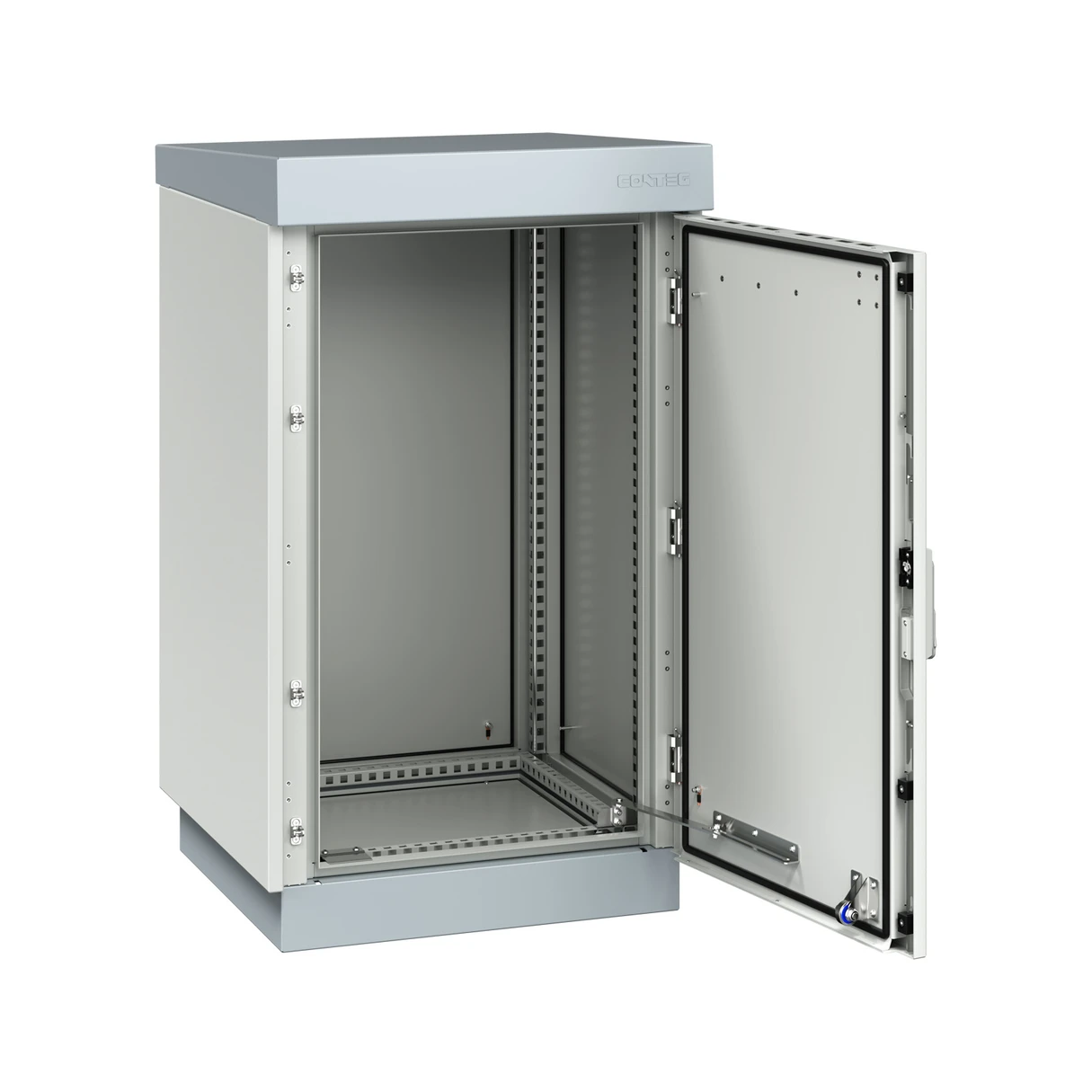

OMR-DW-106506-R-opened

OMR-DW-106506-R-opened

Images
Taille du fichier : 184.13 kB
Téléchargé : 8. 3. 2025

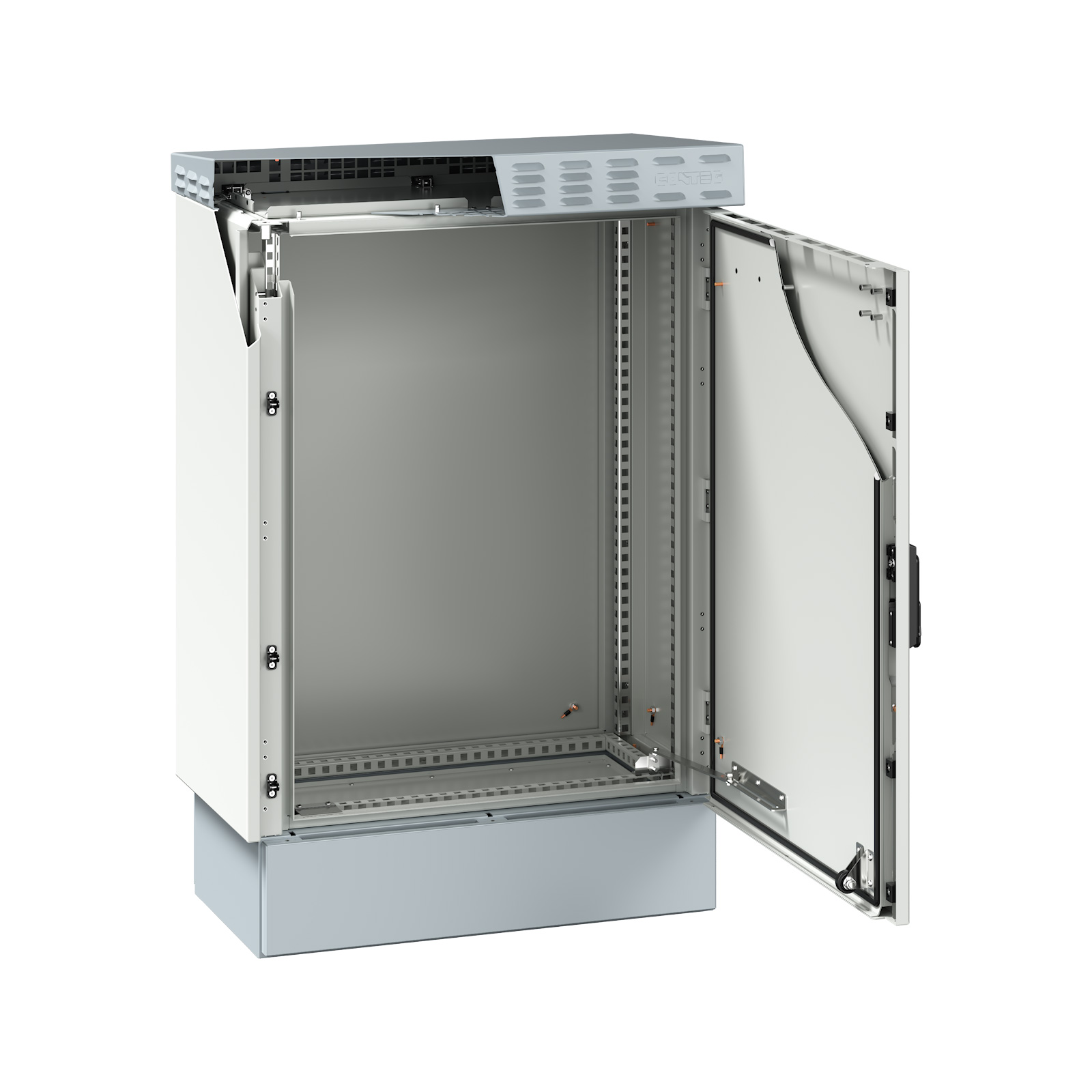

outTEG-OMR-opened-cut-out

outTEG-OMR-opened-cut-out

Images
Taille du fichier : 176.68 kB
Téléchargé : 8. 3. 2025

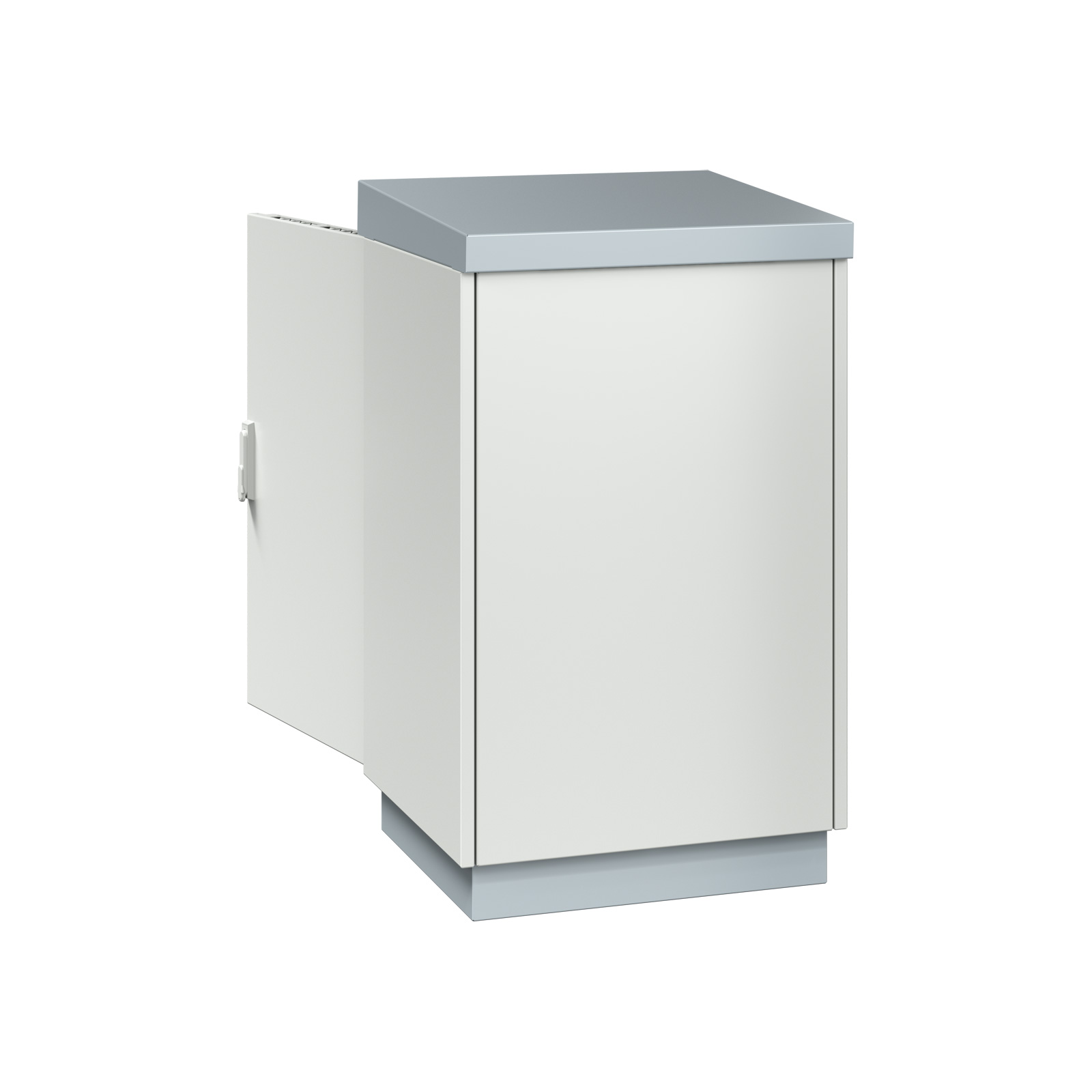

OMR-DW-106506-R-back-opened

OMR-DW-106506-R-back-opened

Images
Taille du fichier : 79.76 kB
Téléchargé : 8. 3. 2025

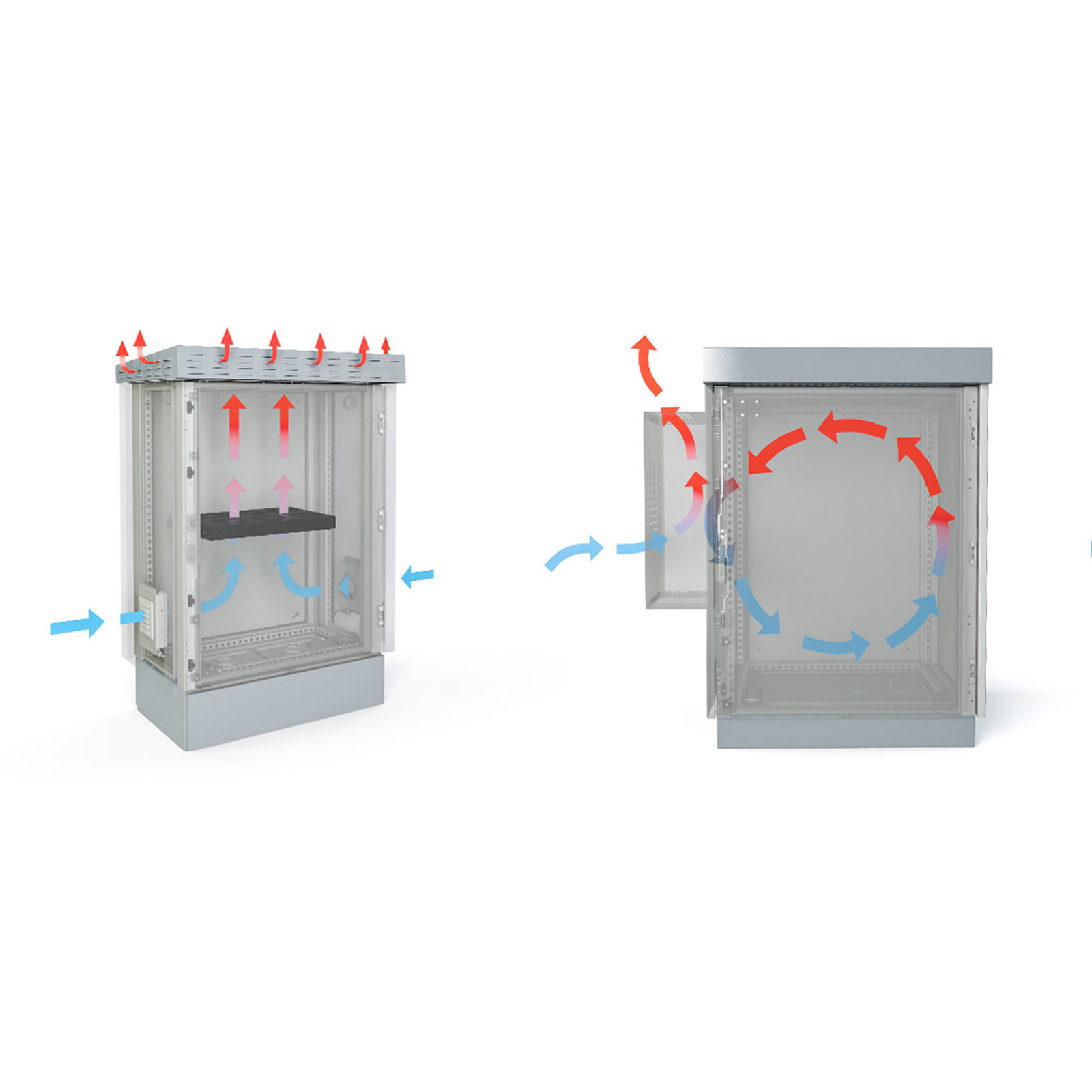

Airflow_outTEG-OMR

Airflow_outTEG-OMR

Images
Taille du fichier : 113.33 kB
Téléchargé : 8. 3. 2025
