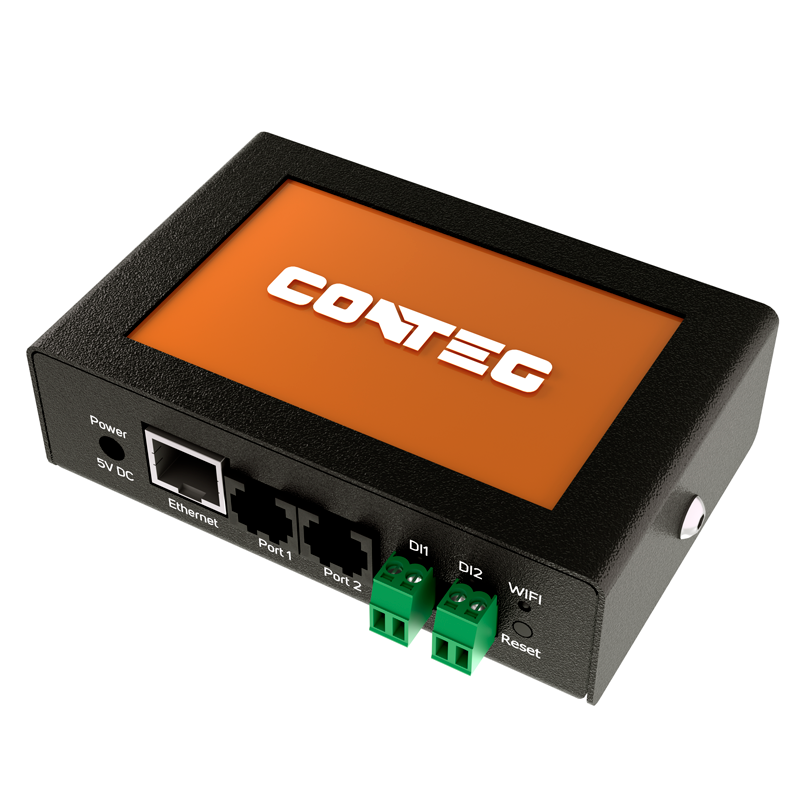

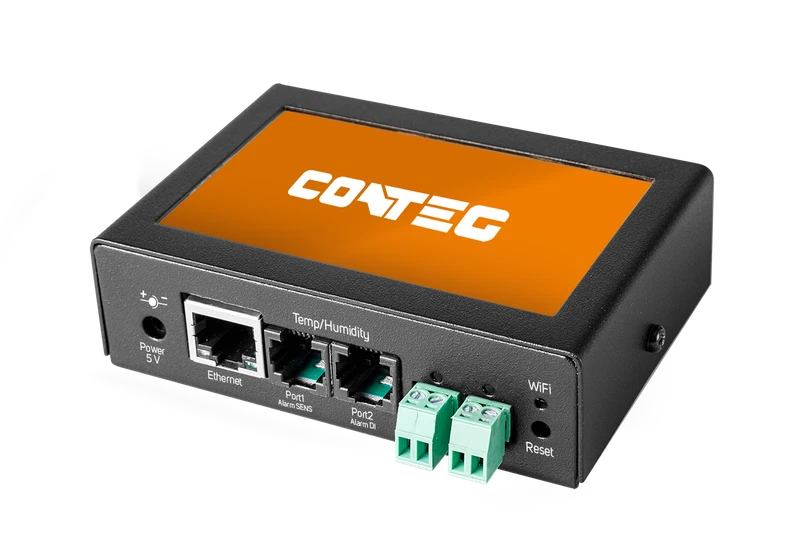

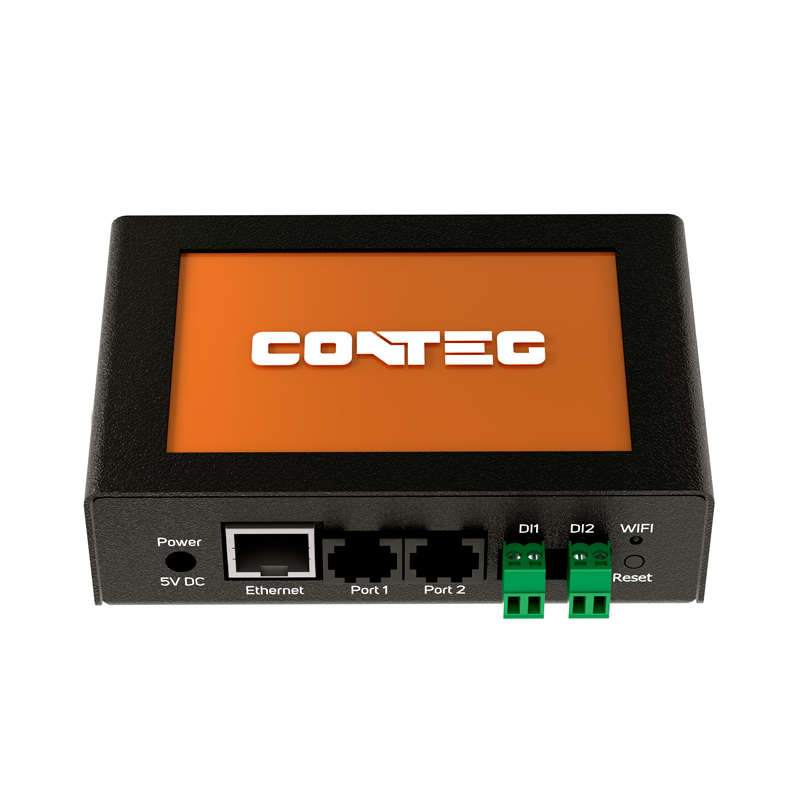

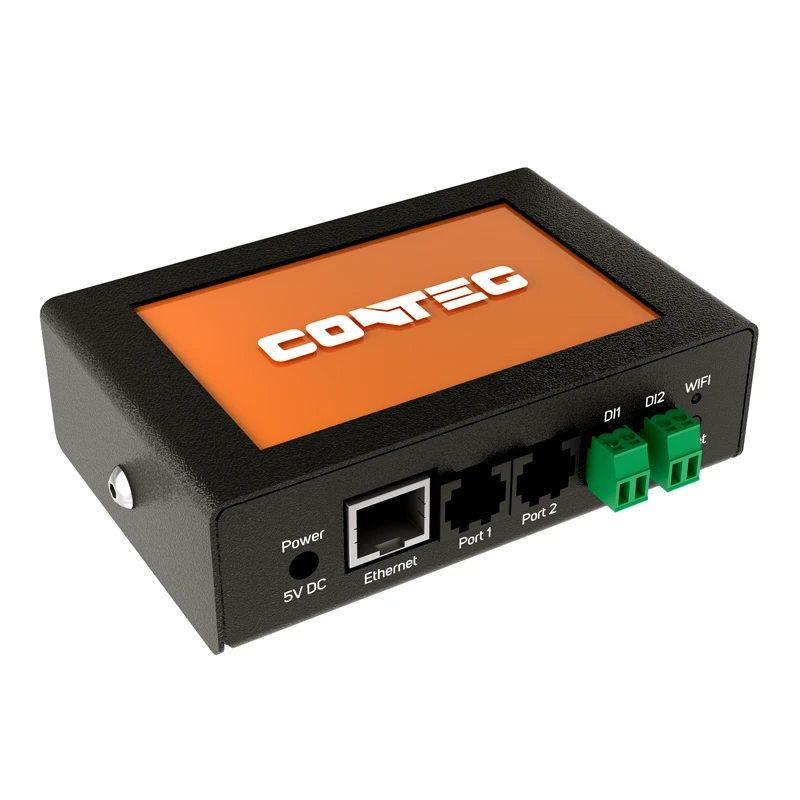

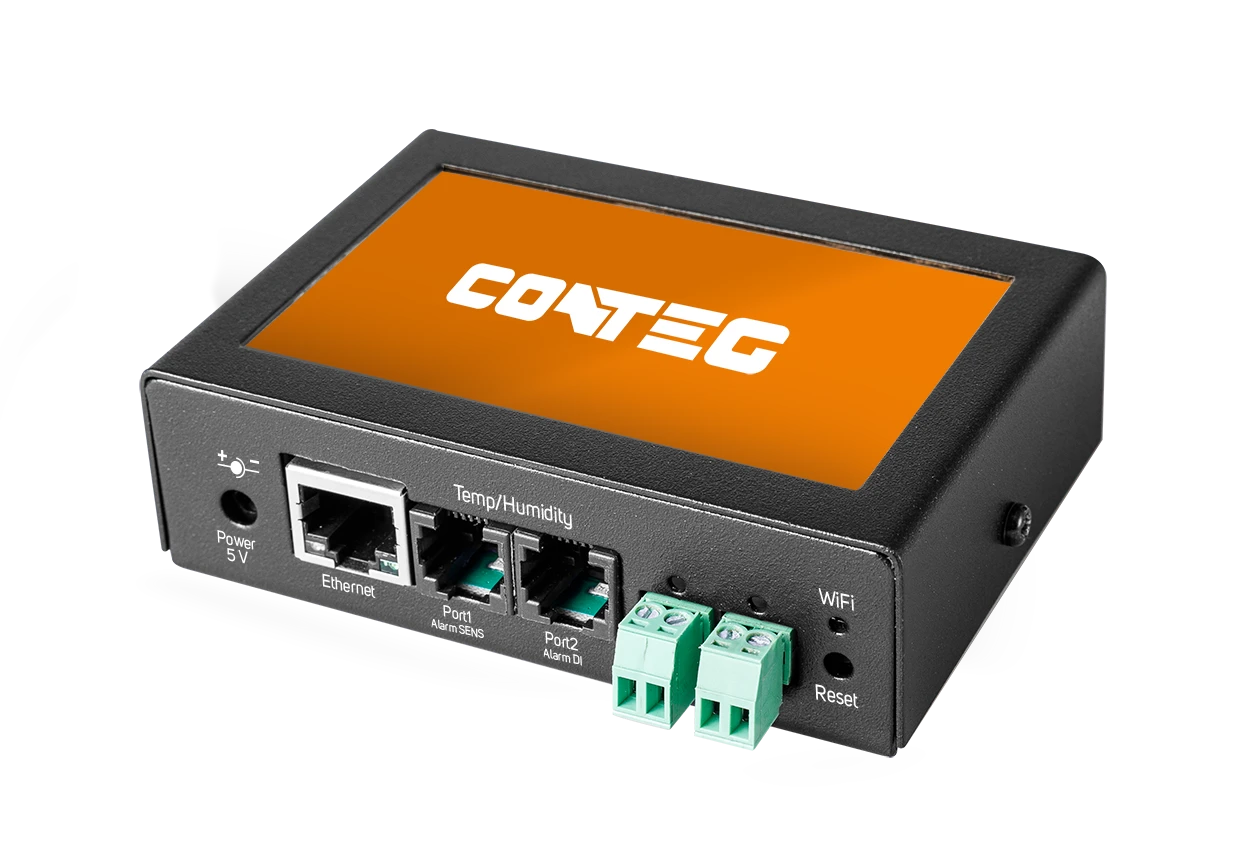

RAMOS Micro is a simple compact solution for monitoring of rack cabinet environments.
Two new universal ports enable monitoring of up to 5 sensors (temperature, humidity, water, pressure, CO2, etc.) and 2 binary inputs support other types of detectors, such as door contacts, smoke, motion, water detectors, etc. Supports PoE and WiFi communication.
New universal ports support new accessories, such as point flood detection and water rope sensor, or a special sensor for measuring air pressure and CO2 concentration.
| Nom de la ligne de produits |
Ramos Micro |
|---|---|
| Fonction de notification |
SNMP, XML |
| Communication |
LAN and WiFi |
| Alimentation électrique (V/ph/Hz) |
PoE or external 5V power supply (optional accessory RMS-PW-05) |
| Autres |
Built-in web server |
| Dimensions (L×H×P, en mm) |
30x103x68 mm |
| Ports pour capteurs |
2 universal RJ12 ports to monitor up to 5 parameters |
A water rope sensor-based flood detector with localization is able to detect the presence of water and determine the location of the leak.
Temperature sensor with 3 m long cable and RJ12 connector.
Temperature sensor with 3 m cable and RJ12 connector.
Temperature and humidity sensor with 2 RJ12 connectors and 3 m cable.
1-Wire outdoor temperature sensor with RJ12 connector and 3 m cable.
PowerBox - remote switching of external devices up to 230 V/10 A with voltage detection function.
PIR motion detector for RAMOS Mini main monitoring unit
Optical smoke detector with relay output for RAMOS Mini
Flooding detector without power source.
Universal power adapter 5V DC for RAMOS Mini.
Hub for connecting 2 sensors to a 1-Wire bus
