Boîtiers universels pour l'électronique

Serie 102

Suitable for use cases where a transparent lid is required, e.g., for installations with LCD displays or counters requiring visual supervision.

Fiche technique En savoir plus

Où nous trouver ?

Product introduction

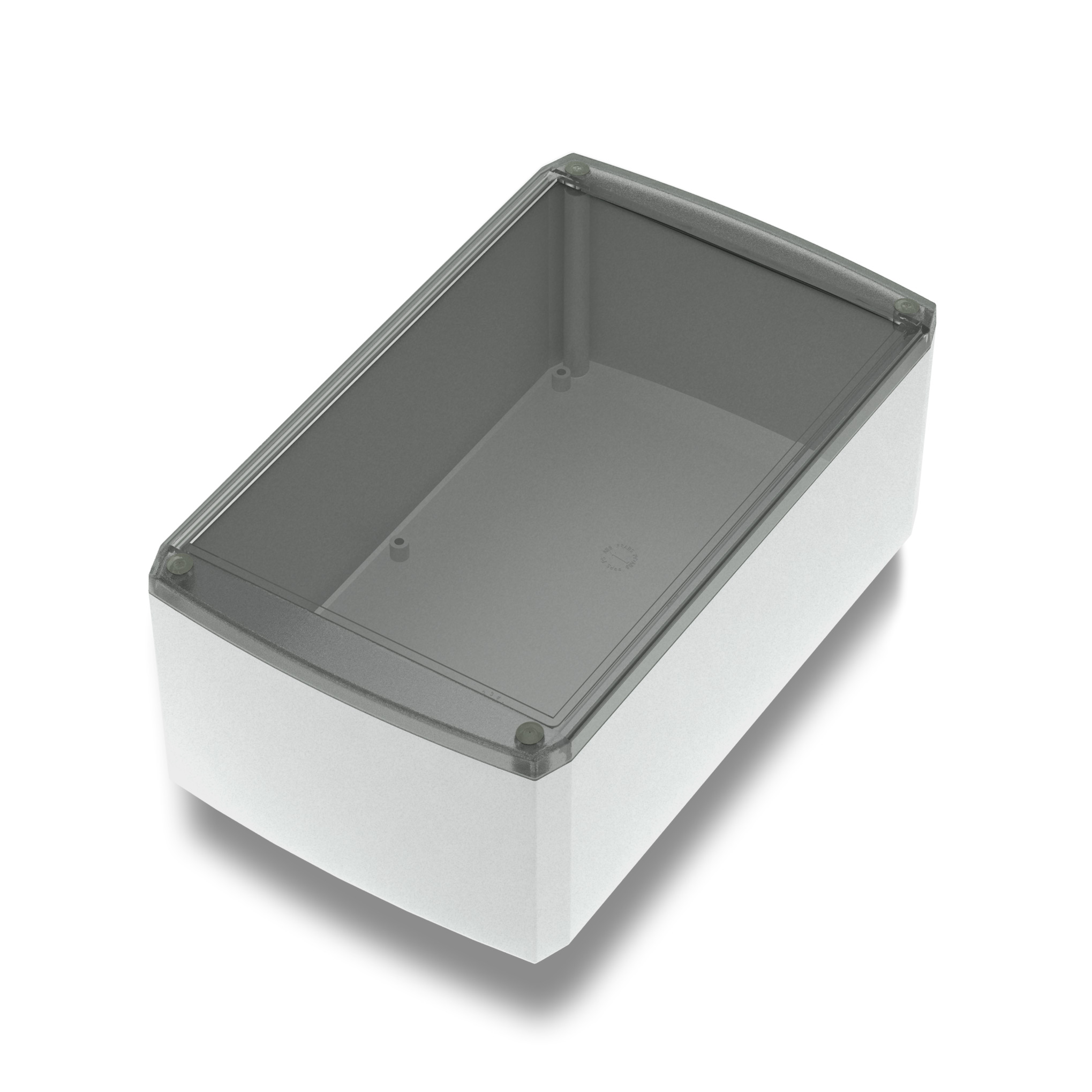

Series 102 Universal Electronics Boxes are suitable for use cases where a transparent lid is required, such as installations with LCD displays or counters requiring visual supervision. Lid made of highly resistant polycarbonate plastic, bronze color. Allows for the use of 1.2 mm membrane keyboards.

Information Pour télécharger

Information

Caractéristiques principales

Nom de la ligne de produits	Serie 102
Informations techniques	DESCRIPTION Modern design with square edges and rounded sides The lid is fixed with four M3 screws masked with self-adjusting rubber plugs Double, top and bottom, an embedded tray allows for the use of membrane keyboards Polished, easy to clean surface Maximum internal volume Protrusions in the base for mounting a printed circuit board Resistance to temperatures up to 85 °C Basic unit includes: lid, base, 4 screws and 4 plugs MATERIALS AND SURFACE TREATMENT Lid and bottom made of highly resistant ABS plastic, excellent for machining Plugs - rubber Standard color: light gray - similar to RAL 7035 OPTIONAL Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Nom de la ligne de produits

Serie 102

Informations techniques

DESCRIPTION

Modern design with square edges and rounded sides
The lid is fixed with four M3 screws masked with self-adjusting rubber plugs
Double, top and bottom, an embedded tray allows for the use of membrane keyboards
Polished, easy to clean surface
Maximum internal volume
Protrusions in the base for mounting a printed circuit board
Resistance to temperatures up to 85 °C
Basic unit includes: lid, base, 4 screws and 4 plugs

MATERIALS AND SURFACE TREATMENT

Lid and bottom made of highly resistant ABS plastic, excellent for machining
Plugs - rubber
Standard color: light gray - similar to RAL 7035

OPTIONAL

Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
