Boîtiers portatifs pour l'électronique

Serie 31

Suitable for pocket use or for situations where a small, robust box is required.

Fiche technique En savoir plus

Où nous trouver ?

Présentation du produit

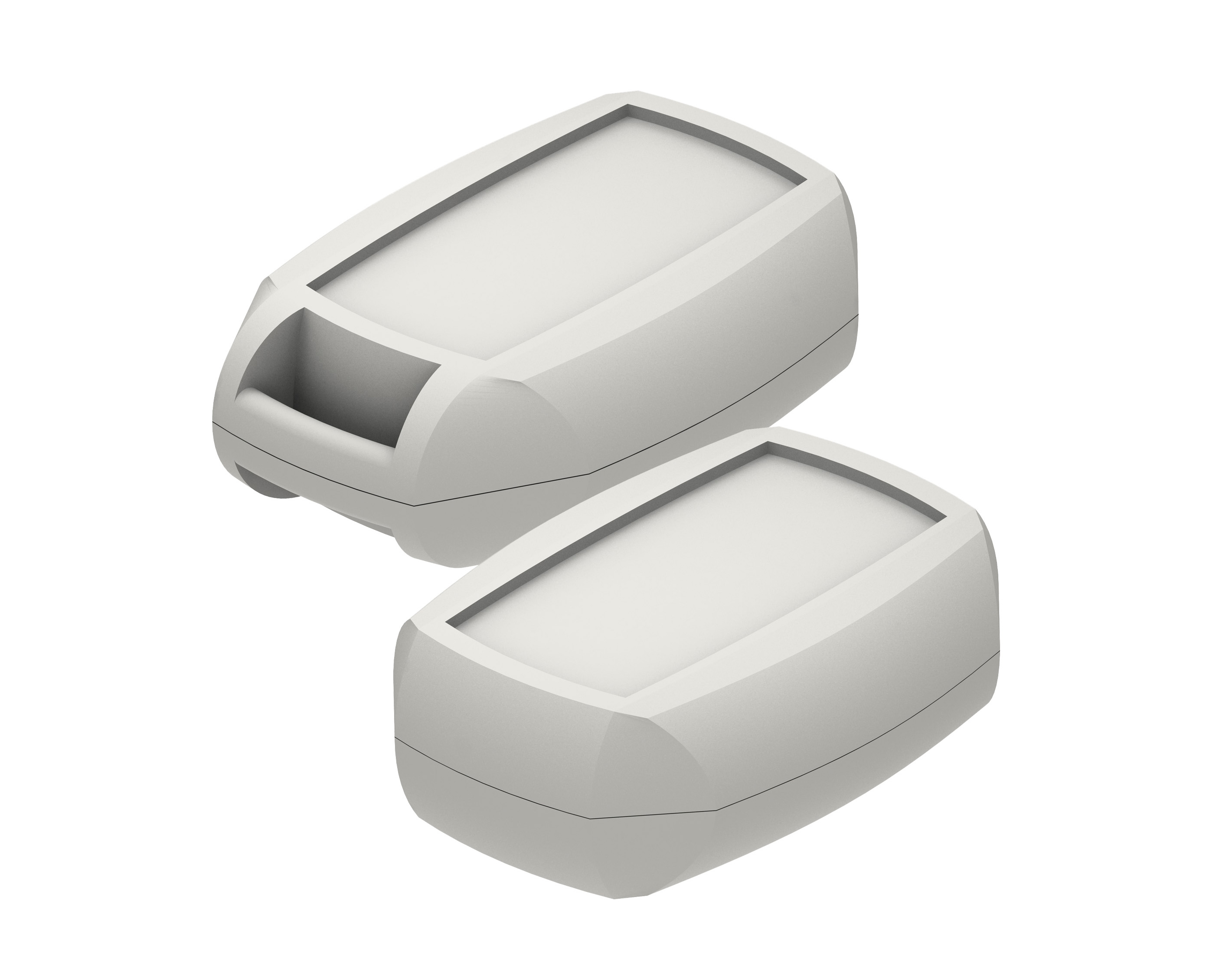

The Series 31 range of small-capacity boxes for hand-held electronics is suitable for pocket use or for situations where a small, robust box with protection up to IP65 is required.

Information Pour télécharger

Information

Caractéristiques principales

Nom de la ligne de produits	Serie 31
Informations techniques	DESCRIPTION High functional modern design with beveled edges Indentations in the lid and base for mounting of membrane keyboards Easy snap-on base and lid assembly Smaller models feature a key ring eyelet Option to use EPDM seals for IP65 protection Standard membrane keyboards for small and large models Temperature resistance up to 85 °C The basic unit includes: lid and base Accessories: EPDM joint sealing, 3-button membrane keyboard as a standard MATERIALS AND SURFACE TREATMENT Base and cover - injection molded from highly durable ABS Standard color: light gray - similar to RAL 7035, or black - similar to RAL 9004 OPTIONAL Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Nom de la ligne de produits

Serie 31

Informations techniques

DESCRIPTION

High functional modern design with beveled edges
Indentations in the lid and base for mounting of membrane keyboards
Easy snap-on base and lid assembly
Smaller models feature a key ring eyelet
Option to use EPDM seals for IP65 protection
Standard membrane keyboards for small and large models
Temperature resistance up to 85 °C
The basic unit includes: lid and base
Accessories: EPDM joint sealing, 3-button membrane keyboard as a standard

MATERIALS AND SURFACE TREATMENT

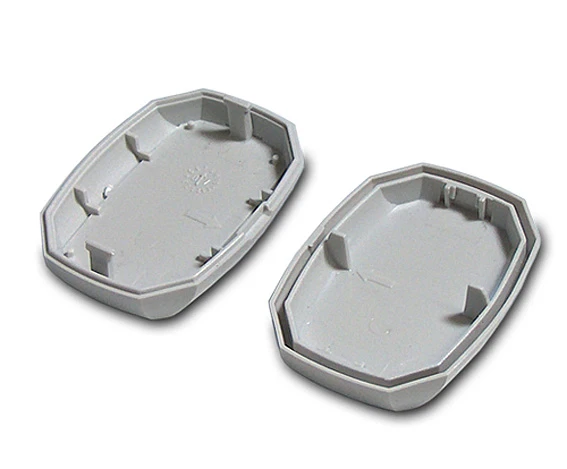

Base and cover - injection molded from highly durable ABS

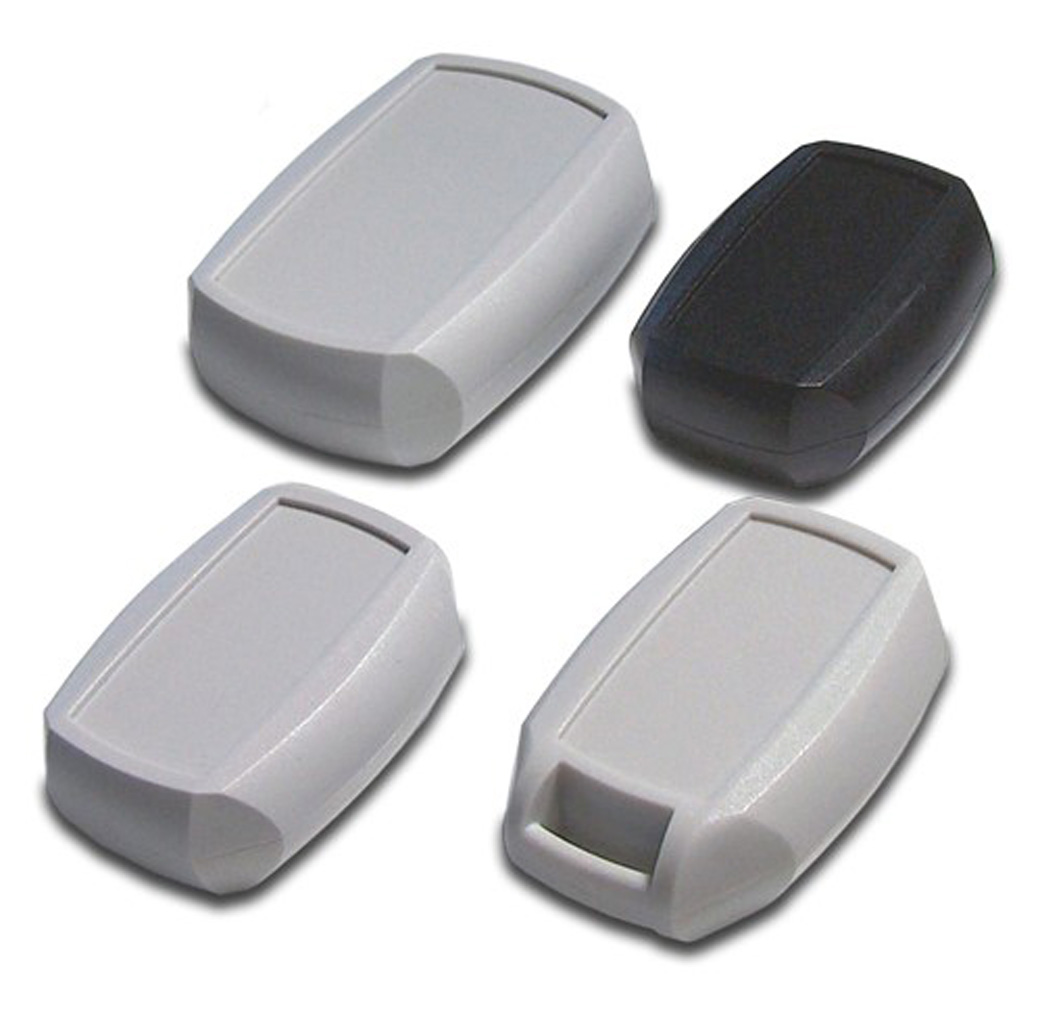

Standard color: light gray - similar to RAL 7035, or black - similar to RAL 9004

OPTIONAL

Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
