Smart Terminal Display
Touch display with built-in PC for remote access to CONTEG Pro Server (CPS) and other applications, or for use as a web kiosk.
Product introduction

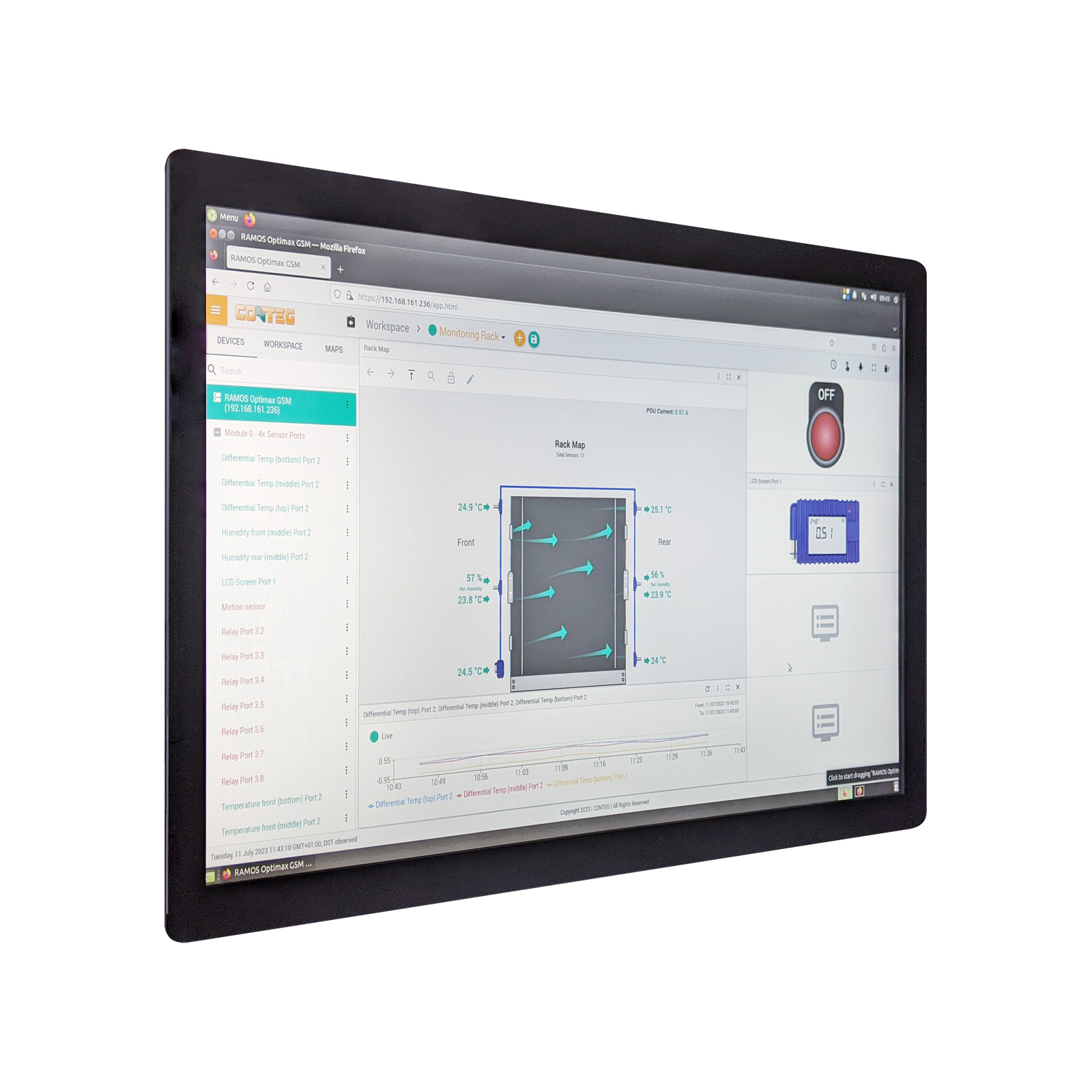

21.5"" touch display with built-in PC. It can serve for remote access to CONTEG Pro Server (CPS) and other applications, or as a web kiosk. The display enables you to monitor the situation in the data hall in real time, whether individual aisles or the entire data center.
The display can also be mounted on a VESA holder/stand and connected to the CPS application in the control room. Cable outlets are available on 4 sides (top, bottom, left and right) for easy cable routing. There are also 4 holes in the corners of the display for mounting on the wall or the side panel of the cabinet.
The touch display with built-in SBC computer is very quiet thanks to passive cooling. Display setting buttons are located at the bottom.
The VNC application enables remote access to the touchscreens of the CONTEG cooling units.
Information
Caractéristiques principales
| Nom de la ligne de produits |
Smart Terminal Display |
|---|---|
| Fusible |
1.5A (glass case 5x20mm) |
| Source d'alimentation |
12V DC 8.3A (100W) |
| Alimentation électrique (V/ph/Hz) |
175-264V AC, 50/60Hz, 1-0.65A |
| Dimensions (L×H×P, en mm) |
558x35x458 mm |
| Informations techniques |
Diagonal: 21.5"" |
Pour télécharger
Fiche technique : Smart Terminal Display
