With exterior finish - ideal for outdoor installations. Can be combined, e.g., with a roof to protect against rain

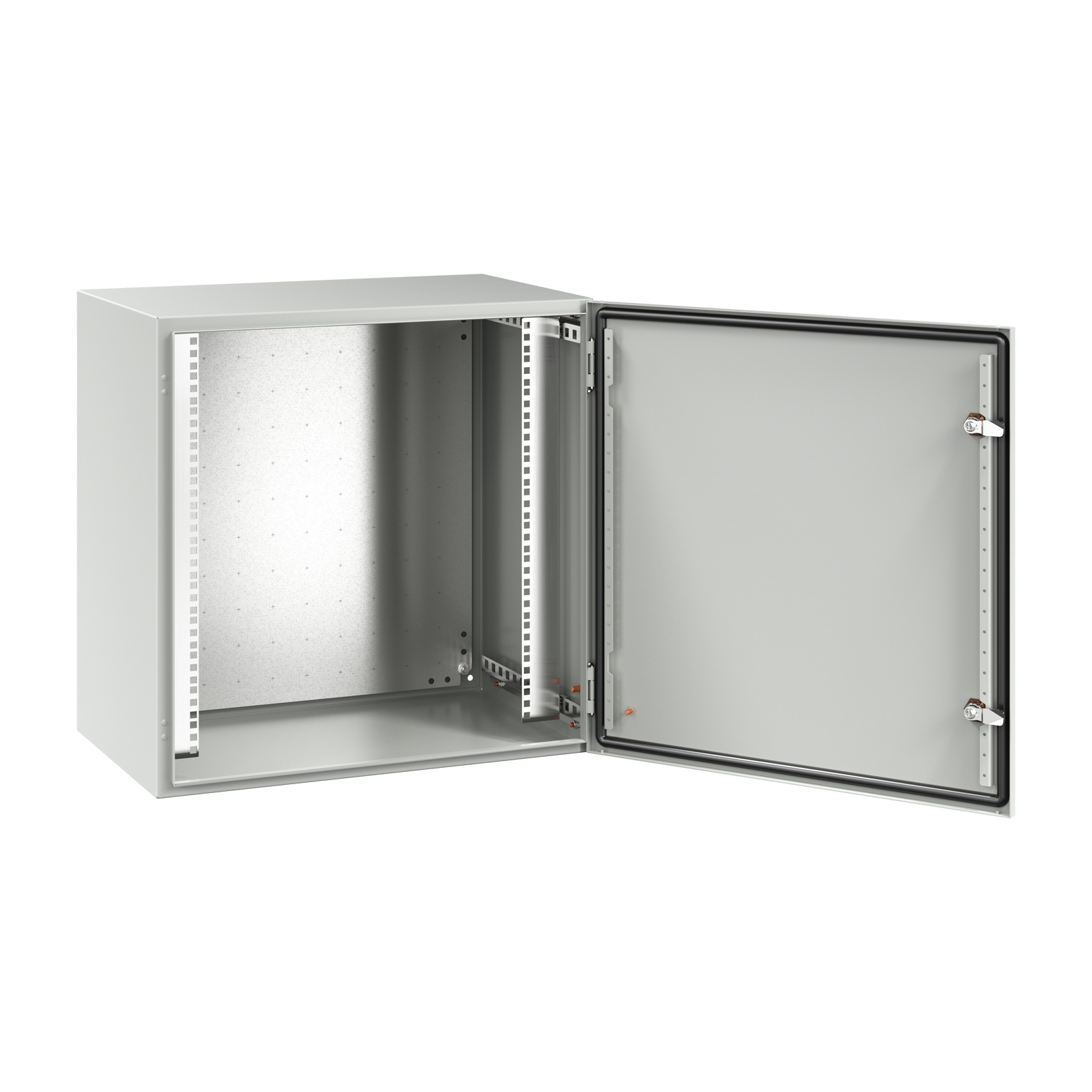

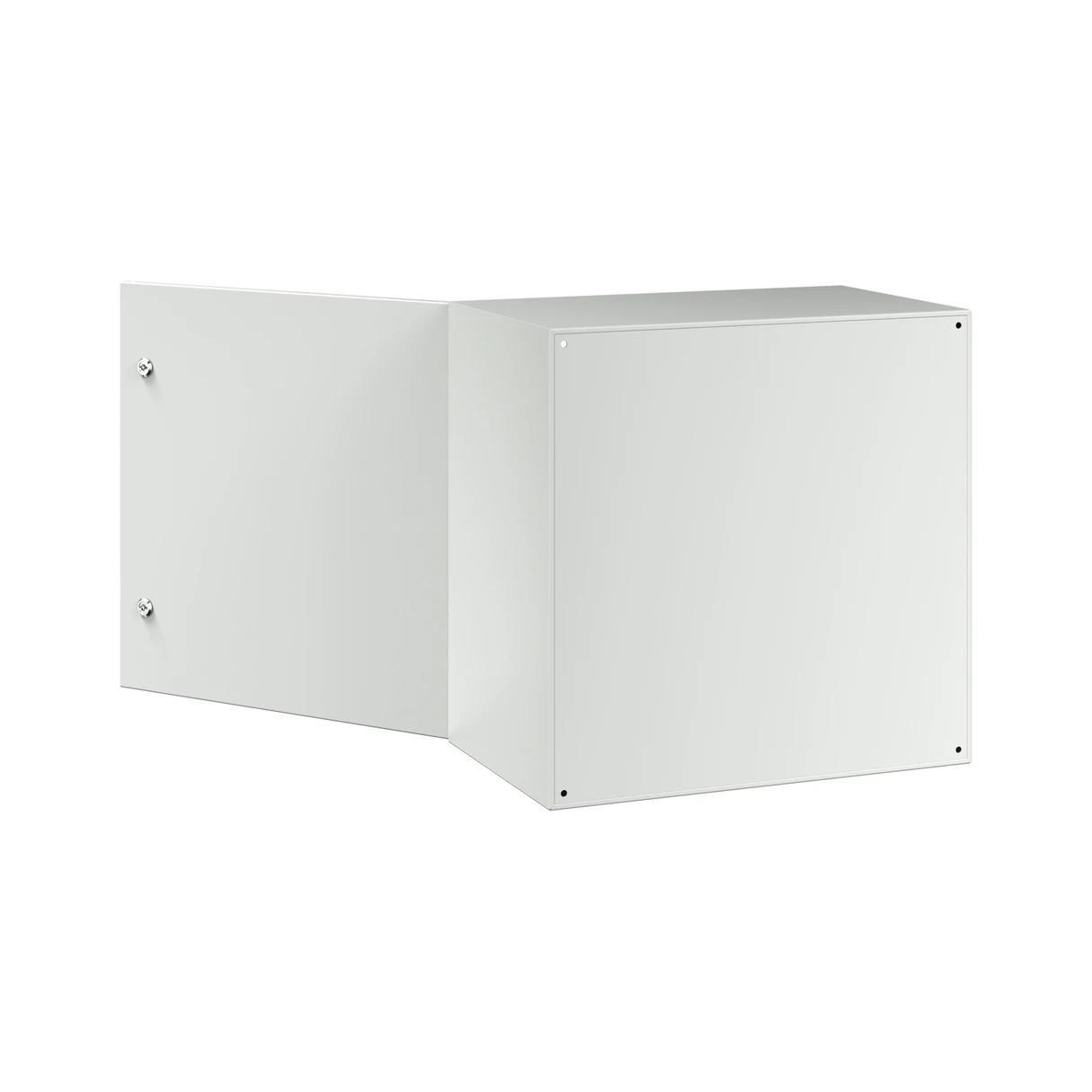

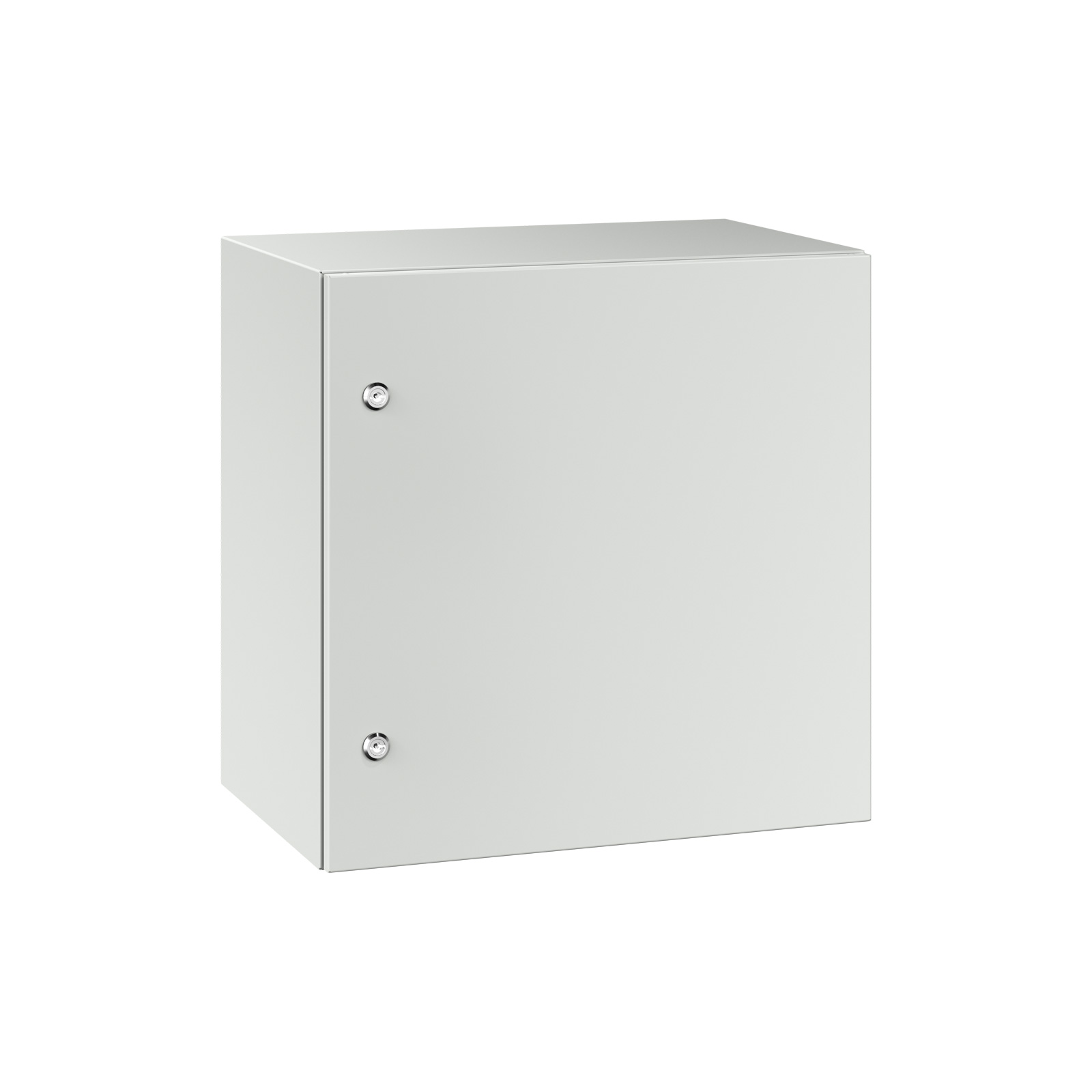

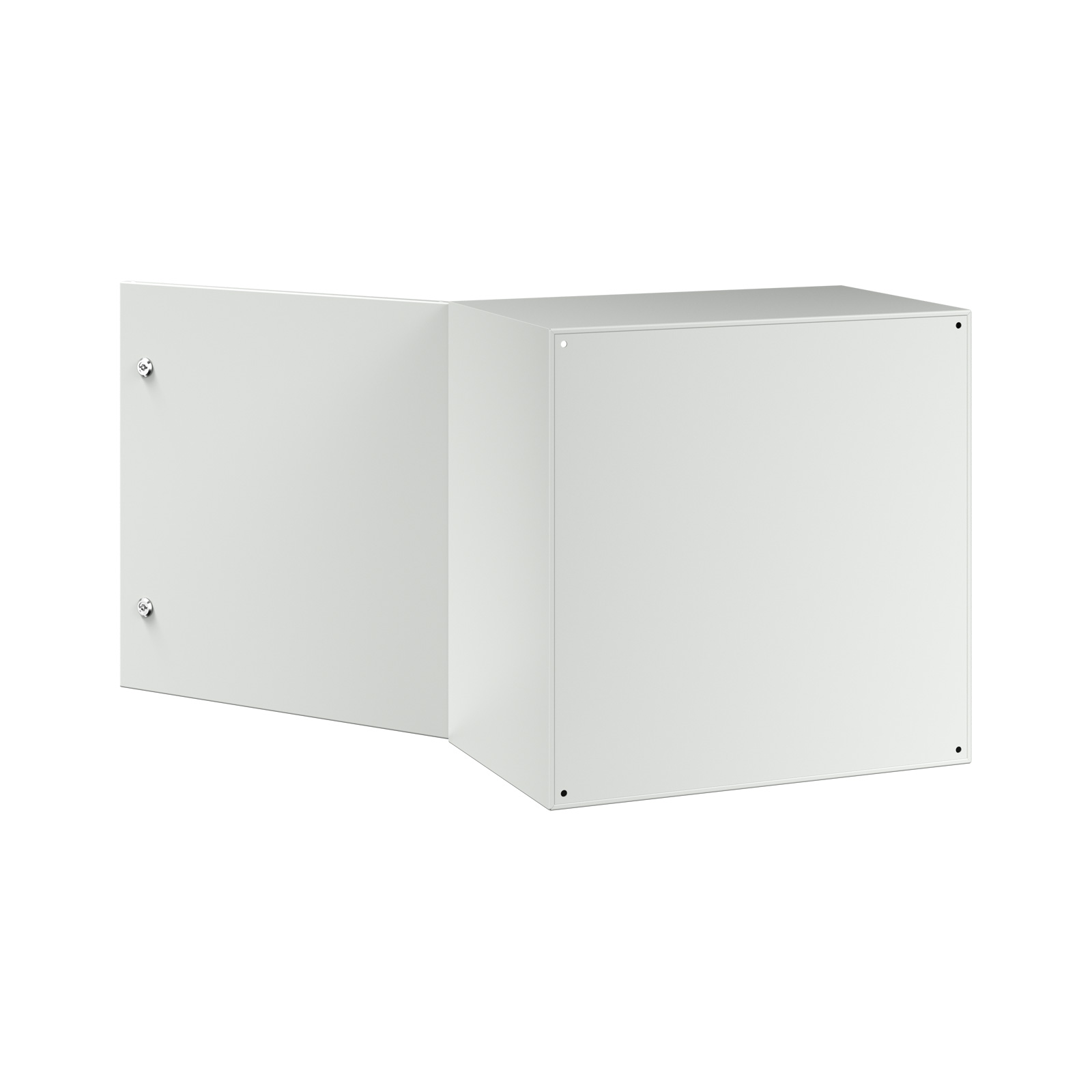

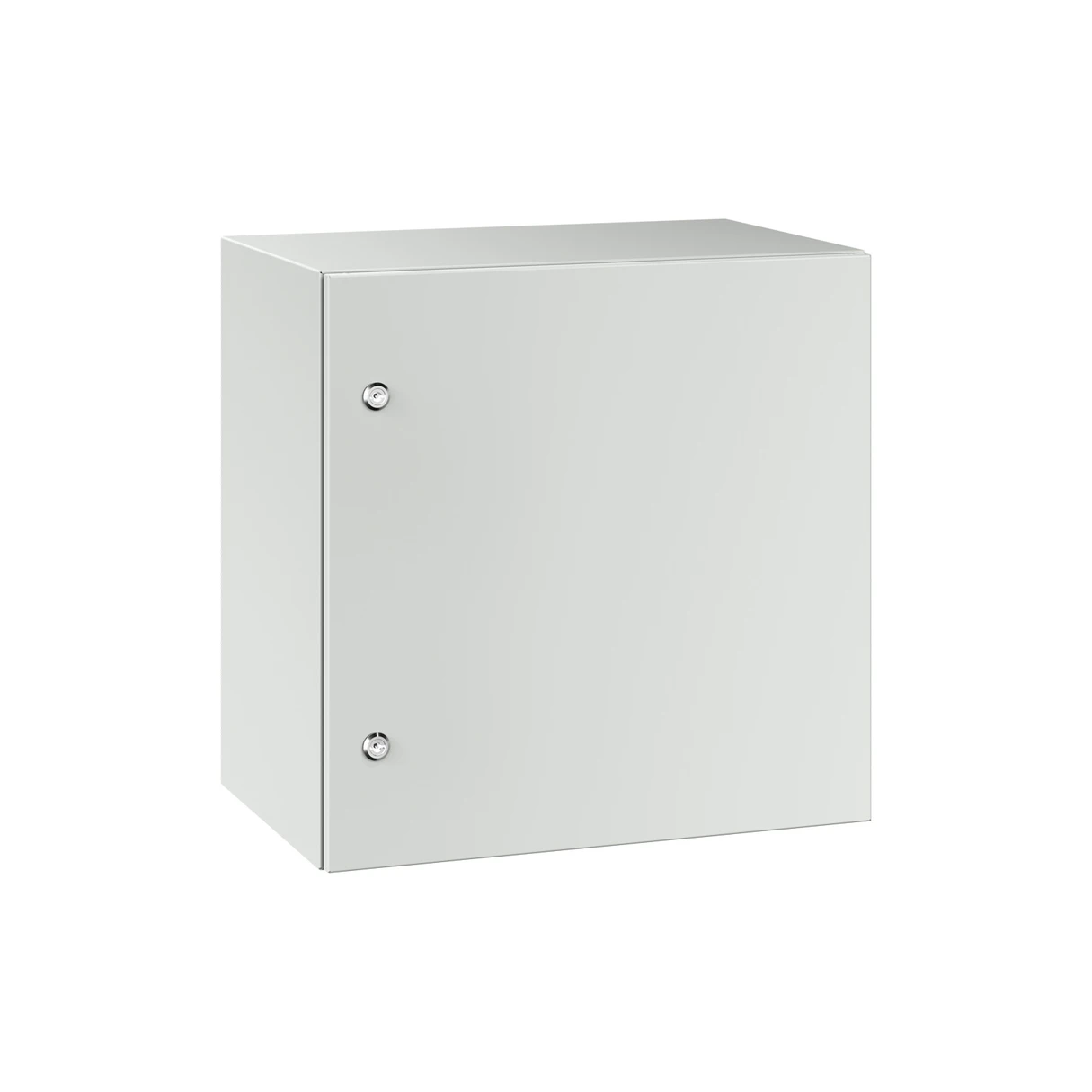

The compact, single-door WME-O control cabinets made of stainless steel with a surface treatment resistant to UV radiation are ideal for outdoor installations; can be combined with rain protection and other accessories. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet. Laser welding technology gives the cabinets clean design. For WME-O outdoor cabinets, we offer cooling and heating solutions which will ensure a favorable internal temperature for the installed equipment. Upon request, we will recommend the most suitable type of fan and make the necessary cutouts and threads for installation in the outdoor cabinet.
| Nom de la ligne de produits |
19" WME-O - stainless steel with UV protection |
|---|---|
| Bestseller |
1.4301 stainless steel upon request |
| Panneaux latéraux |
For indoor use cases with higher requirements for resistance to the environment, choose from the inTEG WME-X series. |
| Matériau |
Cabinet casing material: Stainless steel |
| Indice IP |
IP66 according to the EN 60529 standard (the degree of protection may decrease after mounting certain accessories) |
| Couleur |
RAL 7035 for outdoor use |
| Citation |
We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring. |
| Remarque |
We will make cutouts, perforations and threads and mount accessories to your specific requirements. |
|
WME-O19 is a special category of single-door stainless steel 19" cabinets suitable for IT equipment installations. As a standard, these cabinets are equipped with 19" rails. The cabinets are available in depths of 400 and 500 mm and heights of 12, 17 and 21U. For more information, see here >> |
|
| Indice de résistance aux chocs IK selon IEC 62262 |
IK10 according to IEC 62262 |
|
Polyester powder coating with UV protection |
Fans help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.
Replacement mounting plate with 50x50 mm grid marking
Brackets for positioning of the mounting plate in the cabinet.
The inner door separates the control elements from the live parts inside the cabinet.
We offer various types of locks and lock cylinders.
Locks the door in the open position
Self-adhesive pouch for storing A4 documentation inside the cabinet.
LED lighting of the interior of the cabinet.
Glands ensure secure cable passage where high IP protection level and mechanical resistance are required.
Perforated metal cable tray with pass-through frame.
Vertical perforated mounting rails for component installation.
Internal 19" fixed rails for installation of IT/telco equipment.
Perforated horizontal door bar for attaching cabling etc.
Suitable for outdoor installations to increase resistance to the effects of the outdoor environment.
Designed for connecting WME series cabinets into rows while maintaining IP protection.
Perforated metal cable tray with round frame.
Complete assembly for attaching the cabinet to a pole.
Mounting kits for direct installation of the cabinet on the wall.
A complete set of grounding cables for cabinets
Metal perforated cable tray with membrane entry plate.
