FSE







Présentation du produit

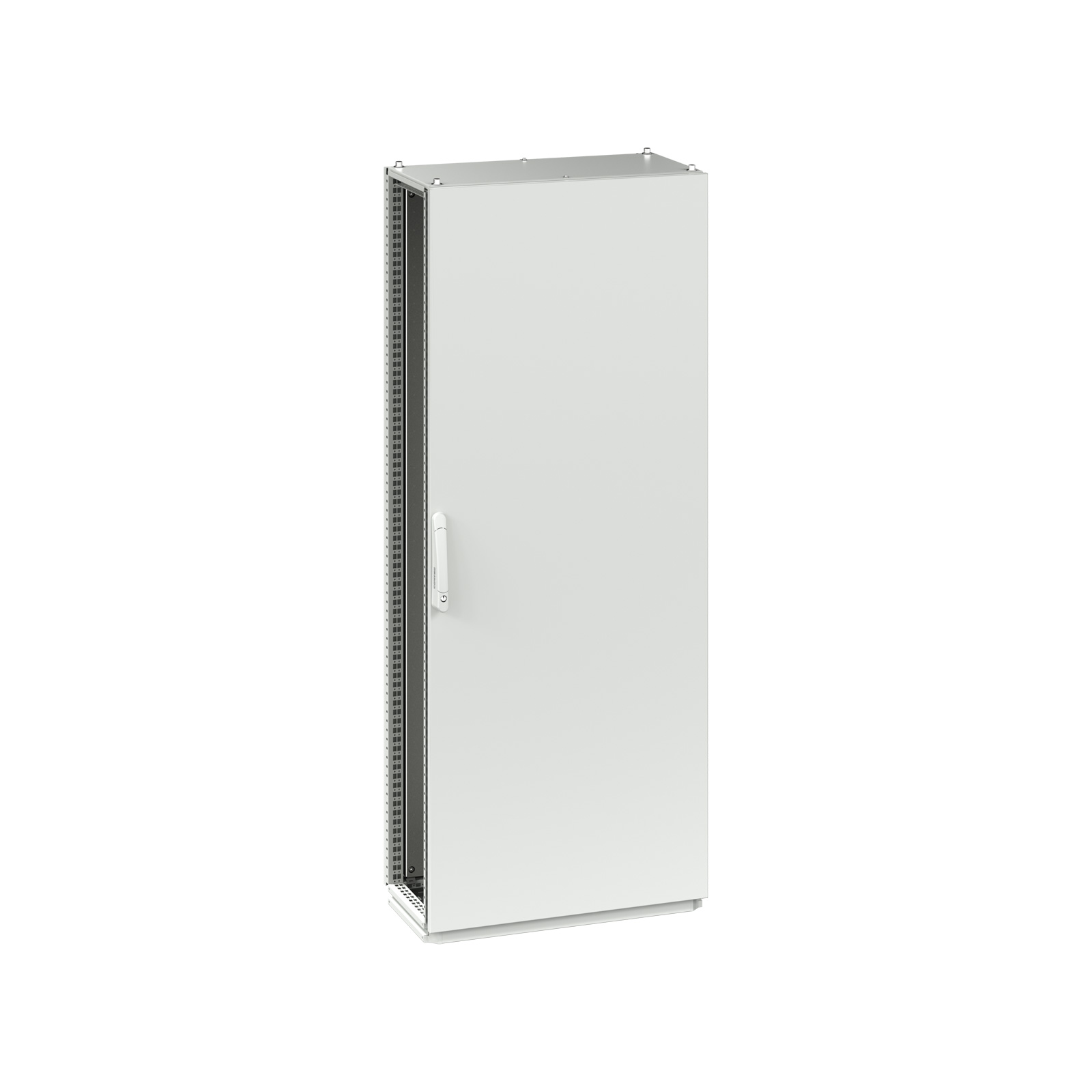

Free-standing FSE cabinets made of sheet steel, suitable for arrangement in rows, can withstand even the harshest industrial environments.The welded frame of the FSE cabinet is made of a special cold-rolled profile. This production technology, together with the patented shape of the profile, meets the highest requirements for rigidity and load-bearing capacity. The design of the lower frame makes it possible to use FSE cabinets without an additional plinth; this solution does not reduce the space for internal installations. To create a variety of mounting surfaces and planes, we offer a wide range of system accessories designed for optimal use of the frame profile.
Our offer also includes thermal management solutions for the internal environment of the cabinets, from heating units to fans with filters to active cooling units.
Principaux avantages
- The full FSE product line is UL certified.
- Frame construction welded from special rolled profiles - with powder paint finish
- The closed rolled profile is made of galvanized sheet steel and is laser welded
- Load capacity 1,500 kg

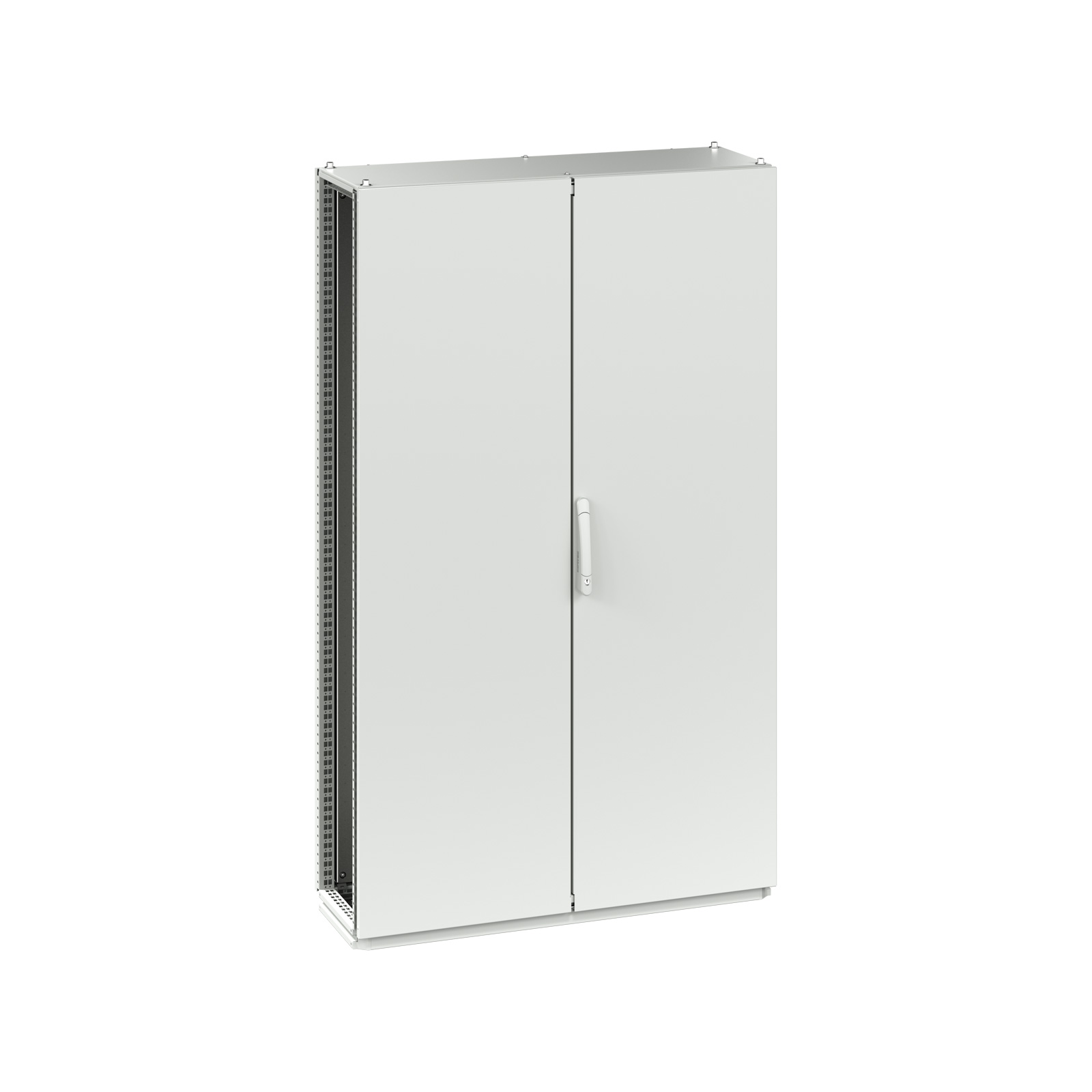

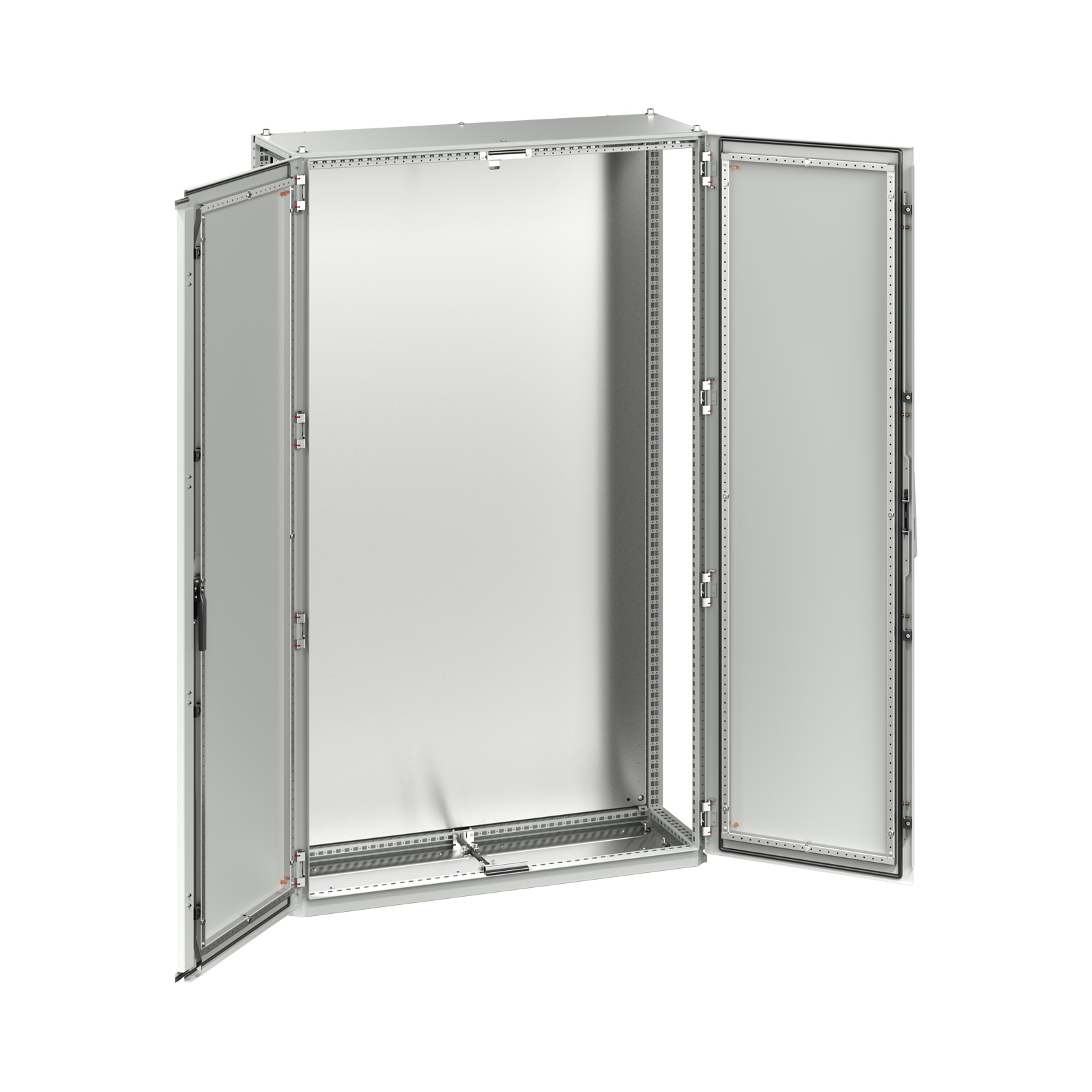

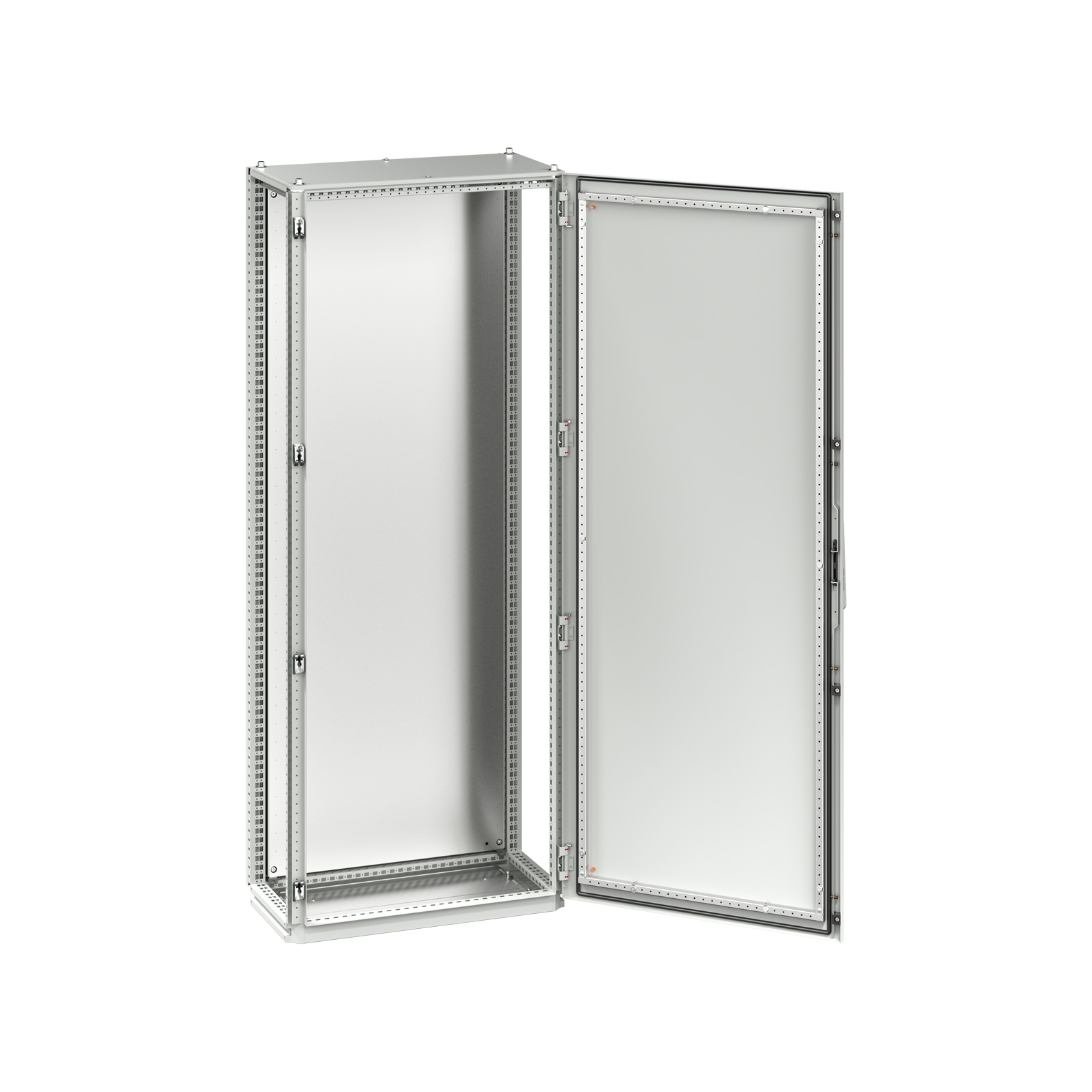

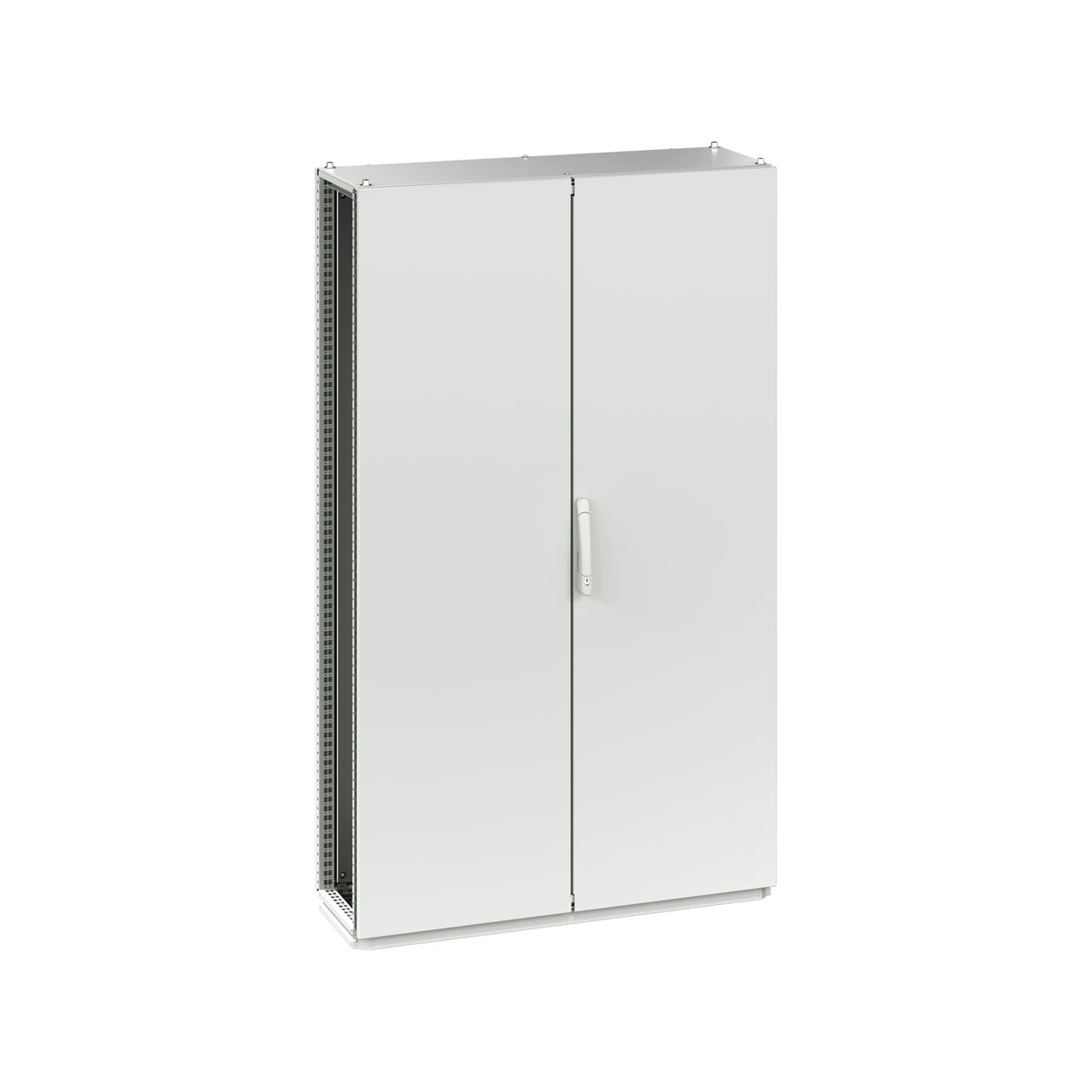

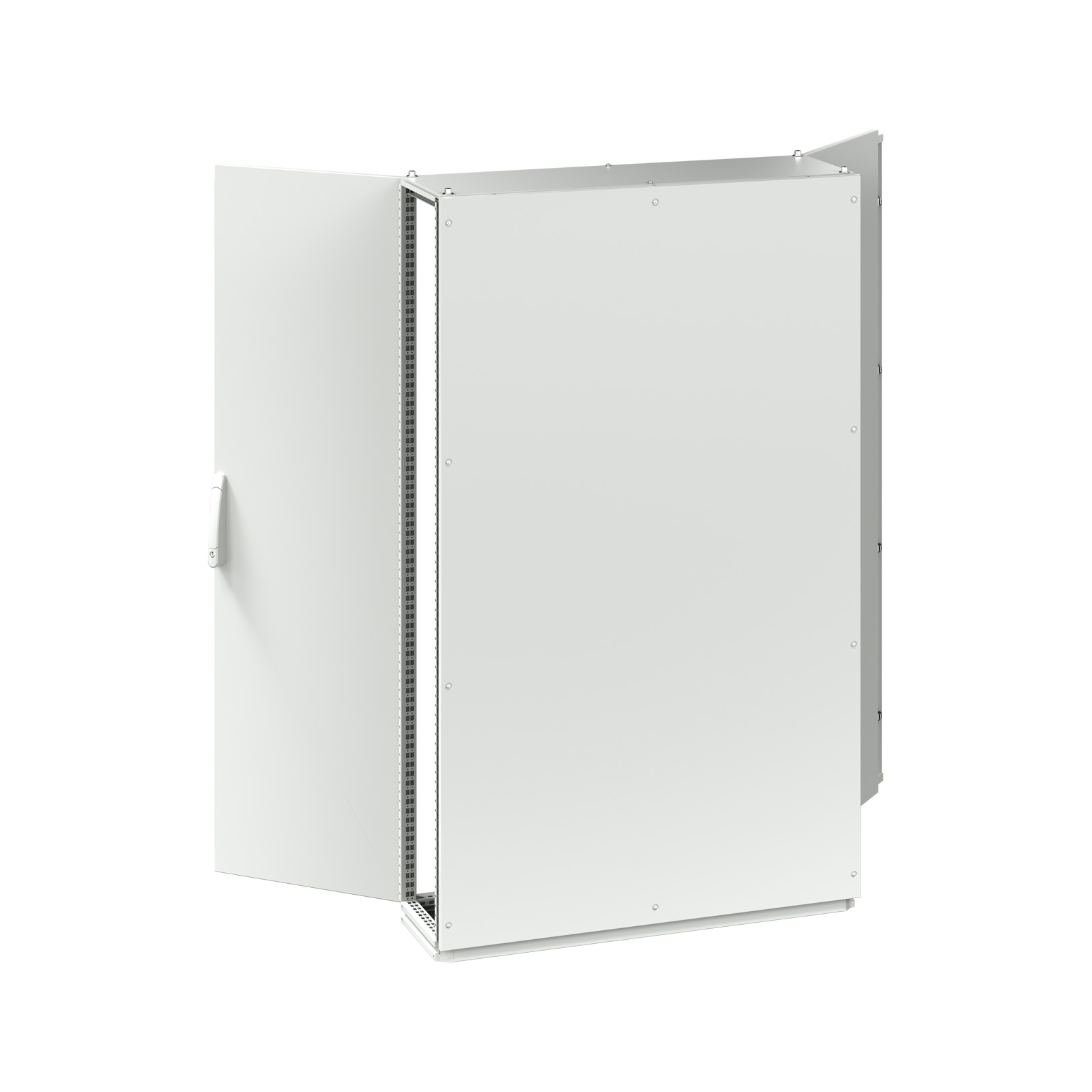

- One-door and two-door cabinet versions available
- Cabinet can be installed without an additional plinth
- Design flip handle – standard for all types of cabinets

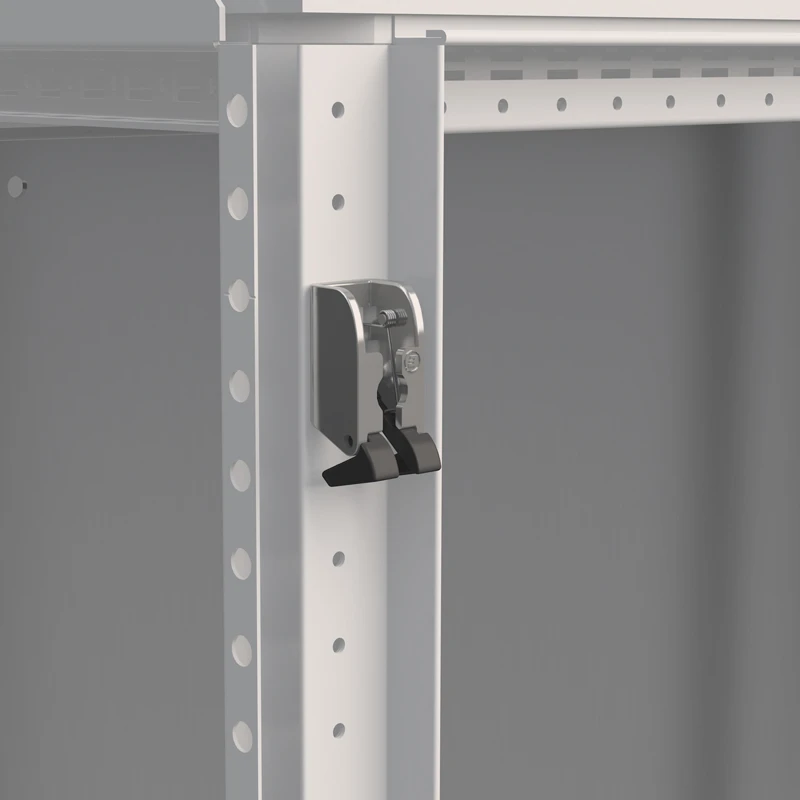

- Door closes easily thanks to a special locking system
- Maximum utilization of the internal space - mounting plate can be placed between the rear pillars

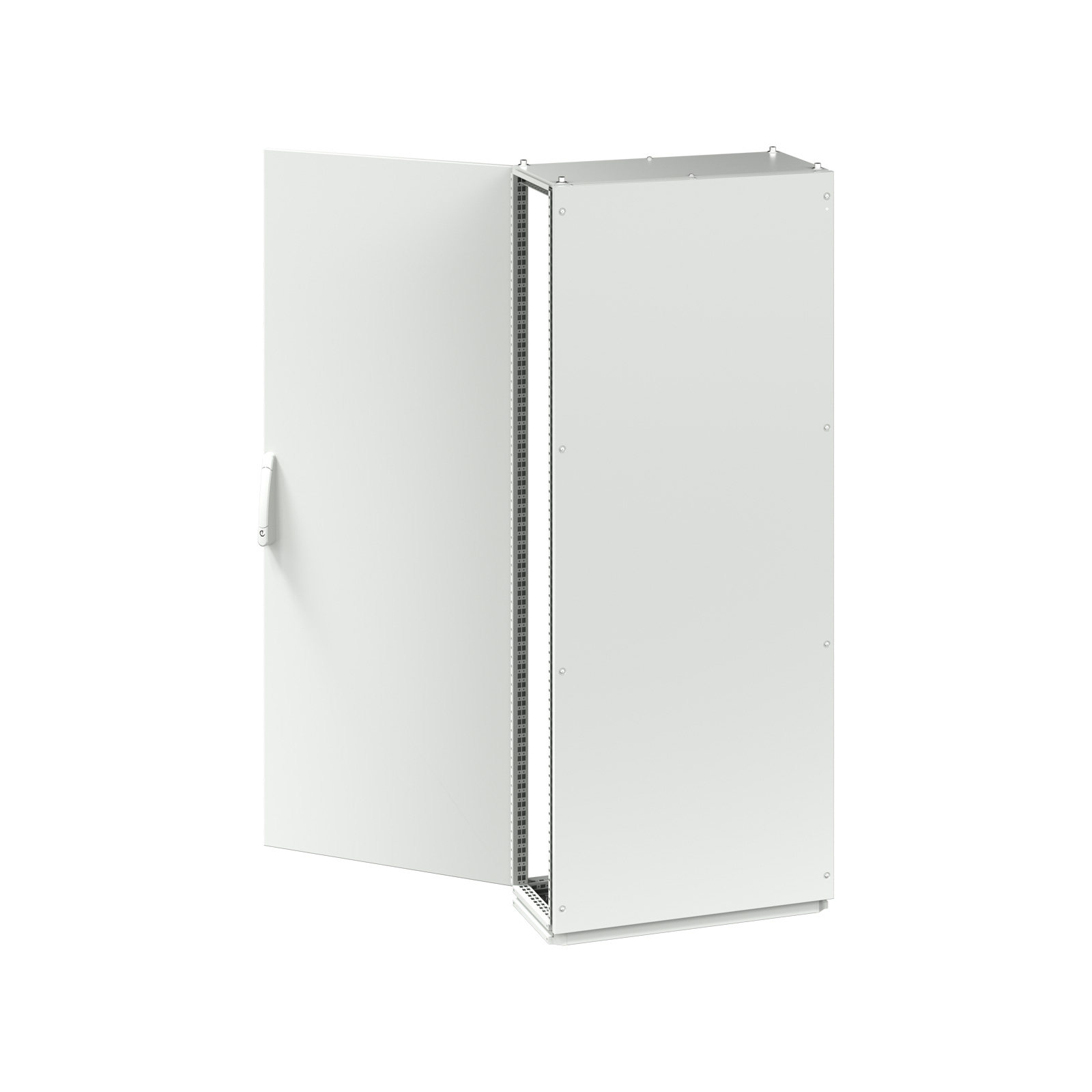

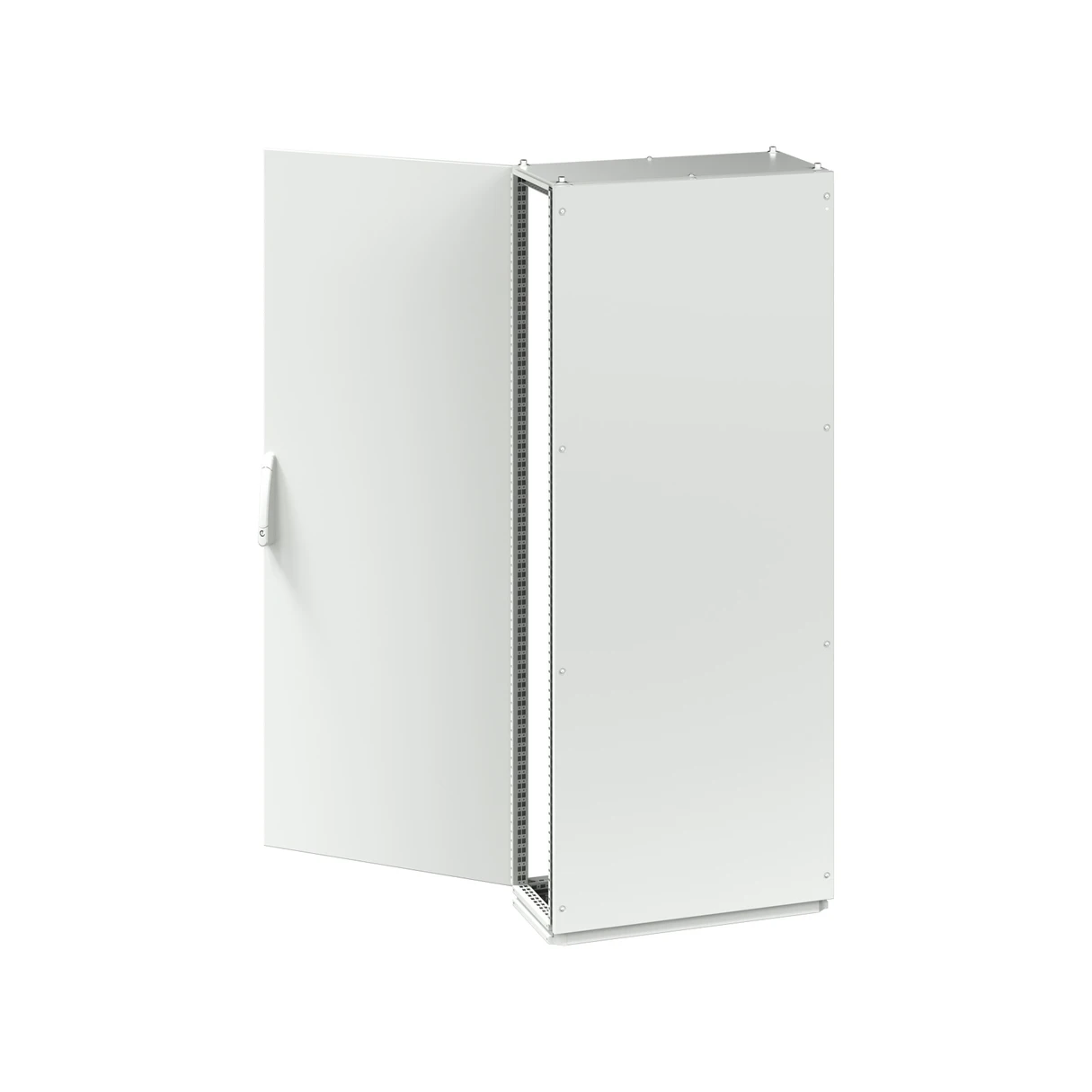

- Easy installation of the side panels thanks to suspension option

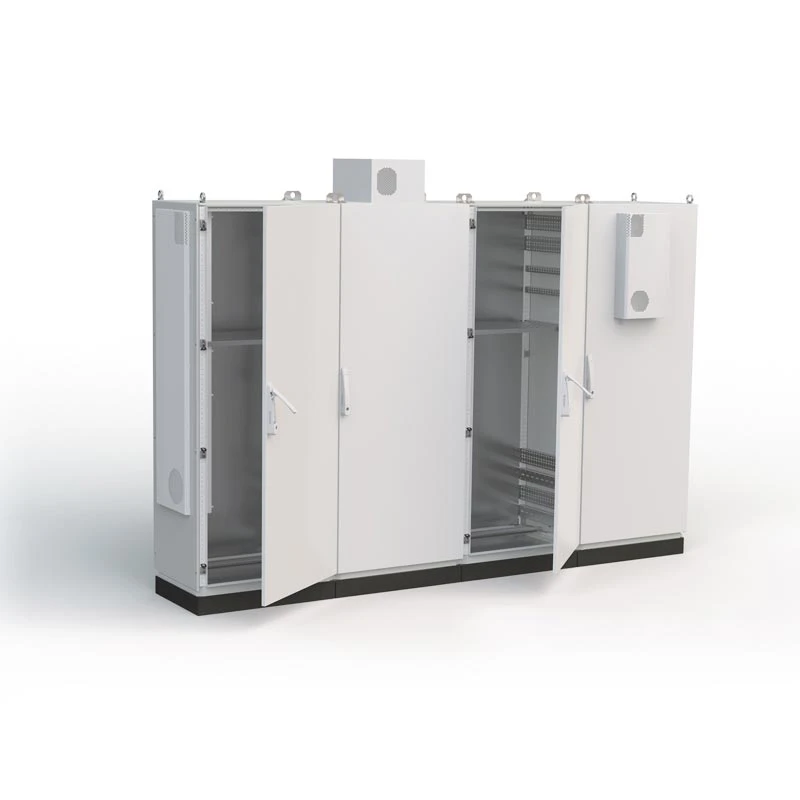

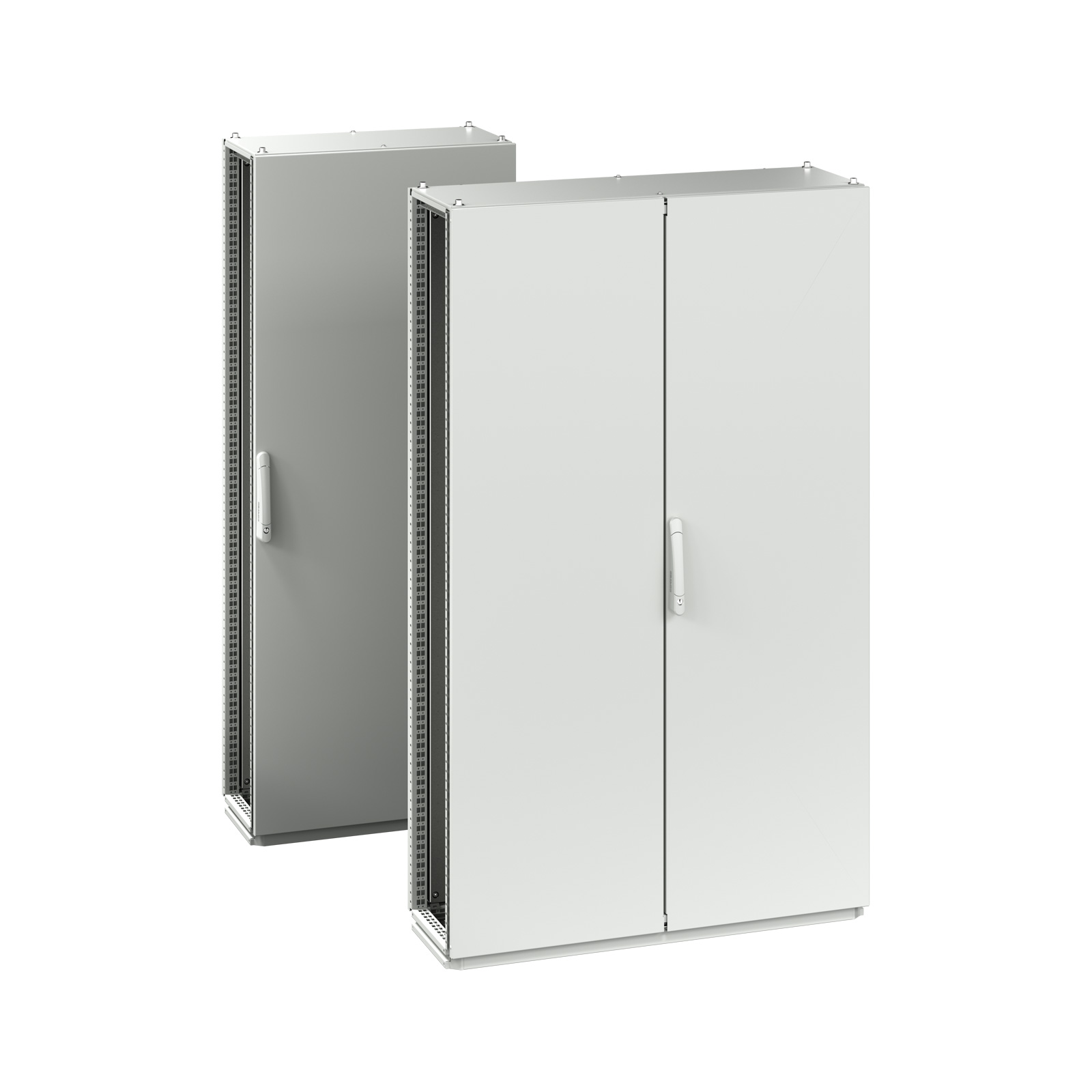

- Can be connected side by side in a row
- 46 sizes from 1800 x 400 x 500 mm to 2200 x 1200 x 800 mm
- A wide range of accessories
- Tailor-made solutions – cut-outs according to your requirements even before the final surface treatment of the cabinet
Information
Caractéristiques principales
Nom de la ligne de produits |
FSE – can be joined in a row, sheet steel |
---|---|
IP55 according to the EN 60529 standard (the level of protection may decrease after mounting certain accessories) |
|
RAL 7035 for indoor use |
|
Inclus dans l'emballage |
Welded frame of the cabinet |
Matériau |
Frame - Electrolytic galvanized material DC1+ZE25/25APC |
Epoxy polyester powder paint |
|
Indice de résistance aux chocs IK selon IEC 62262 |
IK10 according to IEC 6226 |
https://www.conteg.com/industry/cooling-units |
Pour télécharger
Catalogue produits : Armoires industrielles
Fiche technique : FSE

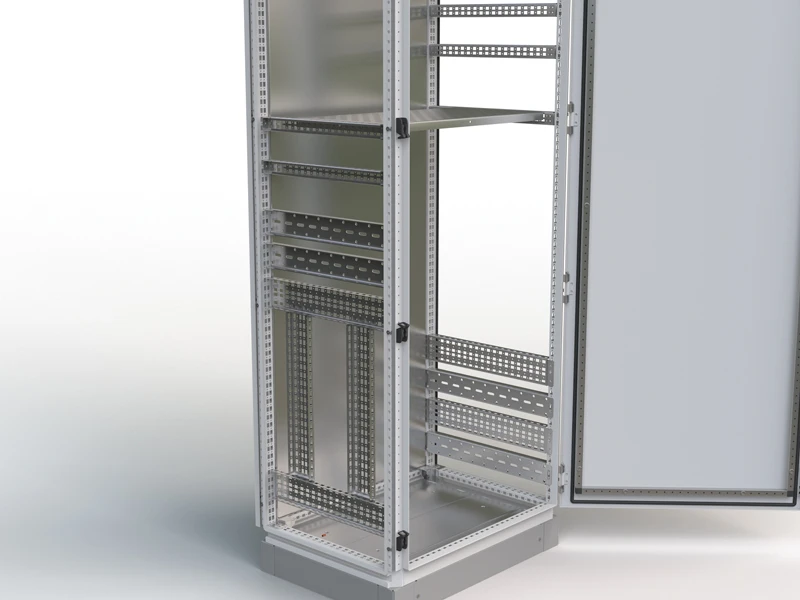

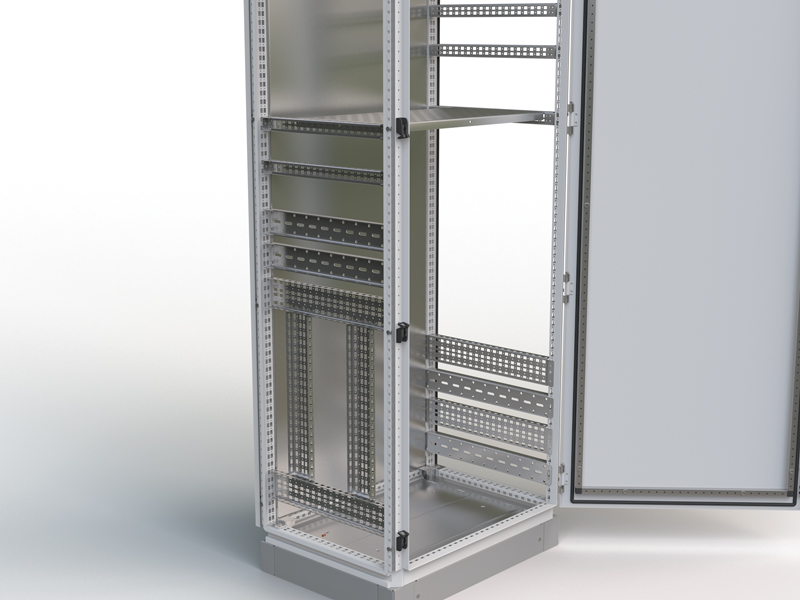

Widerangeofsystemrailsforcreatingadditionalmountinglevelsforindividualinstallation

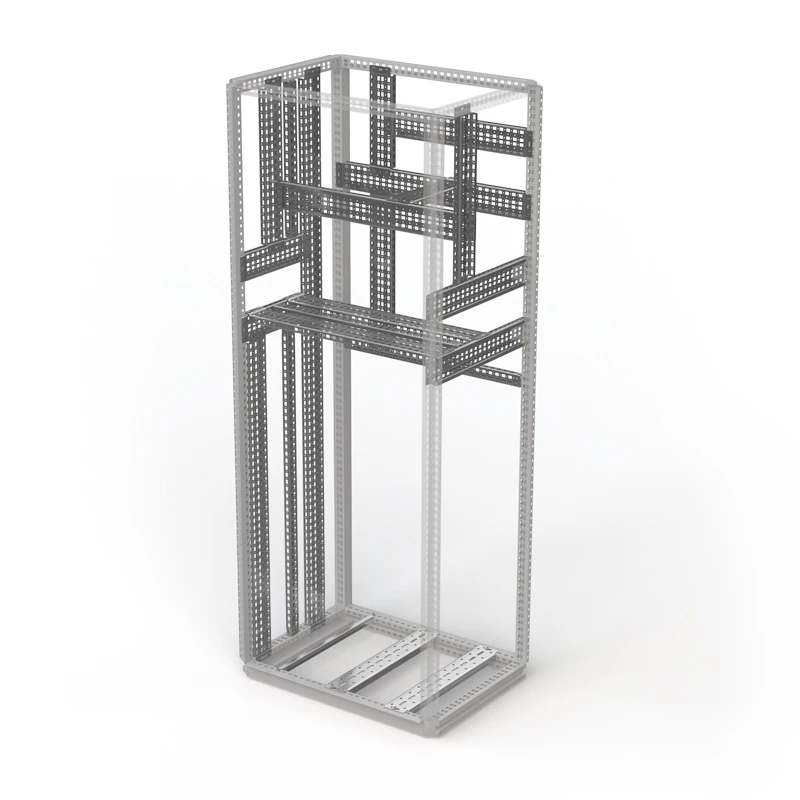

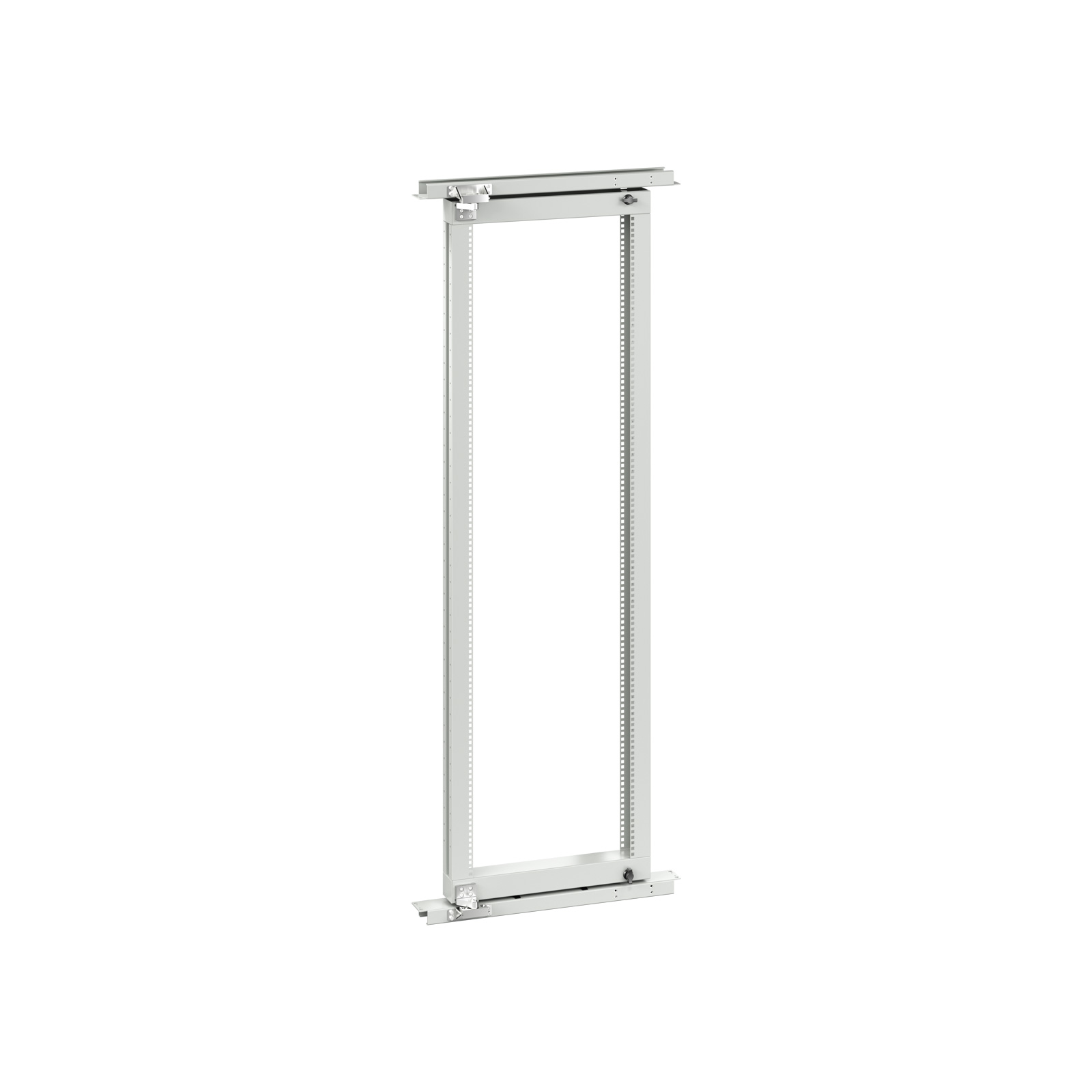

Welded-frameconstruction-maximumuseofinteriorspacethankstoitsnarrowprofileshape

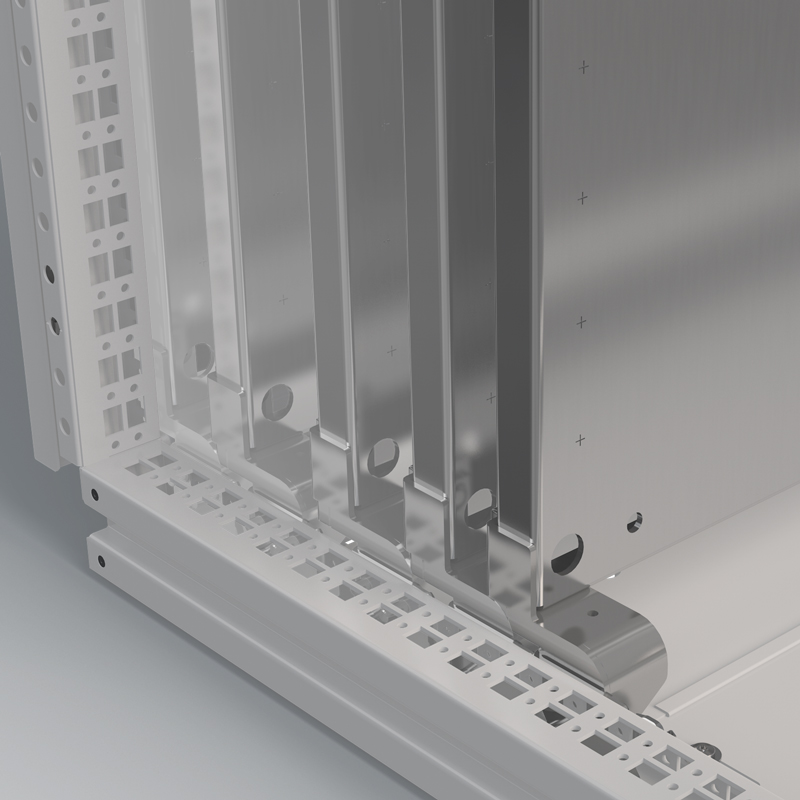

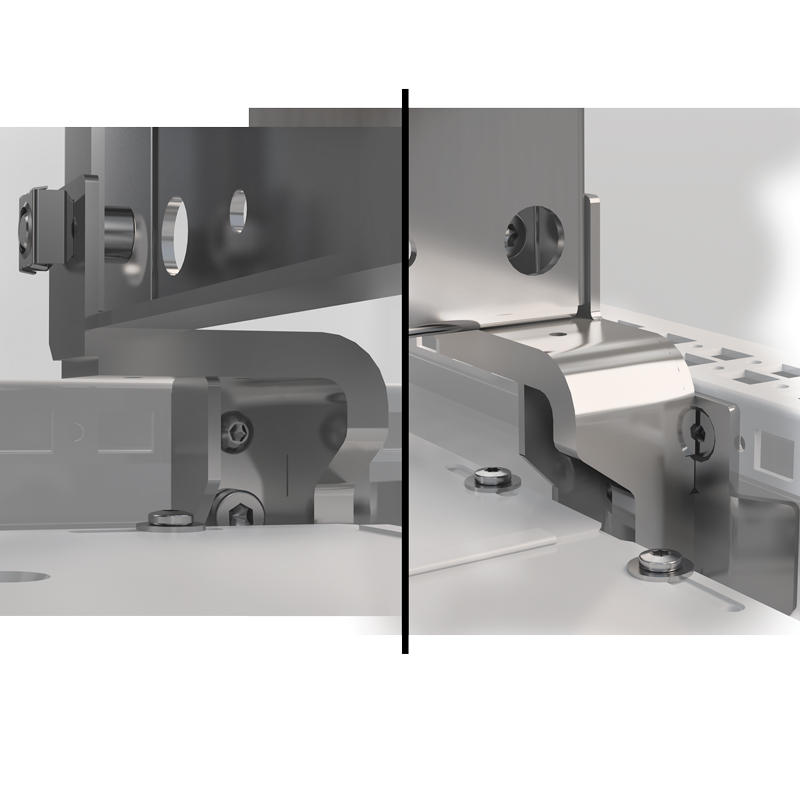

Specialmountingplatebracketsallowforsmoothinsertionintothecorrectposition1

Specialmountingplatebracketsallowforsmoothinsertionintothecorrectposition

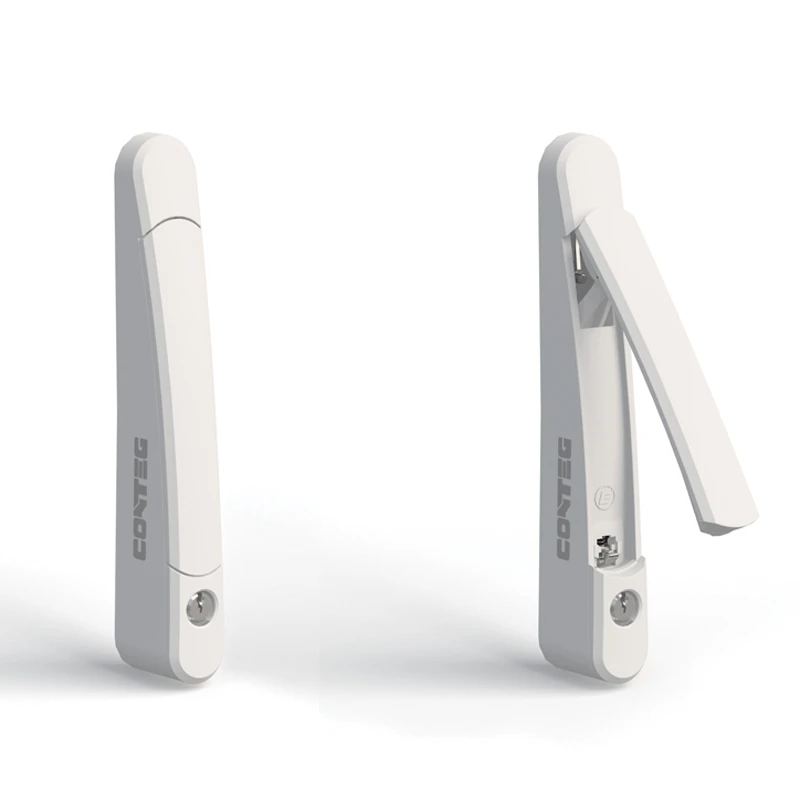

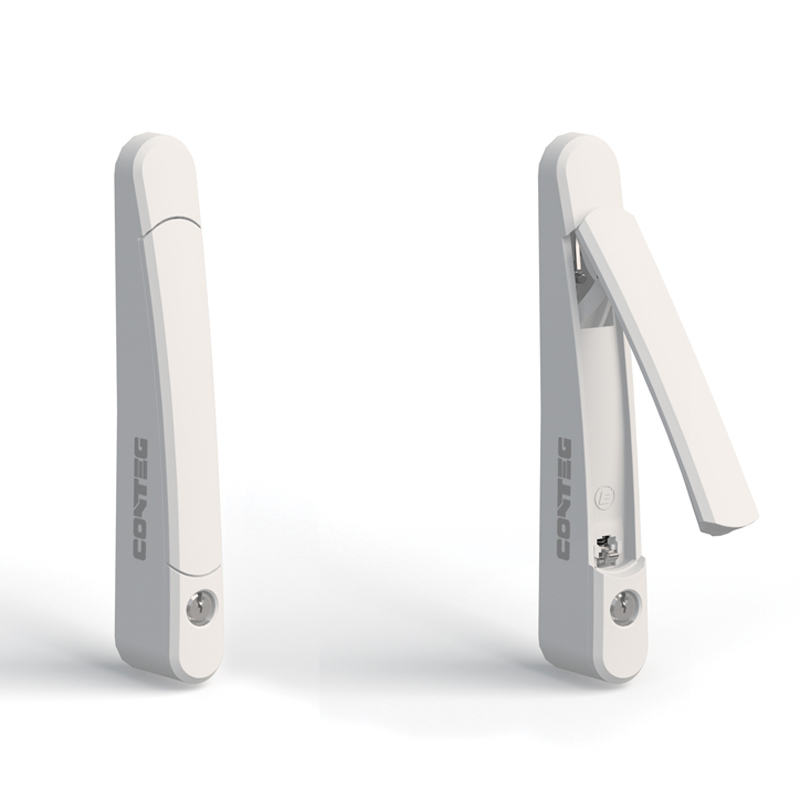

Lift-uphandleisstandardforallenclosures
