Surveillance de l’environnement

RAMOS Optimax

Hauteur de 1U, contrôle jusqu'à 150 capteurs

A monitoring device with a height of 1U supporting up to 150 sensors, suitable for multiple cabinets or server rooms. Also available in a GSM version.

Fiche technique En savoir plus

Où nous trouver ?

Présentation du produit

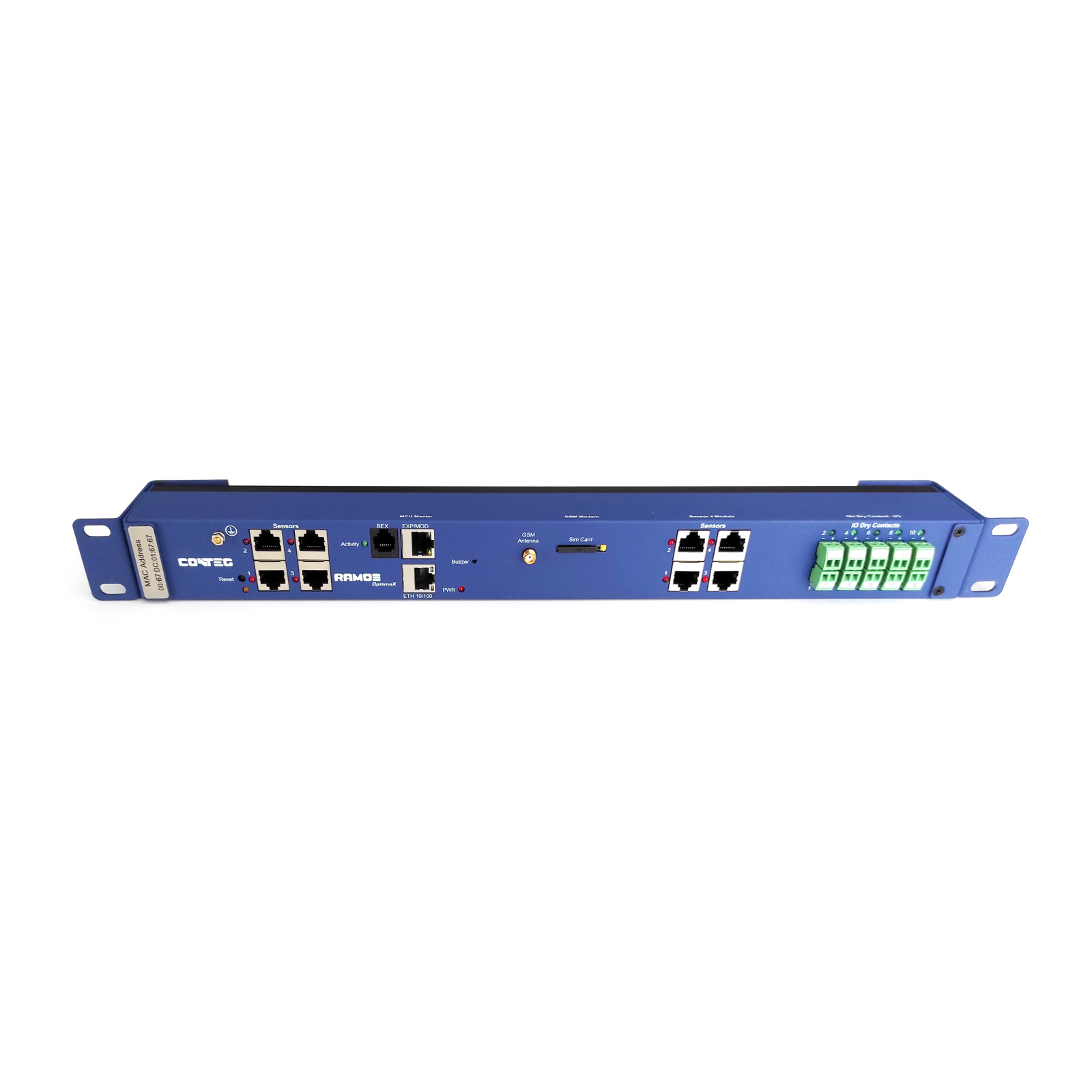

The Ramos Optimax main monitoring unit provides remote monitoring capability for server rooms using sensors that measure temperature and humidity and detect intrusion, the presence of harmful gases or chemicals, or other potentially dangerous conditions.

The device features a very low profile, occupying only 1U of height in a rack cabinet when placed horizontally on rails, yet it supports up to 150 sensors. RAMOS Optimax can be expanded in 2 ways - either using basic BEX expanders (RAMOS-BEX-I8-D10) with a maximum total cable length of 10 m in one line, or using standard expansion modules (RAMOS Ultra O16, I8, D64, D128, D192, RMS-ACS-U-RDU).

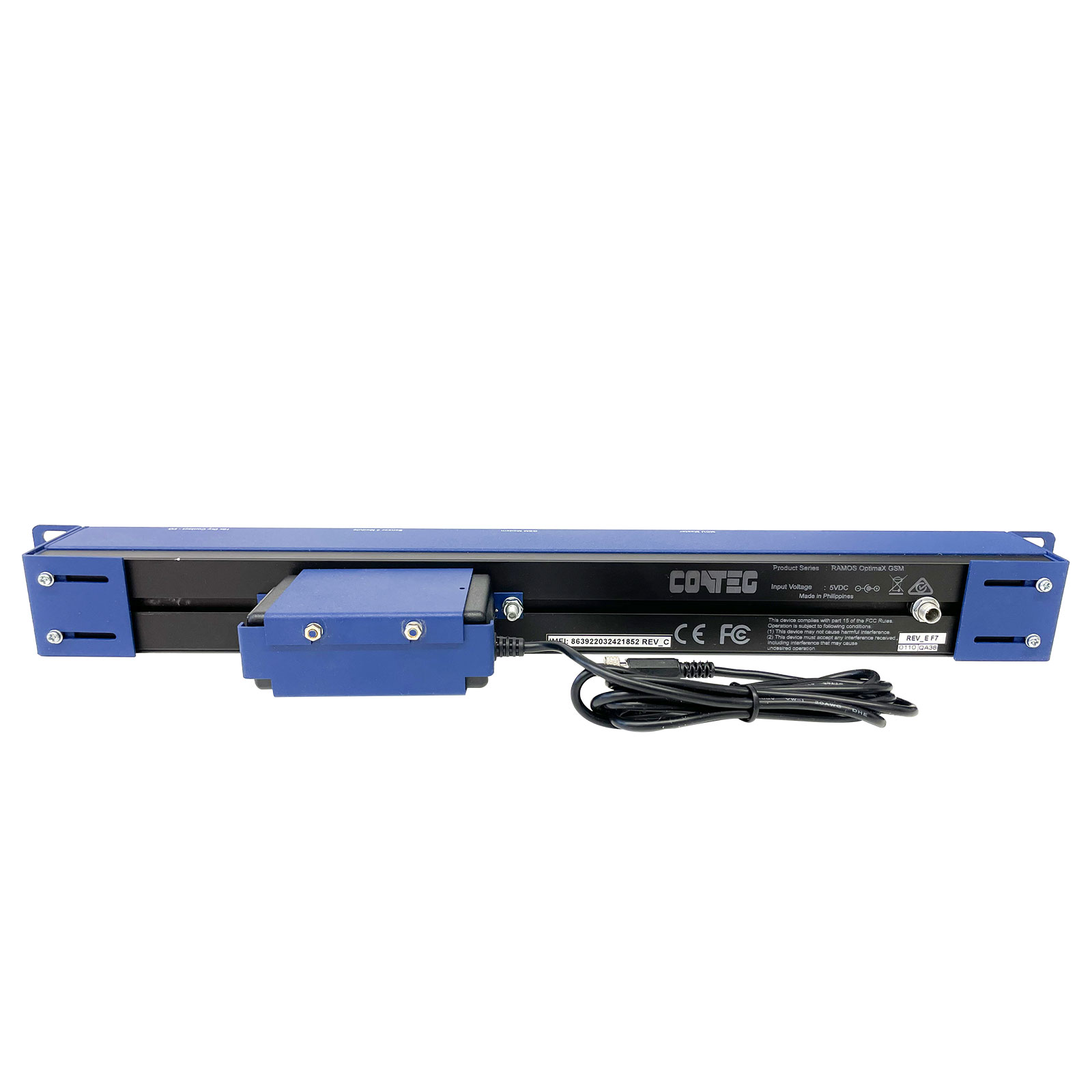

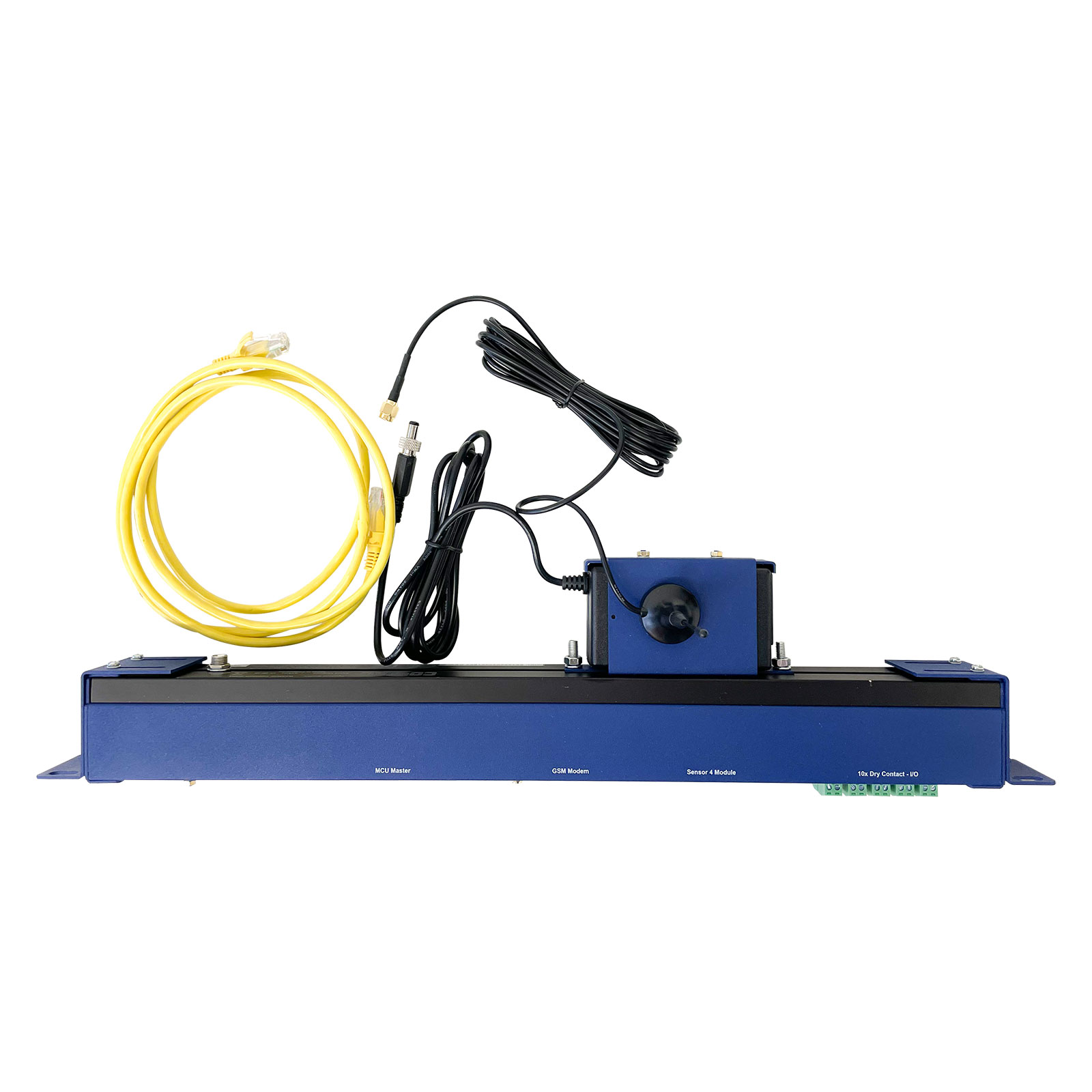

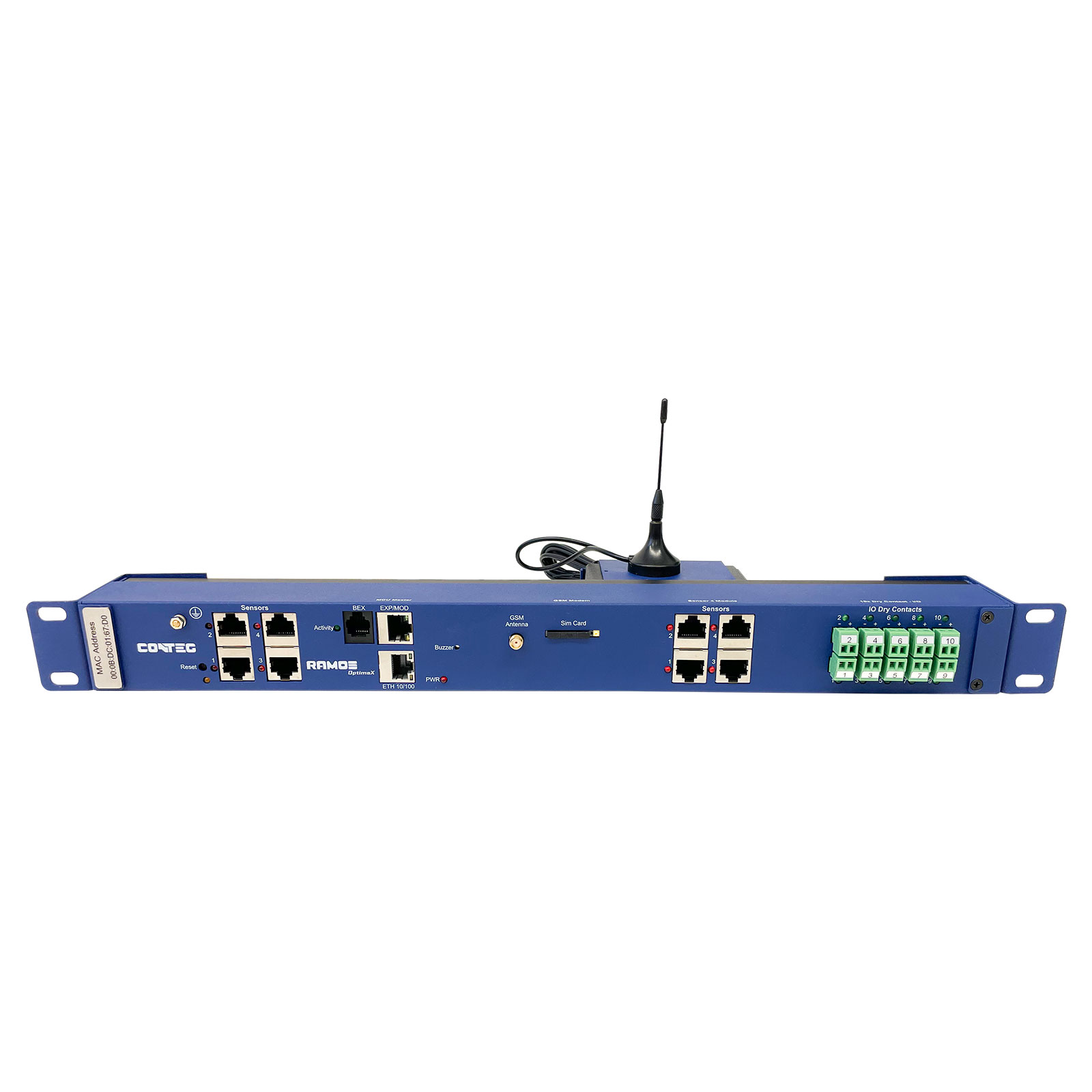

Also available is a RAMOS Optimax GSM version with a built-in 4G modem and an external antenna. This version supports SMS notifications and can communicate over the GSM network. A built-in web server of the RAMOS Optimax unit (GSM) enables convenient setting, control and management from any location. In the event of an alarm, the unit sends a notification by e-mail or SMS to predefined recipients (GSM version).

RAMOS Optimax can also be integrated into the CONTEG Pro Server application for central management and supervision of the monitored environment. A wide range of accessories are available for the main monitoring unit, such as detectors, sensors, sirens, magnetic door contacts, expansion modules, etc.

The RAMOS Optimax monitoring system is suitable for multiple cabinets or server rooms.

Order code: RAMOS Optimax RAMOS Optimax GSM

Information Pour télécharger

Information

Caractéristiques principales

Nom de la ligne de produits	RAMOS Optimax
Fonction de notification	e-mail, SNMP traps, SMS and calls for the GSM version
Compatibilité	Compatible with RAMOS Ultra EXP expansion modules/ RDU door units via a single expansion port
Autres	Compatible with RAMOS Ultra EXP expansion modules/ RDU door units via a single expansion port A new Modbus RTU adapter can be connected to the expansion port 1 port for a basic expander (RAMOS-BEX-I8-D10) 10/100 port for Ethernet link Internal buzzer Built-in web server
Inclus dans l'emballage	5V DC 3A power supply with cable, 19" brackets, crossover cable for setup and a mounting kit
Humidité de fonctionnement	Min. 20% - Max. 80% (without condensation)
Dimensions (L×H×P, en mm)	44 x 432 x 50 mm (19" x 1RU)
Température de fonctionnement	Min. -35 ° C - Max. +70 ° C
Ports pour capteurs	Support for up to 150 sensors (including expansion unit and virtual sensors) 8x auto-detect intelligent ports, configurable as input or output 10x digital input 10x virtual sensor for third-party hardware monitoring using Modbus and SNMP (expandable to 80 by license)

Accessoires

Module d’extension RAMOS-ULTRA-EX-O16

Expander enabling easy addition of 16 optically isolated inputs to the RAMOS Ultra, RAMOS ACS and RAMOS Optimax monitoring solutions.
