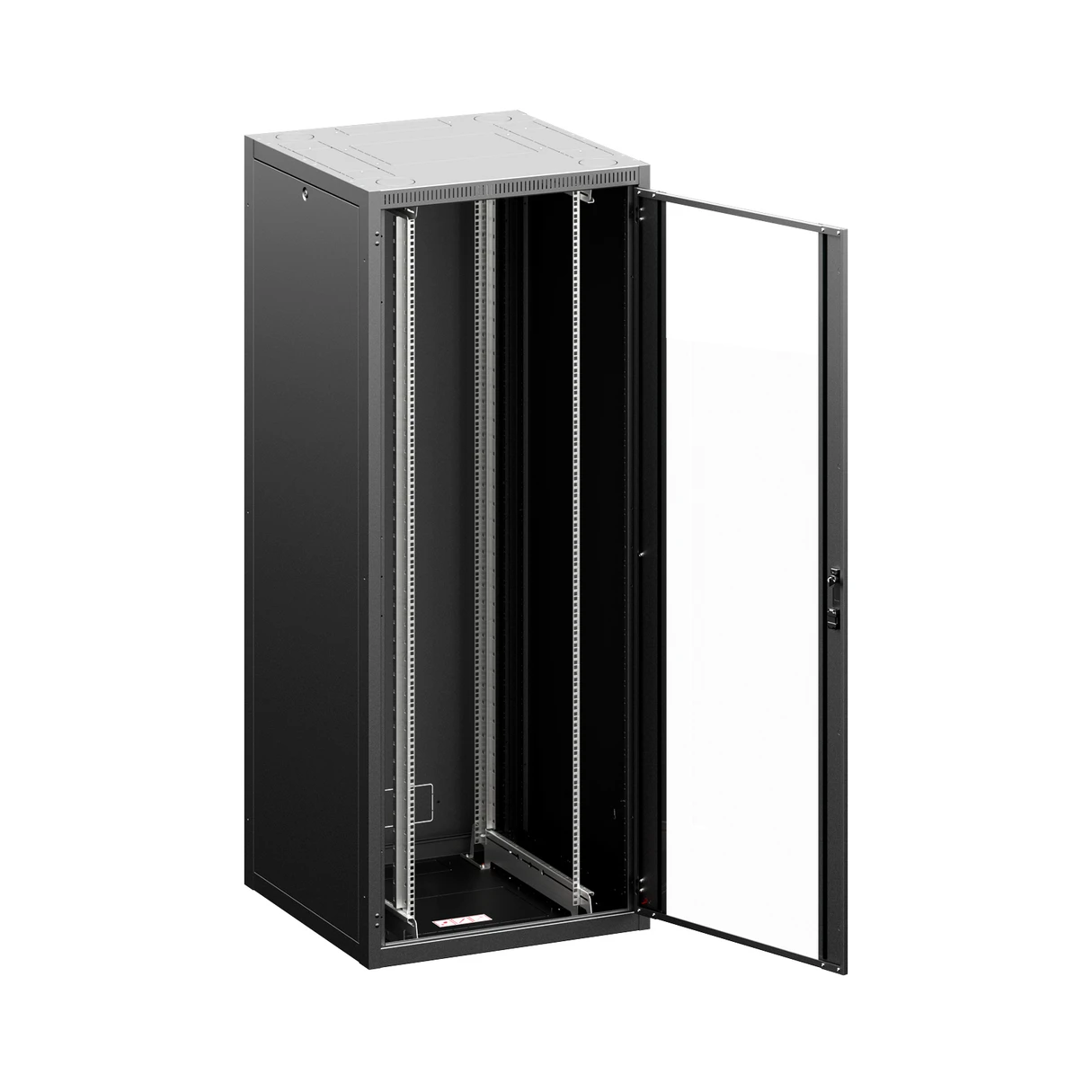

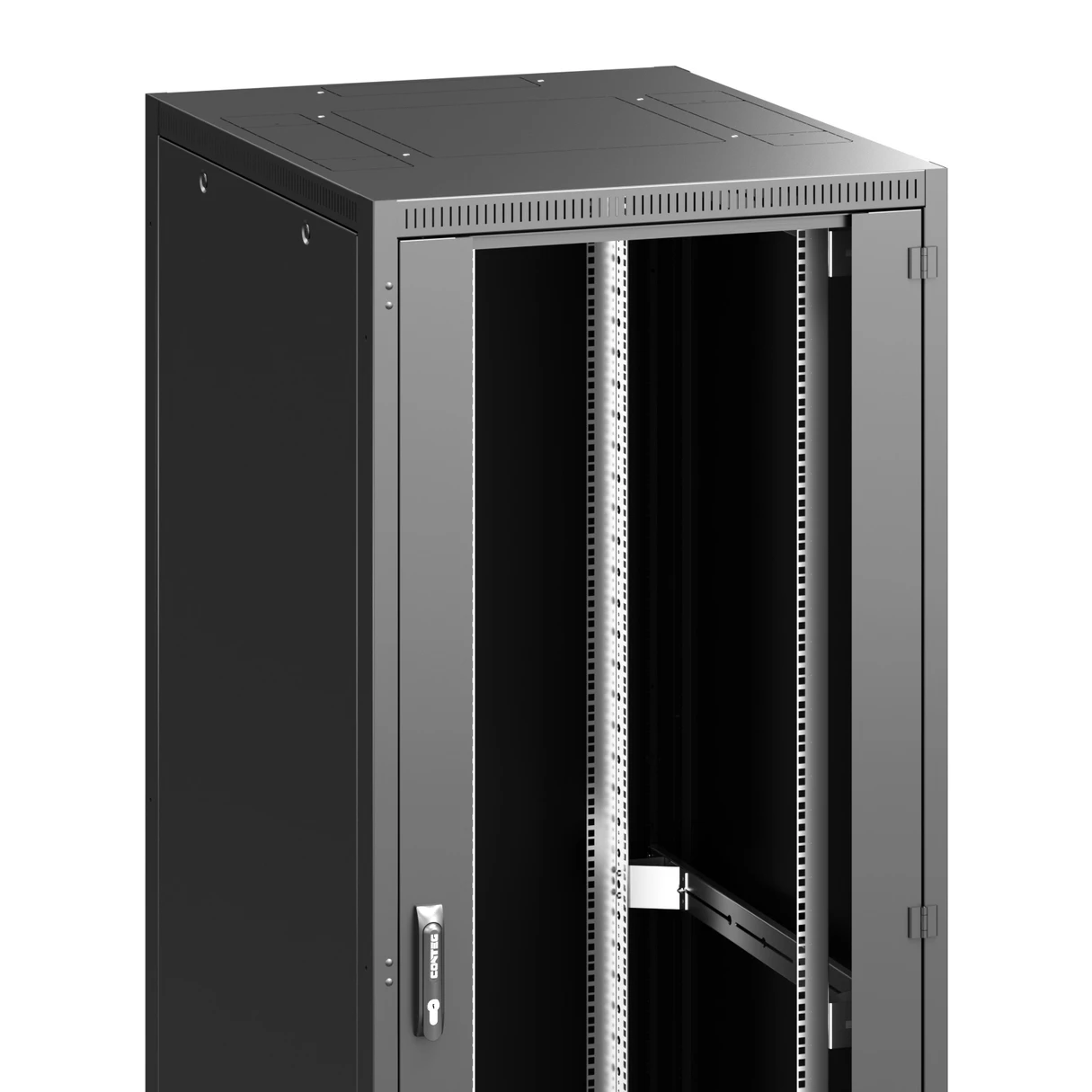

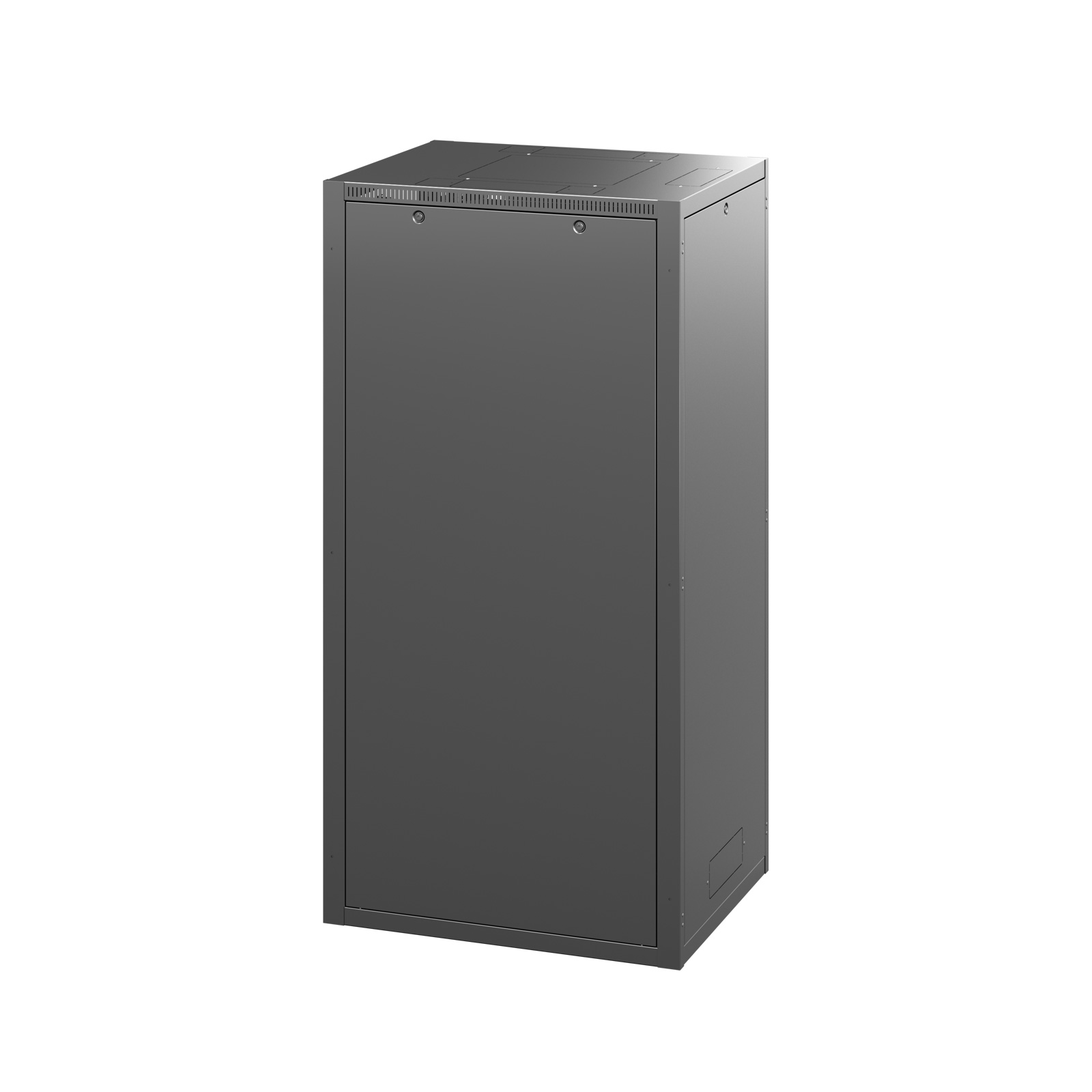

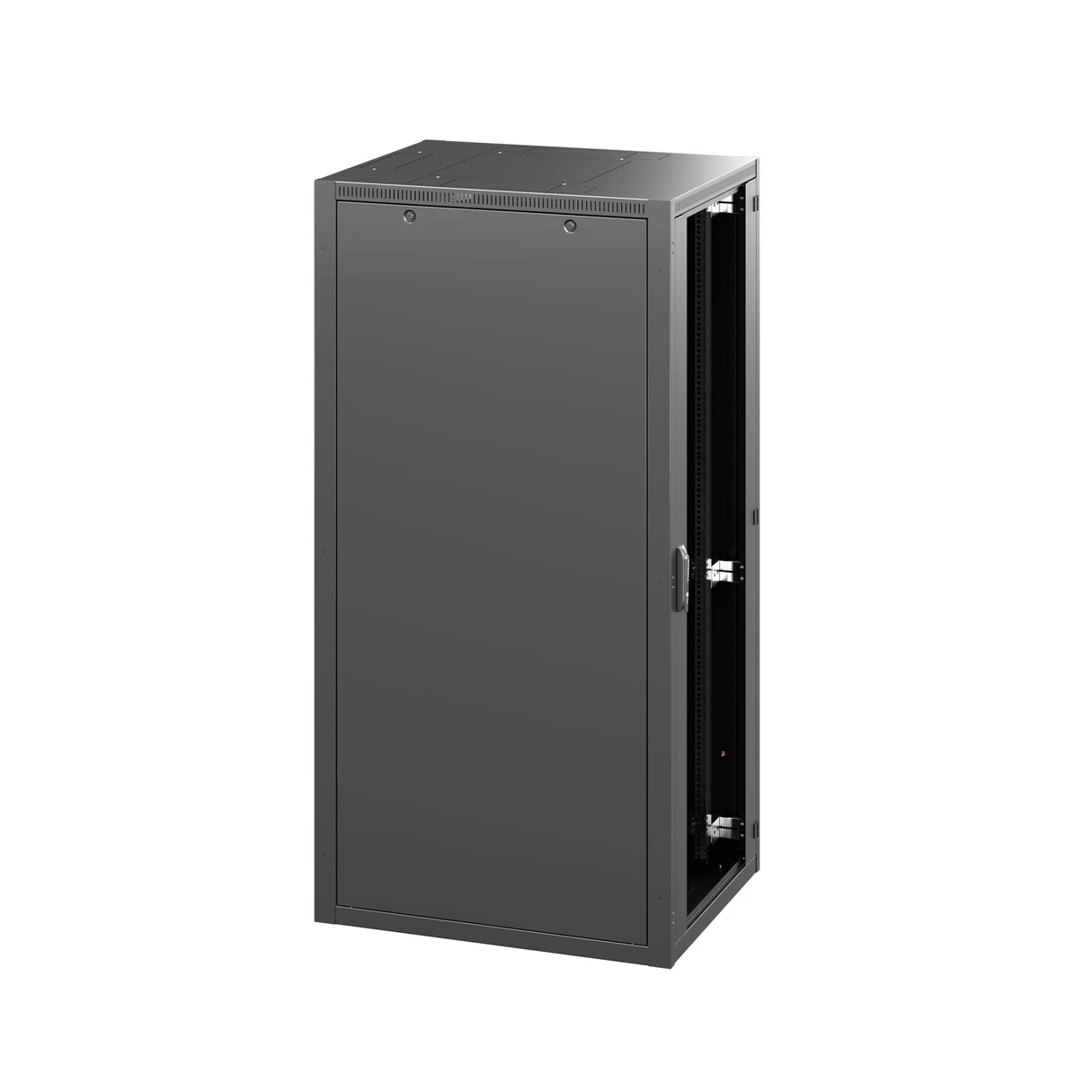

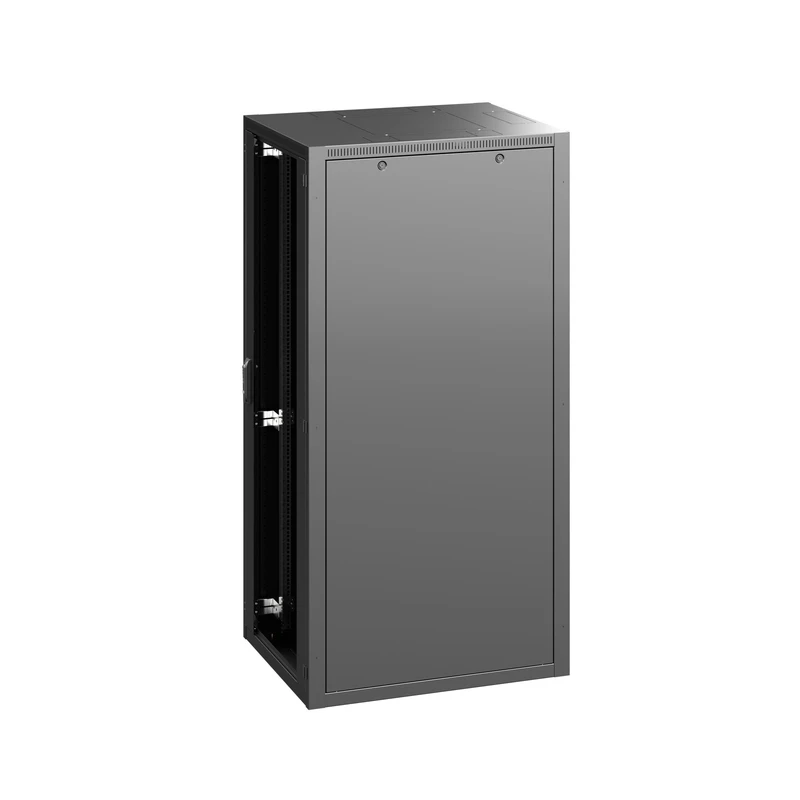

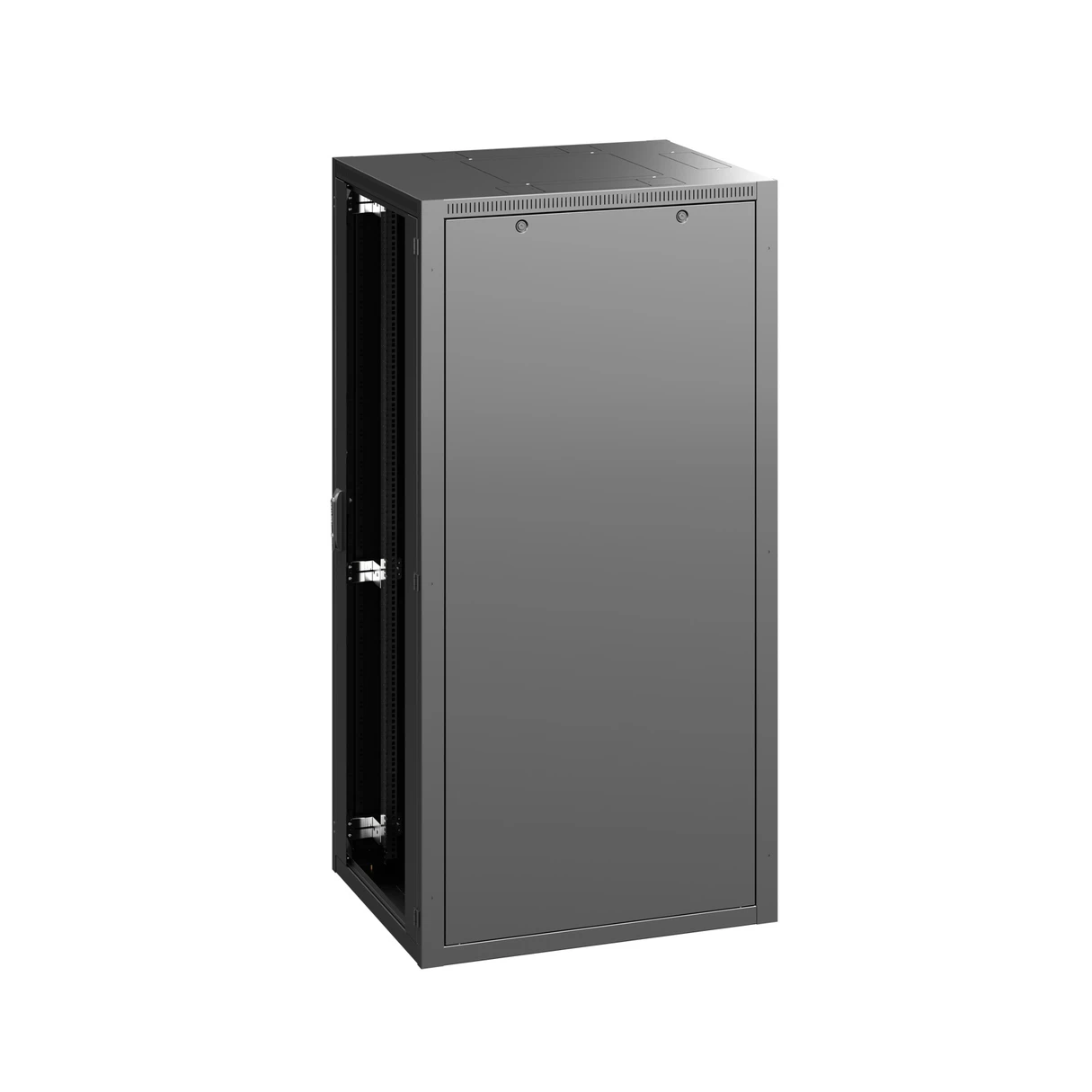

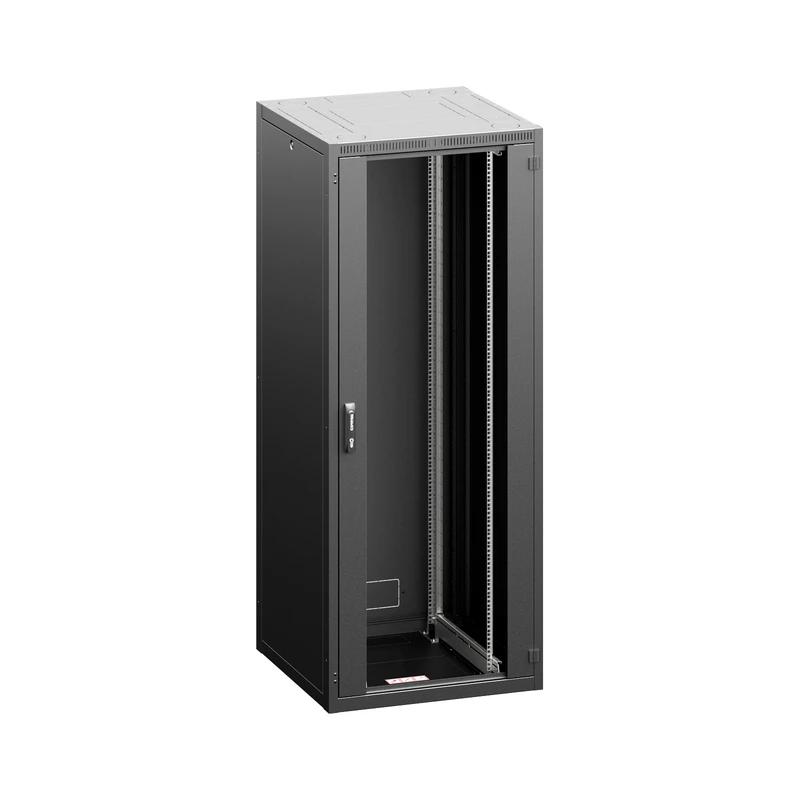

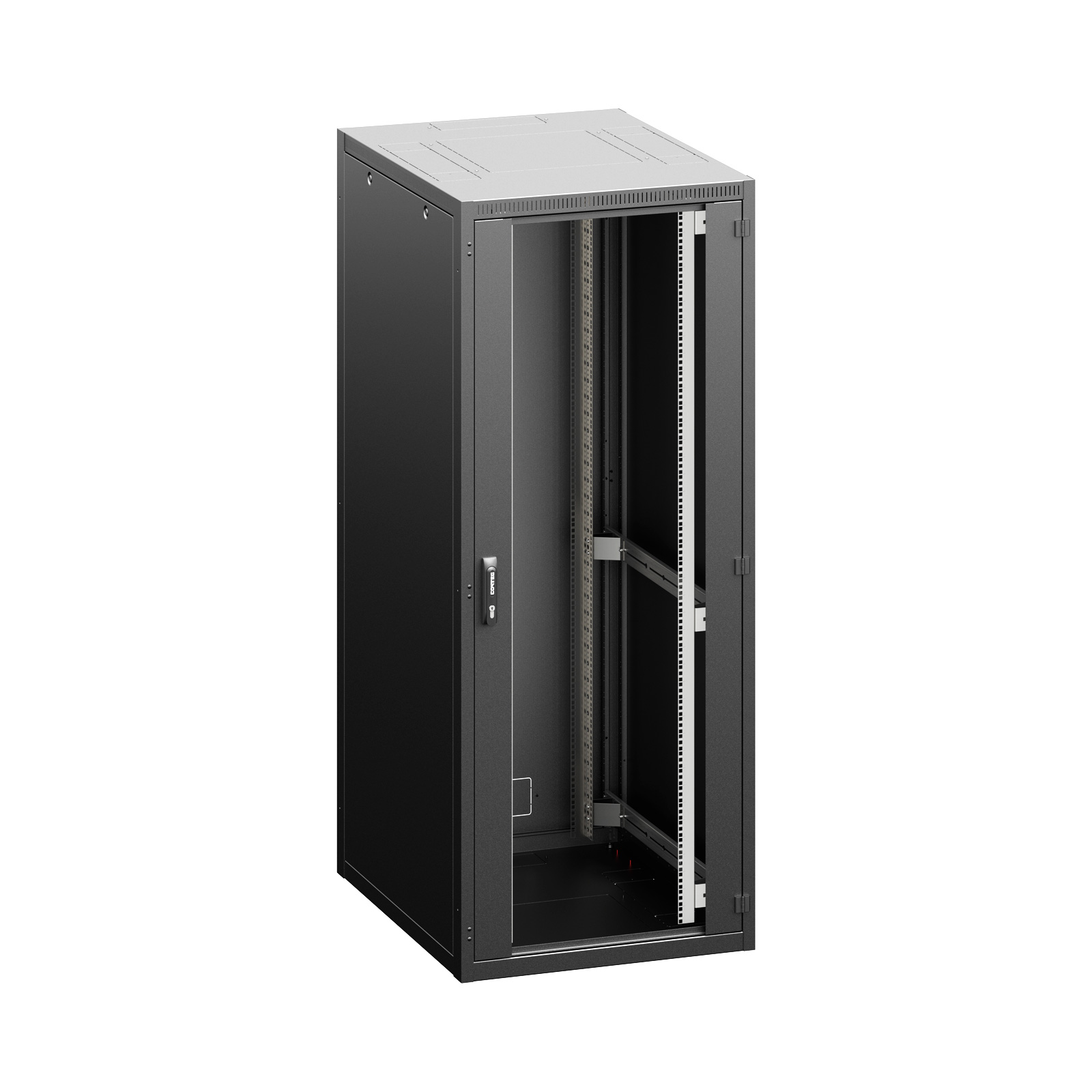

The iSEVEN Flex RM7 cabinet with a kit design and a load capacity of up to 800 kg is intended for places where space limitations of access paths do not allow the use of the iSEVEN universal IT cabinet with a welded construction.
The 19"" iSEVEN Flex RM7 racks were designed to provide an unbeatable value for the price even for those customers whom access path space limitations did not allow to purchase an iSEVEN (RI7) rack with a welded construction. For easier transport, the iSEVEN Flex cabinets are delivered disassembled. They come in 3-5 boxes, which makes transport to any place a breeze.
At the destination, they can be easily assembled according to the instructions into a full-fledged data cabinet. The cabinet is an ideal choice for installers and end customers who do not want to spend time navigating extensive offers of cabinet variations and configurations and corresponding product codes. After meticulous research, we have prepared a portfolio of the most requested formats with a universal design and a limited set of options.
| Nom de la ligne de produits |
iSEVEN Flex RM7 |
|---|---|
| Bestseller |
Unassembled version |
| Hauteur (U) |
27, 42, 21, 45
|
| Largeur (mm) |
600, 800
|
| Profondeur (mm) |
800, 1000, 600
|
| Construction |
Frame kit (connects with M6 screws - included in the package), delivered unassembled - assembly at the installation site |
| Limite de charge (kg) |
800 |
| Montants |
2 pairs of sliding 19" L rails |
| Couleur |
RAL7035 and RAL9005 |

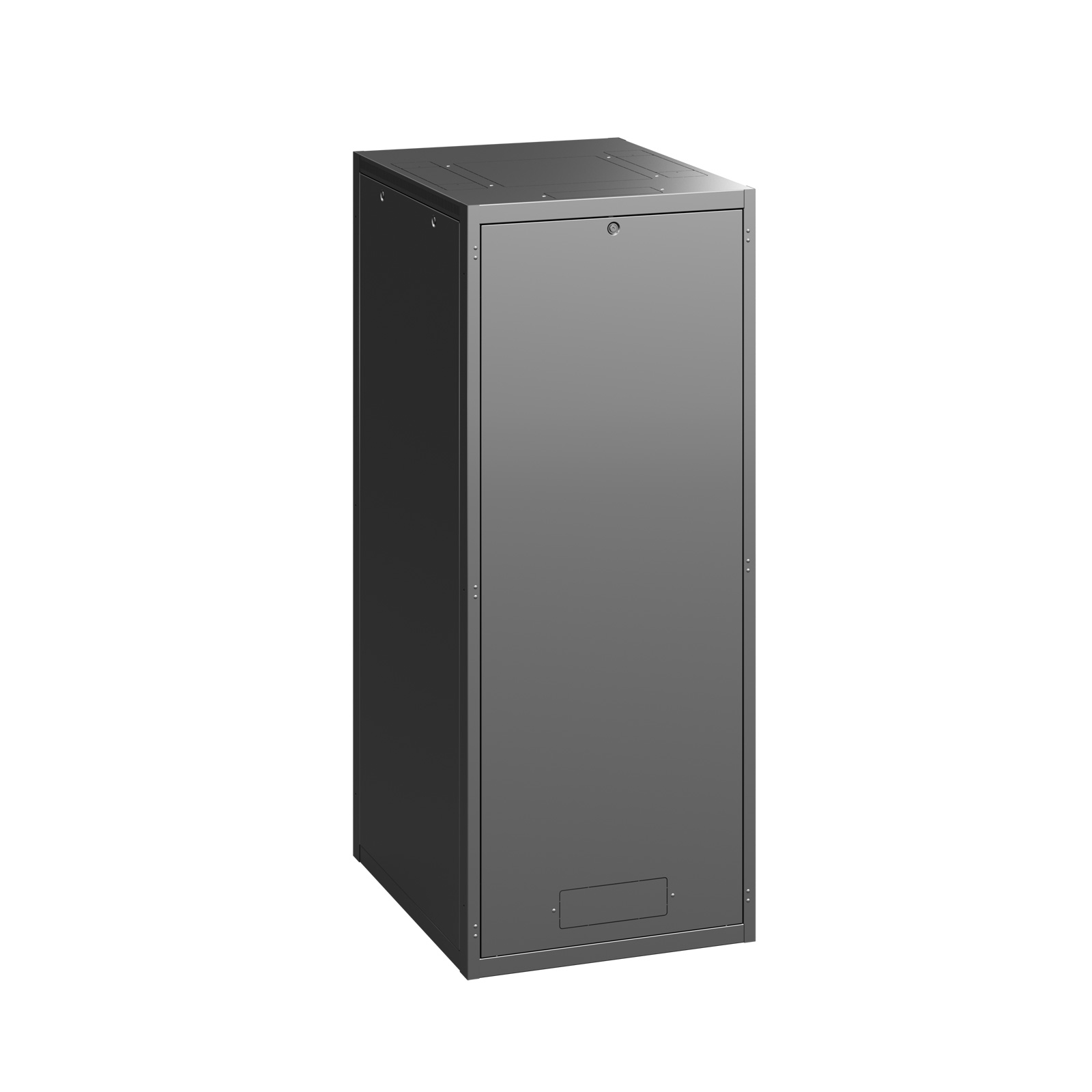

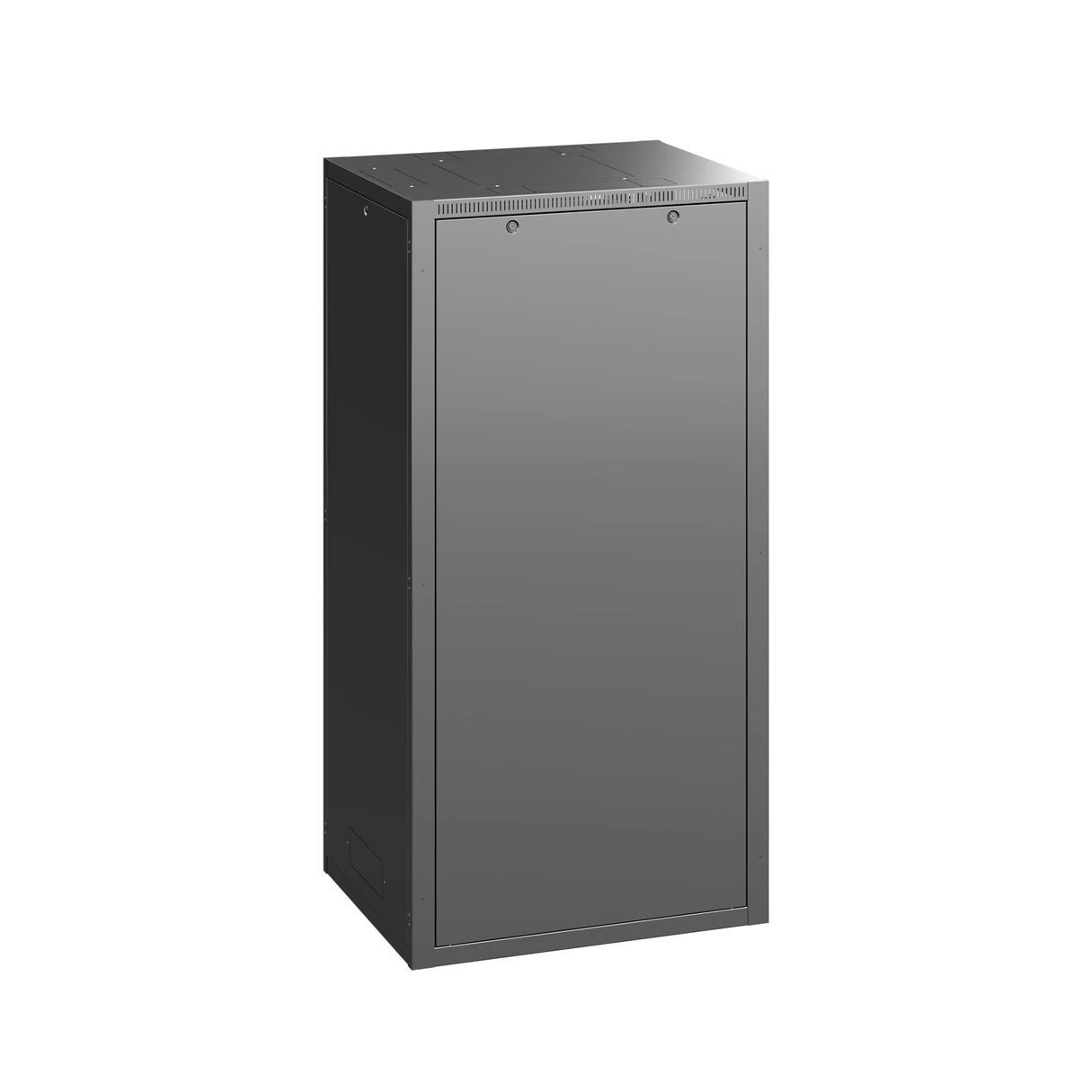

| Portes avant et arriere |

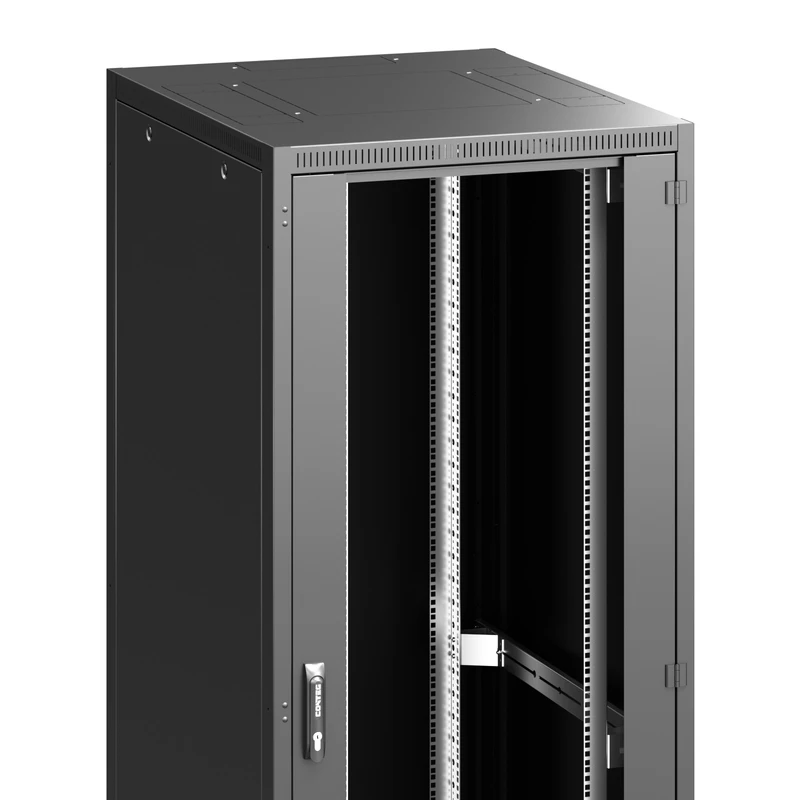

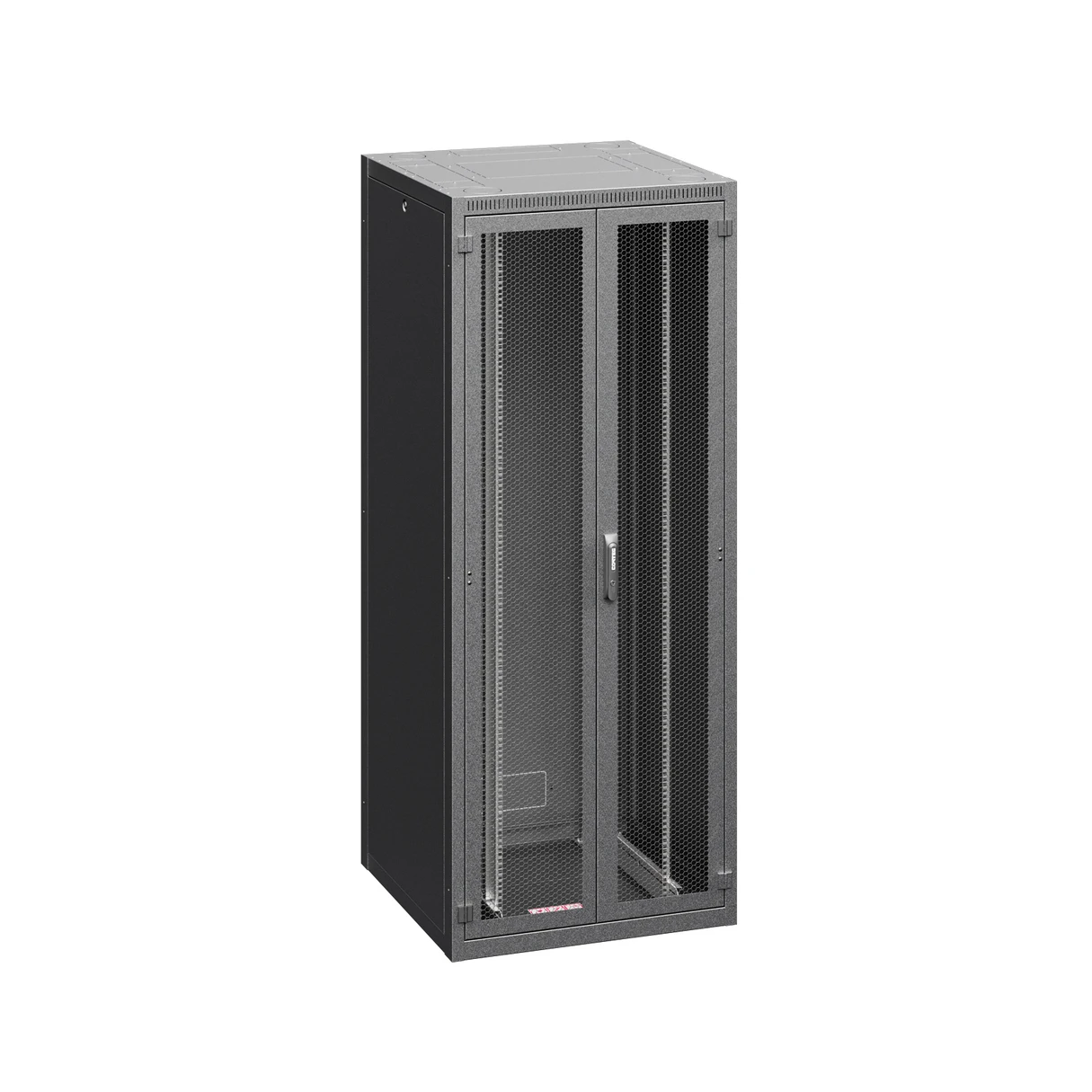

2 types of doors (type G; S) available for front or rear installation and 1 type of rear panel. Door opening angle 180°, opening side easy to flip |
| Panneaux latéraux |
Easily detachable, equipped with a lock |
| Informations techniques |
Other configurations are also available, for more information see the attached Data Sheet The cabinet is delivered unassembled in cardboard boxes. |
| Plateaux supérieurs et inférieurs |

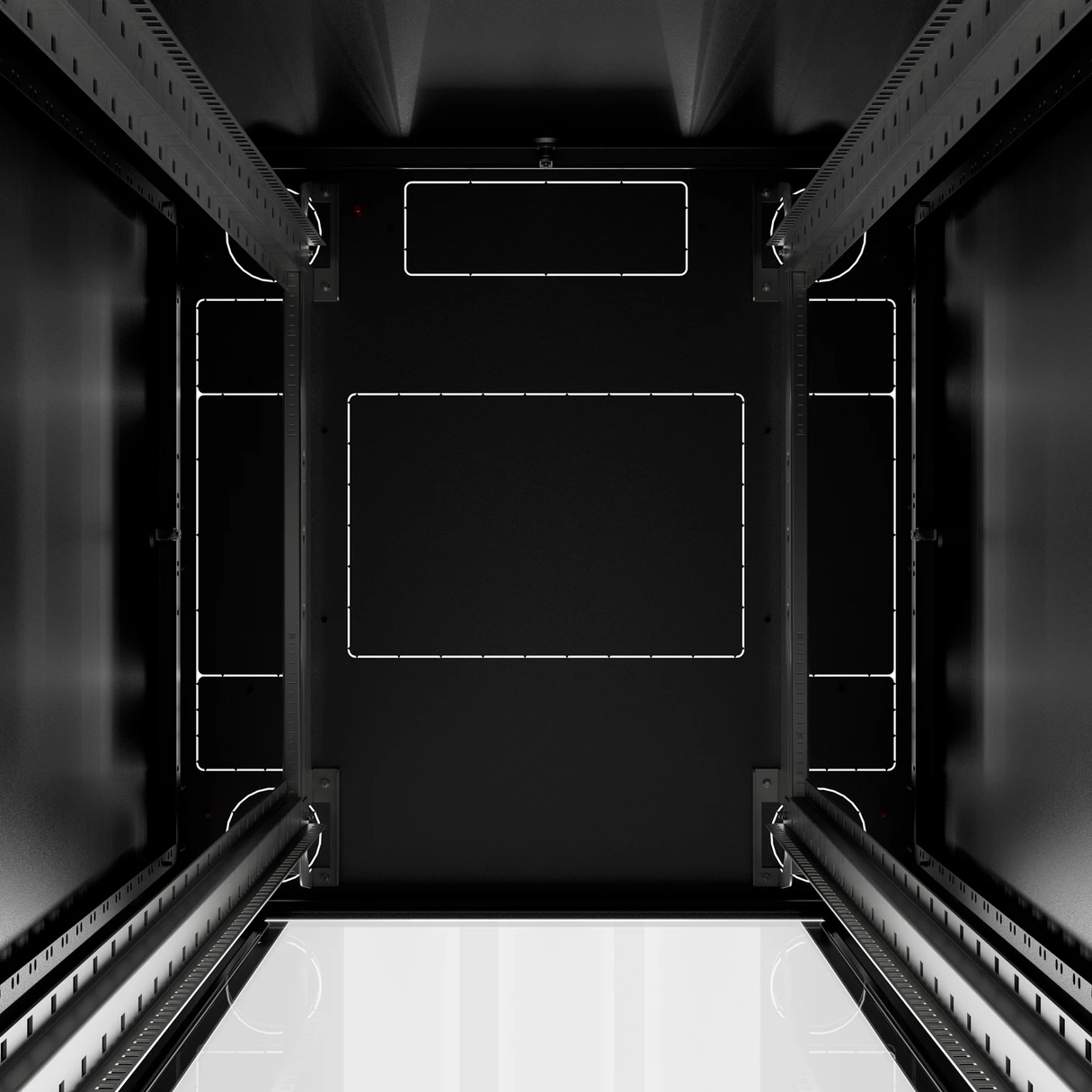

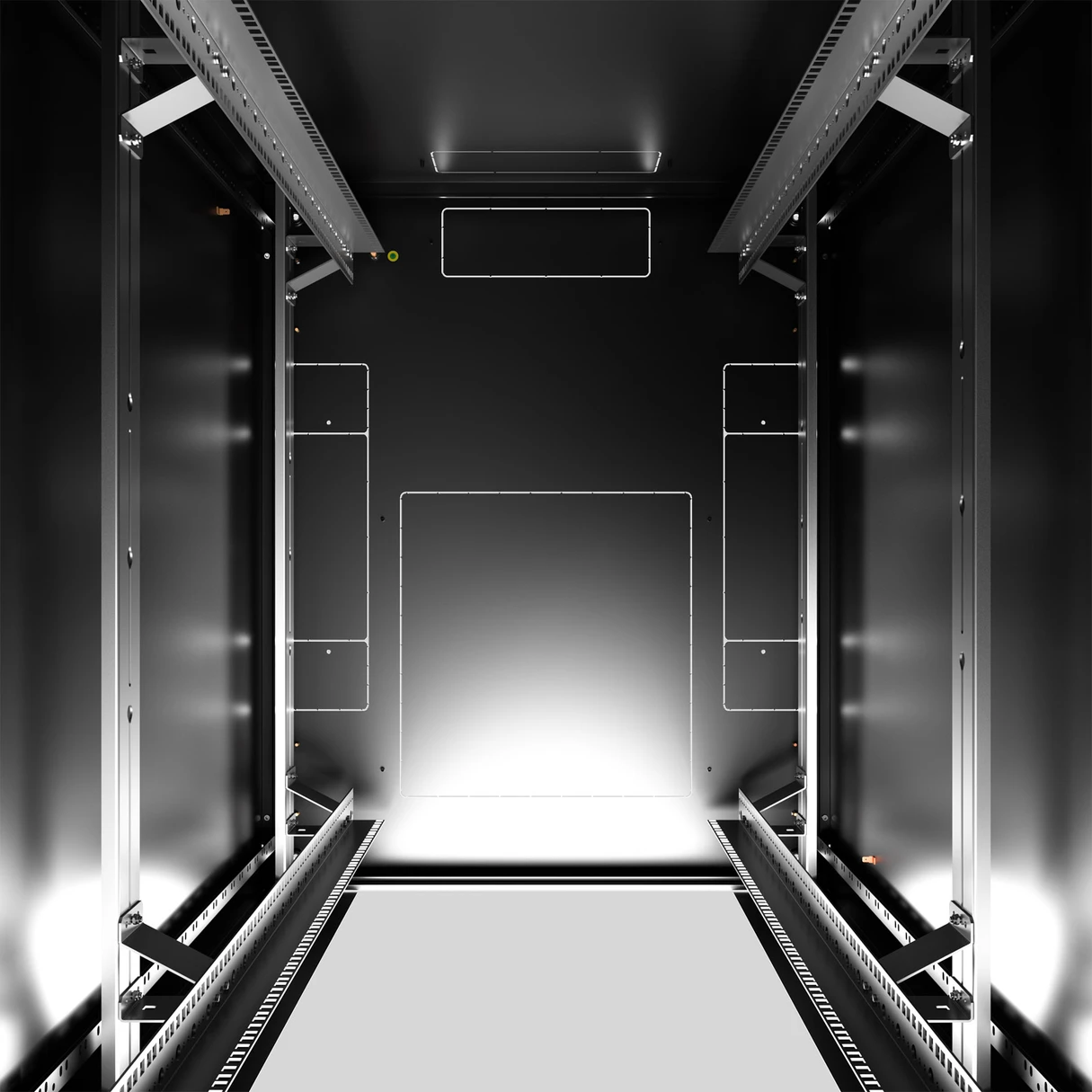

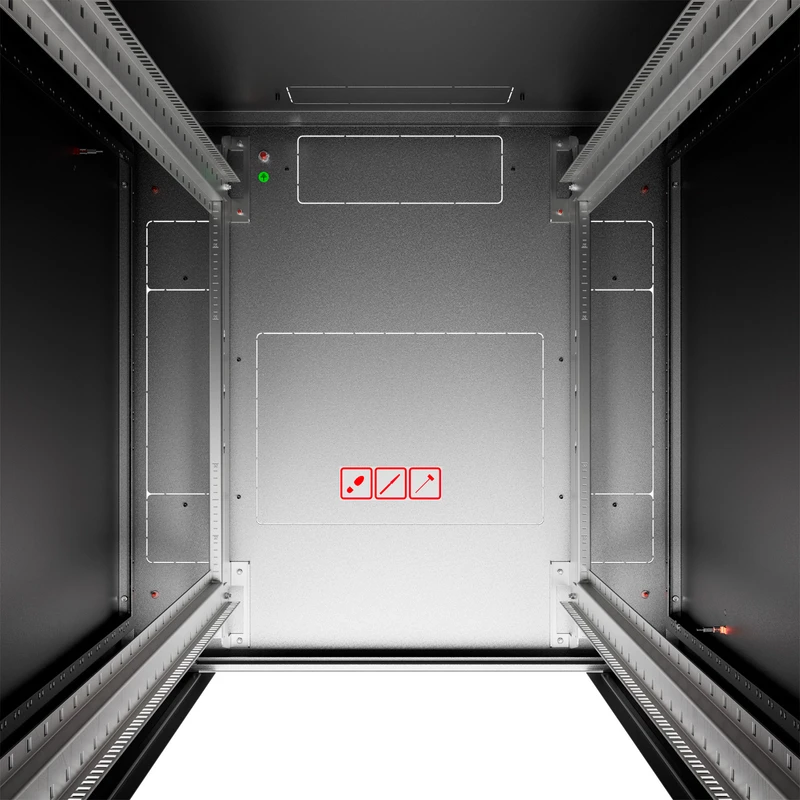

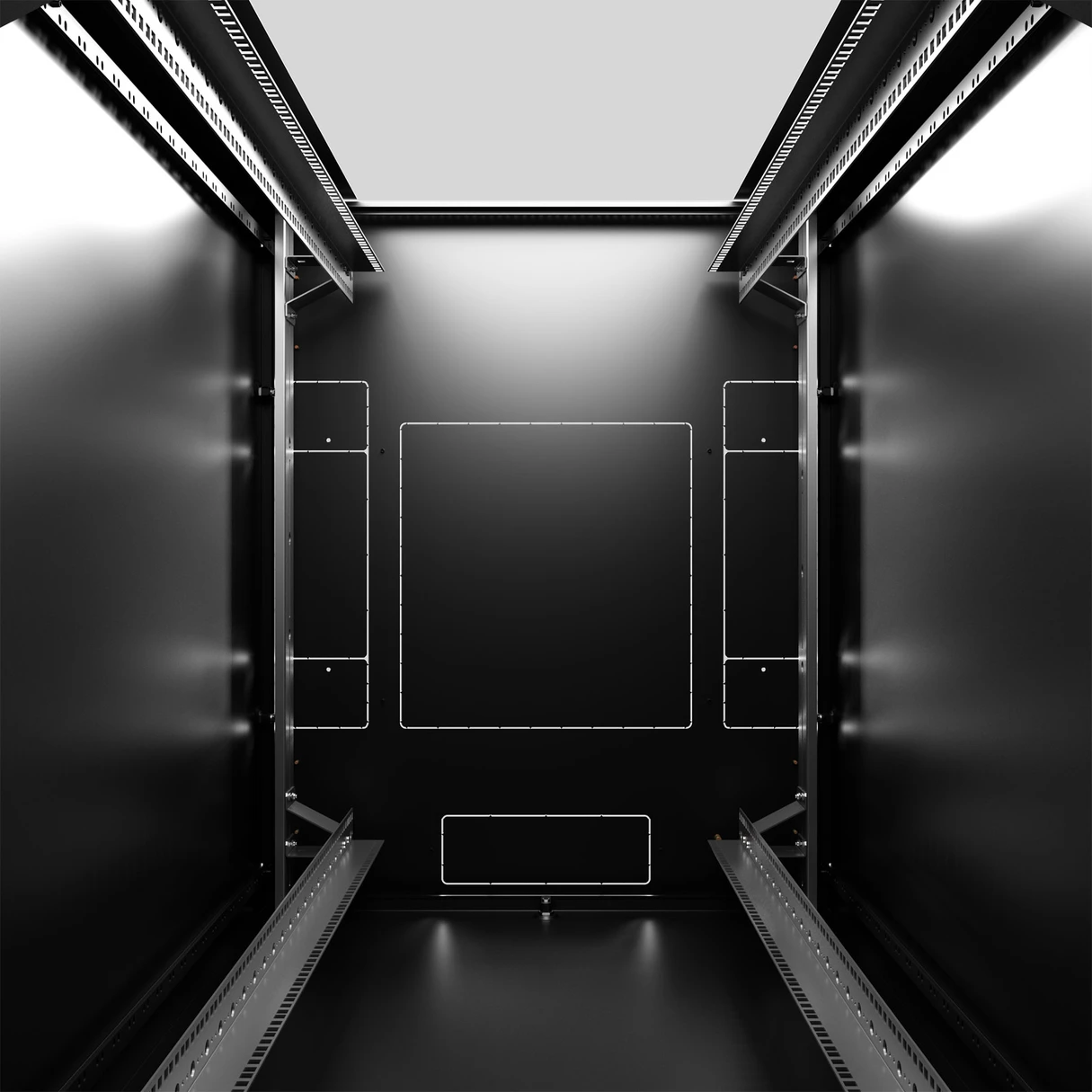

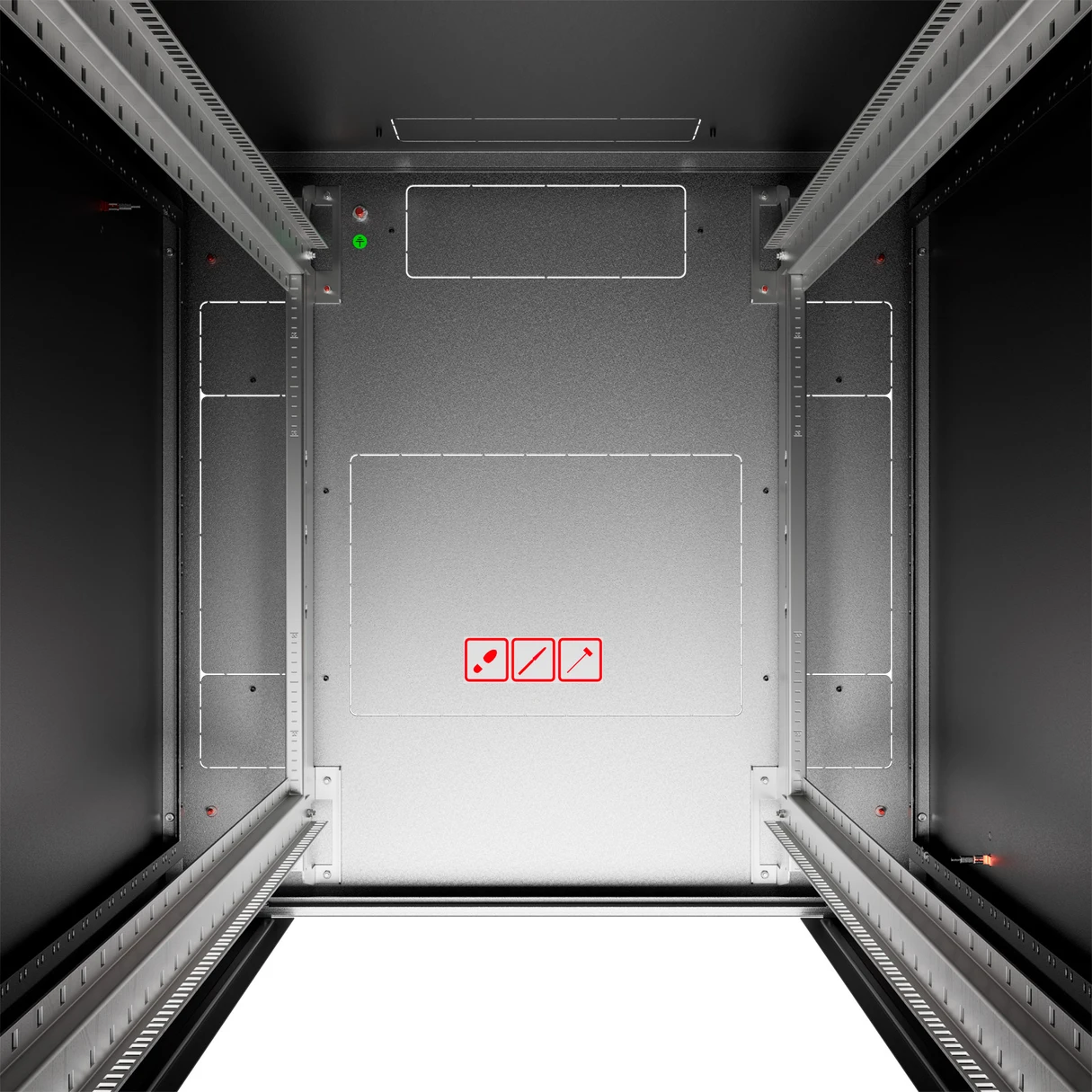

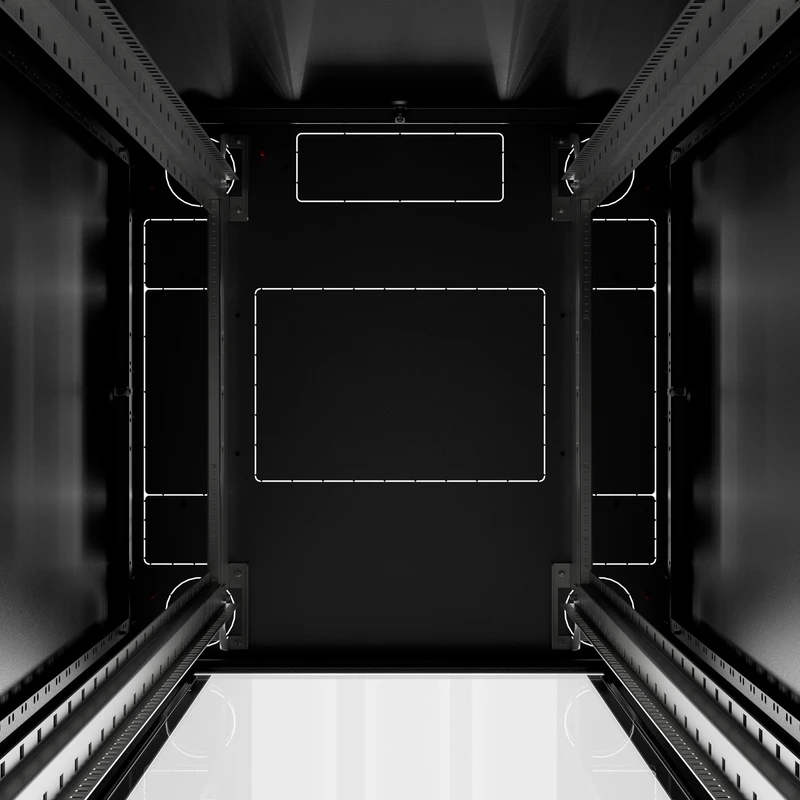

Openings for the ventilation unit and cable inlets, breakout design, the number depends on the base format |
| Indice IP |
IP30 |
| Configuration standard |

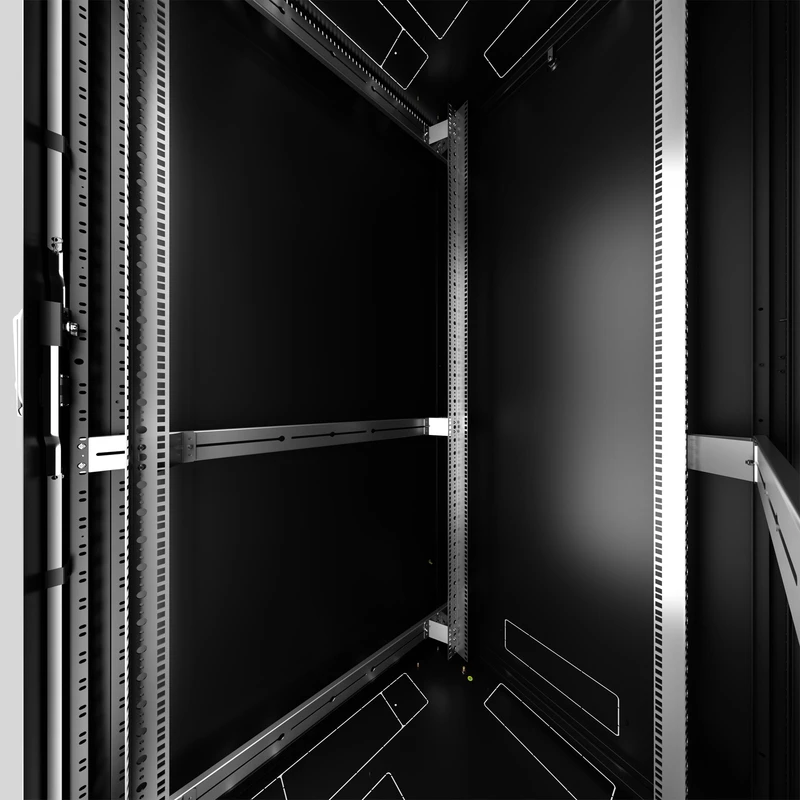

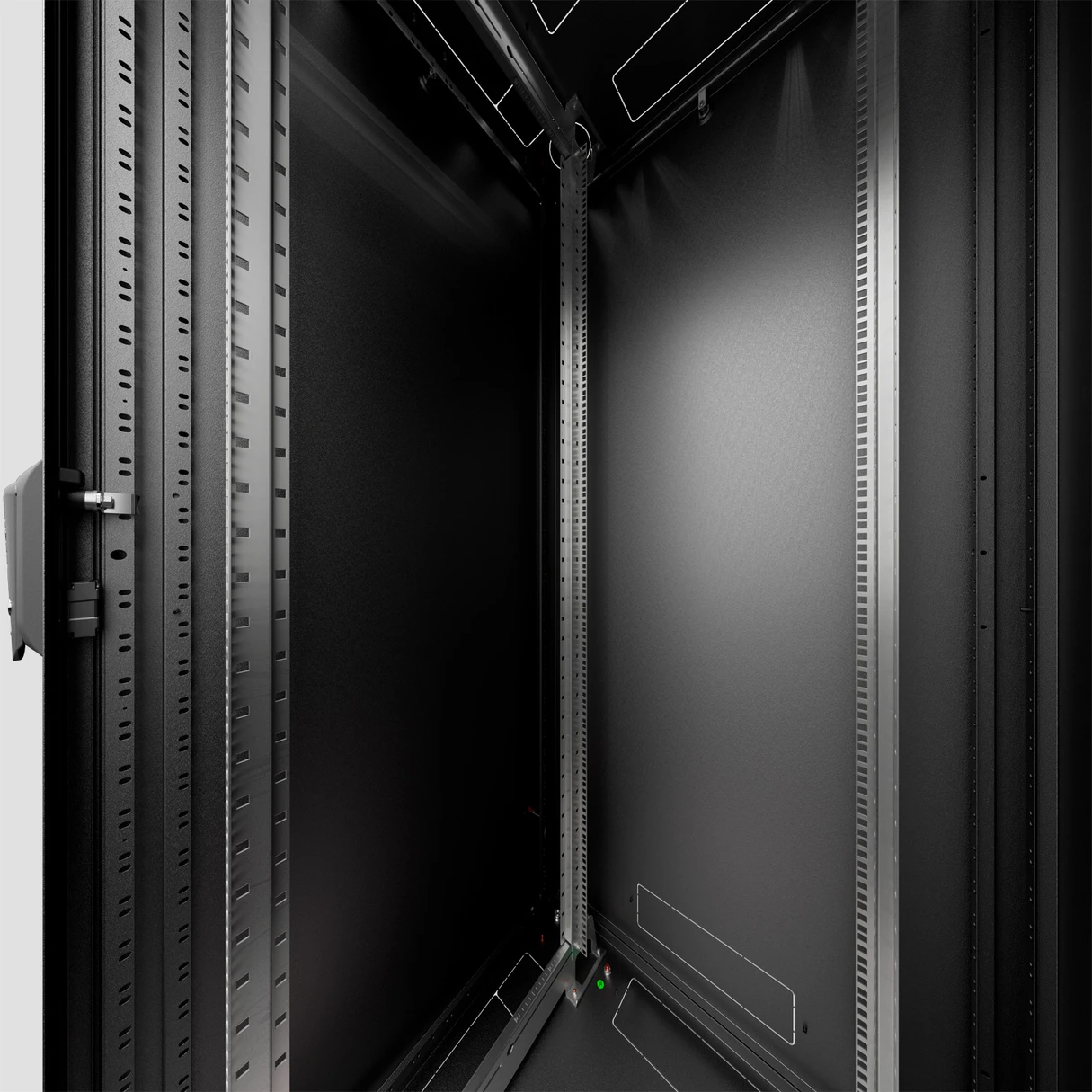

2 pairs of vertical 19"" sliding L-type rails, marking of installation positions including position number |
